Sayfa 4-01 - Isuzu EPC

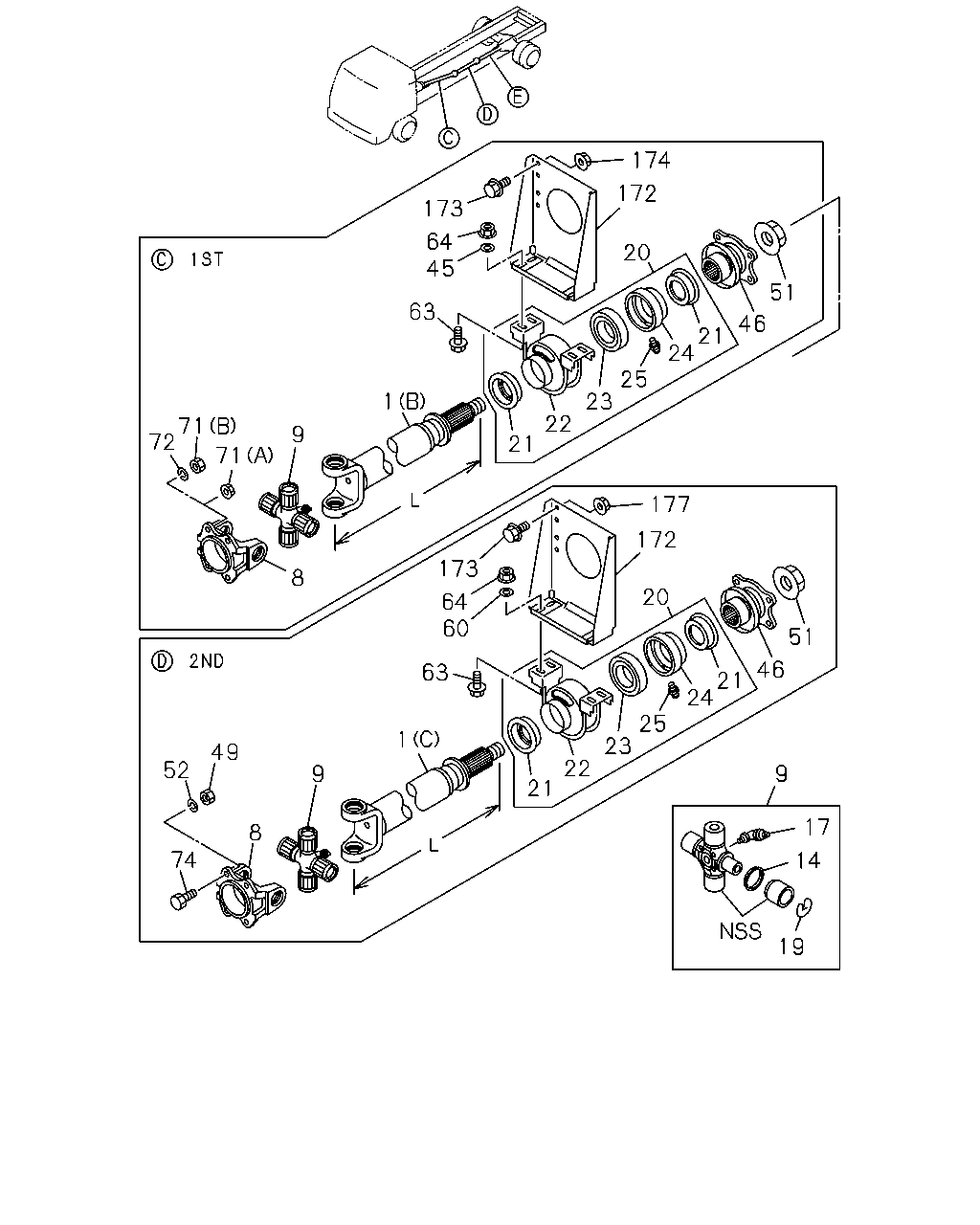

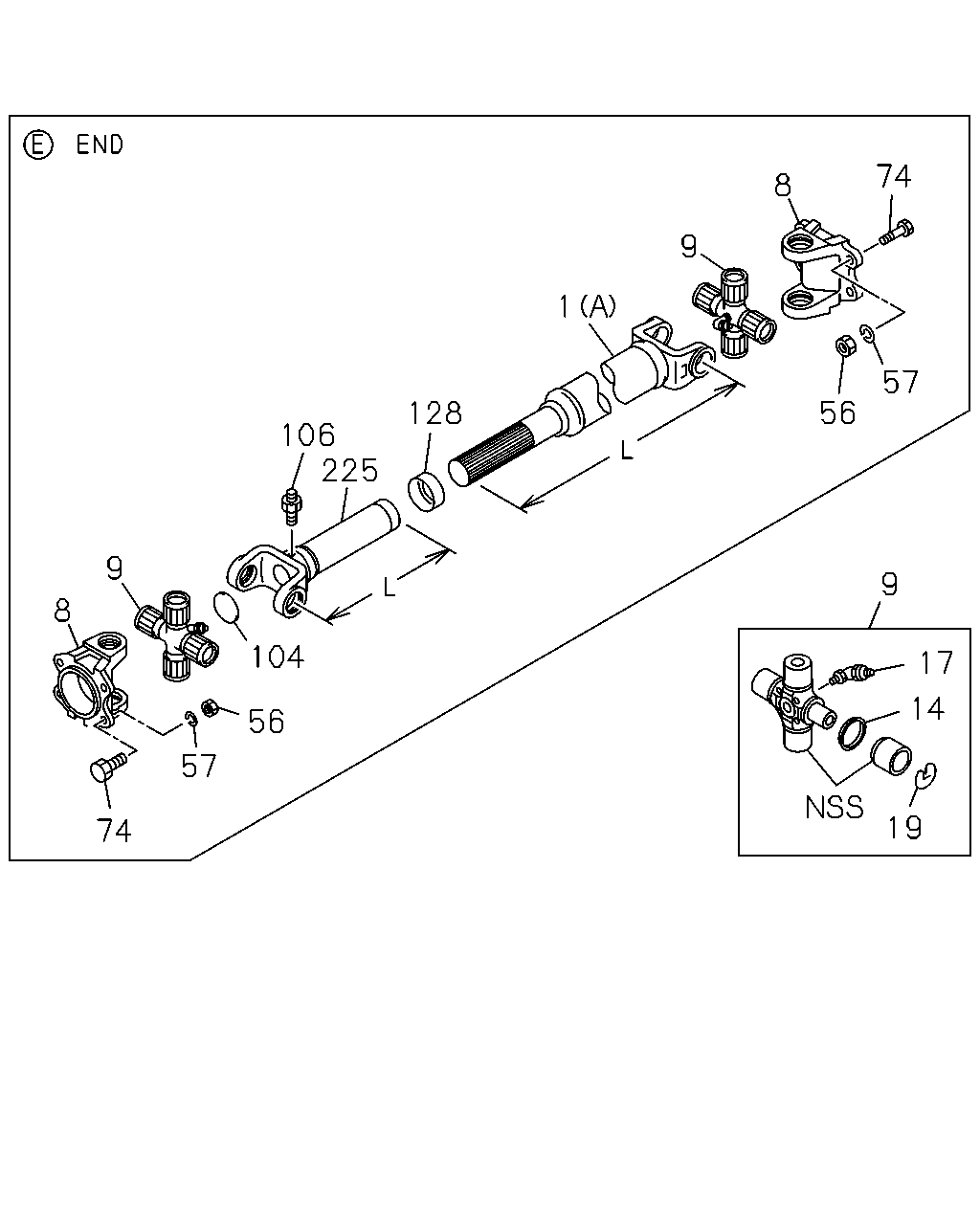

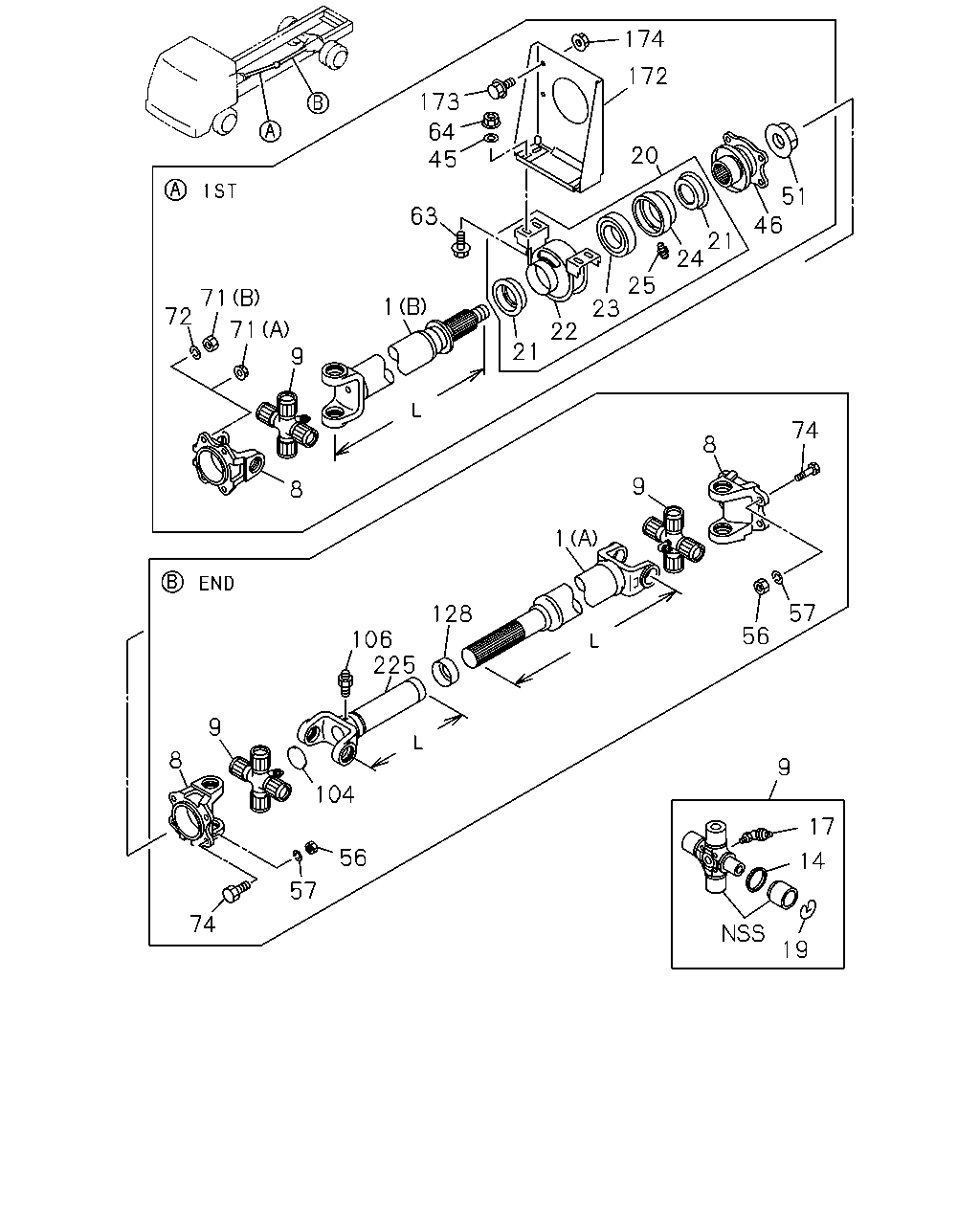

4-01 — PROPELLER SHAFT (#112416) — 418 parça

173 174 64 172 45 63 20 51 46 21 24 25 23 22 21 1 71 72 9 8 8 74 9 1 56 128 57 106 225 9 8 104 56 57 74 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1129	8-98090-930-0	01	1	1406-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1302-1304		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) (A) L=1011	8-98069-699-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (A) L=941	8-98069-671-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1014	8-98069-586-0	01	1	1305-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	1302-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1302-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	1302-			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=859	8-98090-932-0	01	1	1302-1406			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=849	8-98069-584-0	01	1	1302-1406			●
1	SHAFT; PROP (B) L=849	8-98069-584-0	01	1	1407-			●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1084	8-98083-013-0	01	1	1305-			●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1354	8-98212-955-0	01	1	1305-	●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1119	8-98069-589-0	01	1	1302-	●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	1302-				●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (C) L=584	8-98180-201-0	01	1	1305-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	1302-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1305-1405		●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1305-1405				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1406-1406	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1406-1406				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1407-1505	●	●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1407-1505				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1506-		●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1506-				●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1302-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1302-1304		●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1305-1405		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1305-1405				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1406-1406	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1406-1406				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1407-1505	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1407-1505				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	01	1	1506-		●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-1	01	1	1506-				●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1302-1304		●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1302-	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1302-1304		●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-800-0	04	1	1302-1304	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1305-	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS)	8-98020-800-0	04	1	1305-				●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1302-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304		●	●	●
17	NIPPLE; GREASE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1305-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) PT1/8 ELBOW	0-90301-610-0	01	1	1305-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1506-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-881-0	01	1	1506-				●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1302-1304		●	●	●
20	BEARING ASM; CTR,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-881-0	01	1	1302-1304	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1305-1505	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-881-0	01	1	1305-1505				●
20	BEARING ASM; CTR,PROP SHAFT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-881-0	02	1	1506-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1506-	●	●	●	●
21	SEAL; OIL,CENTER BRG 4HK1-TCS ENG(RJS) ID=54	1-09625-161-0	02	1	1506-				●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-1304		●	●	●
21	SEAL; OIL,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=54	1-09625-161-0	02	1	1302-1304	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1305-1505	●	●	●	●
21	SEAL; OIL,CENTER BRG 4HK1-TCS ENG(RJS) ID=54	1-09625-161-0	02	1	1305-1505				●
21	SEAL; OIL,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=54	1-09625-161-0	04	1	1506-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1506-	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCS ENG(RJS)	1-37516-059-0	01	1	1506-				●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-1304		●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37516-059-0	01	1	1302-1304	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1305-1505	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCS ENG(RJS)	1-37516-059-0	01	1	1305-1505				●
22	RUBBER; CUSHION,CENTER BRG,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37516-059-0	02	1	1506-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1506-	●	●	●	●
23	BEARING; CENTER,PROP SHAFT 4HK1-TCS ENG(RJS)	9-00090-071-0	01	1	1506-				●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-1304		●	●	●
23	BEARING; CENTER,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-00090-071-0	01	1	1302-1304	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1305-1505	●	●	●	●
23	BEARING; CENTER,PROP SHAFT 4HK1-TCS ENG(RJS)	9-00090-071-0	01	1	1305-1505				●
23	BEARING; CENTER,PROP SHAFT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-00090-071-0	02	1	1506-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1506-	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS)	8-98020-882-0	01	1	1506-				●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1302-1304		●	●	●
24	RETAINER; CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-882-0	01	1	1302-1304	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1305-1505	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS)	8-98020-882-0	01	1	1305-1505				●
24	RETAINER; CENTER BRG,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-882-0	02	1	1506-	●
25	NIPPLE; GREASE,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	02	1	1506-	●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1302-	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1302-1304		●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1406-1406	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1406-1406				●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1407-1505	●	●		●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1407-1505				●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1506-		●		●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1506-				●
25	NIPPLE; GREASE,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1305-		●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS) 2ND	8-98020-889-0	01	1	1305-				●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1506-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS)	8-98020-815-0	01	1	1506-				●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1302-1304		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-815-0	01	1	1302-1304	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1305-1505	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS)	8-98020-815-0	01	1	1305-1505				●
46	FLANGE; SPLINED,PROP SHAFT,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-815-0	02	1	1506-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1506-	●	●	●	●
51	NUT; FLANGE,SPLINED 4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	1506-				●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-1304		●	●	●
51	NUT; FLANGE,SPLINED EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30	8-97160-857-0	01	1	1302-1304	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1305-1505	●	●	●	●
51	NUT; FLANGE,SPLINED 4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	1305-1505				●
51	NUT; FLANGE,SPLINED 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30	8-97160-857-0	02	1	1506-	●
56	NUT; YOKE M14	0-91110-514-0	08	1	1302-	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1302-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-1304	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1305-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28651-035-0	04	1	1305-				●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1305-	●	●	●	●
64	NUT; RET TO BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	04	1	1305-				●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1302-1409	●	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1410-1505	●	●		●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1506-	●	●	●	●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	1302-1505	●	●	●	●
71	NUT; YOKE PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE	1-09449-065-0	04	1	1506-	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1302-1409	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1410-1505	●	●		●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1506-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1302-1405	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1406-1505				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1506-	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1305-1405				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1406-1505	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1506-				●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1302-	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1302-	●	●	●	●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	8-98084-677-0	01	1	1305-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	8-98230-006-0	01	1	1302-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	8-98084-678-0	01	1	1302-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	1302-1304	●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	1-37515-071-2	01	1	1305-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	1305-	●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 2ND	1-37515-074-1	01	1	1305-				●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	1-37515-102-0	01	1	1305-				●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	1-37515-136-0	01	1	1302-				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-1304	●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1305-1311	●	●	●	●
173	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X25 FLANGE	0-28651-025-0	04	1	1305-1311				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1312-1408	●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1312-1408				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1409-	●	●	●	●
173	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X25 FLANGE	0-28651-025-0	04	1	1409-				●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1302-	●	●	●	●

74 8 57 56 9 1 128 225 106 104 56 57 74 8 9 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1129	8-98090-930-0	01	1	1406-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1302-1304		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) (A) L=1011	8-98069-699-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (A) L=941	8-98069-671-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1014	8-98069-586-0	01	1	1305-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	1302-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1302-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	1302-			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=859	8-98090-932-0	01	1	1302-1406			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=849	8-98069-584-0	01	1	1302-1406			●
1	SHAFT; PROP (B) L=849	8-98069-584-0	01	1	1407-			●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1084	8-98083-013-0	01	1	1305-			●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1354	8-98212-955-0	01	1	1305-	●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1119	8-98069-589-0	01	1	1302-	●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	1302-				●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (C) L=584	8-98180-201-0	01	1	1305-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	1302-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1305-1405		●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1305-1405				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1406-1406	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1406-1406				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1407-1505	●	●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1407-1505				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1506-		●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1506-				●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1302-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1302-1304		●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1305-1405		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1305-1405				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1406-1406	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1406-1406				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1407-1505	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1407-1505				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	01	1	1506-		●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-1	01	1	1506-				●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1302-1304		●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1302-	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1302-1304		●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-800-0	04	1	1302-1304	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1305-	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS)	8-98020-800-0	04	1	1305-				●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1302-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304		●	●	●
17	NIPPLE; GREASE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1305-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) PT1/8 ELBOW	0-90301-610-0	01	1	1305-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●	●
56	NUT; YOKE M14	0-91110-514-0	08	1	1302-	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1302-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1302-1405	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1406-1505				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1506-	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1305-1405				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1406-1505	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1506-				●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1302-	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1302-	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1302-	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1302-	●	●	●	●

174 172 20 51 46 21 24 25 23 22 21 173 45 64 63 1 9 71 71 72 8 173 177 172 20 51 46 21 24 25 23 22 21 64 63 1 9 49 52 8 74 9 17 14 19 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1129	8-98090-930-0	01	1	1406-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1302-1304		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) (A) L=1011	8-98069-699-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (A) L=941	8-98069-671-0	01	1	1305-		●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1014	8-98069-586-0	01	1	1305-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	1302-		●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1302-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	1302-			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=859	8-98090-932-0	01	1	1302-1406			●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=849	8-98069-584-0	01	1	1302-1406			●
1	SHAFT; PROP (B) L=849	8-98069-584-0	01	1	1407-			●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1084	8-98083-013-0	01	1	1305-			●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1302-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (B) L=1354	8-98212-955-0	01	1	1305-	●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1119	8-98069-589-0	01	1	1302-	●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	1302-				●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) (C) L=584	8-98180-201-0	01	1	1305-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	1302-				●
1	SHAFT; PROP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1302-				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1305-1405		●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1305-1405				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1406-1406	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1406-1406				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1407-1505	●	●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1407-1505				●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	1506-		●		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) 1ST,2ND	1-37211-056-3	01	1	1506-				●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1302-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-056-3	01	1	1302-1304		●	●	●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1305-1405		●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1305-1405				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1406-1406	●	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1406-1406				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1407-1505	●	●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-0	01	1	1407-1505				●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	01	1	1506-		●		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98048-925-1	01	1	1506-				●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1302-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-0	01	1	1302-1304		●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	02	1	1302-	●	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1302-1304		●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-800-0	04	1	1302-1304	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1305-	●	●	●	●
14	COVER; DUST,SPIDER 4HK1-TCS ENG(RJS)	8-98020-800-0	04	1	1305-				●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1302-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304		●	●	●
17	NIPPLE; GREASE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-1304	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1305-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) PT1/8 ELBOW	0-90301-610-0	01	1	1305-				●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304		●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1302-1304	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1305-				●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1302-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1302-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1506-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-881-0	01	1	1506-				●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1302-1304		●	●	●
20	BEARING ASM; CTR,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-881-0	01	1	1302-1304	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1305-1505	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-881-0	01	1	1305-1505				●
20	BEARING ASM; CTR,PROP SHAFT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-881-0	02	1	1506-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1506-	●	●	●	●
21	SEAL; OIL,CENTER BRG 4HK1-TCS ENG(RJS) ID=54	1-09625-161-0	02	1	1506-				●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1302-1304		●	●	●
21	SEAL; OIL,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=54	1-09625-161-0	02	1	1302-1304	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1305-1505	●	●	●	●
21	SEAL; OIL,CENTER BRG 4HK1-TCS ENG(RJS) ID=54	1-09625-161-0	02	1	1305-1505				●
21	SEAL; OIL,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=54	1-09625-161-0	04	1	1506-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1506-	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCS ENG(RJS)	1-37516-059-0	01	1	1506-				●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1302-1304		●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37516-059-0	01	1	1302-1304	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1305-1505	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCS ENG(RJS)	1-37516-059-0	01	1	1305-1505				●
22	RUBBER; CUSHION,CENTER BRG,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37516-059-0	02	1	1506-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1506-	●	●	●	●
23	BEARING; CENTER,PROP SHAFT 4HK1-TCS ENG(RJS)	9-00090-071-0	01	1	1506-				●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1302-1304		●	●	●
23	BEARING; CENTER,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-00090-071-0	01	1	1302-1304	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1305-1505	●	●	●	●
23	BEARING; CENTER,PROP SHAFT 4HK1-TCS ENG(RJS)	9-00090-071-0	01	1	1305-1505				●
23	BEARING; CENTER,PROP SHAFT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-00090-071-0	02	1	1506-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1506-	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS)	8-98020-882-0	01	1	1506-				●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1302-1304		●	●	●
24	RETAINER; CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-882-0	01	1	1302-1304	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1305-1505	●	●	●	●
24	RETAINER; CENTER BRG,1ST 4HK1-TCS ENG(RJS)	8-98020-882-0	01	1	1305-1505				●
24	RETAINER; CENTER BRG,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-882-0	02	1	1506-	●
25	NIPPLE; GREASE,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	02	1	1506-	●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	1302-	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1302-1304		●	●	●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1406-1406	●	●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1406-1406				●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1407-1505	●	●		●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1407-1505				●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-889-0	01	1	1506-		●		●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS)	8-98020-889-0	01	1	1506-				●
25	NIPPLE; GREASE,CENTER BRG 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98020-889-0	01	1	1305-		●	●	●
25	NIPPLE; GREASE,CENTER BRG 4HK1-TCS ENG(RJS) 2ND	8-98020-889-0	01	1	1305-				●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1506-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS)	8-98020-815-0	01	1	1506-				●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1302-1304		●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-815-0	01	1	1302-1304	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1305-1505	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST 4HK1-TCS ENG(RJS)	8-98020-815-0	01	1	1305-1505				●
46	FLANGE; SPLINED,PROP SHAFT,1ST 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98020-815-0	02	1	1506-	●
49	NUT; YOKE 4HK1-TCS ENG(RJS) M14	0-91110-514-0	04	1	1305-				●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1506-	●	●	●	●
51	NUT; FLANGE,SPLINED 4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	1506-				●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1302-1304		●	●	●
51	NUT; FLANGE,SPLINED EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30	8-97160-857-0	01	1	1302-1304	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1305-1505	●	●	●	●
51	NUT; FLANGE,SPLINED 4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	1305-1505				●
51	NUT; FLANGE,SPLINED 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30	8-97160-857-0	02	1	1506-	●
52	WASHER; LK,YOKE 4HK1-TCS ENG(RJS) ID=14.2	0-91510-614-0	04	1	1305-				●
60	WASHER; PL,RET TO BRKT 4HK1-TCS ENG(RJS) ID=10.5 OD=22	0-91614-610-0	04	1	1305-				●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1302-1304	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1305-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST 4HK1-TCS ENG(RJS) M10X35 FLANGE	0-28651-035-0	04	1	1305-				●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1302-1304	●	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1305-	●	●	●	●
64	NUT; RET TO BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	04	1	1305-				●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1302-1409	●	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1410-1505	●	●		●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	1506-	●	●	●	●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	1302-1505	●	●	●	●
71	NUT; YOKE PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE	1-09449-065-0	04	1	1506-	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1302-1409	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1410-1505	●	●		●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	1506-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1302-1405	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1406-1505				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1506-	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1305-1405				●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1406-1505	●	●	●	●
74	BOLT; YOKE,TRANS 4HK1-TCS ENG(RJS) M14X37	1-09000-121-0	04	1	1506-				●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	8-98084-677-0	01	1	1305-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	8-98230-006-0	01	1	1302-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	8-98084-678-0	01	1	1302-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	1302-1304	●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	1-37515-071-2	01	1	1305-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	1305-	●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 2ND	1-37515-074-1	01	1	1305-				●
172	BRACKET; CENTER BRG 4HK1-TCS ENG(RJS) 1ST	1-37515-102-0	01	1	1305-				●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) 1ST	1-37515-136-0	01	1	1302-				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1302-1304	●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1305-1311	●	●	●	●
173	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X25 FLANGE	0-28651-025-0	04	1	1305-1311				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1312-1408	●	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1312-1408				●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1409-	●	●	●	●
173	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X25 FLANGE	0-28651-025-0	04	1	1409-				●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1302-	●	●	●	●
177	NUT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	04	1	1305-1311				●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1312-1408				●
177	NUT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	04	1	1409-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
