4-01 — PROPELLER SHAFT (#112415) — 840 parça

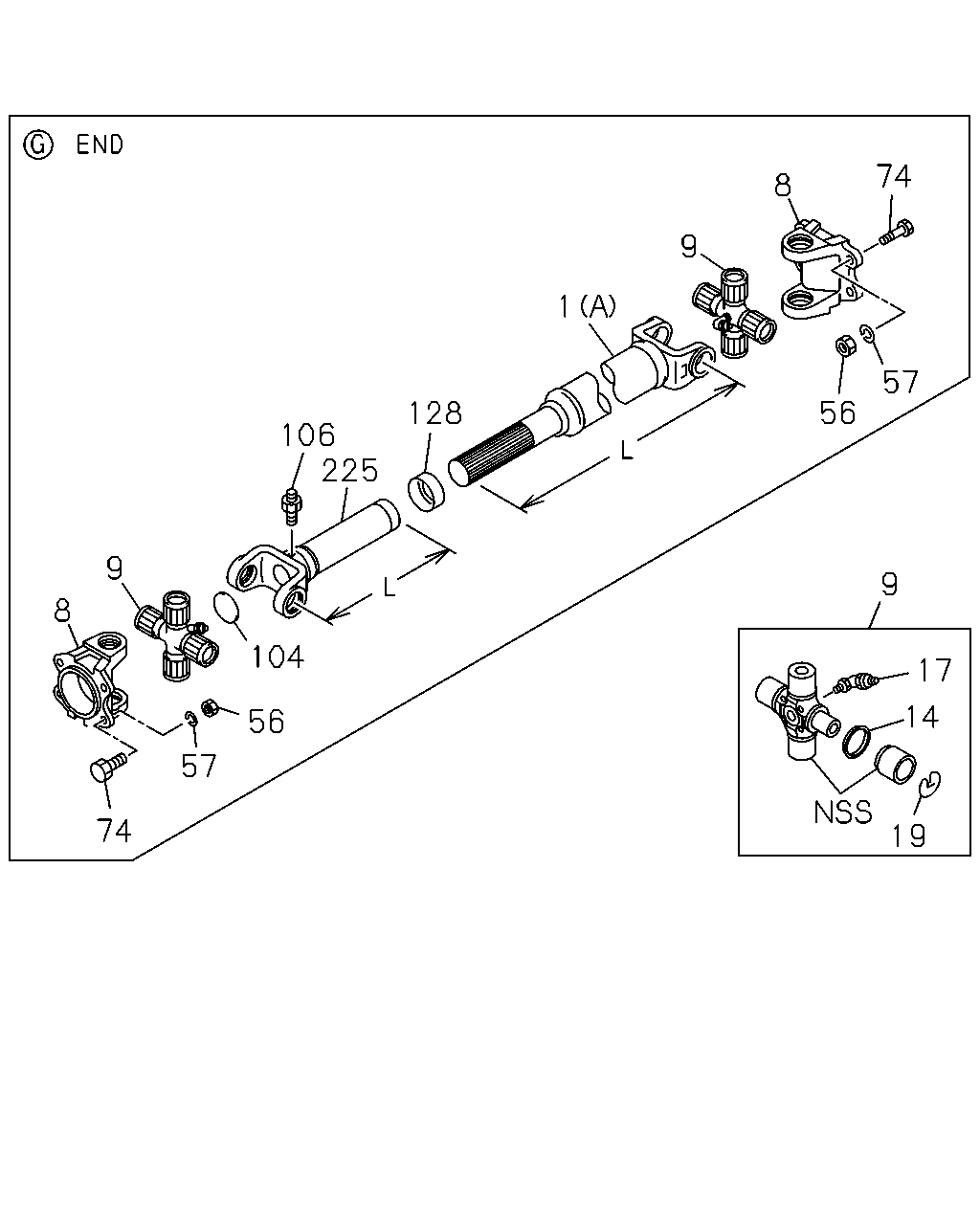

çizim 328399
74 8 9 1 128 106 9 8 74 57 104 56 57 56 9 17 14 19 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=789 		8-98069-581-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=684 		8-98208-718-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1179 		8-98069-574-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1031 		8-98069-673-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1159 		8-98105-705-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1302- ● ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1399 		8-98069-578-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (C) L=974 		8-98069-610-0 01 1 1302-1409 ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=829 		8-98113-452-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98178-052-0 01 1 1410- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1302- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) 1ST 		1-37211-056-3 01 1 1302- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 1ST 		1-37211-056-3 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) 2ND 		1-37211-056-3 01 1 1302- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 AR 1 1410- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 AR 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 01 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) 		8-98048-925-0 01 1 1302-1409 ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 12 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1302- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ● ●
104 PLUG; SLEEVE YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ● ●
128 SEAL; SLEEVE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ●

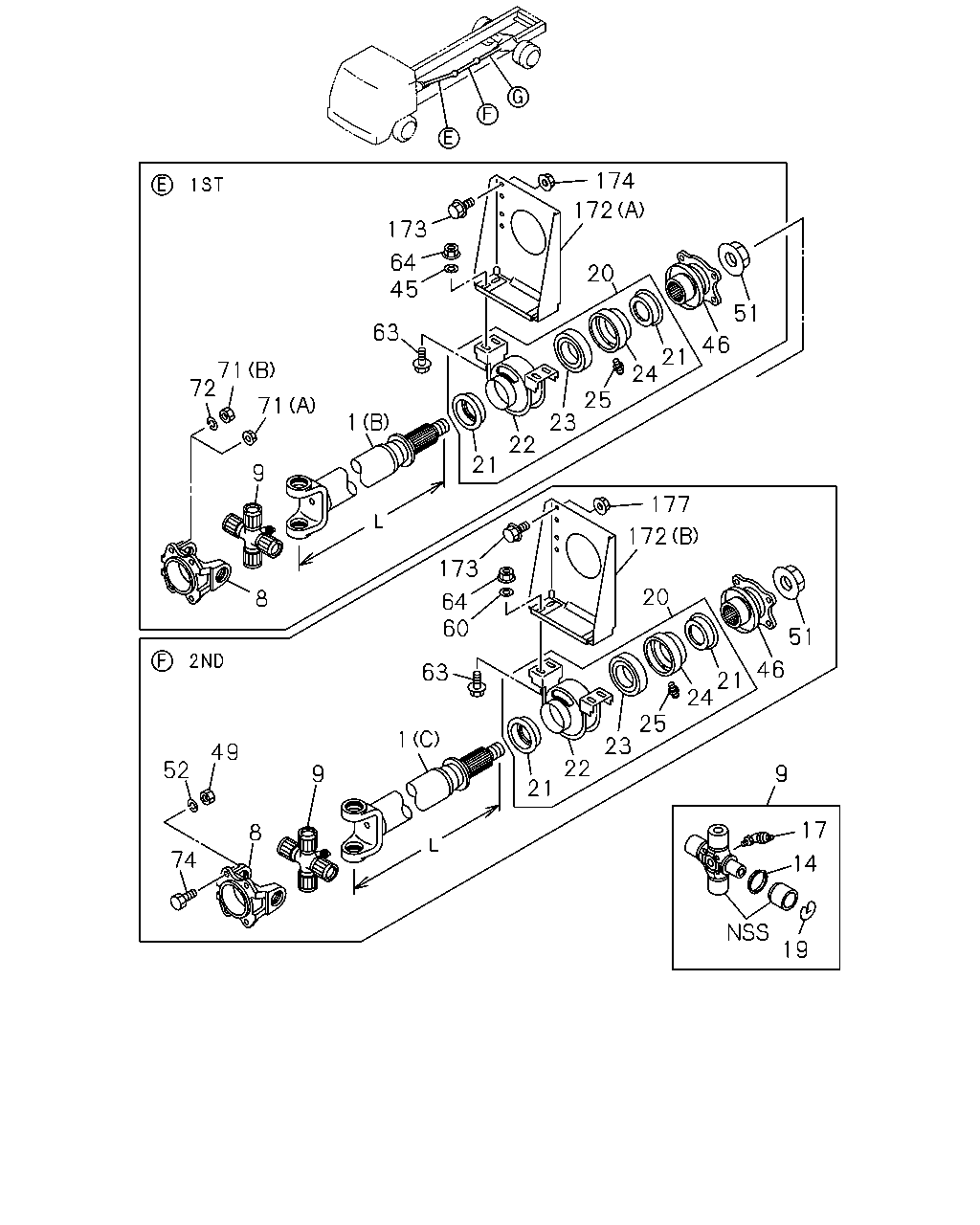

çizim 331766
71 72 71 9 8 173 64 45 63 1 174 172 20 21 22 23 25 24 21 46 51 52 49 74 8 9 1 63 60 64 173 177 172 20 21 22 23 25 24 21 46 51 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=789 		8-98069-581-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=684 		8-98208-718-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1179 		8-98069-574-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1031 		8-98069-673-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1159 		8-98105-705-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1302- ● ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1399 		8-98069-578-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (C) L=974 		8-98069-610-0 01 1 1302-1409 ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=829 		8-98113-452-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98178-052-0 01 1 1410- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1302- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) 1ST 		1-37211-056-3 01 1 1302- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 1ST 		1-37211-056-3 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) 2ND 		1-37211-056-3 01 1 1302- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 AR 1 1410- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 AR 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 01 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) 		8-98048-925-0 01 1 1302-1409 ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 12 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1-TCN ENG(82L) 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
6HK1-TCN ENG(82L) ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HK1-TCN ENG(82L) 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HK1-TCN ENG(82L) 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST
6HK1-TCN ENG(82L) 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) 		8-98020-889-0 01 1 1302-1409 ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1-TCN ENG(82L) 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1302- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
6HK1-TCN ENG(82L) M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302-1405 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE 		1-09449-065-0 04 1 1302- ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) (B) M14 		0-91110-514-0 04 1 1302- ● ● ● ●
72 WASHER; LK,YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 04 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-122-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-122-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-120-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-077-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-119-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-118-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-37515-121-0 01 1 1302- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1302- ●

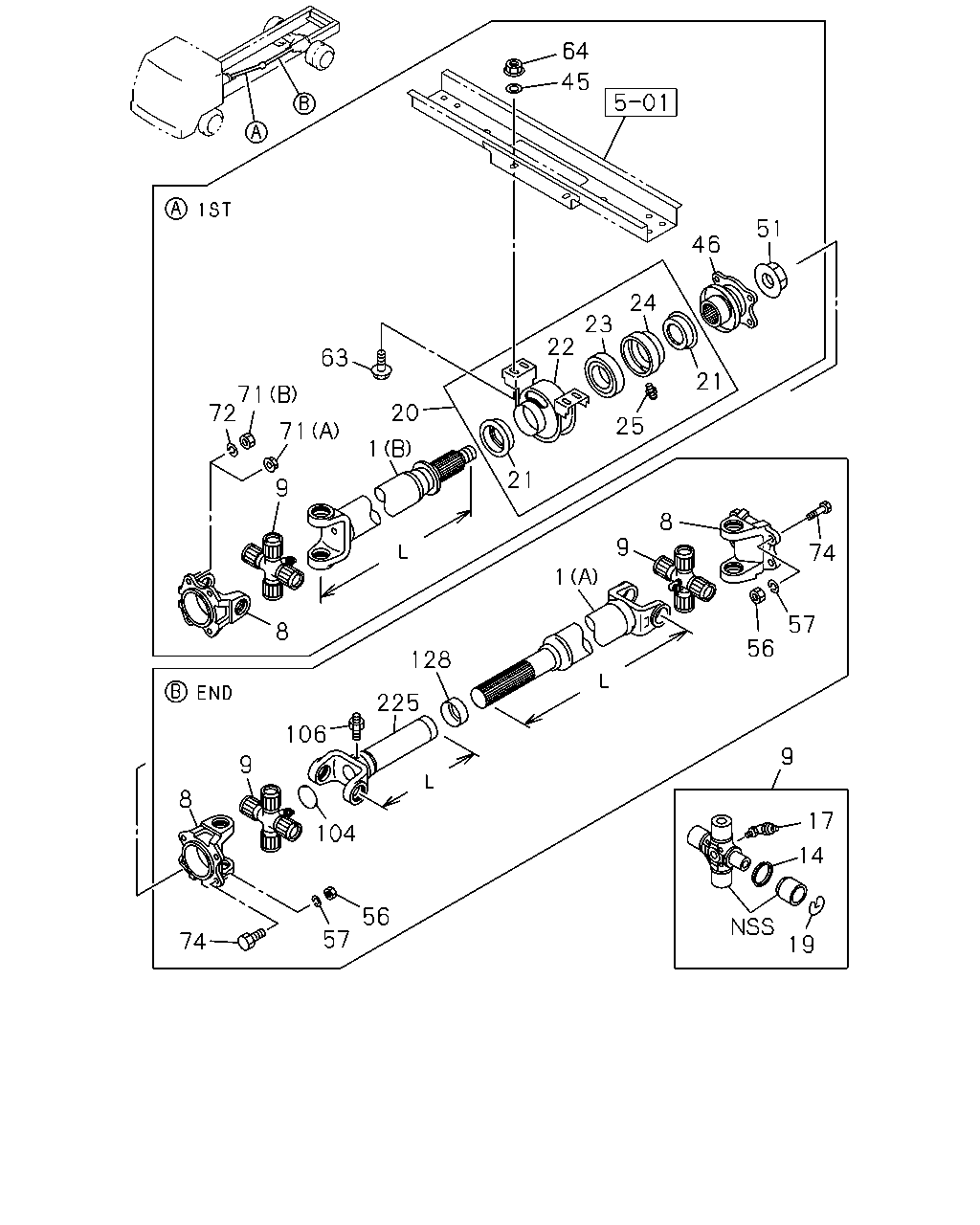

çizim 331790
9 19 14 17 56 57 74 8 9 106 225 128 9 8 71 72 71 1 20 63 64 45 21 22 23 24 25 21 46 51 1 104 9 8 56 57 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=789 		8-98069-581-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=684 		8-98208-718-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1302- ●

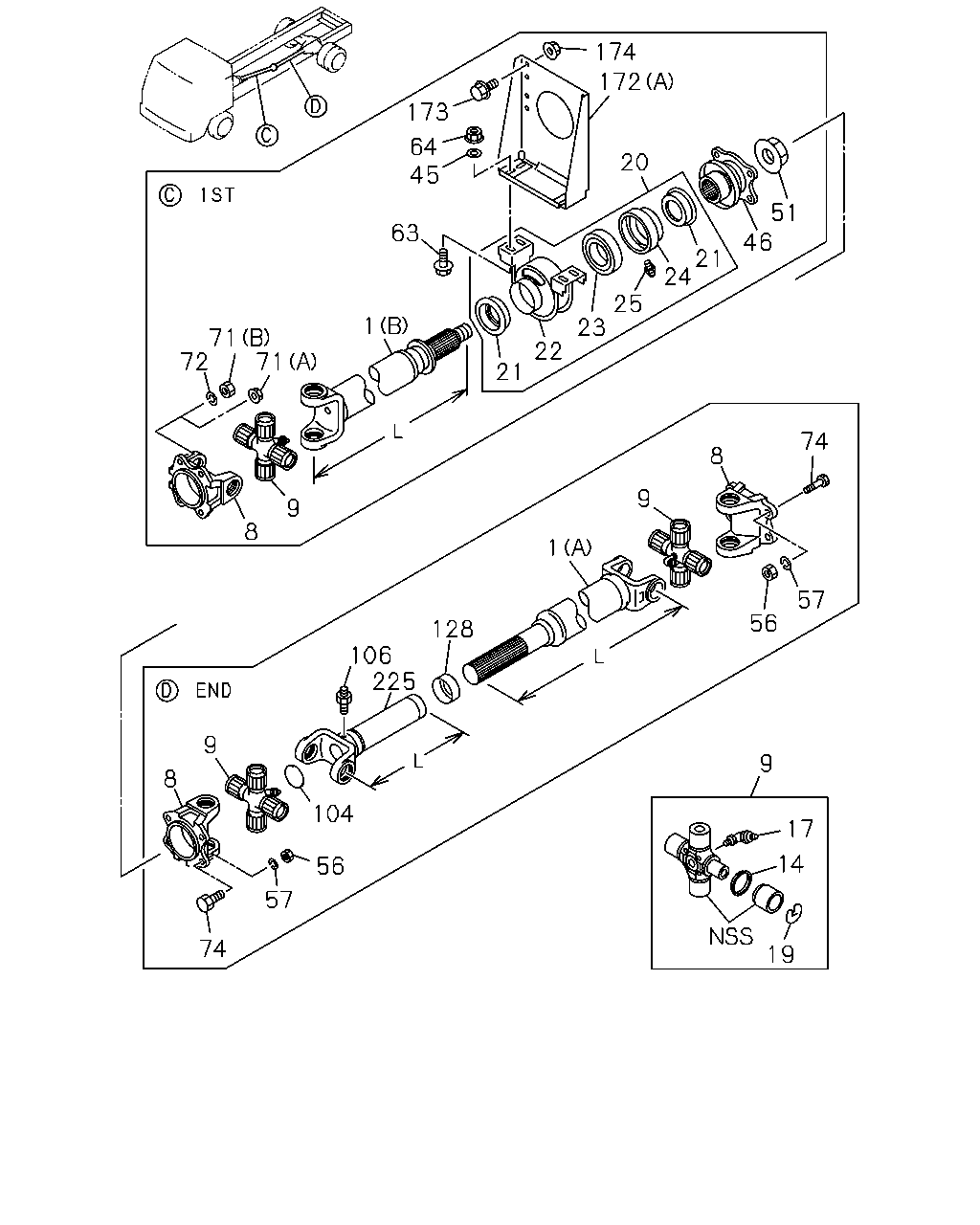

1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1179 		8-98069-574-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1031 		8-98069-673-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1159 		8-98105-705-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1302- ● ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1399 		8-98069-578-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (C) L=974 		8-98069-610-0 01 1 1302-1409 ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=829 		8-98113-452-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98178-052-0 01 1 1410- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1302- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) 1ST 		1-37211-056-3 01 1 1302- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 1ST 		1-37211-056-3 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) 2ND 		1-37211-056-3 01 1 1302- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 AR 1 1410- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 AR 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 01 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) 		8-98048-925-0 01 1 1302-1409 ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 12 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1-TCN ENG(82L) 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
6HK1-TCN ENG(82L) ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HK1-TCN ENG(82L) 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HK1-TCN ENG(82L) 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST
6HK1-TCN ENG(82L) 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) 		8-98020-889-0 01 1 1302-1409 ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1-TCN ENG(82L) 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
6HK1-TCN ENG(82L) M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE 		1-09449-065-0 04 1 1302- ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) (B) M14 		0-91110-514-0 04 1 1302- ● ● ● ●
72 WASHER; LK,YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 04 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1302- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ● ●
104 PLUG; SLEEVE YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ● ●
128 SEAL; SLEEVE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ●
çizim 331796
173 174 172 20 64 45 63 1 71 72 71 9 8 21 22 23 25 24 21 46 51 8 9 106 128 1 9 8 74 57 56 225 104 56 57 74 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=789 		8-98069-581-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=684 		8-98208-718-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=639 		8-98090-946-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=649 		8-98069-608-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1179 		8-98069-574-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1116 		8-98069-665-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1031 		8-98069-673-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1159 		8-98105-705-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=824 		8-98113-451-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=839 		8-98069-569-0 01 1 1302- ● ●
1 SHAFT; PROP
(A) L=1381 		8-98069-693-0 01 1 1302- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1399 		8-98069-578-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=1044 		8-98113-450-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) (B) L=1059 		8-98069-580-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1302- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (C) L=974 		8-98069-610-0 01 1 1302-1409 ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) (B) L=829 		8-98113-452-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-056-3 02 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 1ST 		8-98178-052-0 01 1 1302-1409 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98178-052-0 01 1 1410- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 1ST 		1-37211-056-3 01 1 1302- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) 1ST 		1-37211-056-3 01 1 1302- ● ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 1ST 		1-37211-056-3 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1410- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1-TCN ENG(82L) 2ND 		1-37211-056-3 01 1 1302- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 AR 1 1410- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 AR 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-0 01 1 1302-1409 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) 		8-98048-925-0 01 1 1302-1409 ● ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) 		8-98048-925-0 01 1 1302-1409 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1410- ● ● ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98048-925-1 02 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 12 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1302-1409 ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1410- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 08 1 1410- ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1302-1409 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 10"(B1T) 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-800-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-1409 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302-1409 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
PARKING BRAKE DRUM 10"(B1T) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1302-1409 ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1-TCN ENG(82L) 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-881-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1302-1409 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ● ● ●
21 SEAL; OIL,CENTER BRG
6HK1-TCN ENG(82L) ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=54 		1-09625-161-0 02 1 1410- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1302-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
6HK1-TCN ENG(82L) 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37516-059-0 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1302-1409 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ● ● ●
23 BEARING; CENTER,PROP SHAFT
6HK1-TCN ENG(82L) 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-00090-071-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1302-1409 ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ● ● ●
24 RETAINER; CENTER BRG,1ST
6HK1-TCN ENG(82L) 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-882-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 10"(B1T) MT6 STRAIGHT 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1302-1409 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) 		8-98020-889-0 01 1 1302-1409 ● ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) 		8-98020-889-0 01 1 1302-1409 ●
25 NIPPLE; GREASE,CENTER BRG
EXC. PARKING BRAKE DRUM 10"(B1T) 		8-98020-889-0 01 1 1410- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-889-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1410- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1302- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1302-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1-TCN ENG(82L) 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98020-815-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1302-1409 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ● ● ●
51 NUT; FLANGE,SPLINED
6HK1-TCN ENG(82L) M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M30 		8-97160-857-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1410- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1302- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1302- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1302- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ●
71 NUT; YOKE
PARKING BRAKE DRUM 10"(B1T) (A) M16 FLANGE 		1-09449-065-0 04 1 1302- ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) (B) M14 		0-91110-514-0 04 1 1302- ● ● ● ●
72 WASHER; LK,YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) ID=14.2 		0-91510-614-0 04 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1302- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1302- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1302-1409 ● ● ● ●
104 PLUG; SLEEVE YOKE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
PARKING BRAKE DRUM 10"(B1T) 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09600-064-0 01 1 1410- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1302-1409 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1302-1409 ● ● ● ●
128 SEAL; SLEEVE
EXC. PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
PARKING BRAKE DRUM 10"(B1T) 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-37247-024-0 01 1 1410- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1410- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-122-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-122-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-120-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-077-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98044-076-0 01 1 1302- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-119-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-37515-118-0 01 1 1302- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-37515-121-0 01 1 1302- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1302-1409 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
PARKING BRAKE DRUM 10"(B1T) L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=254 		8-98020-885-0 01 1 1410- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
