Isuzu WW
▶
TRUCKS
▶
FTS
▶
11514 - FTS(RHD)EURO2
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#112412) — 23 parça
◀

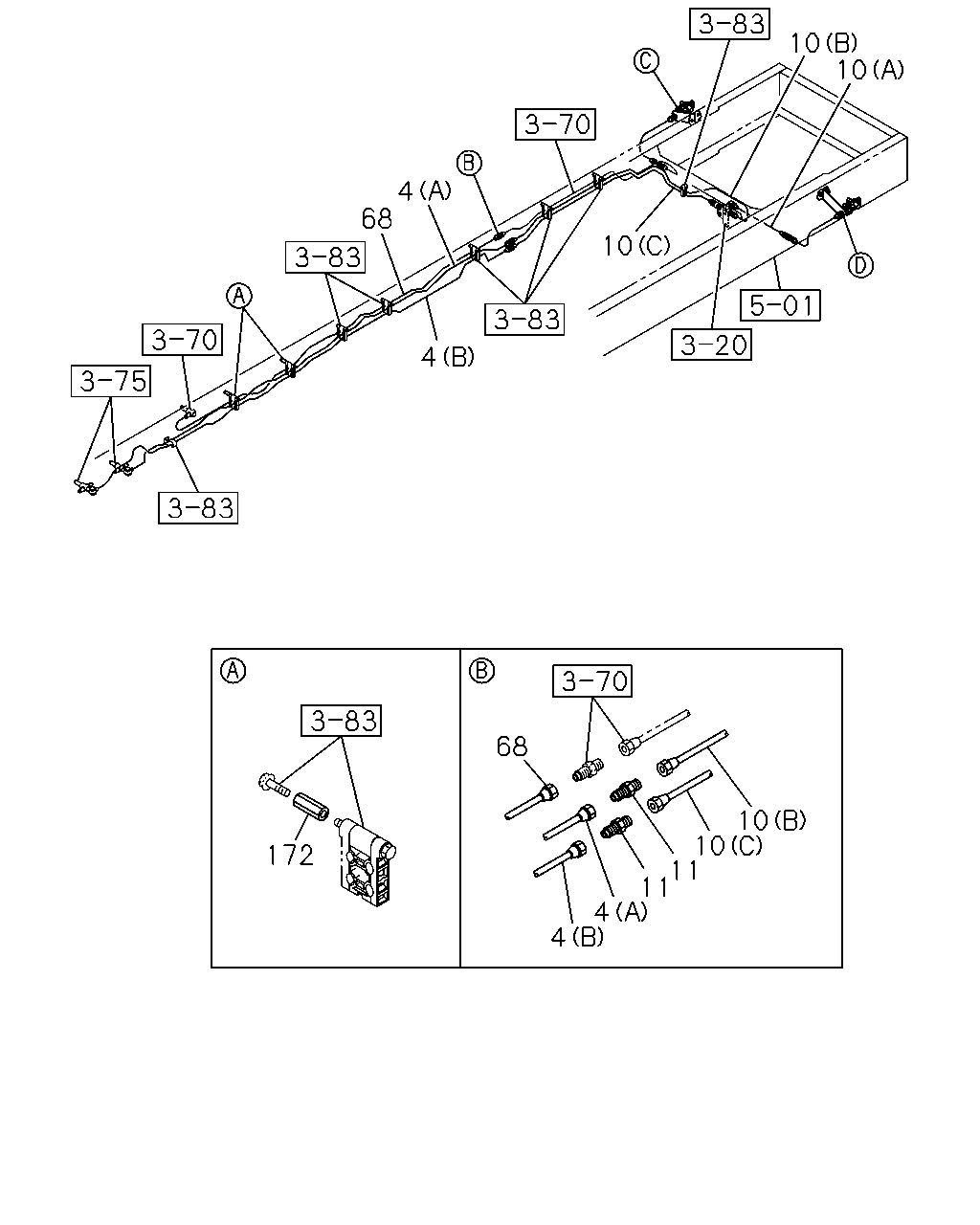

[380A] NO.1 (8 parça)
[380A] NO.2 (15 parça)
▶
10
10
10
4
4
68
172
68
4
10
10
11
11
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (A) L=2569 SERVICED BY L=2600
1-47428-884-0
01
1
1302-
4
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (B) L=2826 SERVICED BY L=2900
1-47428-885-0
01
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1349 SERVICED BY L=1400
1-47428-878-0
01
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=1687 SERVICED BY L=1700
1-47428-880-0
01
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=305
8-98141-746-0
01
1
1302-
11
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 STRAIGHT L=42
0-92123-010-0
02
1
1302-
68
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=2279 SERVICED BY L=2500
1-47428-883-0
01
1
1302-
172
SPACER
TRAILER BRAKE CONTROL<J91>
9-14149-158-0
02
1
1302-
81
29
84
3
56
18
16
121
10
19
18
42
56
81
29
84
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; COCK
TRAILER BRAKE CONTROL<J91> M16
0-91111-516-0
02
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1349 SERVICED BY L=1400
1-47428-878-0
01
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=1687 SERVICED BY L=1700
1-47428-880-0
01
1
1302-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=305
8-98141-746-0
01
1
1302-
16
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 L=74
0-92123-310-0
01
1
1302-
18
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16
0-91111-516-0
02
1
1302-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 L=74
0-92123-310-0
01
1
1302-
29
CONNECTOR; COCK
TRAILER BRAKE CONTROL<J91>
1-09650-121-1
02
1
1302-
42
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE
0-28651-030-0
02
1
1302-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> (A) L=330
8-98152-579-0
01
1
1302-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> (B) L=338
8-98152-587-0
01
1
1302-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> RED
1-47478-466-1
01
1
1302-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> YELLOW
1-47478-467-1
01
1
1302-
84
BRACKET; COUPLER
TRAILER BRAKE CONTROL<J91>
8-98154-702-0
02
1
1302-
121
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE
0-91180-210-0
02
1
1302-
