3-78 — FIXING PARTS; AIR PIPING (#112411) — 114 parça

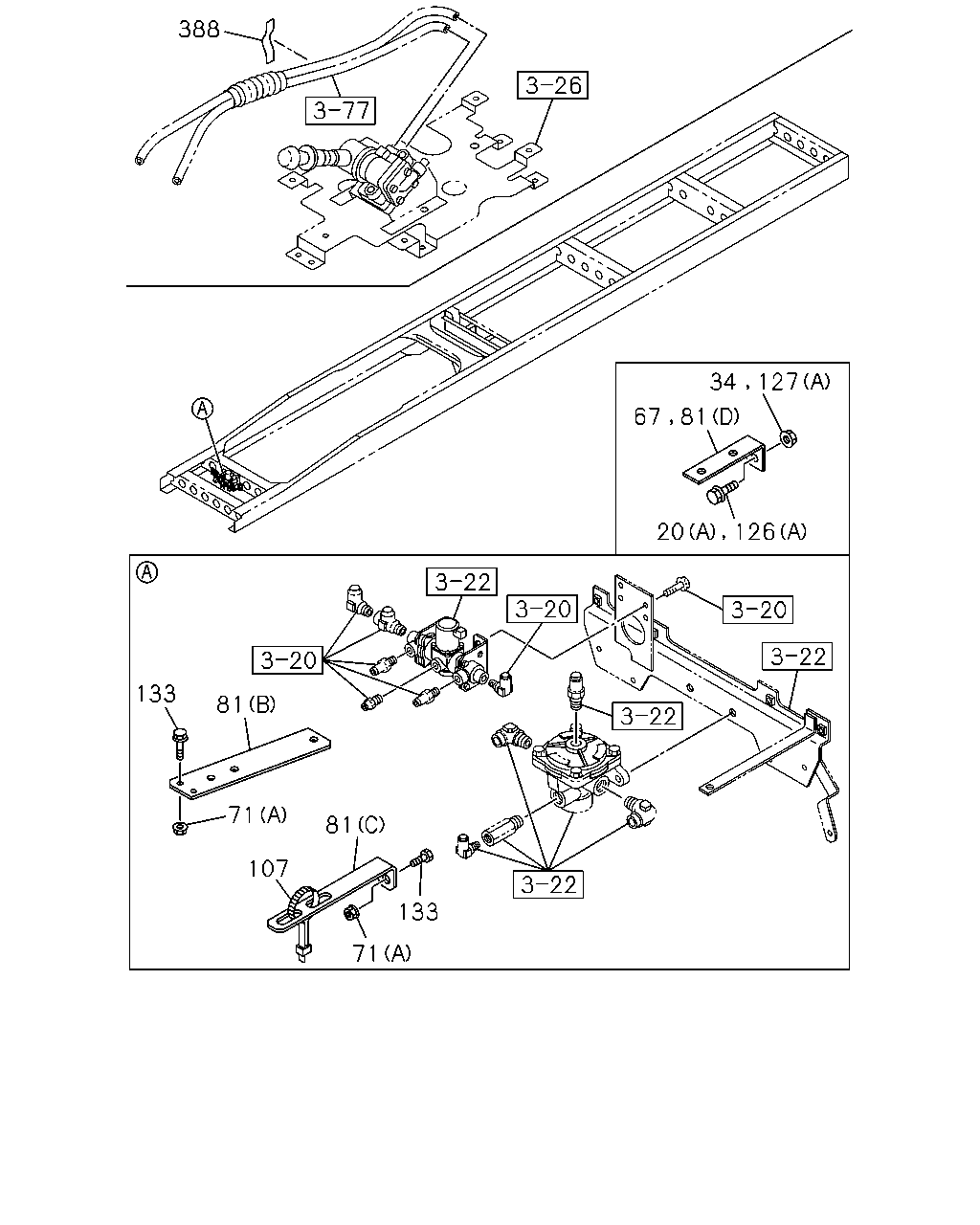

çizim 328295
388 67 81 34 127 20 126 133 81 71 107 81 133 71
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1302-1601
34 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1602-
34 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 1302-1311
34 NUT; BRKT
EXC. VIETNAM EQUIPMENT(SGX) M8 FLANGE 		0-91180-108-0 01 1 1312-
67 BRACKET; CLIP
WHEEL BASE 6300MM(63W) L=60 H=30 		1-47477-716-1 01 1 1302-1311
67 BRACKET; CLIP
EXC. VIETNAM EQUIPMENT(SGX) L=60 H=30 		1-47477-716-1 01 1 1312-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1302-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1302-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1302-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1302-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1302-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1302-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 51 1 1312-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 50 1 1302-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 49 1 1302-1311
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 49 1 1312-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1302-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1302-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1302-1601
133 BOLT; BRKT
TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 03 1 1602-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1302-1311
133 BOLT; BRKT
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1311
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1312-
133 BOLT; BRKT
EXC. VIETNAM EQUIPMENT(SGX) M8X30 FLANGE 		0-28650-830-0 01 1 1312-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
388 SEAL
100X40 		1-72498-022-1 03 1 1302-

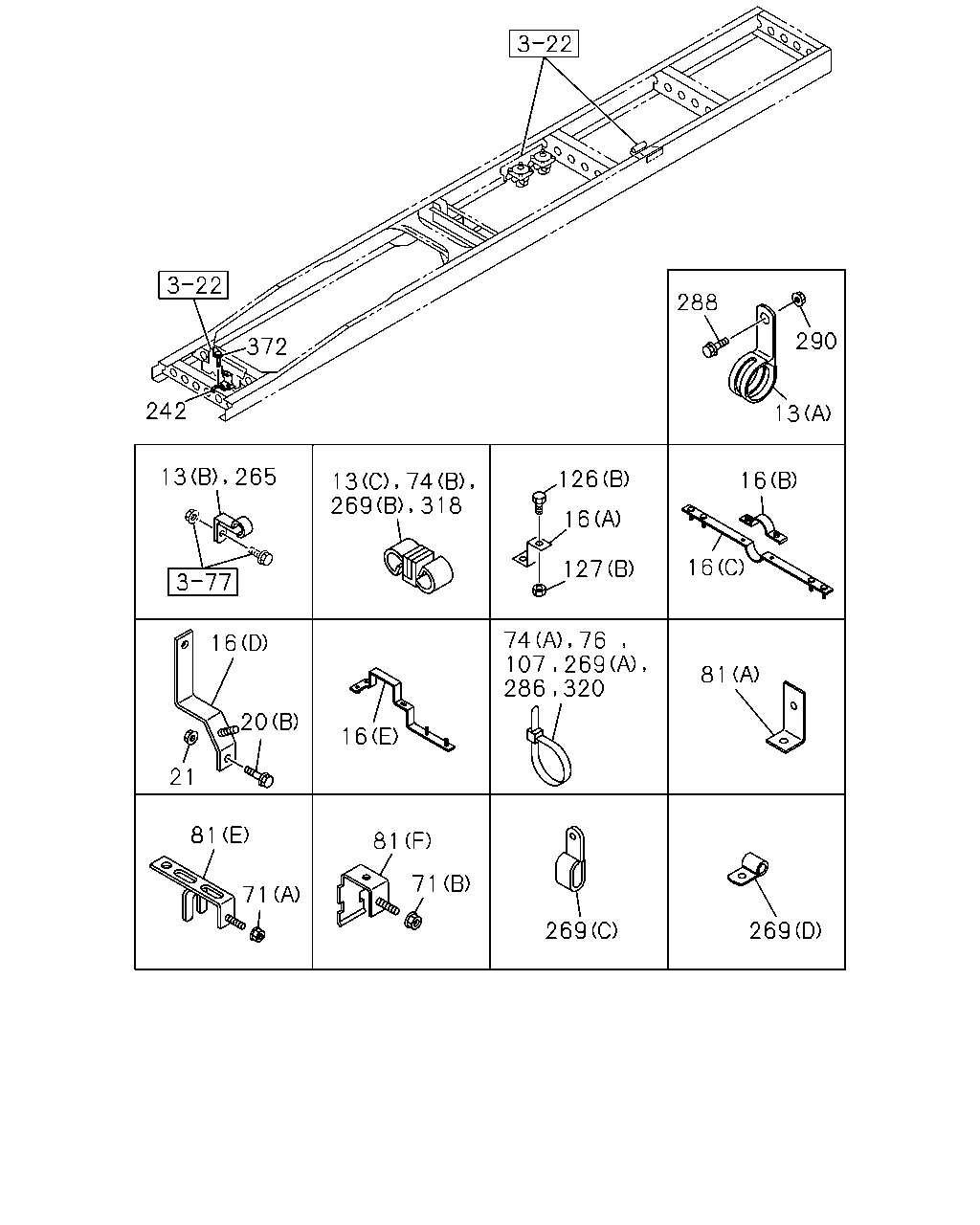

çizim 328426
242 372 13 265 16 21 20 13 74 269 318 127 16 126 288 290 13 16 16 81 269 269 71 81 81 71 16 74 286 320 107 269 76
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 01 1 1302-1601
13 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> (A) ID=7 L=16 		0-95234-625-0 01 1 1602-
13 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1302-1601
13 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> (B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1602-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 02 1 1302-1601
13 CLIP; AIR PIPE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=6.35 & 6.35 		1-09709-273-1 02 1 1602-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 03 1 1302-1601
13 CLIP; AIR PIPE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=6.35 & 15 		1-09709-276-1 03 1 1602-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 03 1 1302-1601
13 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 03 1 1602-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 02 1 1302-1601
13 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 02 1 1602-
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1302-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1302-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1302-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1302-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1302-
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 09 1 1302-
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
74 CLIP; NYLON TUBE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15 		1-09709-281-1 01 1 1602-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1312-
74 CLIP; NYLON TUBE
EXC. VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 03 1 1312-
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 03 1 1302-1311
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1302-1311
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 01 1 1312-
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 1302-1311
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 07 1 1312-
74 CLIP; NYLON TUBE
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 09 1 1302-1311
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 09 1 1302-1311
74 CLIP; NYLON TUBE
ZF6S1000 M/T(Y5D) WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 09 1 1312-
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (A) L=350 		1-09707-183-0 09 1 1312-
74 CLIP; NYLON TUBE
ZF9S1110 M/T(Y5E) WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 10 1 1302-
76 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1302-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1302-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1302-
81 BRACKET; CLIP
(A) L=65 B=25 		8-98135-584-0 01 1 1302-
81 BRACKET; CLIP
(E) 		8-98177-873-0 04 1 1302-
81 BRACKET; CLIP
(F) 		8-98186-380-0 01 1 1302-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 51 1 1312-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 50 1 1302-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 49 1 1302-1311
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) L=350 		1-09707-183-0 49 1 1312-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1302-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1302-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1302-
242 BRACKET; PIPE CLIP 8-98158-602-0 01 1 1302-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1302-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1302-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1302-
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 1302-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (B) ID=12 & 15 		1-09709-281-1 01 1 1302-1601
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=12 & 15 		1-09709-281-1 01 1 1602-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (B) ID=15 & 15 		1-09709-282-1 01 1 1302-1601
269 CLIP; BAND,NYLON TUBE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=15 & 15 		1-09709-282-1 01 1 1602-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1309-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1302-1601
288 BOLT; CLIP,AIR PIPE
TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1602-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1302-1601
290 NUT; CLIP,AIR PIPE
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1602-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 1302-1601
318 CLIP; AIR PIPE
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15 		1-09709-276-1 03 1 1602-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1302-1601
318 CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1602-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1302-1601
320 CLIP; BAND,FLEX FIX
TURBO - CONVENTIONAL<Q5T> L=250 		5-09707-030-1 01 1 1602-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1302-
