3-78 — FIXING PARTS; AIR PIPING (#112408) — 55 parça

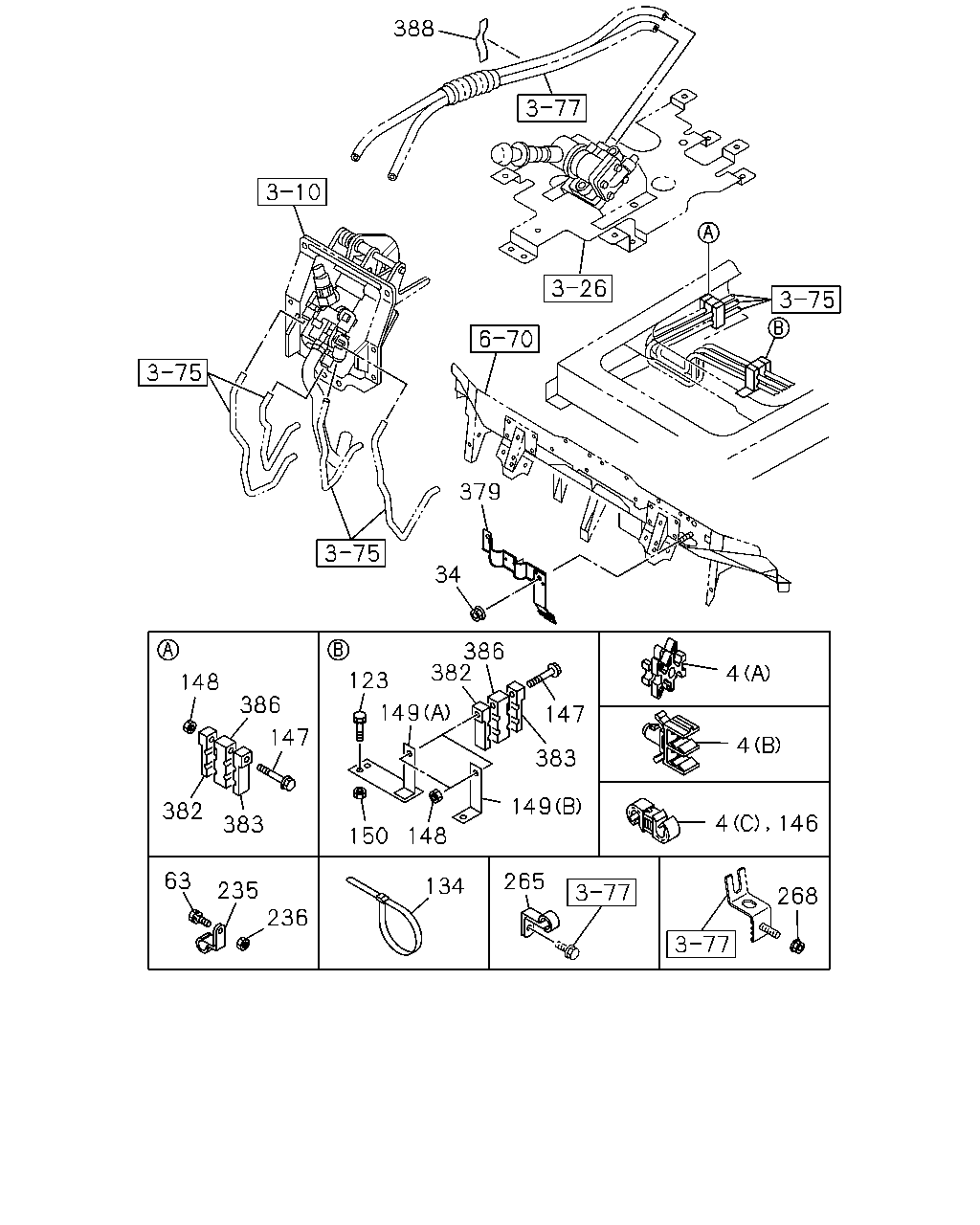

çizim 328169
388 379 34 148 386 147 383 382 123 149 382 386 147 383 149 148 150 4 4 4 146 63 235 236 134 265 268
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
(A) ID=4.7X4 		1-09701-304-0 03 1 1302-
4 CLIP; AIR PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
BRAKE REGULATION ADR(TDU) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU),THROTTLE CONTROL SYSTEM(6XH) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 03 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 03 1 1302-
4 CLIP; AIR PIPE
BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 03 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=10 & 10 		1-09709-277-1 03 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (C) ID=4.76 & 6.35 		1-09709-304-0 01 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=4.76 & 6.35 		1-09709-304-0 01 1 1302-
4 CLIP; AIR PIPE
BRAKE REGULATION ADR(TDU) (C) ID=4.76 & 6.35 		1-09709-304-0 01 1 1302-
4 CLIP; AIR PIPE
(C) ID=4.76 & 6.35 		1-09709-304-0 01 1 1302-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 01 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 01 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) (C) ID=10 & 10 		1-09709-277-1 01 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=10 & 10 		1-09709-277-1 01 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=6.35 & 10.0 		1-09709-274-1 03 1 1302-
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.76 & 10.0 		1-09709-305-0 01 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=4.76 & 10.0 		1-09709-305-0 01 1 1302-
4 CLIP; AIR PIPE
(C) ID=4.76 & 10.0 		1-09709-305-0 01 1 1302-
4 CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=6.35 & 10.0 		1-09709-274-1 02 1 1302-
4 CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (C) ID=4.76 & 12 		1-09709-306-0 01 1 1302-
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1302-
63 BOLT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
63 BOLT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 05 1 1302-
63 BOLT; CLIP
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 06 1 1302-
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1302-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1302-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 1302-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 03 1 1302-
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 1302-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1302-
149 BRACKET; PIPE CLIP
(A) 		8-98090-114-0 01 1 1302-
149 BRACKET; PIPE CLIP
(B) 		8-98116-193-0 01 1 1302-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1302-
235 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1302-
235 CLIP; AIR PIPE
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20 		8-98033-780-0 05 1 1302-
235 CLIP; AIR PIPE
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20 		8-98033-780-0 06 1 1302-
236 NUT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 03 1 1302-
236 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 05 1 1302-
236 NUT; CLIP
WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 06 1 1302-
265 CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1302-
268 NUT; CLIP BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 1302-
268 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1302-
379 BRACKET; NYLON TUBE 8-98112-515-1 01 1 1302-
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 1302-
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 04 1 1302-
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 1302-
388 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 03 1 1302-
