◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11521 - FVZ(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#112406) — 736 parça

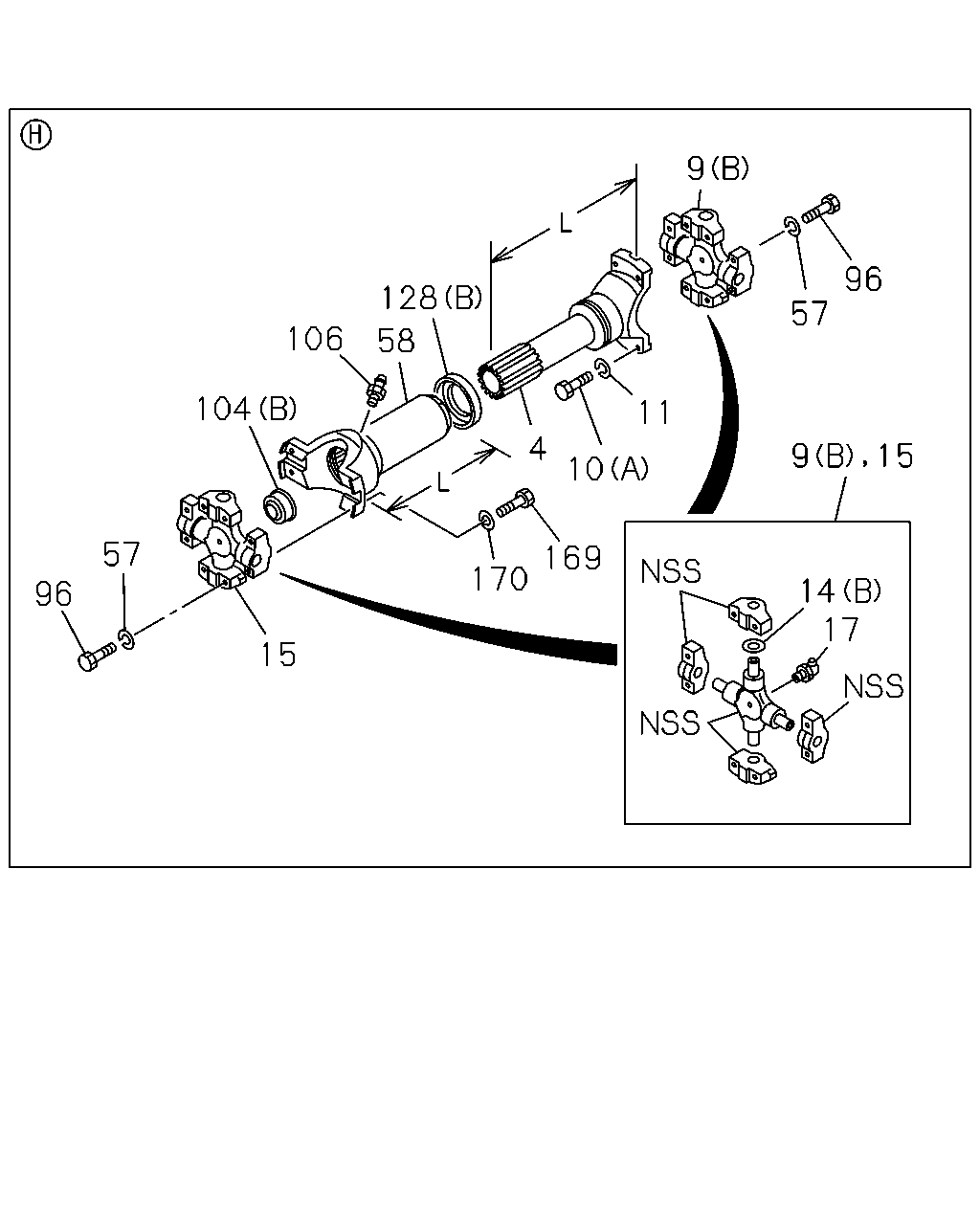

çizim 328300
96 57 104 15 106 58 128 9 170 169 4 10 11 57 96 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1302-1311 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1302- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1302-1311 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1302-1311 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1302- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1302- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1302- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1302- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1302- ● ●

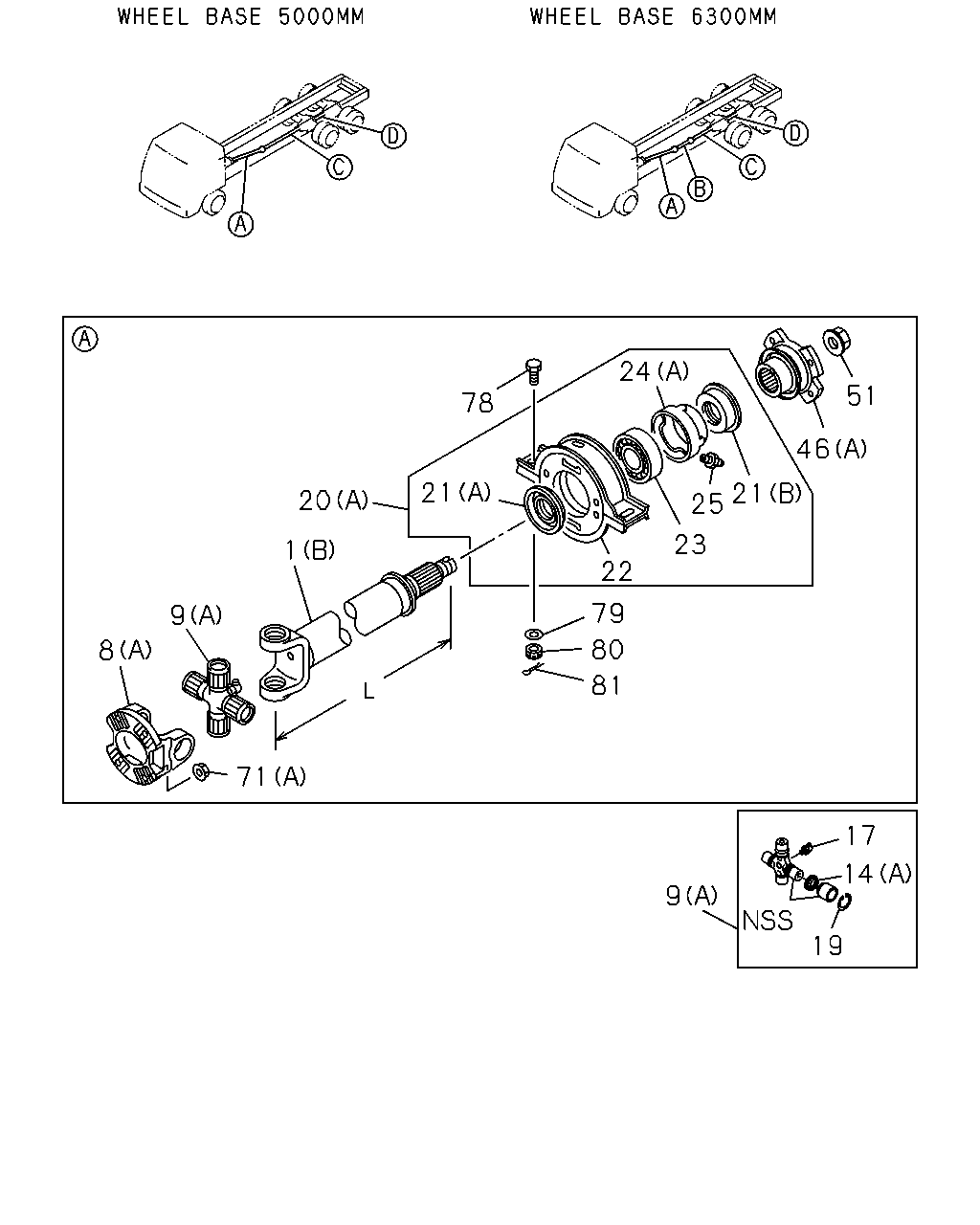

çizim 328428
78 24 25 23 21 46 51 22 21 20 1 71 9 9 8 80 81 79 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=917 		8-98212-961-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1302-1311 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1302-1405 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 08 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1302-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER ES11109 DD M/T(Y5N) MT6 STRAIGHT 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ●
51 NUT; FLANGE,SPLINED
FULLER ES11109 DD M/T(Y5N) M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1302-1505 ● ●
71 NUT; YOKE
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1302-1505 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1302- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1302- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1302- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ● ●

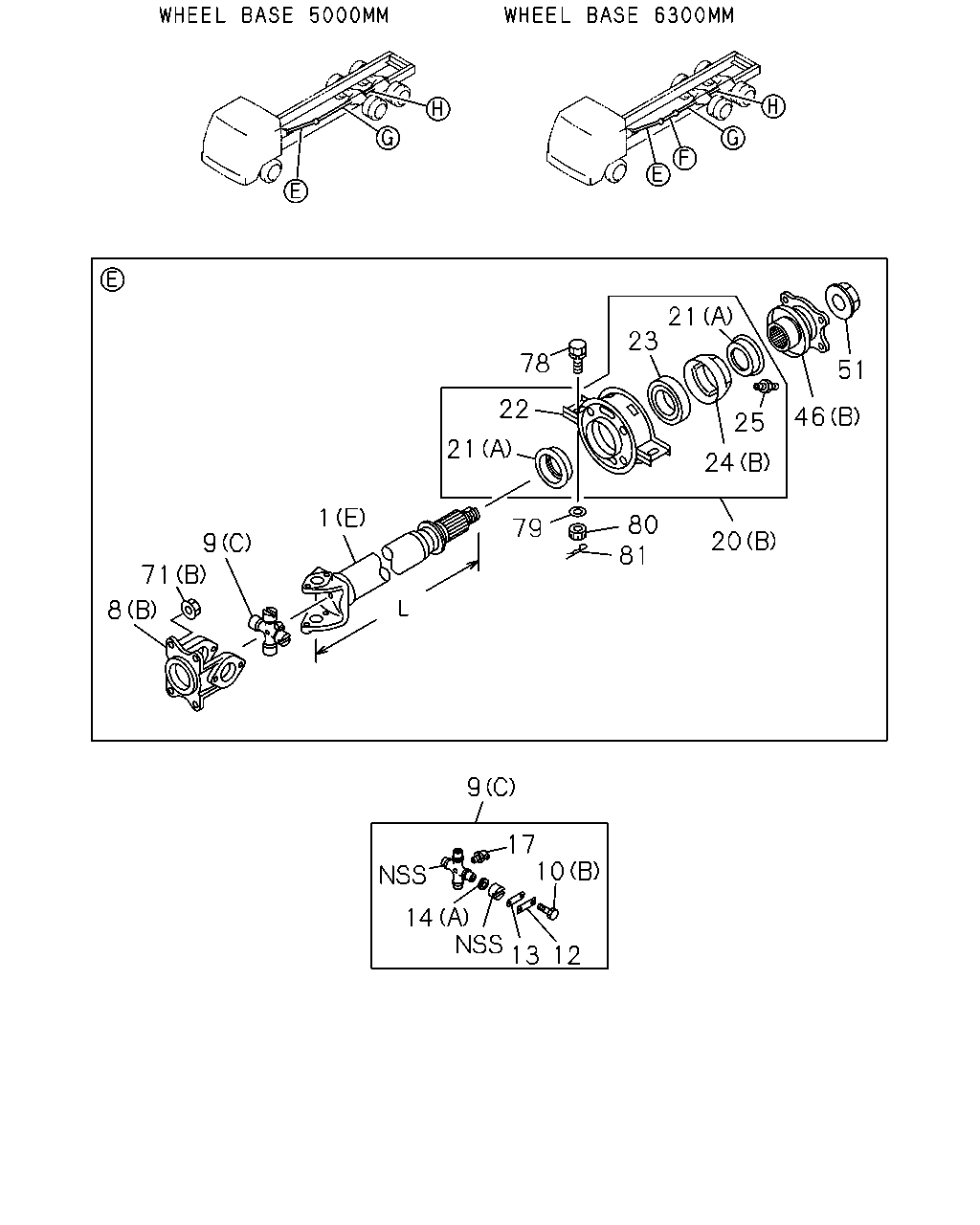

çizim 328430
21 23 25 24 78 22 21 1 9 71 8 51 46 20 80 81 79 9 17 10 12 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=917 		8-98212-961-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1302-1311 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1302-1405 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1302-1311 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1302- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1302-1311 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1302-1311 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1302-1311 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1302-1311 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1406- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1302-1311 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1302-1311 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1302-1311 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1406- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER ES11109 DD M/T(Y5N) MT6 STRAIGHT 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ●
51 NUT; FLANGE,SPLINED
FULLER ES11109 DD M/T(Y5N) M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1302-1505 ● ●
71 NUT; YOKE
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 1506- ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1302-1505 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14 FLANGE 		8-97365-444-0 04 1 1506- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1302- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1302- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1302- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ● ●
çizim 328485
9 128 58 106 104 57 96 96 57 11 10 4 169 170 15 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1302-1311 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1302- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1302-1311 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1302-1311 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1302- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1302- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1302- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1302- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1302- ● ●

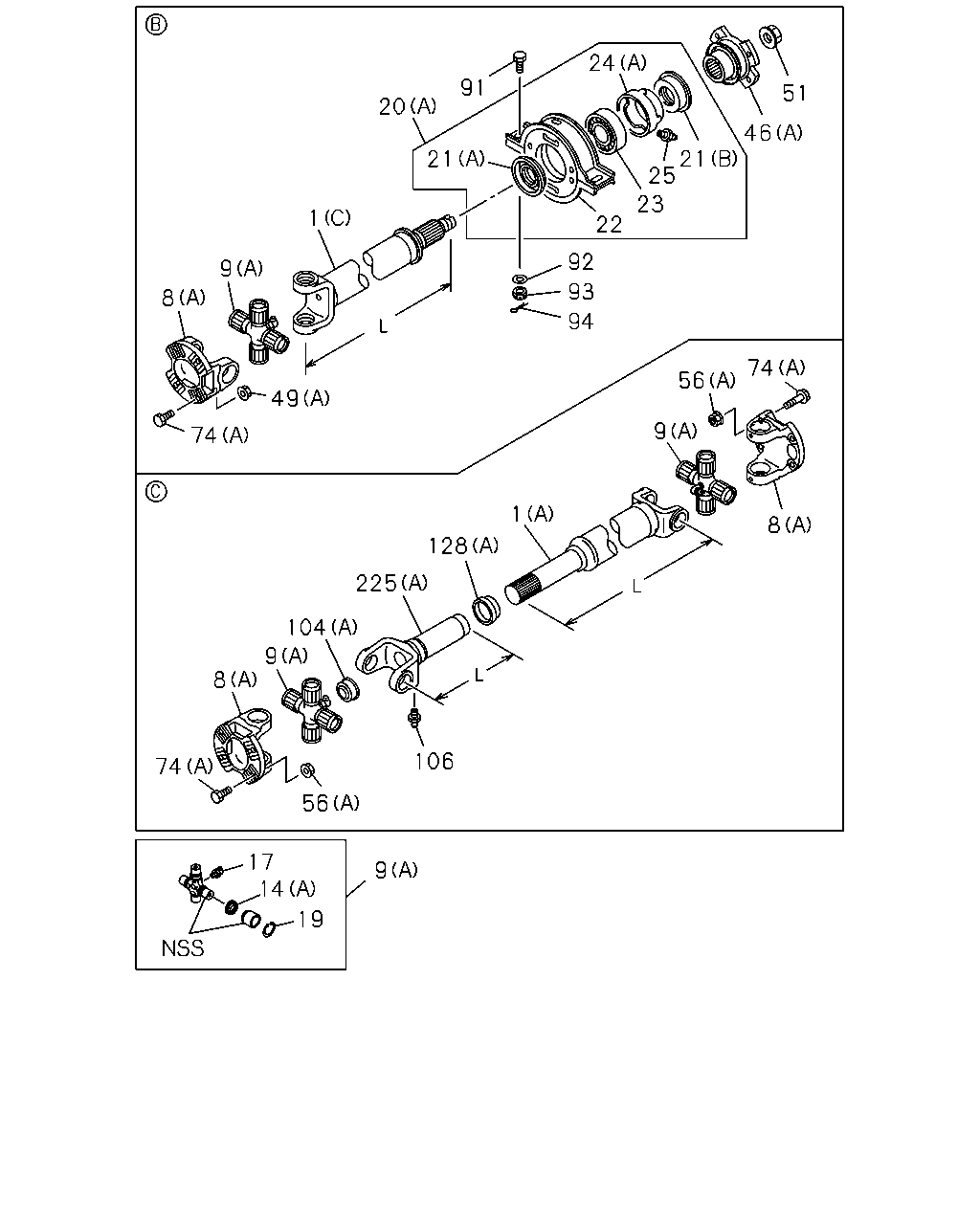

çizim 331339
20 91 21 24 22 23 25 21 46 51 92 93 94 49 74 8 9 1 74 56 9 8 1 128 225 104 9 8 74 56 106 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=917 		8-98212-961-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1302-1311 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1302-1405 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 08 1 1302-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1302-1405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER ES11109 DD M/T(Y5N) MT6 STRAIGHT 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1302- ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1302- ●
51 NUT; FLANGE,SPLINED
FULLER ES11109 DD M/T(Y5N) M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 08 1 1302-1505 ● ●
56 NUT; YOKE
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1302-1505 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1302-1405 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1302-1405 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1406-1505 ● ●
74 BOLT; YOKE,TRANS
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1302-1405 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1406-1505 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1406-1505 ●
74 BOLT; YOKE,TRANS
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 1302-1505 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14X50 		1-09000-645-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1302- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1302- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1302- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1302- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) L=332 		1-37241-103-1 01 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1302- ● ●
çizim 331806
9 8 1 74 49 91 92 22 21 51 46 21 23 25 24 93 94 20 74 8 104 9 8 74 56 9 1 128 106 225 56 17 10 14 13 84 12 83 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1302- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=917 		8-98212-961-0 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1302- ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1312-1405 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1302-1405 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1302-1311 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1312-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1302-1405 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1406- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1302-1311 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1302-1405 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1302- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1302-1405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1406- ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 03 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1302-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1302- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1302-1311 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1312-1405 ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1406- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1302- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1302-1311 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1312-1405 ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1406- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1302-1311 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1302-1311 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1302-1311 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1312-1405 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1406- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1302-1311 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1406- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1302-1311 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1302-1311 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1312-1405 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1406- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1302-1311 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1312-1405 ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 04 1 1406- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1302-1311 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1312-1405 ● ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 04 1 1312-1405 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 12 1 1406- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1302- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1302-1311 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1312-1405 ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
14 COVER; DUST,SPIDER
FULLER ES11109 DD M/T(Y5N) (A) 		1-37249-131-0 08 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1302-1311 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1312-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1302-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 02 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1302-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 04 1 1406- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1302-1405 ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (A) D=120 		1-09625-127-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1302- ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1302- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) 		1-37516-048-2 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1302-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) 		1-37516-048-2 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		9-00090-256-0 02 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1302-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) 		9-00090-256-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 02 1 1406- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1302-1405 ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1302- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER ES11109 DD M/T(Y5N) MT6 STRAIGHT 		1-09380-006-0 02 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1302-1405 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 02 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1302-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1302- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1302- ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1302- ●
51 NUT; FLANGE,SPLINED
FULLER ES11109 DD M/T(Y5N) M39 FLANGE 		1-09440-046-0 02 1 1406- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1302-1405 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) M39 FLANGE 		1-09440-046-0 01 1 1406- ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 08 1 1302-1505 ● ●
56 NUT; YOKE
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 1506- ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1302-1505 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14 FLANGE 		8-97365-444-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1302-1405 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1302-1405 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1406-1505 ● ●
74 BOLT; YOKE,TRANS
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1302-1405 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1406-1505 ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1406-1505 ●
74 BOLT; YOKE,TRANS
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 1506- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 1302-1505 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) M14X50 		1-09000-645-0 08 1 1506- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1302- ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1302- ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1302- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1302- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1302- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1302- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1302- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1302- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) L=332 		1-37241-103-1 01 1 1302- ● ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
