1 |

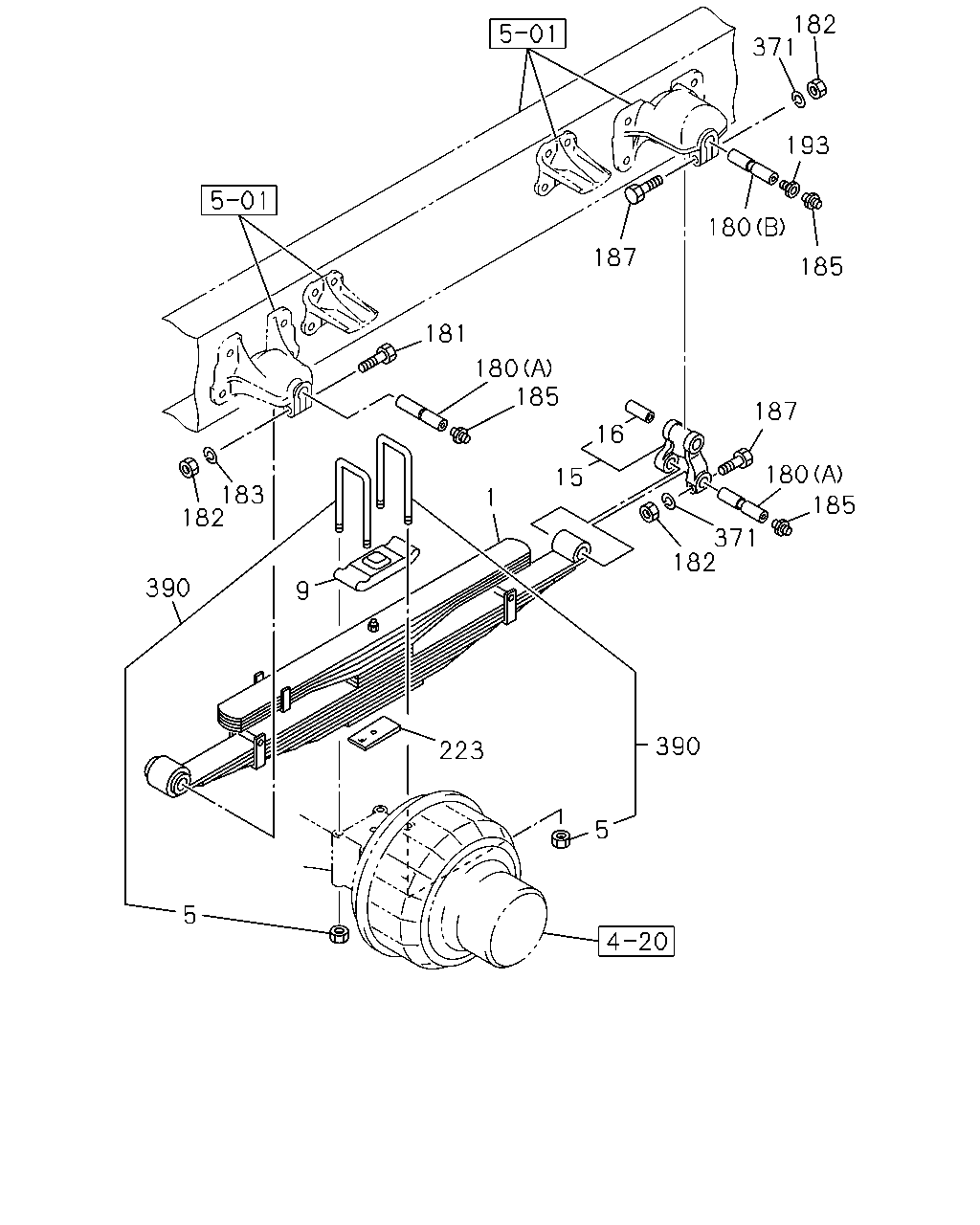

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
14-LEAF
|
8-98017-563-1 |
02 |
1 |
1302- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
MULTI LEAF SUSP RR(SAS)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
17-LEAF
|
8-98017-561-0 |
02 |
1 |
1302- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
TAPER LEAF SUS HELPER RR(SAU)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
12-LEAF
|
8-98064-447-0 |
02 |
1 |
1302- |
| |
5 |
NUT; U-BOLT,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M20 FLANGE
|
8-98010-415-0 |
08 |
1 |
1302- |
| |
5 |
NUT; U-BOLT,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M18 FLANGE
|
1-09440-039-1 |
08 |
1 |
1302- |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-059-0 |
02 |
1 |
1302- |
| |
15 |
SHACKLE; RR SPR
|
1-51362-038-2 |
02 |
1 |
1302- |
| |
16 |
BUSHING; SHACKLE,RR SPR
ID=25
|
8-98082-176-0 |
02 |
1 |
1302- |
| |
180 |
PIN; RR SPR
(A)
DO=25 L=115 PT1/8
|
1-51361-016-0 |
04 |
1 |
1302- |
| |
180 |
PIN; RR SPR
(B)
DO=25 L=115 M12
|
1-51361-017-0 |
02 |
1 |
1302- |
| |
181 |
BOLT; SPR & SHACKLE
M12X70
|
0-10961-270-0 |
02 |
1 |
1302- |
| |
182 |
NUT; PIN,RR SPR
M12
|
0-91110-512-0 |
06 |
1 |
1302- |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=12.2
|
0-91510-612-0 |
02 |
1 |
1302- |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
0-90301-410-0 |
06 |
1 |
1302- |
| |
187 |
BOLT; SPR & SHACKLE
M12X70
|
0-10961-270-0 |
04 |
1 |
1302- |
| |
193 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS)
WHEEL BASE 3700MM(37W)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98096-335-0 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L)
WHEEL BASE 3700MM(37W)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98096-335-0 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS)
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98043-891-0 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L)
WHEEL BASE 4300MM(43W)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98043-891-0 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS)
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-329-1 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L)
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W),
WHEELBASE 5500MM(55W)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-329-1 |
02 |
1 |
1302- |
| |
223 |
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L)
WHEEL BASE 3700MM(37W)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-333-1 |
02 |
1 |
1302- |
| |
371 |
WASHER; LK,SHACKLE
ID=12.2
|
0-91510-612-0 |
04 |
1 |
1302- |
| |
390 |
U-BOLT SET; RR SPRING
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
L=405
|
1-87870-472-0 |
04 |
1 |
1302- |
| |
390 |
U-BOLT SET; RR SPRING
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
L=405
|
1-87870-372-1 |
04 |
1 |
1302- |
