4-50 — FRONT SUSPENSION (#112401) — 122 parça

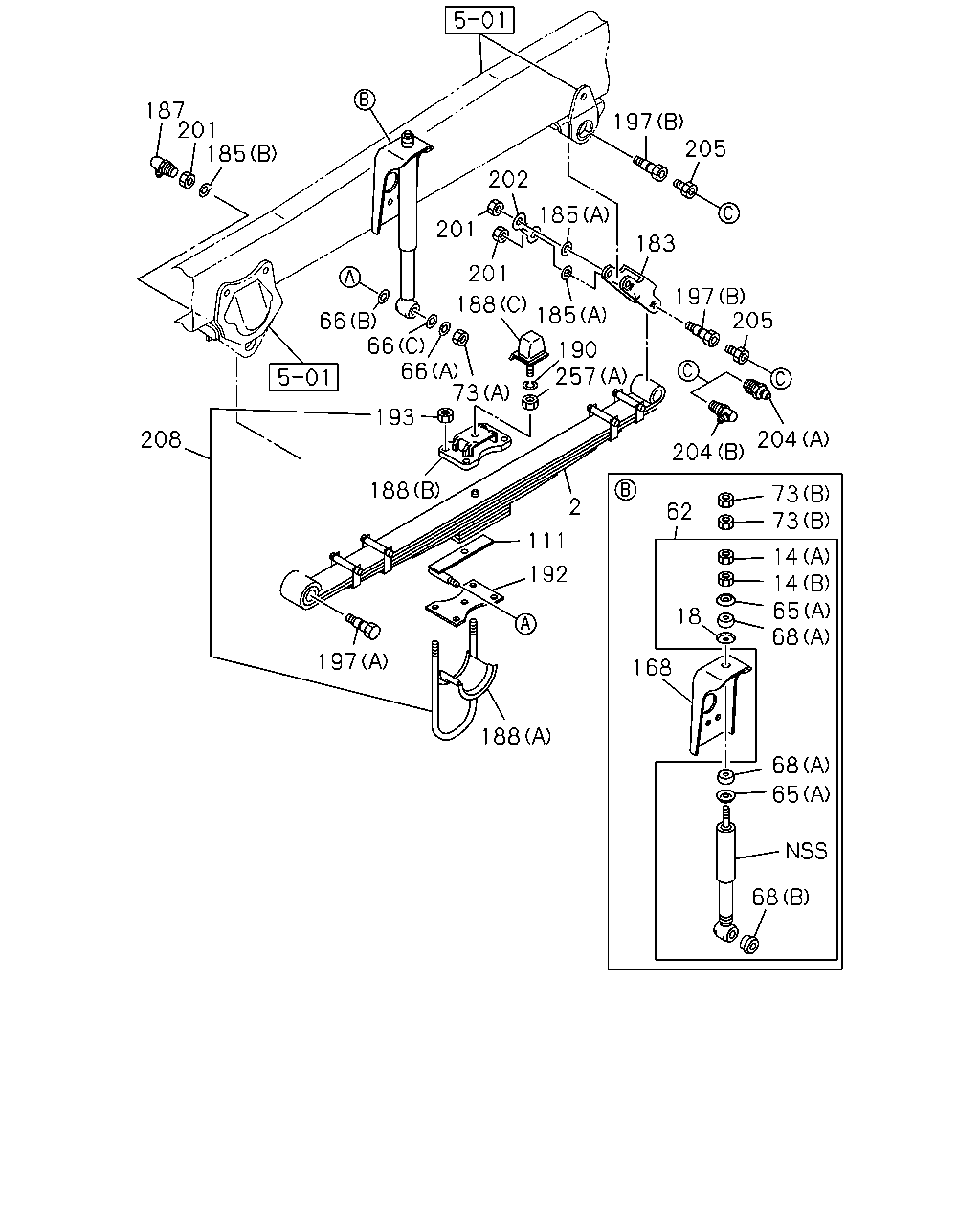

çizim 331959
68 65 68 168 68 73 62 18 73 14 14 65 188 197 192 111 2 204 204 205 197 257 188 193 73 66 66 66 208 190 185 188 201 201 202 183 185 205 197 185 201 187
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-338-0 01 1 1302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-339-0 01 1 1302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98147-528-0 02 1 1302- ●
14 NUT; S/ABS,UPR
(A) M10 		0-91111-510-0 02 1 1302- ●
14 NUT; S/ABS,UPR
(B) M10 FLANGE 		0-91180-210-0 02 1 1302- ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-851-0 02 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1302-1412 ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 08 1 1302- ●
65 WASHER; S/ABS
(C) ID=16.8 		1-51631-022-0 04 1 1302- ●
65 WASHER; S/ABS
(B) ID=14.5 		9-51631-051-0 04 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(E) ID=17 		1-51631-020-0 02 1 1302- ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 1302- ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 1302- ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 1302- ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1302- ●
73 NUT; BRKT,SHOCK
(D) M12 		8-98010-412-0 04 1 1302- ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		8-98049-689-0 02 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 1302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 1302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 1302- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1302- ●
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 1302- ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1302- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1302- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1302- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(D) 		1-43219-029-2 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(E) 		1-51173-019-0 02 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-009-2 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-008-2 01 1 1302- ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1302- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 1302- ●
192 PIECE; DIST 1-51177-219-0 01 1 1302- ●
192 PIECE; DIST 1-51177-207-2 01 1 1302- ●
192 PIECE; DIST 1-51177-215-1 01 1 1302- ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1302- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1302- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1302- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1302- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1302- ●
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 1302- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1302- ● ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 1302- ●
208 U-BOLT SET; FRT SPRING
L=320 		1-87870-490-0 02 1 1302- ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 1302- ● ●
257 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91180-108-0 04 1 1302- ●

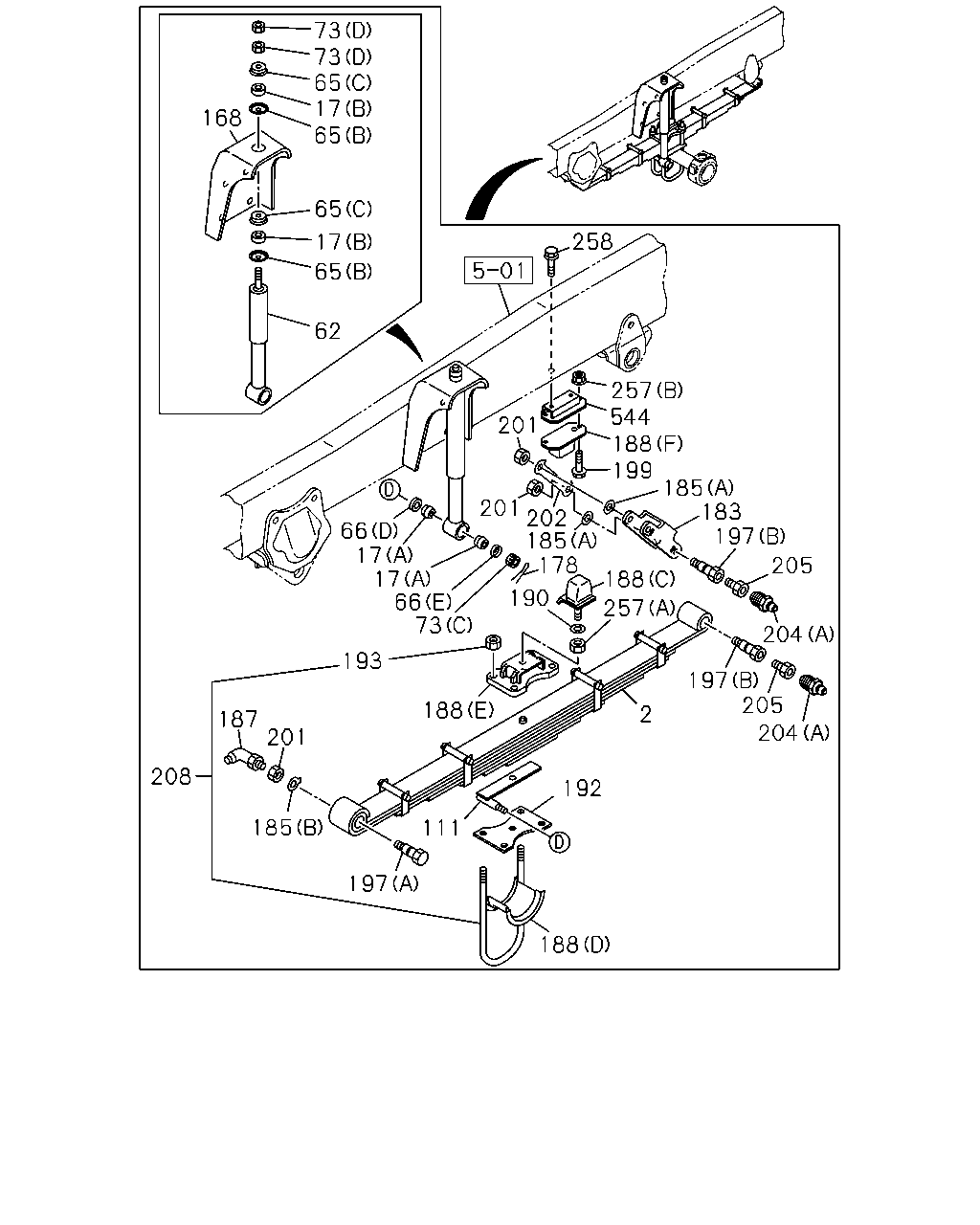

çizim 331977
168 73 73 65 17 65 65 17 65 62 258 66 17 17 66 73 201 201 202 185 178 190 188 257 257 544 188 199 185 183 197 205 204 197 205 204 2 193 188 187 208 185 197 192 188 111 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-338-0 01 1 1302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98138-339-0 01 1 1302- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98147-528-0 02 1 1302- ●
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1302- ●
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-851-0 02 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1302- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1302-1412 ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 08 1 1302- ●
65 WASHER; S/ABS
(C) ID=16.8 		1-51631-022-0 04 1 1302- ●
65 WASHER; S/ABS
(B) ID=14.5 		9-51631-051-0 04 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-512-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1302- ●
66 WASHER; LK,S/ABS SETTING
(E) ID=17 		1-51631-020-0 02 1 1302- ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91110-510-0 04 1 1302- ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1302- ●
73 NUT; BRKT,SHOCK
(D) M12 		8-98010-412-0 04 1 1302- ●
73 NUT; BRKT,SHOCK
(C) M16 SLOTTED 		8-98049-689-0 02 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 1302- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 1302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 1302- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 1302- ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1302- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1302- ●
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 1302- ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1302- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1302- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-020-1 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-007-2 02 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1302- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(D) 		1-43219-029-2 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(E) 		1-51173-019-0 02 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-009-2 01 1 1302- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(F) 		1-51174-008-2 01 1 1302- ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1302- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 1302- ●
192 PIECE; DIST 1-51177-219-0 01 1 1302- ●
192 PIECE; DIST 1-51177-207-2 01 1 1302- ●
192 PIECE; DIST 1-51177-215-1 01 1 1302- ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1302- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1302- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1302- ● ●
199 BOLT
M8X20 FLANGE 		0-28650-820-0 04 1 1302- ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1302- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1302- ●
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 1302- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1302- ● ●
208 U-BOLT SET; FRT SPRING
L=310 		1-87870-476-1 02 1 1302- ●
208 U-BOLT SET; FRT SPRING
L=320 		1-87870-490-0 02 1 1302- ●
257 NUT; CUSHION RUBBER
(A) M12 		0-91110-512-0 02 1 1302- ● ●
257 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91180-108-0 04 1 1302- ●
258 BOLT; CUSHION,WIND UP
M10X25 FLANGE 		0-28651-025-0 04 1 1302- ●
544 BRACKET; RUBBER 8-98147-398-0 01 1 1302- ●
544 BRACKET; RUBBER 8-98147-399-0 01 1 1302- ●
