Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

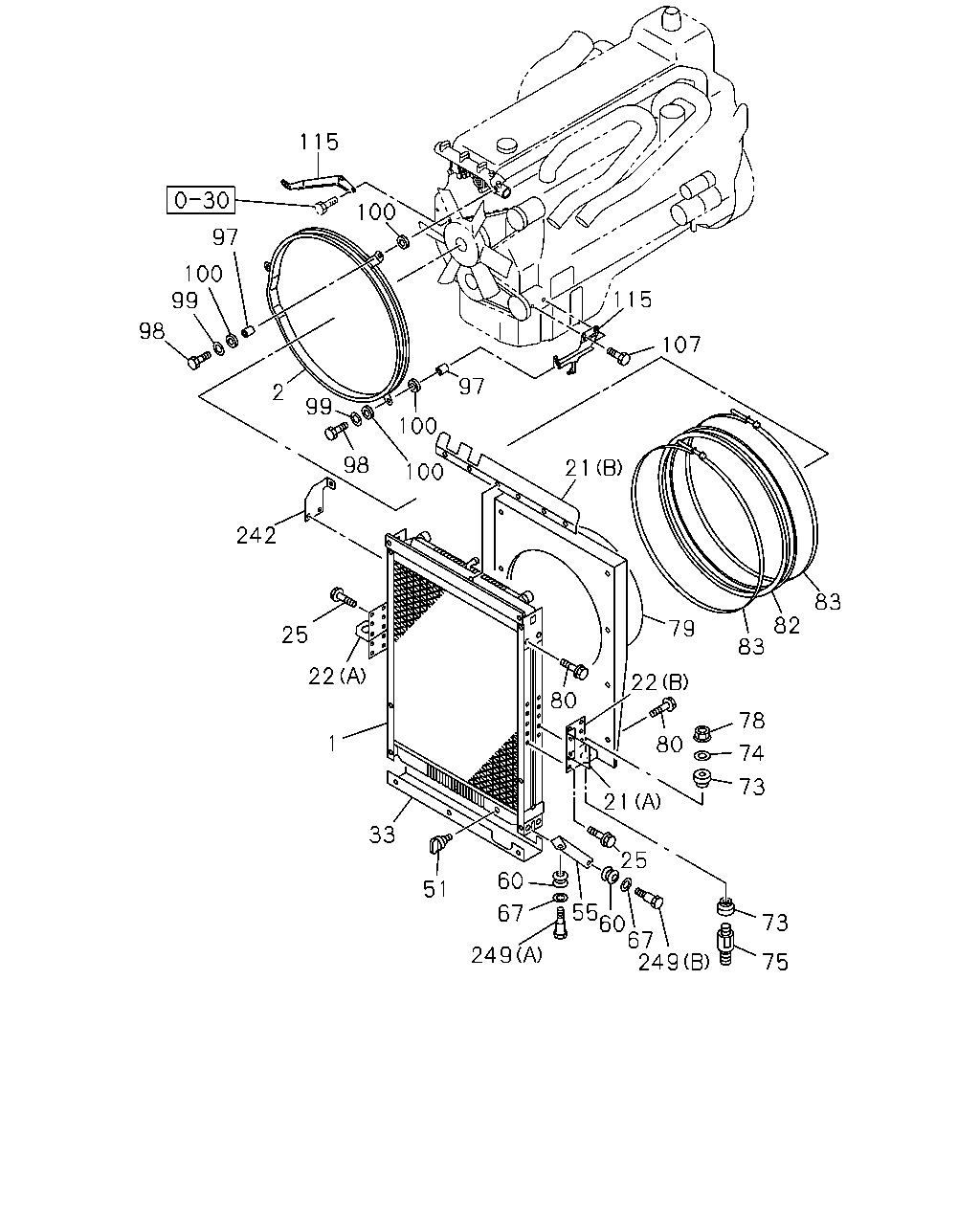

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#11239) — 40 parça
115
100
97
100
99
115
98
107
97
2
99
100
100
98
21
242
83
82
83
79
25
22
22
80
21
78
1
80
74
73
33
25
60
51
55
60
67
249
67
73
249
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-730-1
01
1
0107-
2
GUIDE; FAN
1-21551-420-0
01
1
0107-0606
2
GUIDE; FAN
8-97615-752-0
01
1
0607-
21
SEAL; RAD
(B)
1-21460-104-0
01
1
0107-
21
SEAL; RAD
(A)
1-21460-114-0
01
1
0107-
22
BRACKET; RAD MTG
(A)
1-21464-503-0
01
1
0107-
22
BRACKET; RAD MTG
(B)
1-21464-504-0
01
1
0107-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
18
1
0107-
33
PROTECTOR; RAD
1-21419-050-0
01
1
0107-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0107-
55
STAY; RAD TO UPR MBR
1-21464-472-0
01
1
0107-
55
STAY; RAD TO UPR MBR
1-21464-473-0
01
1
0107-
60
GROMMET
1-09332-117-0
04
1
0107-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0107-0605
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
0606-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0107-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-1
02
1
0107-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0107-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0107-0602
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
0603-
79
GUIDE; FAN,RAD
1-21551-416-2
01
1
0107-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
13
1
0107-
82
COVER; FAN,RAD
1-21559-262-1
01
1
0107-
83
CLIP; FAN COVER
1-09707-152-2
02
1
0107-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0107-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28081-045-0
03
1
0107-0512
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
0601-
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0107-0605
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
0606-
100
RUBBER; MTG
1-09337-017-0
06
1
0107-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
02
1
0107-0512
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
02
1
0601-
115
BRACKET; FAN GUIDE
1-21559-353-0
01
1
0107-
115
BRACKET; FAN GUIDE
1-21559-354-0
01
1
0107-0307
115
BRACKET; FAN GUIDE
1-21559-485-0
01
1
0308-
242
BRACKET; RAD
1-21464-515-0
01
1
0107-
242
BRACKET; RAD
1-21464-516-0
01
1
0107-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
0202-
249
BOLT; STAY,RAD MBR
(A),(B) M8X30
1-09009-020-1
04
1
0107-0201
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
0202-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
