◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#112389) — 36 parça

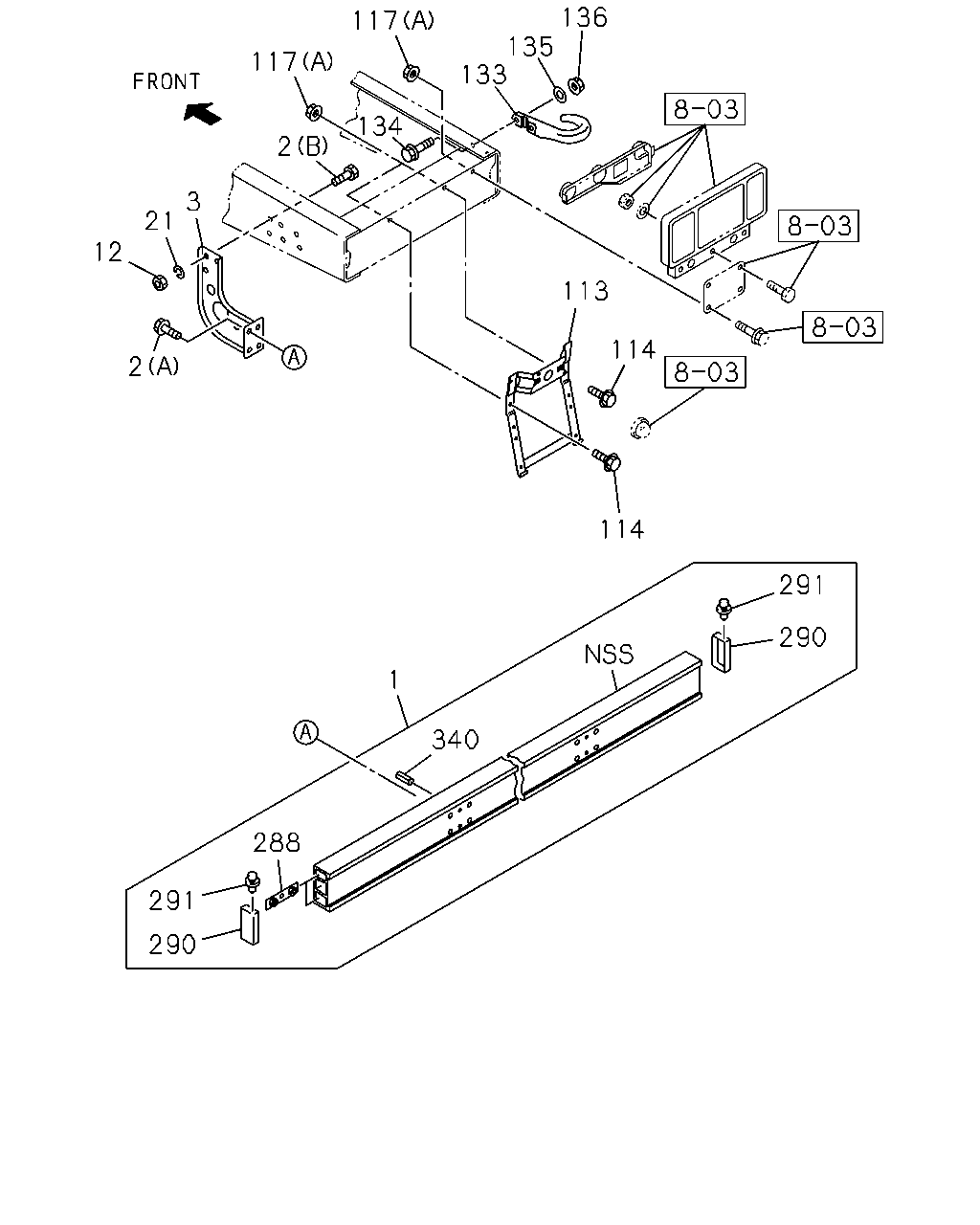

çizim 329257
12 2 21 3 117 2 134 117 133 135 136 113 114 114 1 288 291 290 340 291 290
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> STAMP D7L 		8-98170-462-1 01 1 1406-1408
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> STAMP E2L 		8-98194-021-0 01 1 1409-
2 BOLT; BACK BAR
MOROCCO EQUIPMENT(CGA) REAR UNDERRUN PROTECTOR<6DY> (B) M16X40 		0-20851-640-0 08 1 1406-1408
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY> KD PREPARATORY PACK<6HF> (B) M16X40 		0-20851-640-0 08 1 1409-
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY> (A) M12X30 FLANGE 		0-28651-230-0 08 1 1406-
3 BRACKET; BUMPER
245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR UNDERRUN PROTECTOR<6DY> STAMP GU 		1-71230-270-2 01 1 1406-
3 BRACKET; BUMPER
245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR UNDERRUN PROTECTOR<6DY> STAMP GU 		1-71230-271-2 01 1 1406-
12 NUT; BRKT
MOROCCO EQUIPMENT(CGA) REAR UNDERRUN PROTECTOR<6DY> M16 		0-91110-516-0 08 1 1406-1408
12 NUT; BRKT
REAR UNDERRUN PROTECTOR<6DY> KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 08 1 1409-
21 WASHER; LK,BUMPER
MOROCCO EQUIPMENT(CGA) REAR UNDERRUN PROTECTOR<6DY> ID=16.2 		0-91510-816-0 08 1 1406-1408
21 WASHER; LK,BUMPER
REAR UNDERRUN PROTECTOR<6DY> KD PREPARATORY PACK<6HF> ID=16.2 		0-91510-816-0 08 1 1409-
113 BRACKET; LICENSE PLATE
EXC. RUSSIA EQUIPMENT(B12) 		1-53485-074-0 01 1 1302-
114 BOLT; BRKT,LICENSE PLATE
EXC. RUSSIA EQUIPMENT(B12) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
117 NUT; BRKT
RUSSIA EQUIPMENT(B12) (B) M10 FLANGE 		0-91180-210-0 06 1 1302-1405
117 NUT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M10 FLANGE 		0-91180-210-0 06 1 1406-
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-
133 HOOK
TOW HOOK<V76> 		1-57181-003-5 01 1 1302-
134 BOLT; HOOK
TOW HOOK<V76> M14X50 		0-10861-450-0 02 1 1302-
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=14.2 		0-91510-814-0 02 1 1302-
136 NUT; HOOK
TOW HOOK<V76> M14 		0-91110-514-0 02 1 1302-
288 PLATE; RR BUMPER,REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-066-0 04 1 1406-
290 COVER; RR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-063-0 02 1 1406-1408
290 COVER; RR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-067-0 02 1 1409-
291 RIVET; REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-062-0 04 1 1406-
340 RIVET
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-065-0 04 1 1406-
çizim 431749
117 283
BalonParca AdiParca NoAdetTipApplied Date
117 NUT; BRKT
RUSSIA EQUIPMENT(B12) (B) M10 FLANGE 		0-91180-210-0 06 1 1302-1405
117 NUT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M10 FLANGE 		0-91180-210-0 06 1 1406-
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1405
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-
117 NUT; BRKT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M8 FLANGE 		0-91180-108-0 02 1 1406-
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) RUSSIA EQUIPMENT(B12) 		1-82290-011-1 08 1 1302-1405
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		1-82290-011-1 08 1 1406-
