Sayfa 6-84 - Isuzu EPC

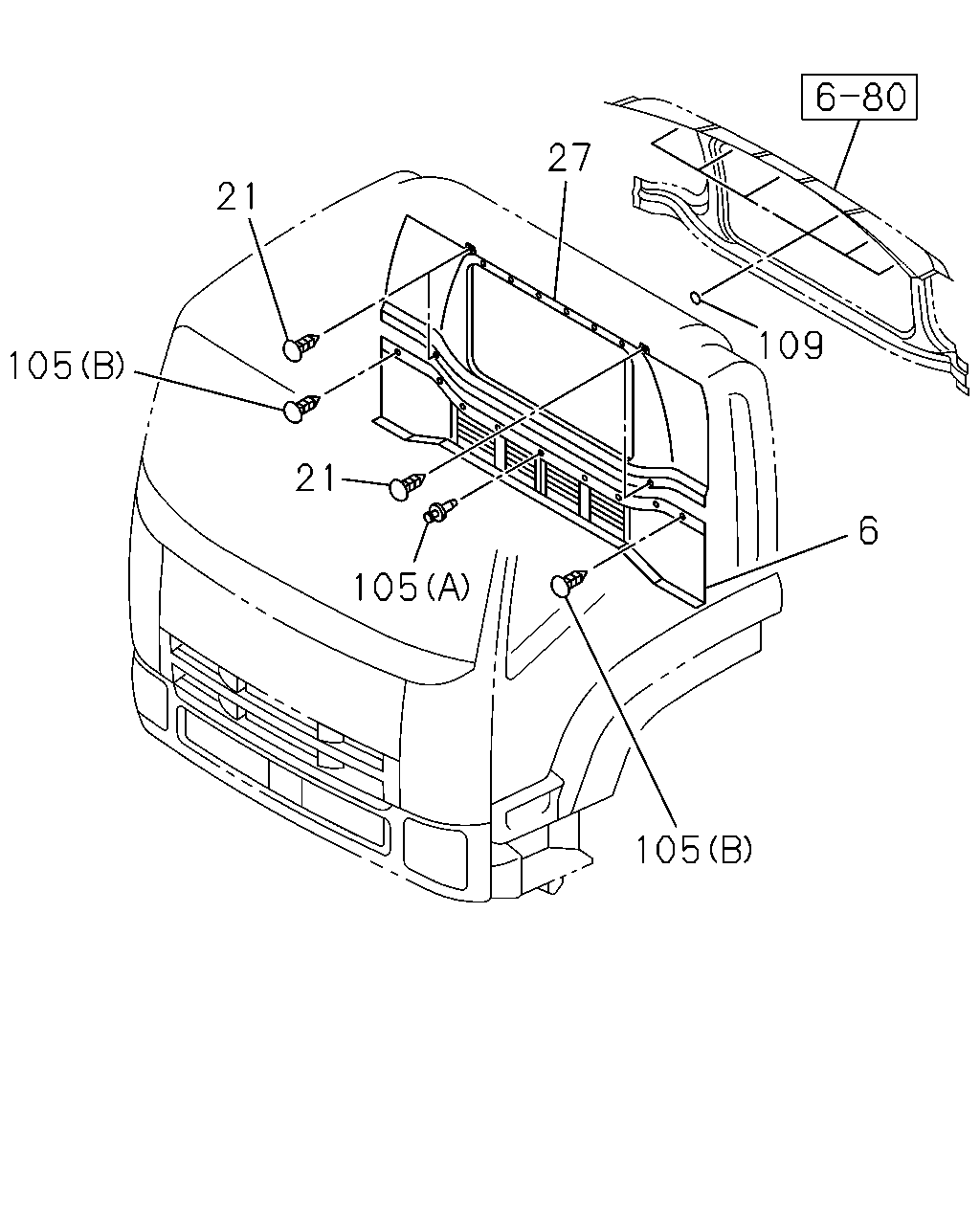

6-84 — BACK TRIM (#112384) — 9 parça

105 21 27 109 6 105 105 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	MAT; SILENCER,CAB BACK INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY	8-97422-490-1	01	1	1302-
6	MAT; SILENCER,CAB BACK EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY	8-97407-457-1	01	1	1302-
21	RETAINER; TRIM,BED ROOM INTERIOR FULL TRIM<WM3> GRAY	8-97407-467-0	04	1	1302-
27	COVER; TRIM,BACK INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> DARK GRAY	8-97422-492-1	01	1	1302-
27	COVER; TRIM,BACK INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY	8-97407-463-2	01	1	1302-
105	CLIP; BACK TRIM (B) GRAY	8-97407-467-0	02	1	1302-
105	CLIP; BACK TRIM (A) GRAY	8-97408-022-0	07	1	1302-
109	SEAL; HOLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	06	1	1302-
109	SEAL; HOLE BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	06	1	1302-
