Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#112376) — 188 parça

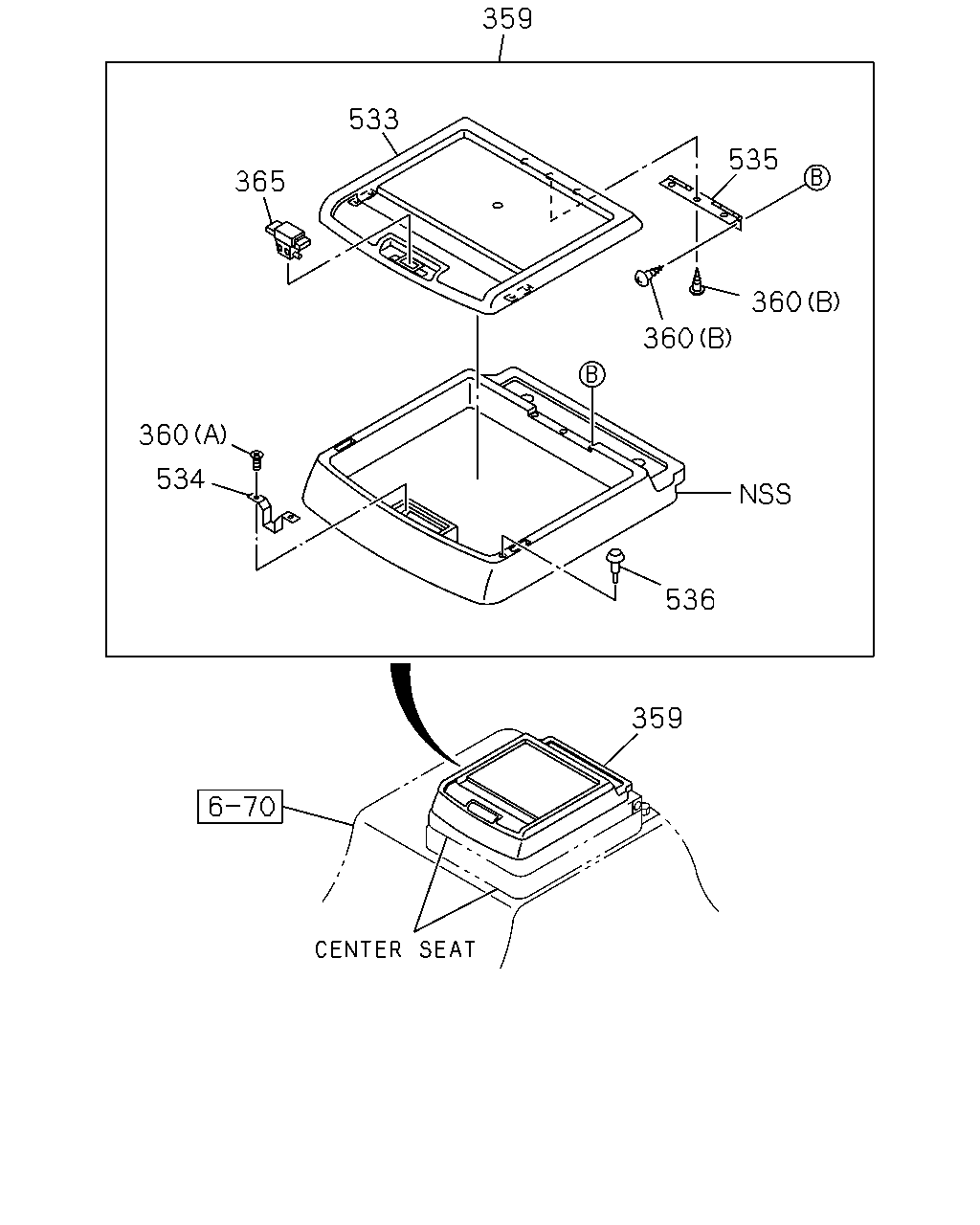

359 536 534 360 360 365 360 533 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1302-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1302-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1302-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1302-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1302-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1302-

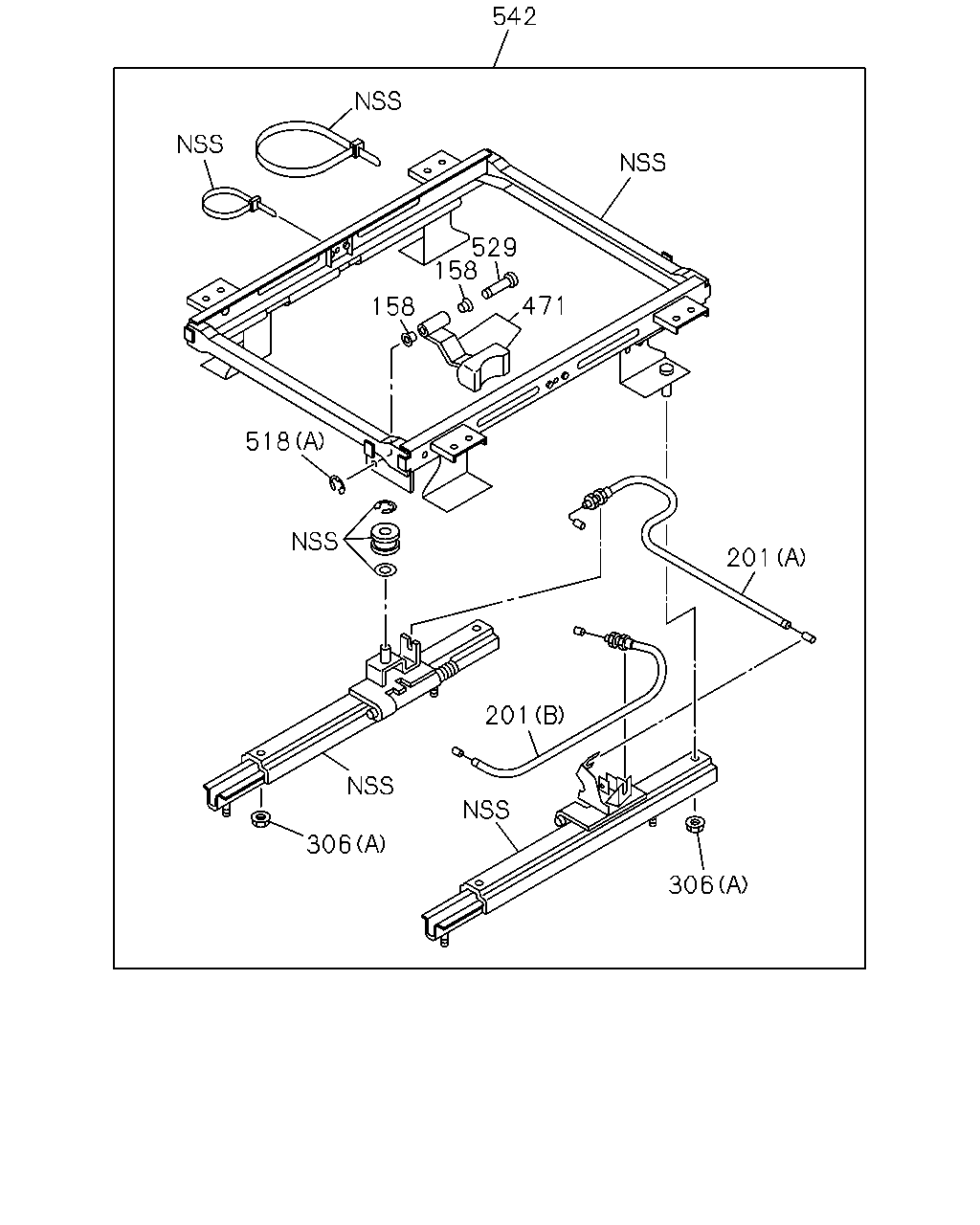

542 529 158 158 471 518 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1302-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1302-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1302-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1302-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1302-
529	PIN; LINK	1-75518-262-0	01	1	1302-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1302-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

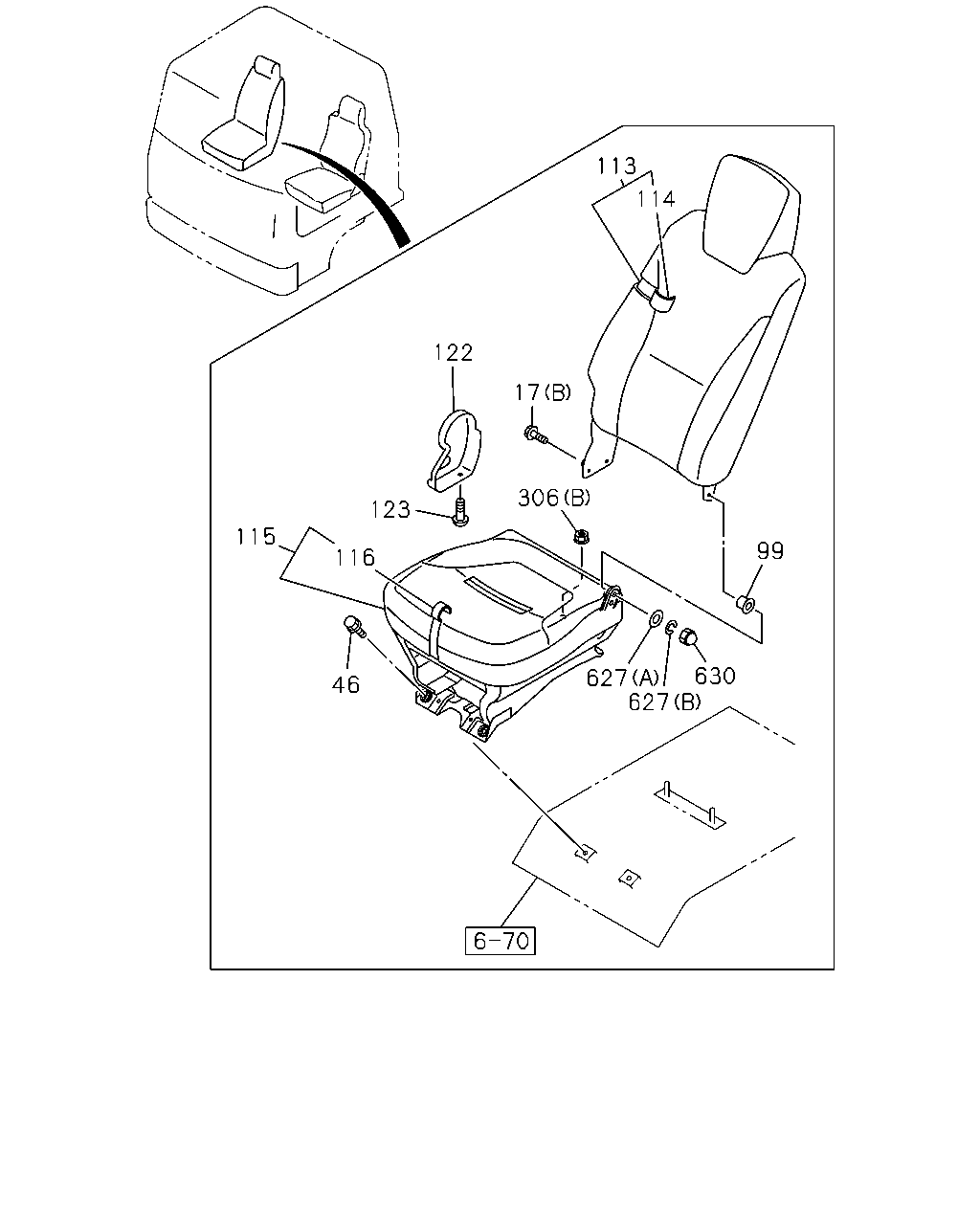

114 113 17 122 99 306 627 123 627 46 116 115 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1302-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1302-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1302-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1302-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1302-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	1302-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1302-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	1302-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-1	01	1	1302-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	1302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-0	01	1	1302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	1302-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1302-
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1302-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1302-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1302-
630	NUT; CAP M8	8-98063-225-0	01	1	1302-

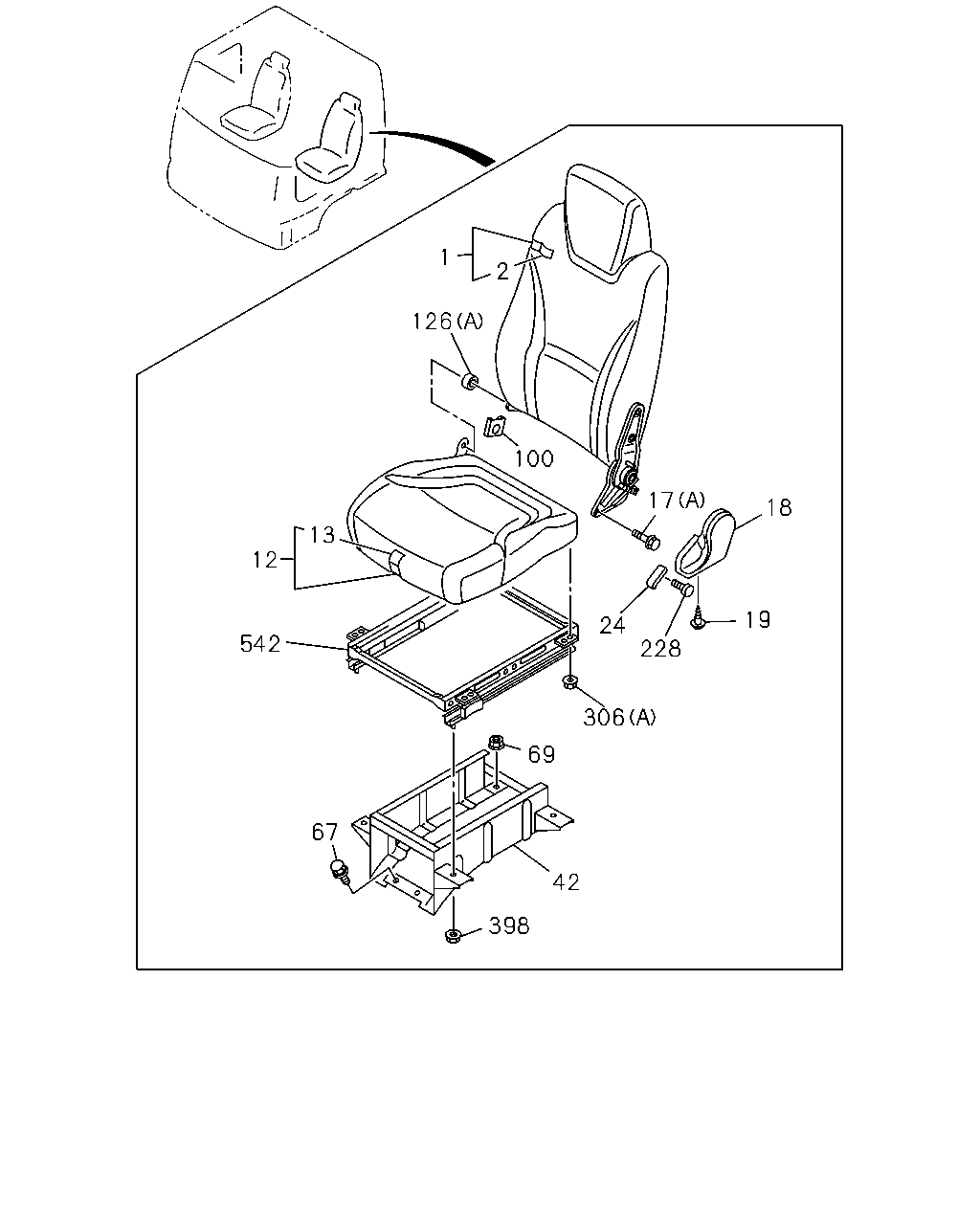

2 1 126 100 17 18 19 228 24 306 69 42 398 67 542 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1302-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1302-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1302-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1302-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1302-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1302-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1302-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1302-
19	SCREW; COVER M5	8-98062-663-0	01	1	1302-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1302-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1302-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1302-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1302-
100	COVER; HINGE	8-98203-070-0	01	1	1302-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1302-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1302-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1302-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1302-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

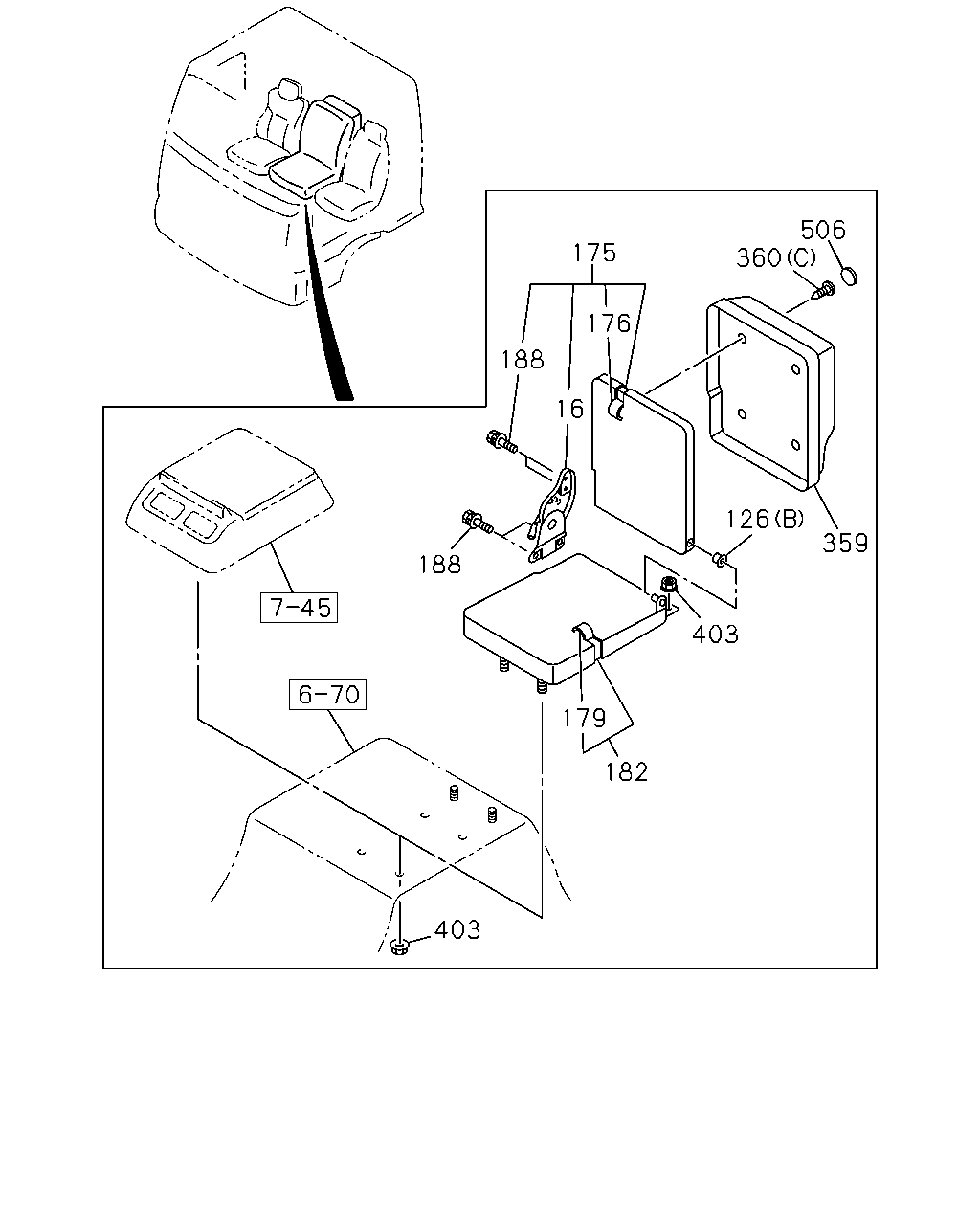

403 182 179 188 403 359 126 16 188 176 175 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1302-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1302-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1302-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1302-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1302-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1302-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1302-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	1302-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1302-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	1302-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1302-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1302-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1302-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1302-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1302-

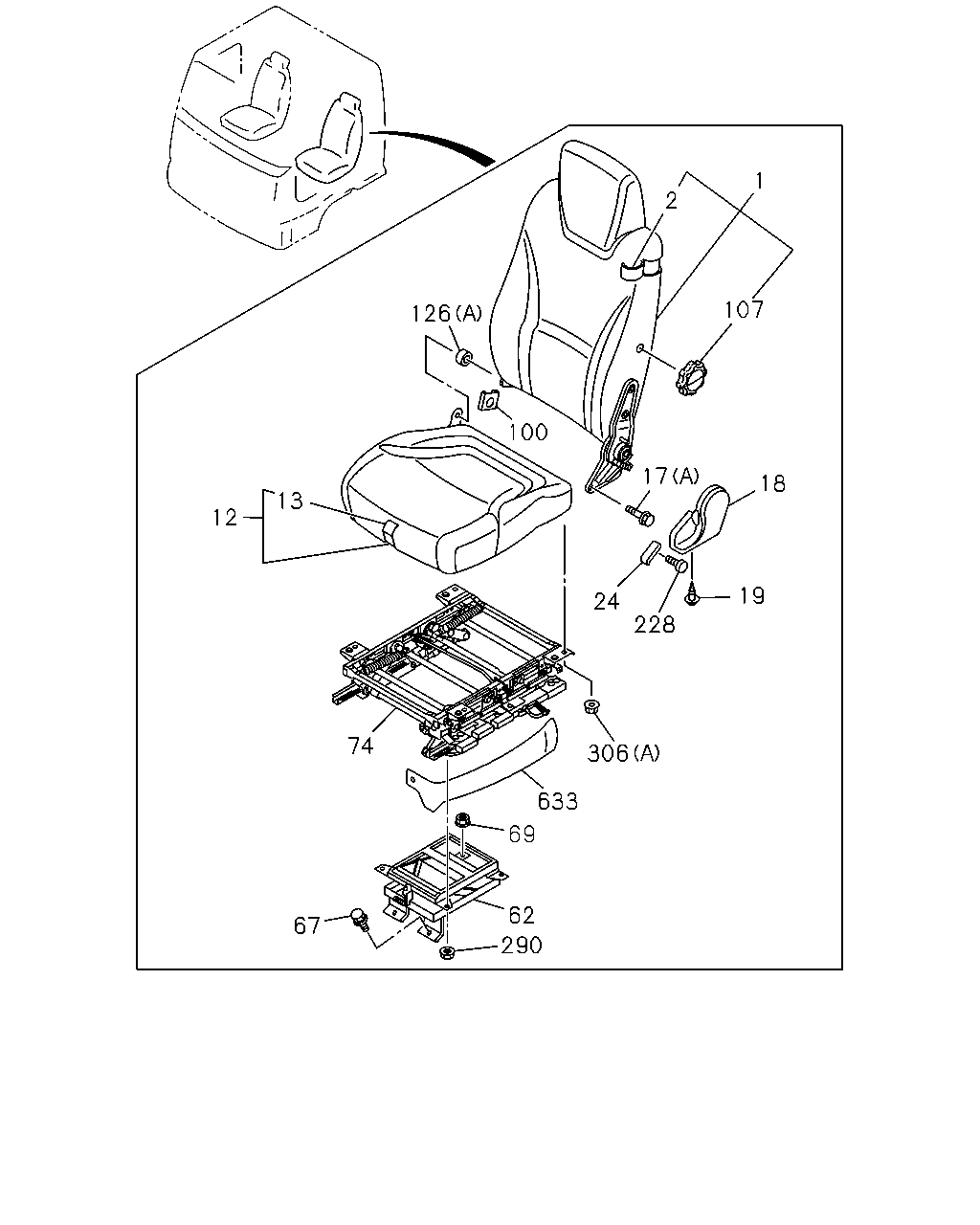

1 2 107 126 100 17 18 19 228 24 13 12 74 306 633 69 67 62 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1302-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1302-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-037-5	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1302-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-038-2	01	1	1302-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1302-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97414-035-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1302-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-036-1	01	1	1302-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1302-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1302-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1302-
19	SCREW; COVER M5	8-98062-663-0	01	1	1302-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1302-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1302-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1302-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1302-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1302-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-
100	COVER; HINGE	8-98203-070-0	01	1	1302-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1302-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1302-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1302-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1302-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1302-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1302-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1302-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1302-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1302-

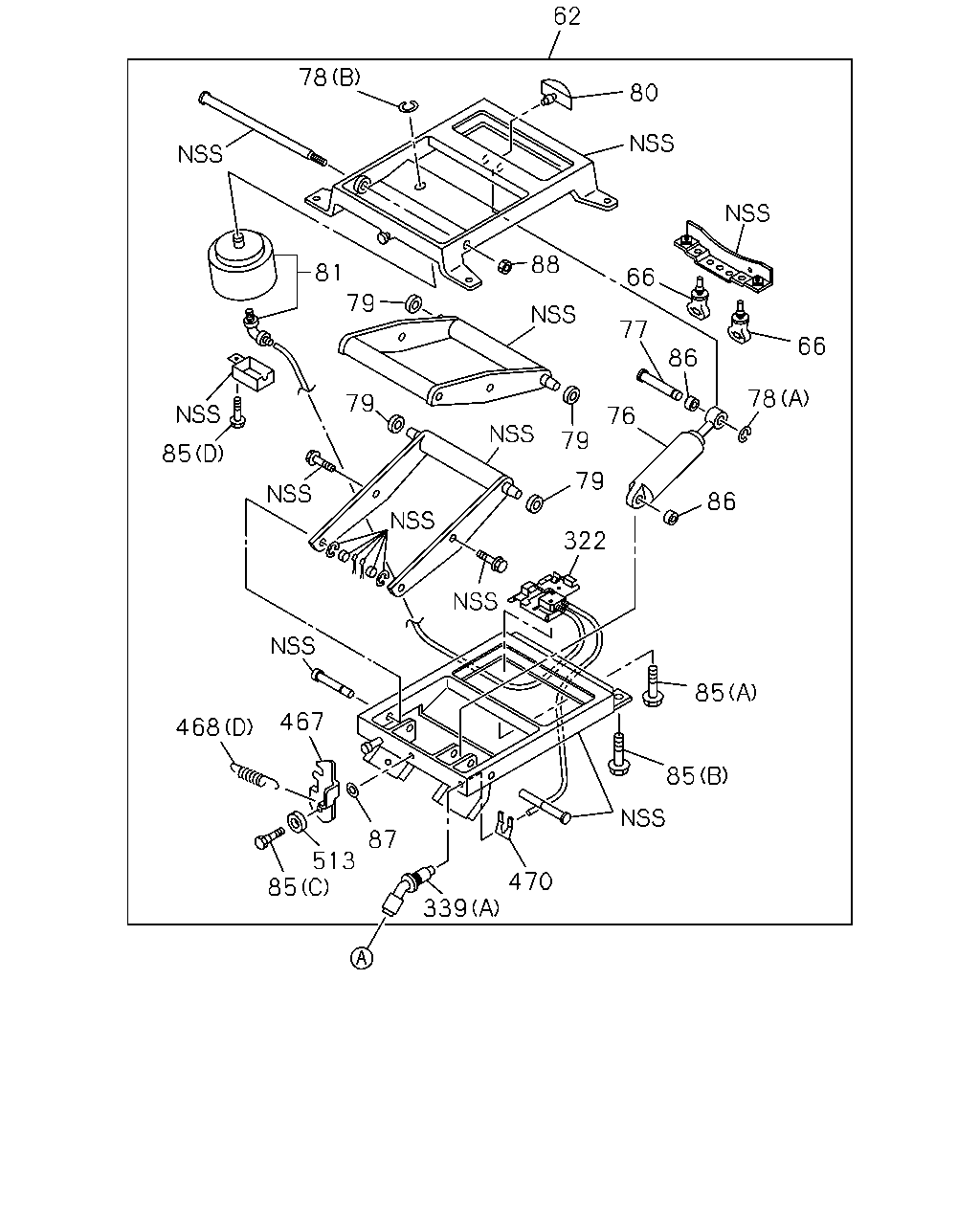

62 80 78 81 79 85 86 88 77 79 76 79 86 78 66 85 85 470 339 87 513 85 467 468 66 322 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1302-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1302-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1302-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1302-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1302-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1302-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1302-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1302-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	1302-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1302-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1302-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1302-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1302-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1302-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1302-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	1302-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1302-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1302-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1302-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1302-

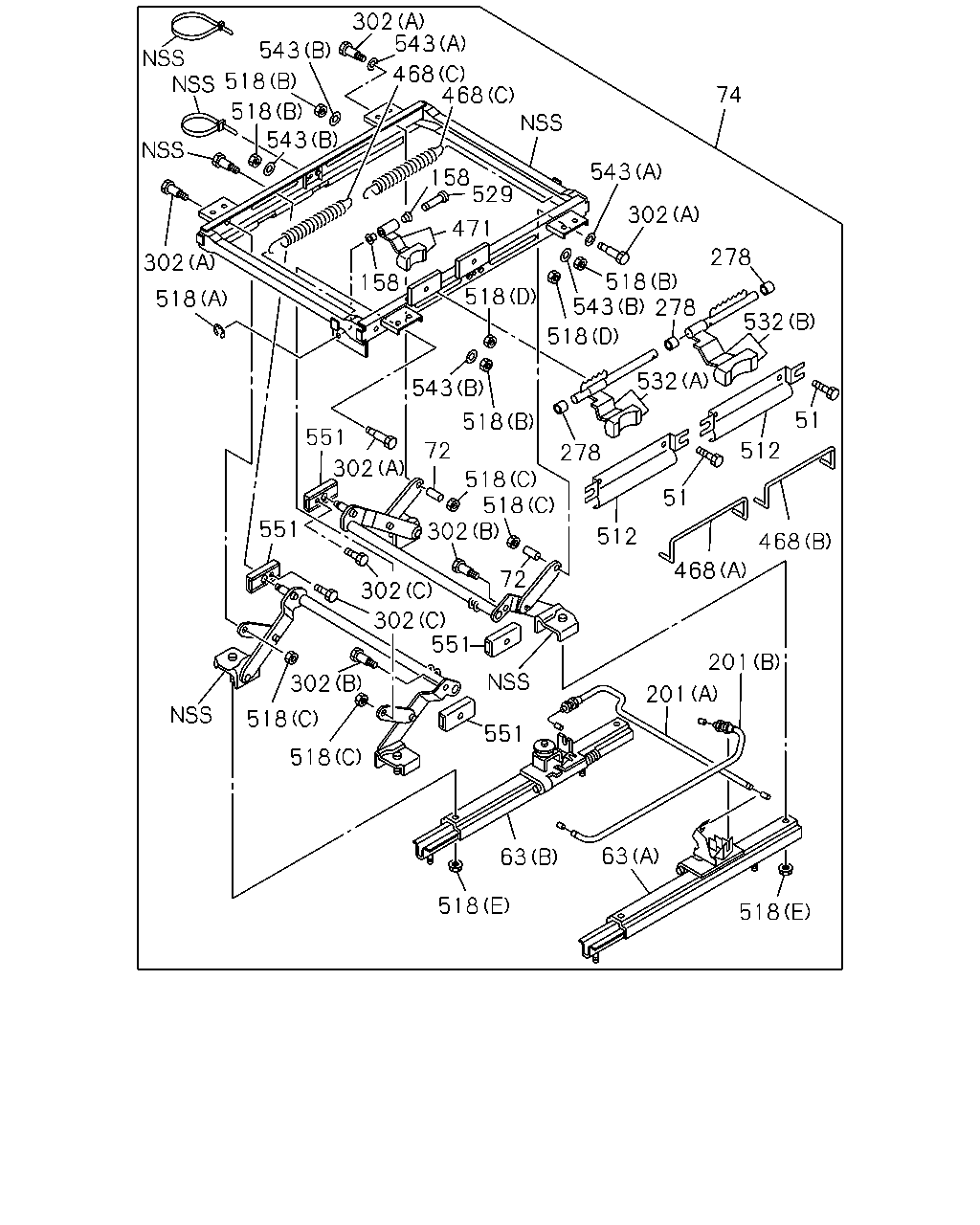

74 278 302 543 532 51 532 278 518 468 201 518 63 63 518 201 468 551 518 518 551 302 302 302 551 551 72 518 543 518 302 72 51 512 278 512 543 518 471 529 158 158 518 518 302 543 518 518 543 302 468 468 543 302 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1302-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1302-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1302-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1302-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1302-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1302-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1302-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1302-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1302-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1302-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1302-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1302-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1302-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1302-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1302-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1302-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1302-
529	PIN; LINK	1-75518-262-0	01	1	1302-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1302-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1302-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1302-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1302-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1302-

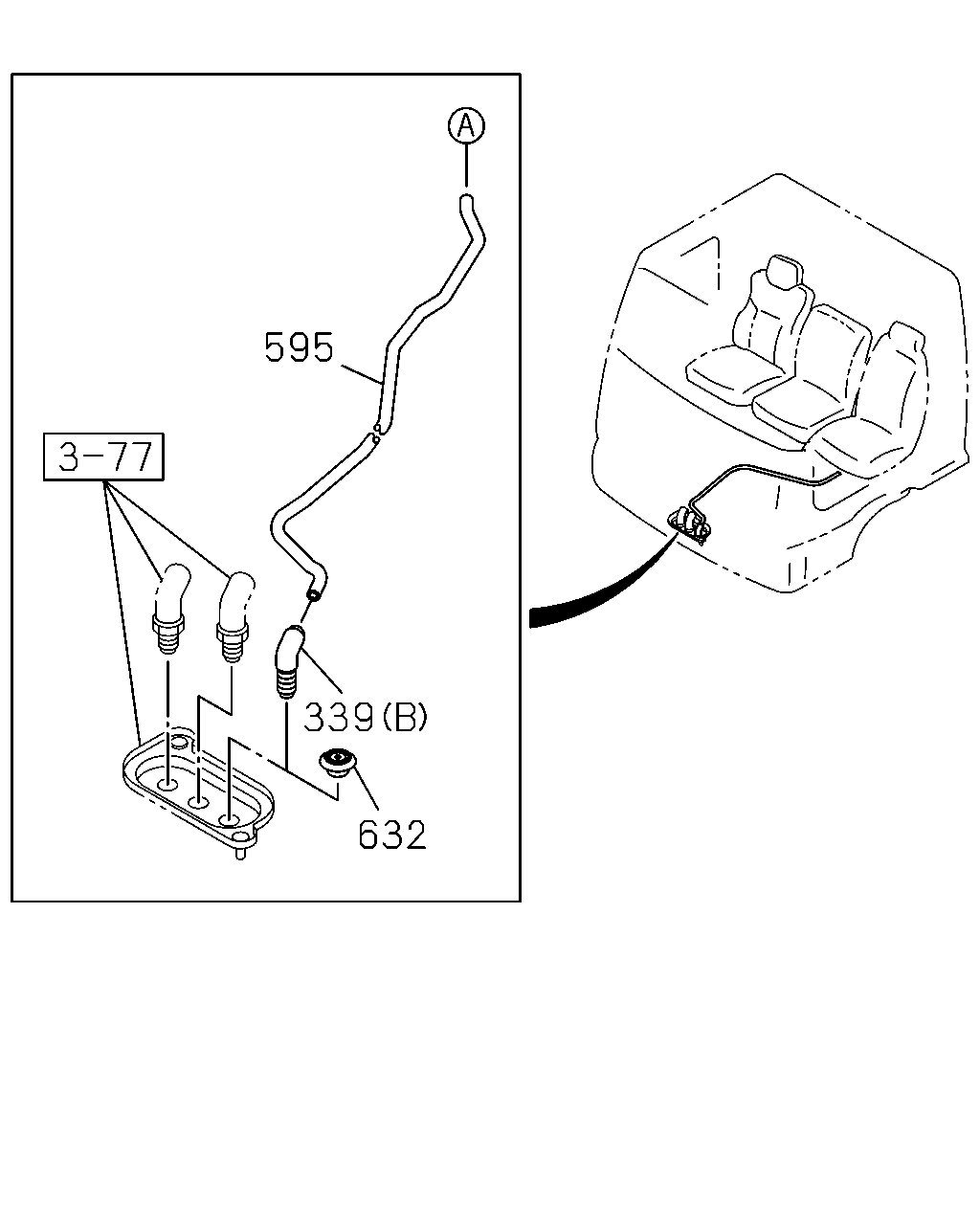

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1302-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98041-300-0	01	1	1302-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
