◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#112375) — 835 parça

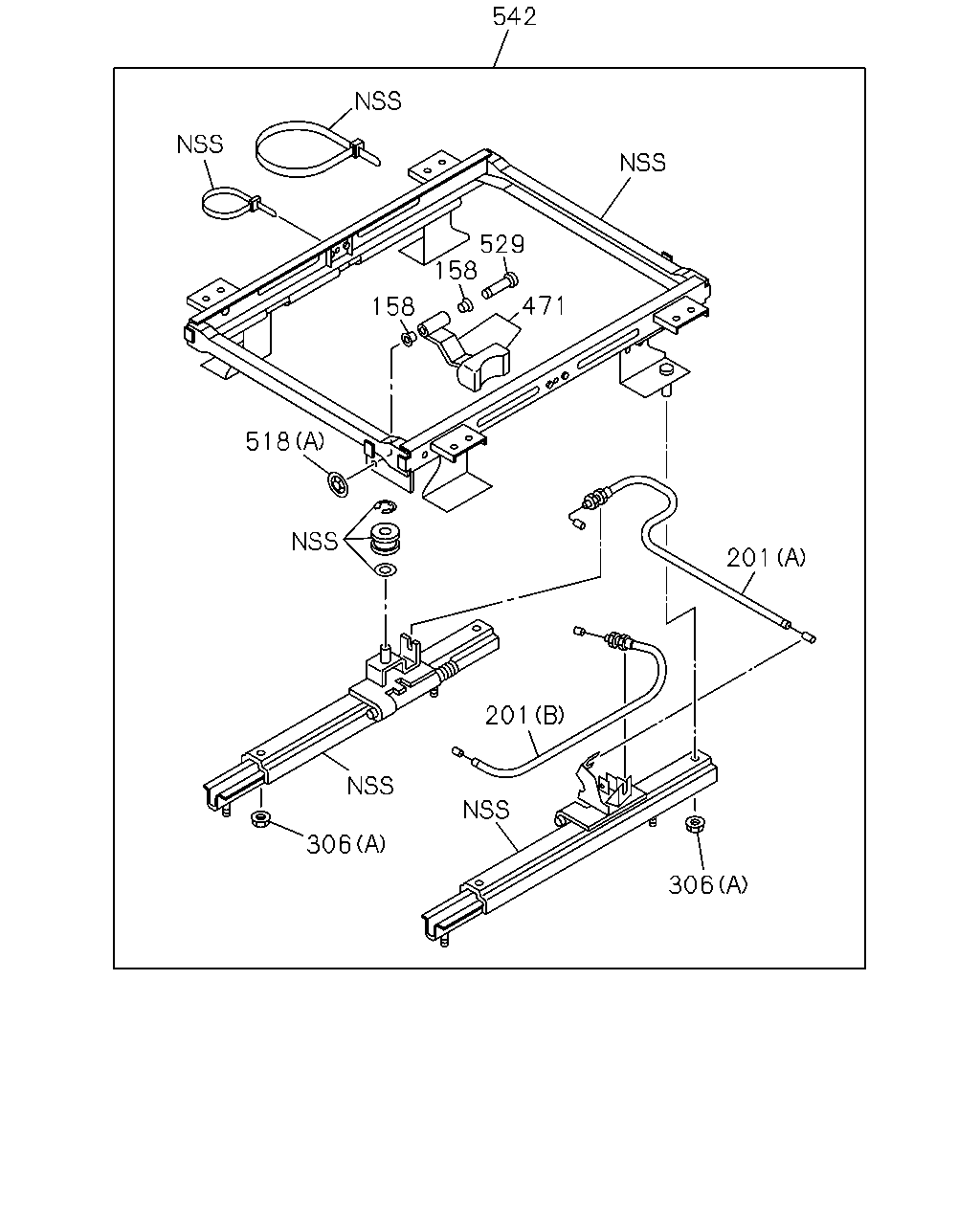

çizim 329306
542 529 158 471 158 518 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1502 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1504 ● ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1503-1504 ● ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1505-1506 ● ●
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1505-1506 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1505-1506 ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1504 ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1503-1504 ● ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1505-1506 ● ●
201 CABLE; ADJ
SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1505-1506 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1505-1506 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1504 ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1503-1504 ● ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1505-1506 ● ●
201 CABLE; ADJ
SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1505-1506 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1505-1506 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1504 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1506 ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ● ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1302-1502 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-870-0 01 1 1503-1504 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1503-1504 ● ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1505-1506 ● ●
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> 		8-98107-870-0 01 1 1505-1506 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1505-1506 ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1505-1506 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1302-1502 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1504 ● ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1503-1504 ● ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1505-1506 ● ●
529 PIN; LINK
SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1505-1506 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1505-1506 ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK 1-75518-262-0 01 1 1510- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 1302-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-1506 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1510- ● ●

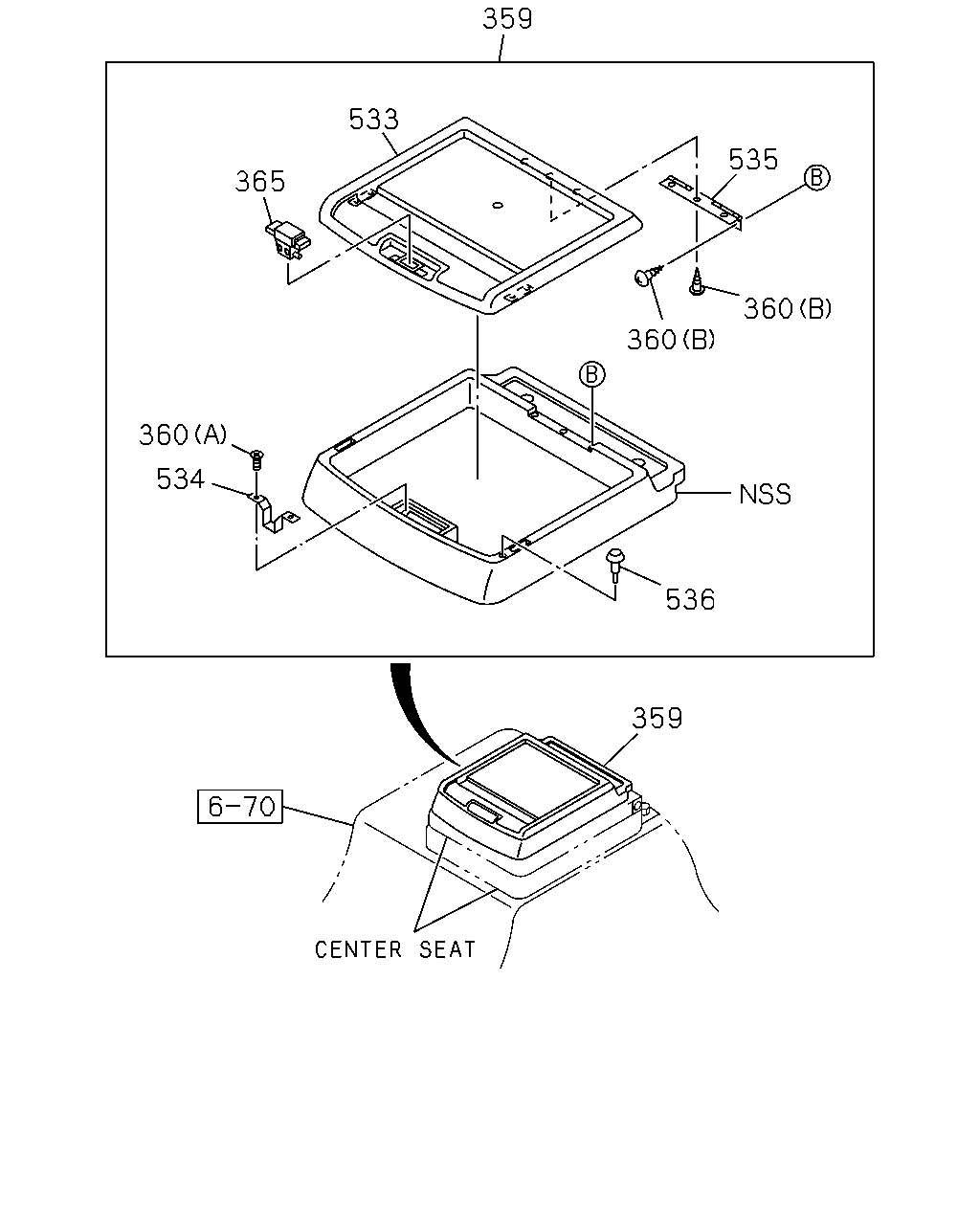

çizim 329316
359 533 365 360 534 359 536 360 360 535
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1302- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1302- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1302- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1302- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1302- ● ●

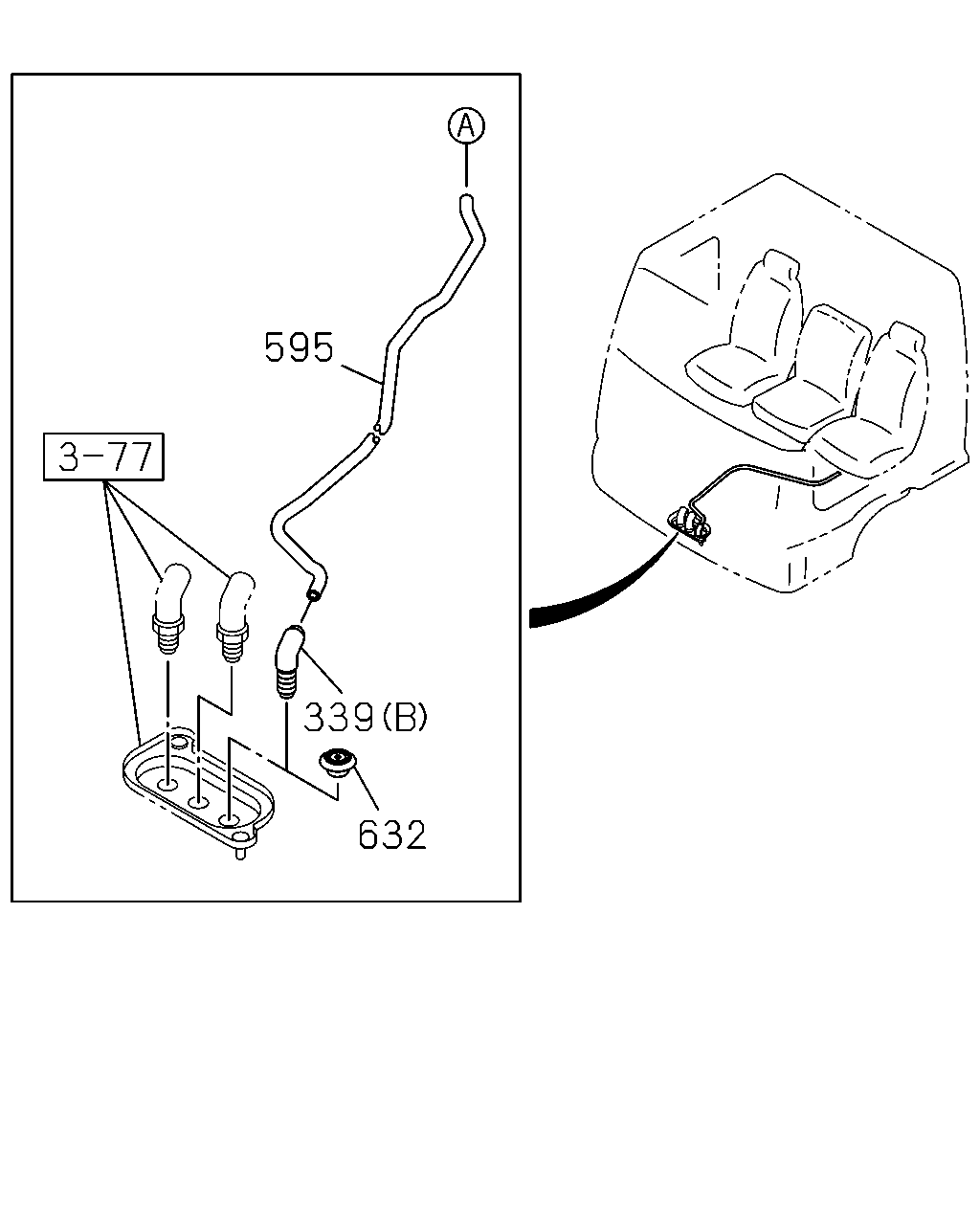

çizim 329415
595 339 632
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1302-1502 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1503-1504 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1505-1506 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1505-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1509 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-1510 ● ●
339 UNION; DRIVER SEAT
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98014-971-0 01 1 1511- ● ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98041-300-0 01 1 1302-1510 ● ●
595 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98041-300-0 01 1 1511- ● ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1302- ● ●

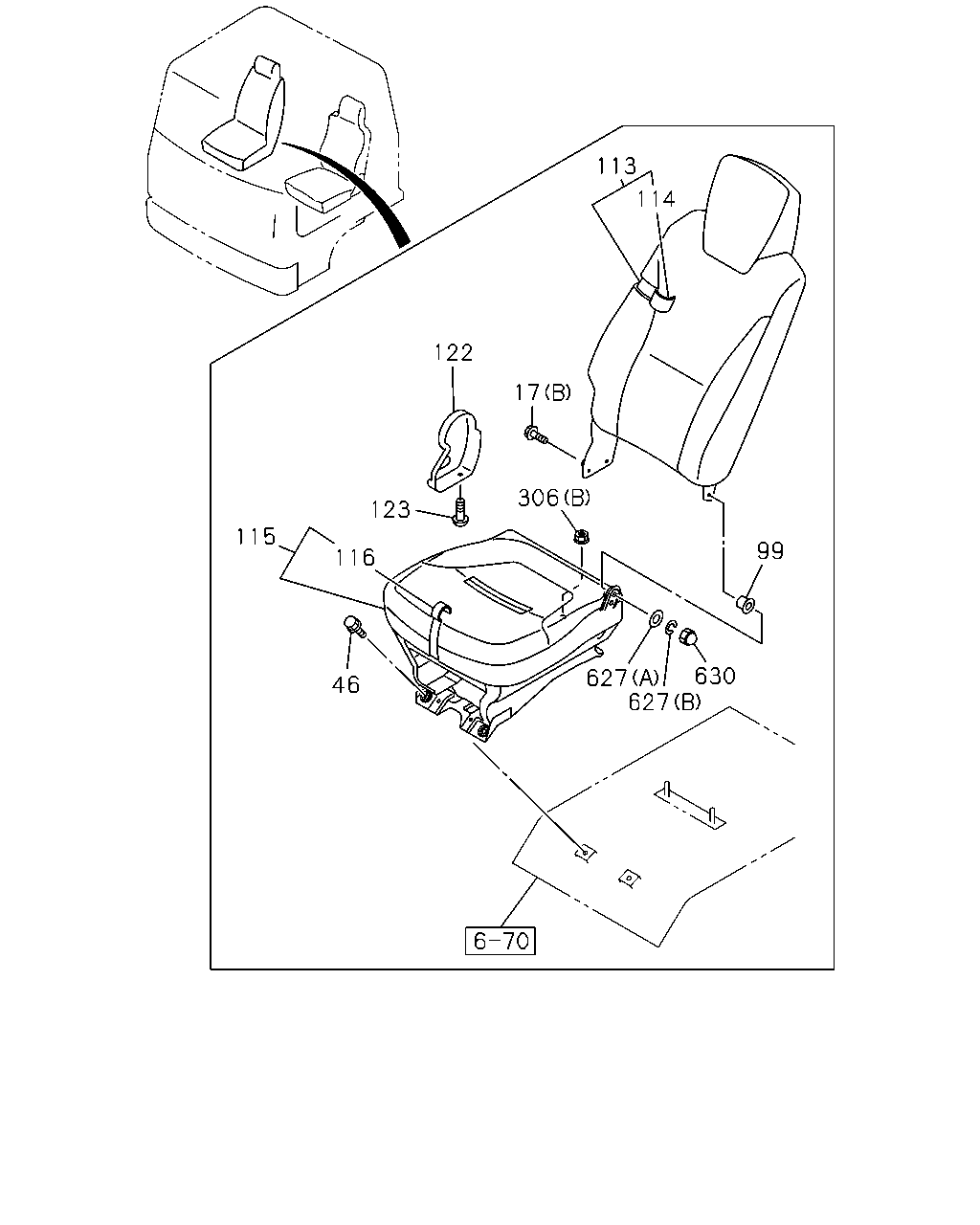

çizim 329561
113 114 122 17 306 123 115 116 46 627 627 99 630
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1302- ● ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-423-0 01 1 1302- ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-041-1 01 1 1302- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-425-0 01 1 1302- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-042-0 01 1 1302- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-419-2 01 1 1302- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-039-1 01 1 1302- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-421-1 01 1 1302- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-040-0 01 1 1302- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1302- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1302- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1504 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1506 ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1302- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1302- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1302- ● ●

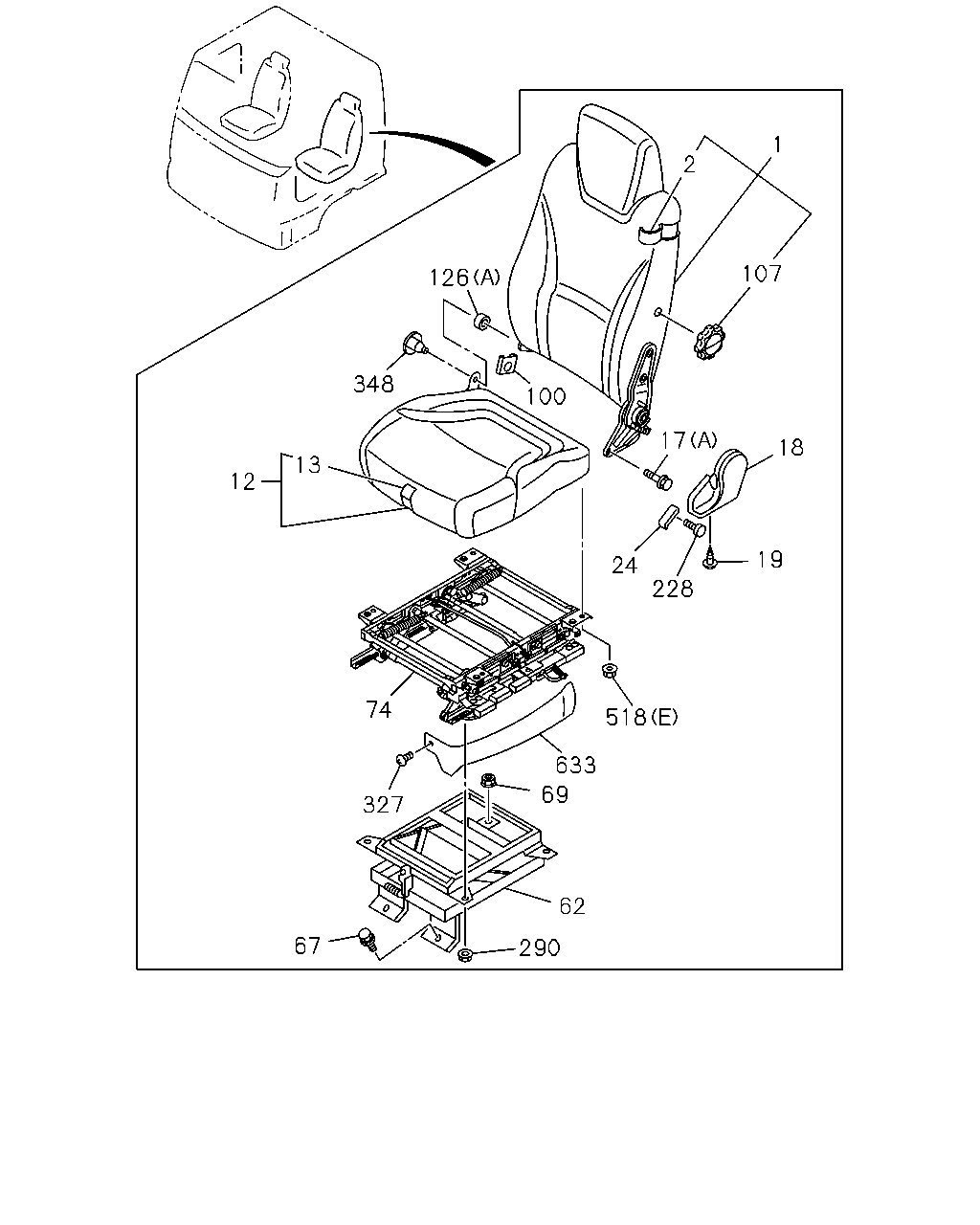

çizim 329679
126 348 13 12 74 327 633 518 69 62 290 100 24 228 19 18 17 107 1 2 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1302-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97466-623-0 01 1 1601- ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1302-1506 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-409-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-621-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1302-1504 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1505-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97466-619-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1302- ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1302-1506 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-414-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1510- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1302-1504 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1505- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-373-0 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-615-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-400-1 01 1 1302-1506 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-400-2 01 1 1507-1509 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-400-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-613-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-399-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-612-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97466-612-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1302-1504 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-035-2 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-609-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97466-609-0 01 1 1601- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-404-1 01 1 1302-1506 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-404-2 01 1 1507-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-404-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-403-2 01 1 1302- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1302- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1302-1504 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1505- ● ●
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302- ● ●
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1302- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1502 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1504 ● ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1503-1504 ● ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1505-1506 ● ●
19 SCREW; COVER
SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1505-1506 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1505-1506 ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1302- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-185-8 01 1 1302-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1503-1504 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1505-1506 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-451-0 01 1 1505-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-451-0 01 1 1507-1509 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1510- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98093-429-0 01 1 1302-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1504 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1505-1506 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-641-0 01 1 1505-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-641-0 01 1 1507-1509 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1510- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1302-1502 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1504 ● ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1503-1504 ● ●
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1505-1506 ● ●
100 COVER; HINGE
SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1505-1506 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1505-1506 ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE 8-98286-009-0 01 1 1601- ● ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1510- ● ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1302-1506 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1505-1506 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1502 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1504 ● ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1503-1504 ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1505-1506 ● ●
228 SCREW; KNOB
SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1505-1506 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1505-1506 ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510- ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1504 ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> ID=459 		1-09987-273-0 01 1 1302- ● ●
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1505-1506 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97414-118-0 01 1 1302- ● ●

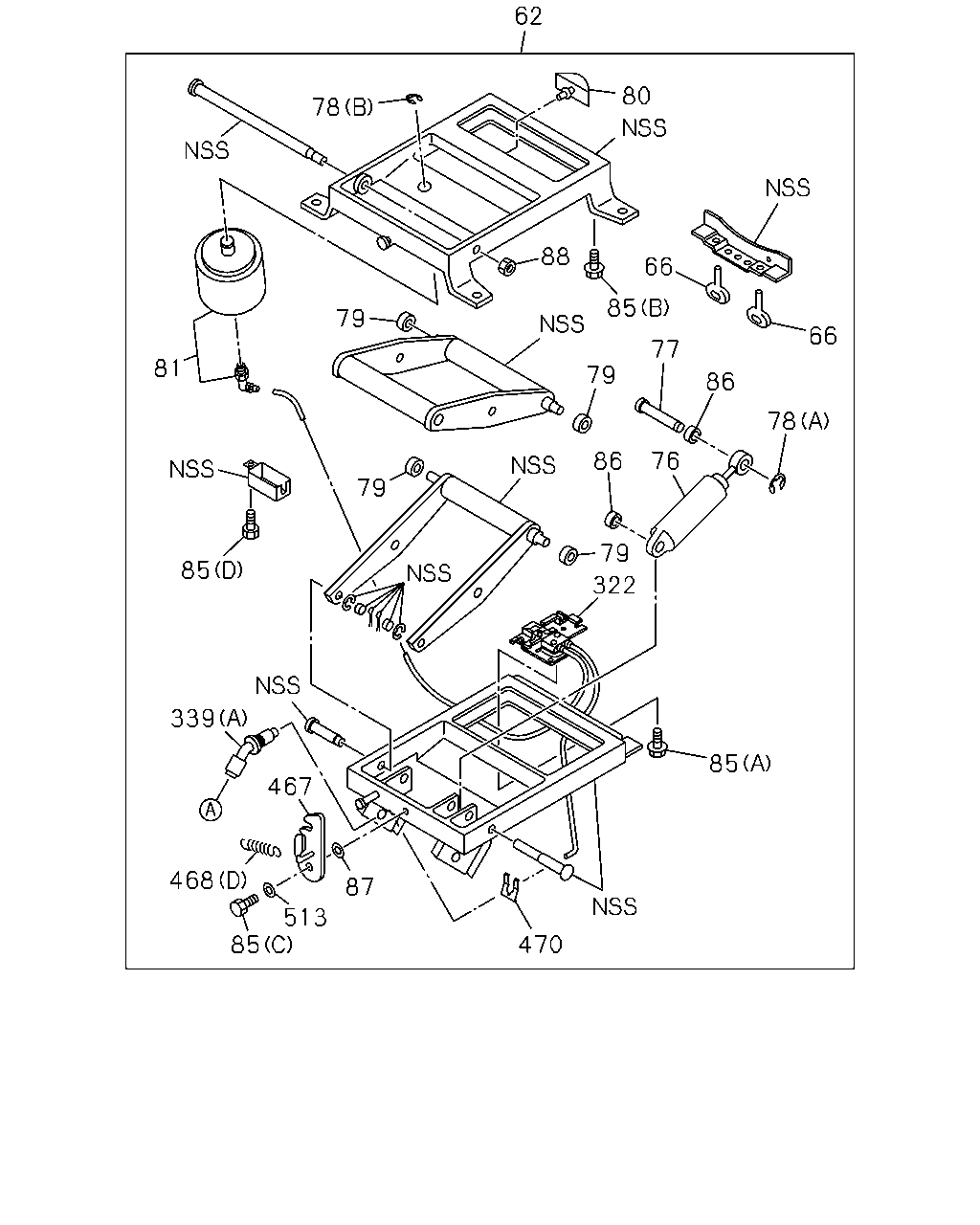

çizim 329721
62 78 81 85 339 468 85 87 513 467 470 85 322 79 79 86 76 79 78 86 77 66 85 66 80 88 79
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-185-8 01 1 1302-1403 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1404-1502 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1503-1504 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1505-1506 ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-451-0 01 1 1505-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-451-0 01 1 1507-1509 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1510- ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1302-1502 ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1503-1504 ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1505-1506 ● ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-145-0 02 1 1505-1506 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-145-0 02 1 1507-1509 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1510- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1302-1502 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1503-1504 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1505-1506 ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-139-0 01 1 1505-1506 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-139-0 01 1 1507-1509 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 1510- ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1302-1502 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1503-1504 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1505-1506 ● ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-138-2 01 1 1505-1506 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-138-2 01 1 1507-1509 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1510- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1302-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1503-1504 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1505-1506 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1505-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1507-1509 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1510- ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1302-1502 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1503-1504 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1505-1506 ● ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1505-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1507-1509 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1510- ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 1302-1403 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-1502 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1503-1504 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1505-1506 ● ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-489-0 04 1 1505-1506 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-489-0 04 1 1507-1509 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1510- ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1302-1502 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1503-1504 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1505-1506 ● ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-123-0 01 1 1505-1506 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-123-0 01 1 1507-1509 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1510- ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 1302-1312 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401-1502 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1503-1504 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1505-1506 ● ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98242-816-0 01 1 1505-1506 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98242-816-0 01 1 1507-1509 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1503-1504 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1505-1506 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1505-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-1509 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1302-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1503-1504 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1505-1506 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-09980-577-1 01 1 1505-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-09980-577-1 01 1 1507-1509 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1302-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1503-1504 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1505-1506 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12 		1-75538-208-1 02 1 1505-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12 		1-75538-208-1 02 1 1507-1509 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1510- ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1302-1312 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1502 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1503-1504 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1505-1506 ● ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1505-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-1509 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510- ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1302-1502 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1503-1504 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1505-1506 ● ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1505-1506 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-1509 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510- ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1302-1502 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1503-1504 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1505-1506 ● ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2 		0-91510-508-0 01 1 1505-1506 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2 		0-91510-508-0 01 1 1507-1509 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1510- ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1302-1502 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1503-1504 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1505-1506 ● ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M10 		1-75537-273-1 01 1 1505-1506 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M10 		1-75537-273-1 01 1 1507-1509 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1510- ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-187-3 01 1 1302-1502 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-187-3 01 1 1503-1504 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-187-3 01 1 1505-1506 ● ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-187-3 01 1 1505-1506 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-187-3 01 1 1507-1509 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-187-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1302-1502 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1503-1504 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1505-1506 ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1505-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1509 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1510- ● ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-1510 ● ●
339 UNION; DRIVER SEAT
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98014-971-0 01 1 1511- ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1302-1502 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1503-1504 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1505-1506 ● ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-134-0 01 1 1505-1506 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-134-0 01 1 1507-1509 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510- ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1302-1502 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1503-1504 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1505-1506 ● ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-137-0 01 1 1505-1506 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-137-0 01 1 1507-1509 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1510- ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1302-1502 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1503-1504 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1505-1506 ● ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-133-0 01 1 1505-1506 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-133-0 01 1 1507-1509 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1510- ● ●

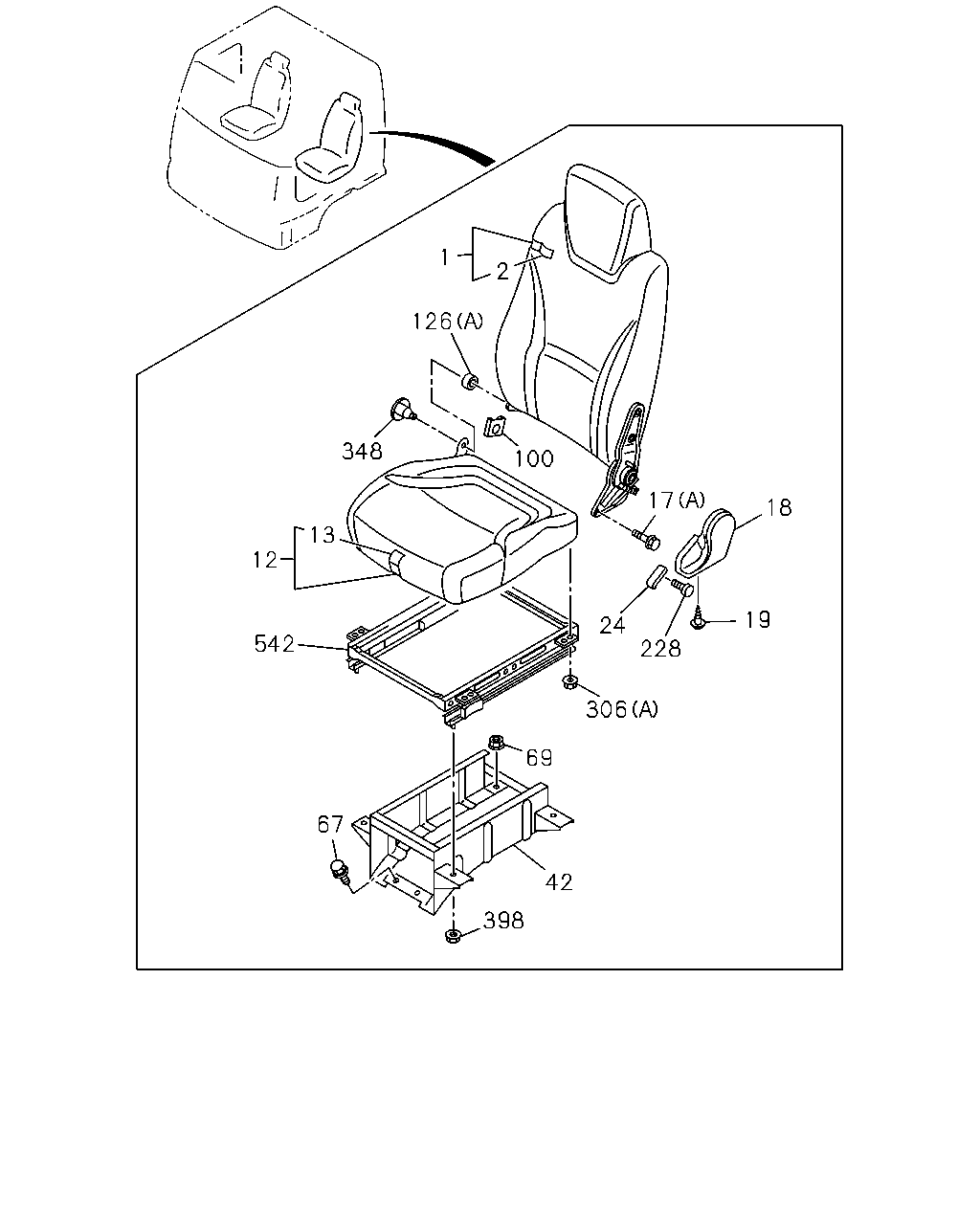

çizim 332290
1 2 126 348 100 17 18 19 228 24 306 69 42 398 67 542 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1302-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97466-623-0 01 1 1601- ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1302-1506 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-409-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1510-1512 ● ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-621-0 01 1 1601- ● ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1302-1504 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-037-5 01 1 1505-1512 ● ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97466-619-0 01 1 1601- ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1302- ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1302-1506 ● ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-414-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1510- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1302-1504 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-038-2 01 1 1505- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-373-0 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-615-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-400-1 01 1 1302-1506 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-400-2 01 1 1507-1509 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-400-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-613-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-399-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-612-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97466-612-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1302-1504 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-035-2 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-035-2 01 1 1505-1512 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-609-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97466-609-0 01 1 1601- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-404-1 01 1 1302-1506 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-404-2 01 1 1507-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-404-2 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-403-2 01 1 1302- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1302- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1302-1504 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> DARK GRAY 		8-97414-036-1 01 1 1505- ● ●
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1503-1504 ● ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ● ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1505-1506 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509 ●
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1302- ● ●
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1302- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1502 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1504 ● ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1503-1504 ● ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1505-1506 ● ●
19 SCREW; COVER
SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1505-1506 ● ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1505-1506 ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509 ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1302- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1302-1506 ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1510- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1302-1502 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1504 ● ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1503-1504 ● ●
100 COVER; HINGE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1505-1506 ● ●
100 COVER; HINGE
SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1505-1506 ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1505-1506 ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509 ●
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE 8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1505-1506 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1502 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1504 ● ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1503-1504 ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1505-1506 ● ●
228 SCREW; KNOB
SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1505-1506 ● ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1505-1506 ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1504 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1506 ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ● ●
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601- ● ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1302-1506 ● ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 1302-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-1506 ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1510- ● ●
çizim 332322
175 176 188 16 188 403 182 179 403 126 359 360 506
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1302- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1503-1504 ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1505-1506 ● ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1505-1506 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1302- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1302- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1302- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1302- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-433-1 01 1 1302- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-690-1 01 1 1302- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-431-3 01 1 1302- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-129-3 01 1 1302- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1302- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1302- ● ●
çizim 332342
543 518 518 543 302 543 468 468 543 302 278 532 51 512 158 529 471 518 543 518 518 72 551 302 518 302 551 302 302 551 551 518 518 302 302 518 158 72 306 63 63 306 201 201 468 512 468 532 518 278 278 543 518 74 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1302-1502 ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1503-1504 ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1505-1506 ● ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-325-1 04 1 1505-1506 ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-325-1 04 1 1507-1509 ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1302-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-227-1 01 1 1503-1504 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-227-1 01 1 1505-1506 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-227-1 01 1 1505-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-227-1 01 1 1507-1509 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1510- ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1302-1502 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-324-0 01 1 1503-1504 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-324-0 01 1 1505-1506 ● ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-324-0 01 1 1505-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-324-0 01 1 1507-1509 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1510- ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 1302-1502 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-1504 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1505-1506 ● ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-668-0 02 1 1505-1506 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-668-0 02 1 1507-1509 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1510- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98093-429-0 01 1 1302-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1504 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1505-1506 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-641-0 01 1 1505-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-641-0 01 1 1507-1509 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1510- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1502 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1504 ● ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1503-1504 ● ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1505-1506 ● ●
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1505-1506 ● ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1505-1506 ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1504 ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1503-1504 ● ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1505-1506 ● ●
201 CABLE; ADJ
SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1505-1506 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1505-1506 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509 ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1502 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1504 ● ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1503-1504 ● ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1505-1506 ● ●
201 CABLE; ADJ
SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1505-1506 ● ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1505-1506 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509 ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510- ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1302-1502 ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1503-1504 ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1505-1506 ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-244-0 03 1 1505-1506 ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-244-0 03 1 1507-1509 ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1302-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1503-1504 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1505-1506 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-266-2 02 1 1505-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-266-2 02 1 1507-1509 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 1302-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-1504 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1505-1506 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98291-667-0 04 1 1505-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98291-667-0 04 1 1507-1509 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1510- ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1302-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1503-1504 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1505-1506 ● ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-336-1 02 1 1505-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-336-1 02 1 1507-1509 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1510- ● ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1502 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1503-1504 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1505-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1506 ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1510- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1302-1502 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1503-1504 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1505-1506 ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1505-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1509 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1510- ● ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1302-1502 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-870-0 01 1 1503-1504 ● ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1503-1504 ● ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1505-1506 ● ●
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> 		8-98107-870-0 01 1 1505-1506 ● ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1505-1506 ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509 ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510- ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-245-1 02 1 1302-1502 ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-245-1 02 1 1503-1504 ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-245-1 02 1 1505-1506 ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-245-1 02 1 1505-1506 ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-245-1 02 1 1507-1509 ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-245-1 02 1 1510- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1503-1504 ● ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1505-1506 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1502 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1503-1504 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1505-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1509 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1302-1502 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1504 ● ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1503-1504 ● ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1505-1506 ● ●
529 PIN; LINK
SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1505-1506 ● ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1505-1506 ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509 ●
529 PIN; LINK 1-75518-262-0 01 1 1510- ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1302-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-221-0 01 1 1503-1504 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-221-0 01 1 1505-1506 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-221-0 01 1 1505-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-221-0 01 1 1507-1509 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1510- ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1302-1502 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-222-1 01 1 1503-1504 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-222-1 01 1 1505-1506 ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-222-1 01 1 1505-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-222-1 01 1 1507-1509 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 1302-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1504 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1505-1506 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19 		8-98291-669-0 02 1 1505-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-1509 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510- ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1302-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1503-1504 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1505-1506 ● ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4 		9-09160-508-0 04 1 1505-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4 		9-09160-508-0 04 1 1507-1509 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1510- ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1302-1502 ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1503-1504 ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1505-1506 ● ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-265-0 04 1 1505-1506 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-265-0 04 1 1507-1509 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
