◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#112373) — 438 parça

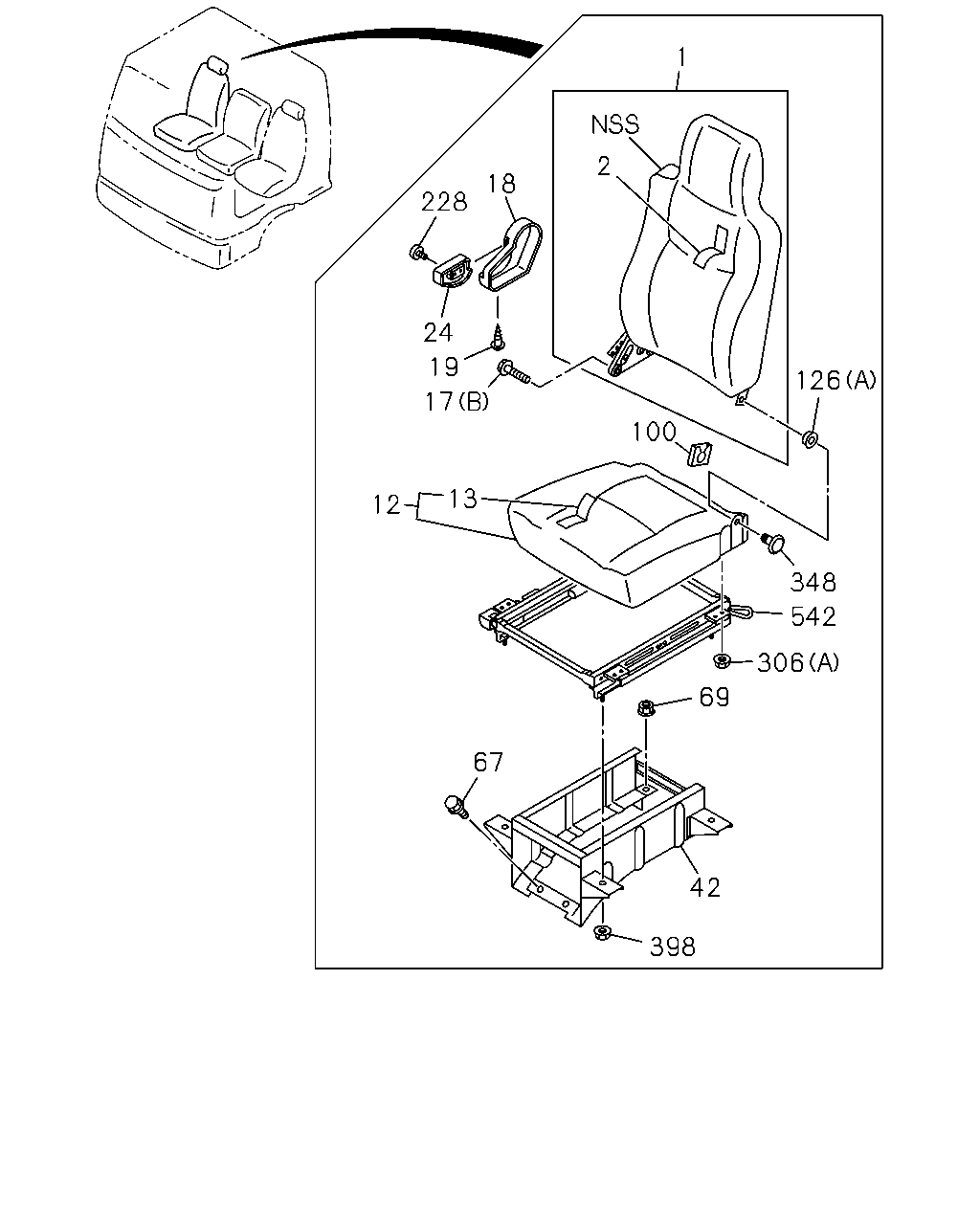

çizim 329461
1 18 2 228 24 17 19 12 13 100 126 348 542 306 69 67 42 398
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-1506
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-407-1 01 1 1507-1508
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1510-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-97466-620-0 01 1 1601-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-1502
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-412-0 01 1 1507-1508
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-1502
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1302-1506
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-1 01 1 1302-1508
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1509-1509
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-97466-610-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-1502
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1302-1506
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-1 01 1 1302-1508
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1509-1509
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-1502
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1508
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1302-1508
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1509-1509
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1508
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1509-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1302-1508
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1509-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1302-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
100 COVER; HINGE 8-98203-070-0 01 1 1302-1508
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1509-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1508
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1508
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1509-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1302-

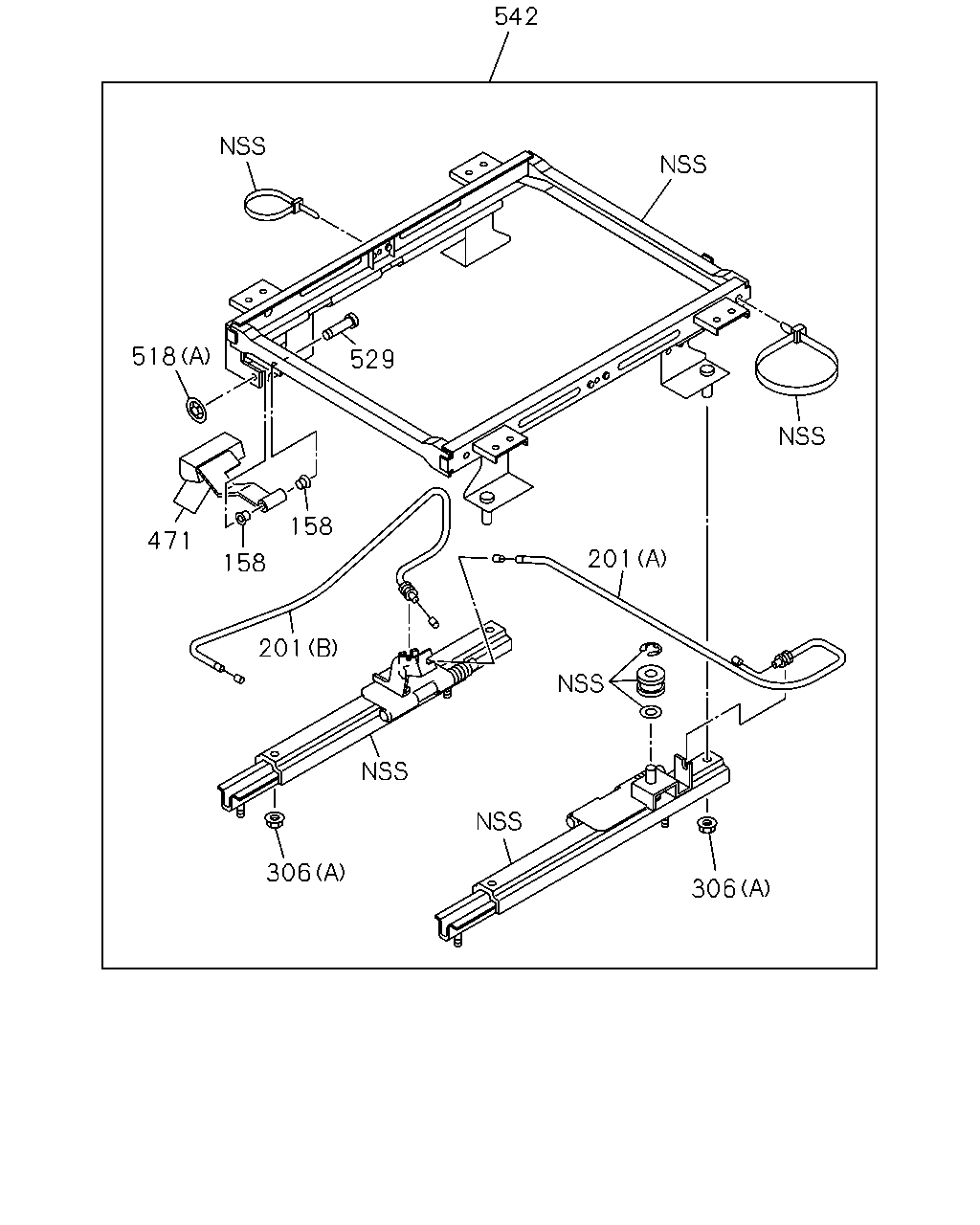

542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

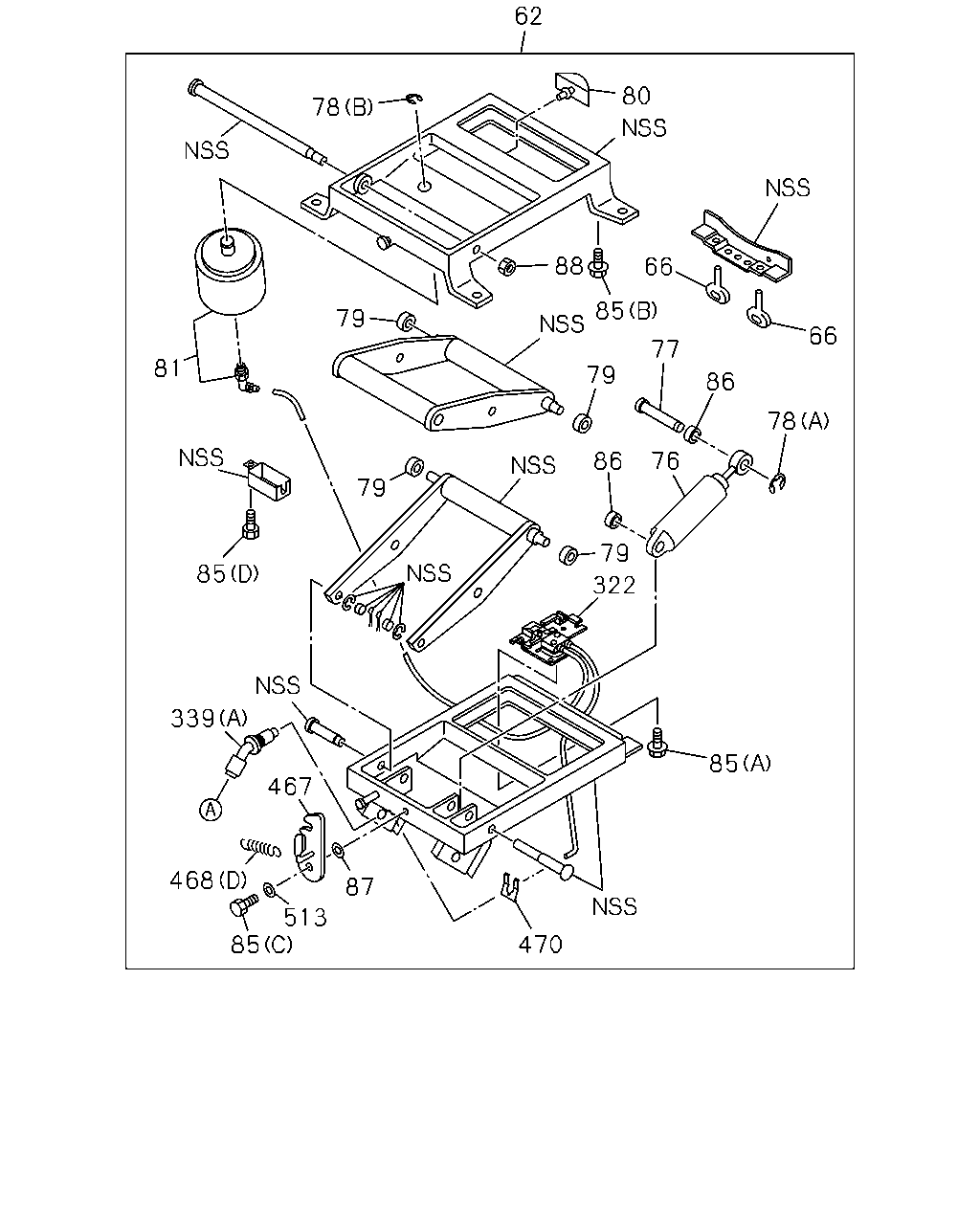

çizim 329462
62 80 78 66 88 66 85 81 79 79 77 86 78 76 86 79 322 79 85 339 467 87 468 513 85 470 85
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1510-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1302-1506
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-145-0 02 1 1507-1508
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1510-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1302-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-139-0 01 1 1507-1508
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1510-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1302-1506
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-138-2 01 1 1507-1508
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1302-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1507-1508
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1302-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1507-1508
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1510-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 1302-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404-1506
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-489-0 04 1 1507-1508
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1510-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1302-1506
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-123-0 01 1 1507-1508
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1510-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-151-2 01 1 1302-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1401-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98242-816-0 01 1 1507-1508
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1302-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-09980-577-1 01 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1302-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12 		1-75538-208-1 02 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1302-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-1508
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1302-1506
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-1508
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1302-1506
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2 		0-91510-508-0 01 1 1507-1508
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1302-1506
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10 		1-75537-273-1 01 1 1507-1508
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1510-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1302-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-186-3 01 1 1507-1508
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1302-1506
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-134-0 01 1 1507-1508
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1302-1506
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-137-0 01 1 1507-1508
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1510-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1302-1506
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-133-0 01 1 1507-1508
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1510-

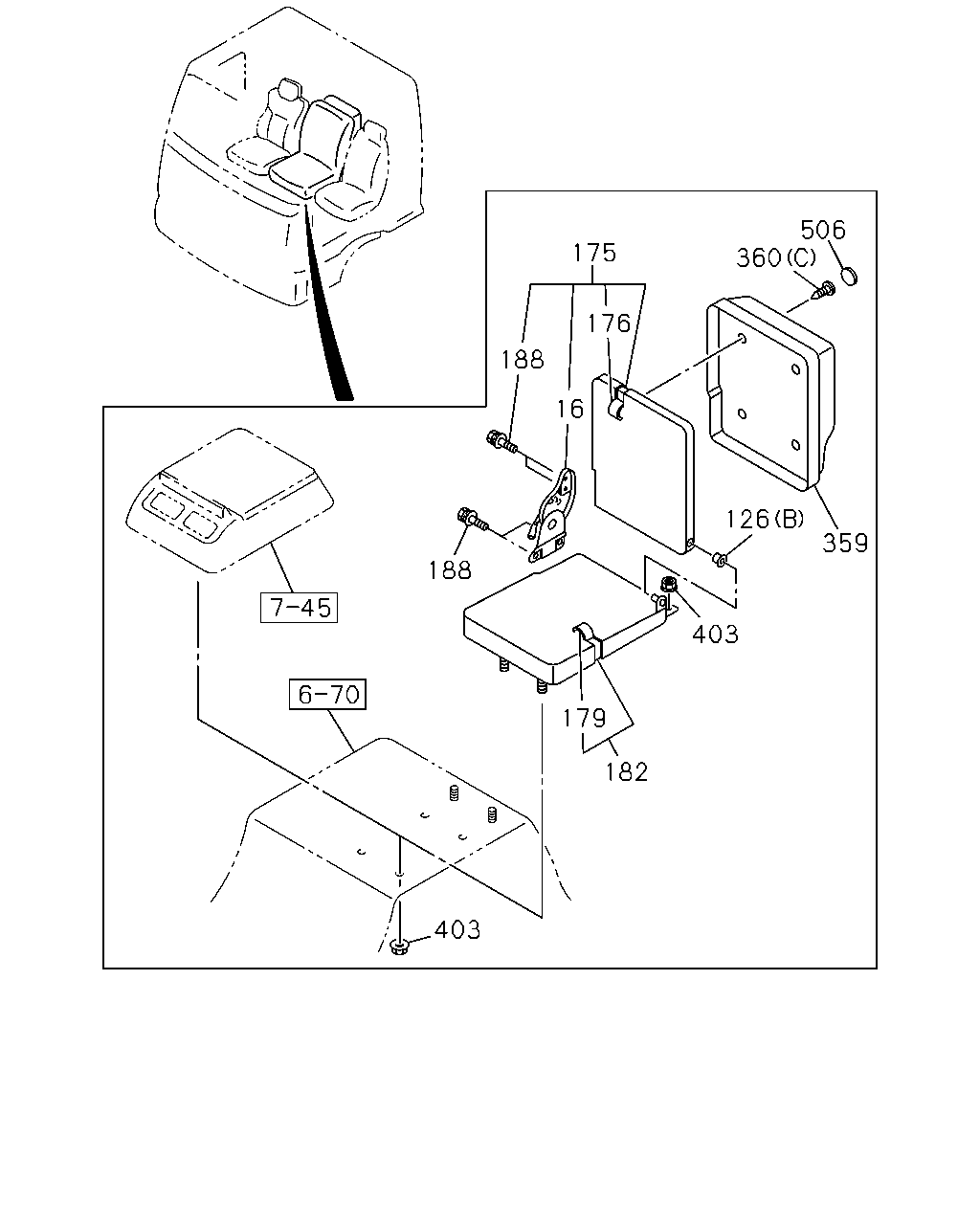

çizim 329526
175 360 506 359 126 403 182 179 403 188 188 176 16
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1302-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1508
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1302-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1302-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1302-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1302-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1302-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1302-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1302-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1302-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1302-

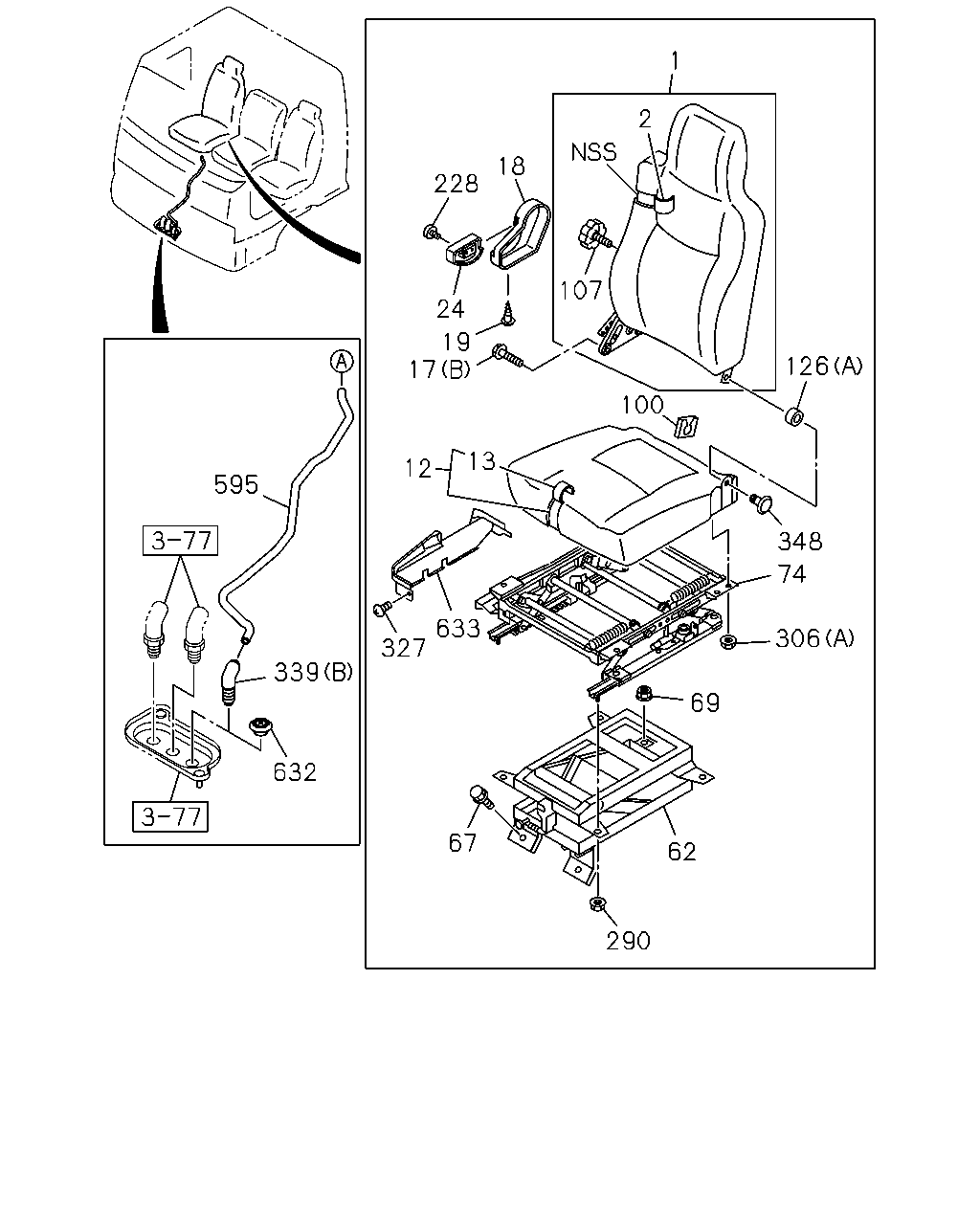

çizim 329613
1 2 126 348 74 306 69 62 290 67 633 327 12 13 100 107 18 228 24 17 19 595 339 632
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-1506
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-407-1 01 1 1507-1508
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1510-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-97466-622-0 01 1 1601-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-97466-620-0 01 1 1601-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-1502
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-412-0 01 1 1507-1508
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-1502
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1302-1506
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-97466-611-0 01 1 1601-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-1 01 1 1302-1508
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1509-1509
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-97466-610-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-1502
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1302-1506
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-1 01 1 1302-1508
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1509-1509
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-1502
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1508
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1302-1508
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1509-1509
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1508
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1509-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1302-1508
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1509-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-1506
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1510-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1510-
100 COVER; HINGE 8-98203-070-0 01 1 1302-1508
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1509-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1302-1506
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98063-174-0 01 1 1507-1508
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1508
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1509-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1508
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1509-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1302-1506
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1508
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> ID=459 		1-09987-273-0 02 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98041-300-0 01 1 1302-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1302-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 1302-1506
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-956-0 01 1 1507-1508
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 1510-

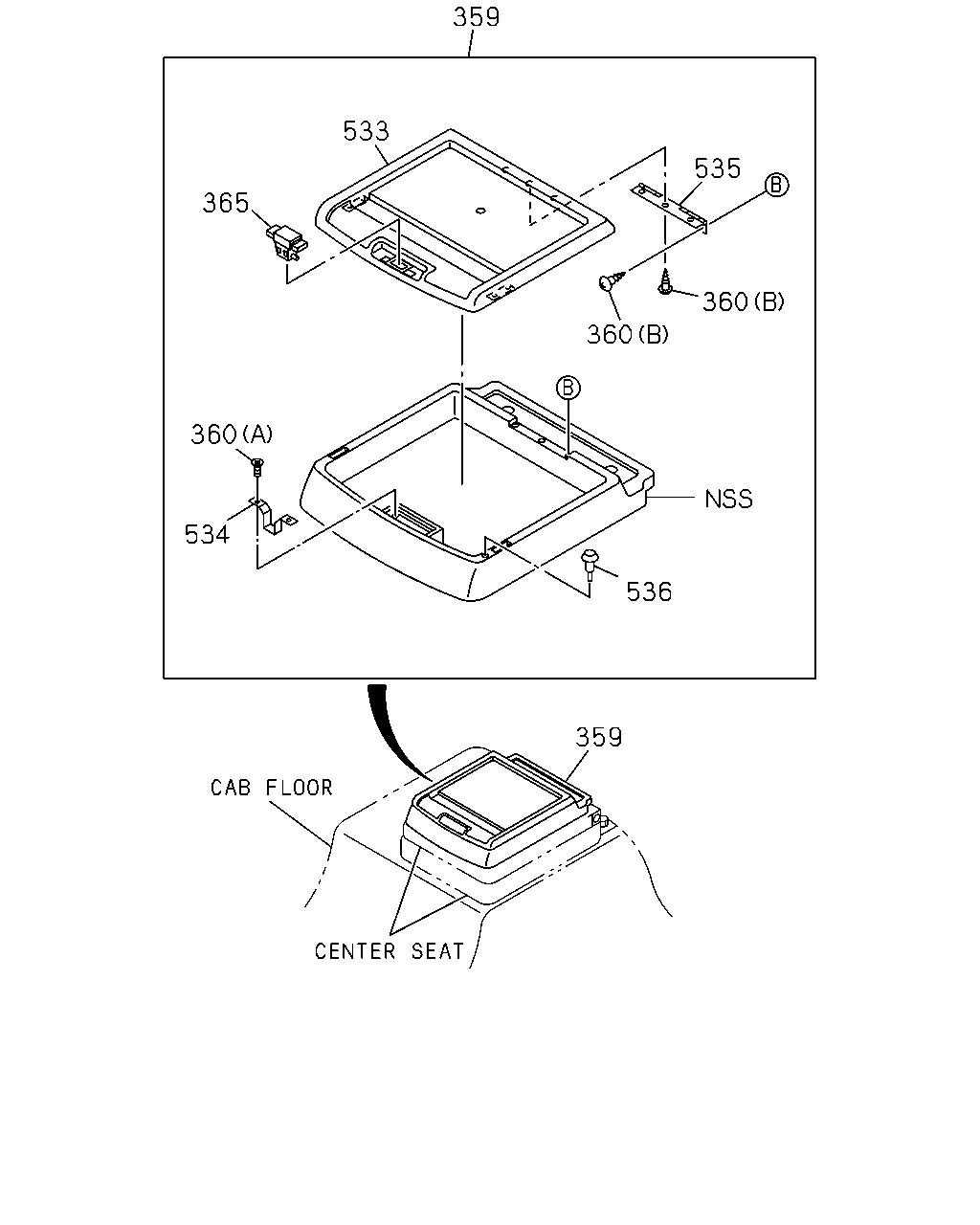

çizim 329722
535 360 360 536 359 534 360 365 533 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1302-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1302-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1302-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1302-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1302-
çizim 332294
542 529 518 471 158 201 158 306 201 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1508
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1509-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1508
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1509-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1508
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1509-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1302-1508
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1509-1509
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1508
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1509-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
529 PIN; LINK 1-75518-262-0 01 1 1302-1508
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1509-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

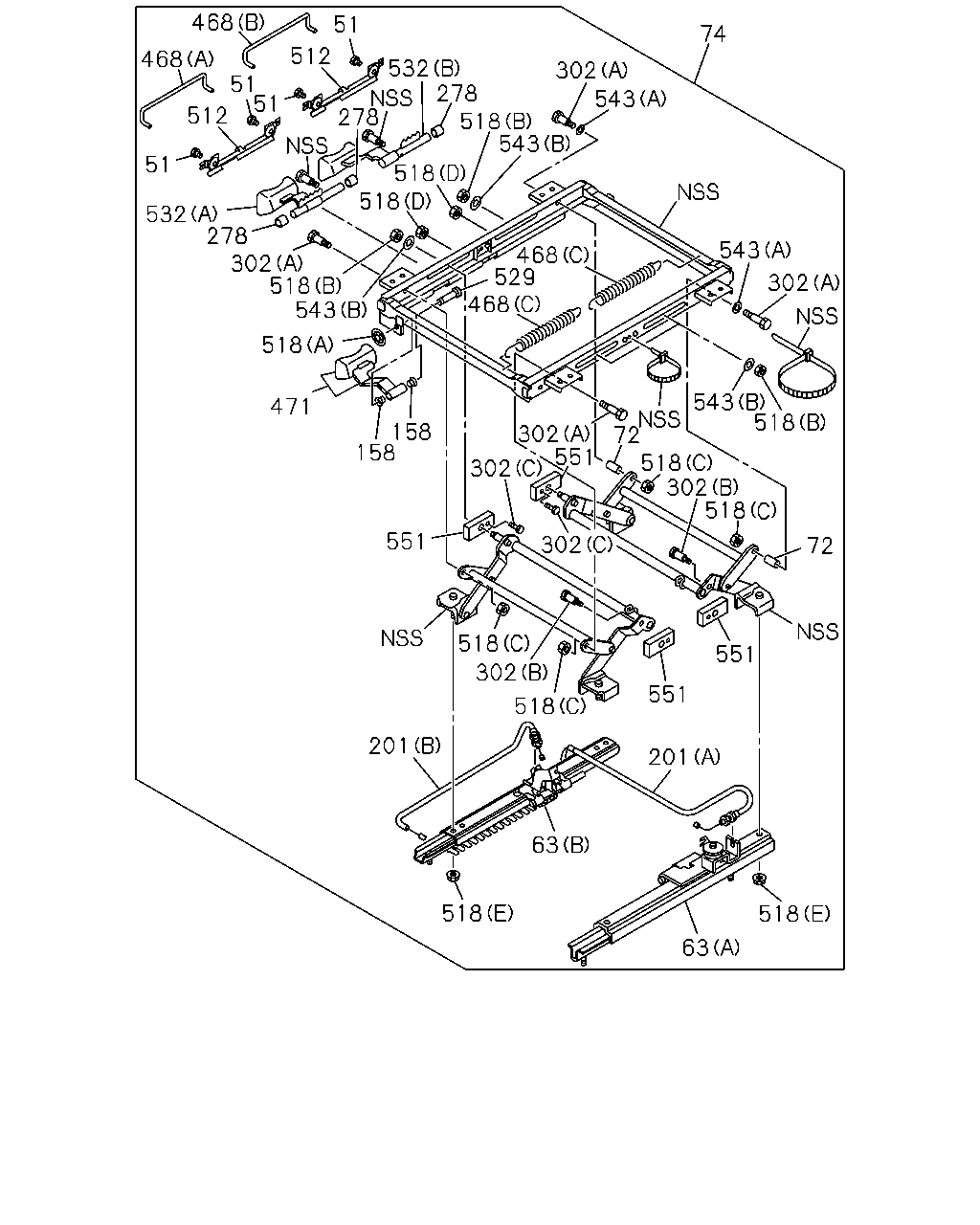

çizim 332299
468 468 512 51 512 51 51 51 532 302 278 532 518 518 518 518 278 518 543 278 302 74 543 543 471 468 468 529 158 158 543 543 72 551 302 302 302 551 518 518 518 72 518 302 302 551 551 201 63 518 201 518 302 518 63
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1302-1506
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-325-1 04 1 1507-1508
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1302-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-199-1 01 1 1507-1508
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1302-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-323-0 01 1 1507-1508
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1510-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 1302-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-1506
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-668-0 02 1 1507-1508
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1510-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1508
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1509-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1508
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1509-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1508
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1509-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1302-1506
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-244-0 03 1 1507-1508
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1302-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-266-2 02 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 1302-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98291-667-0 04 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1302-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-336-1 02 1 1507-1508
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1302-1508
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1509-1509
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1302-1506
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-243-1 02 1 1507-1508
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1510-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1508
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1509-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
529 PIN; LINK 1-75518-262-0 01 1 1302-1508
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1509-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1302-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-203-0 01 1 1507-1508
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1302-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-204-1 01 1 1507-1508
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 1302-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-1508
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1302-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4 		9-09160-508-0 04 1 1507-1508
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1510-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1302-1506
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-265-0 04 1 1507-1508
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1510-

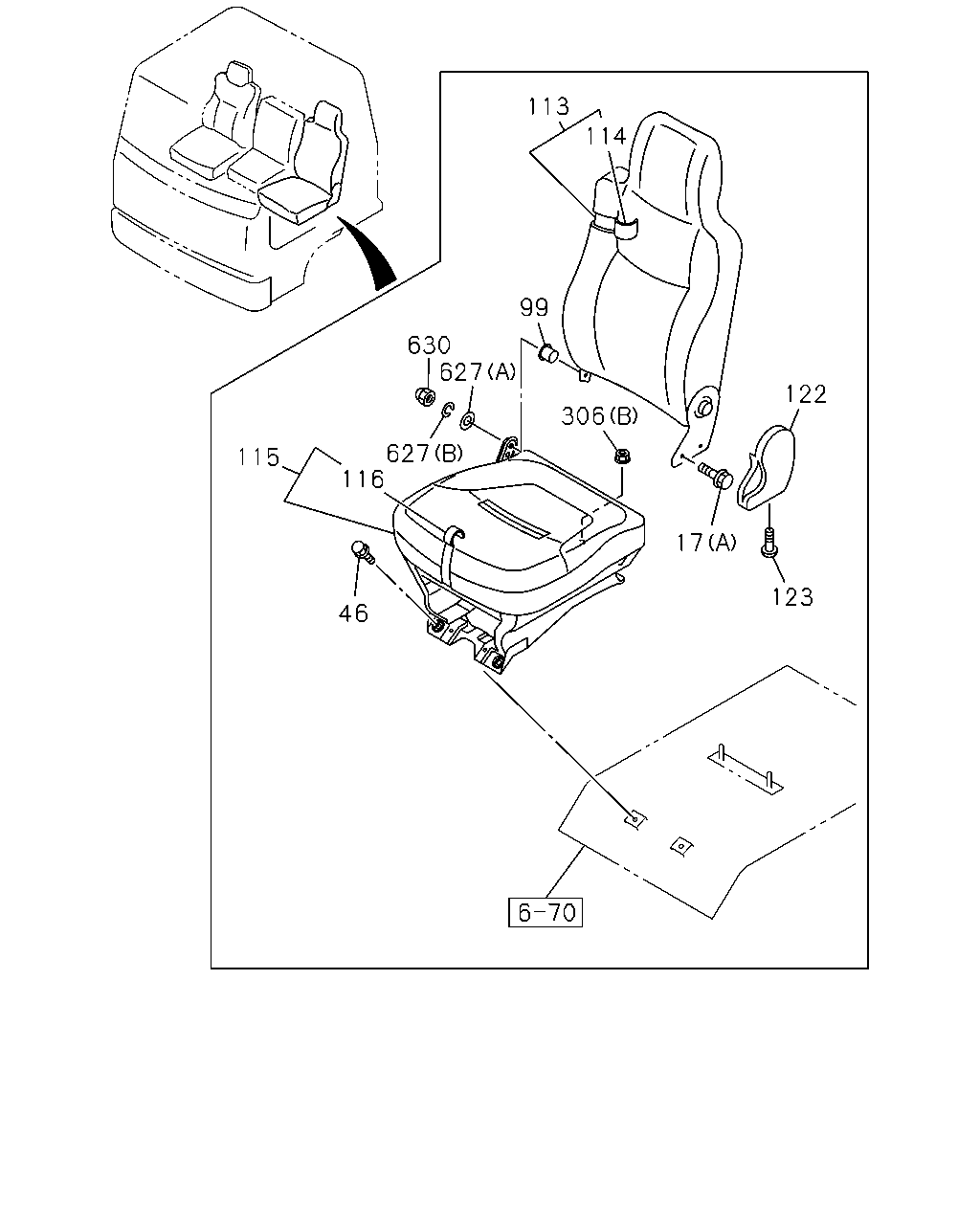

çizim 332313
122 17 123 46 115 116 627 627 630 99 113 114 306
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1508
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1509-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1302-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1302-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1302-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1302-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1302-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1302-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1302-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1302-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1302-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1302-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1302-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
