◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#112372) — 807 parça

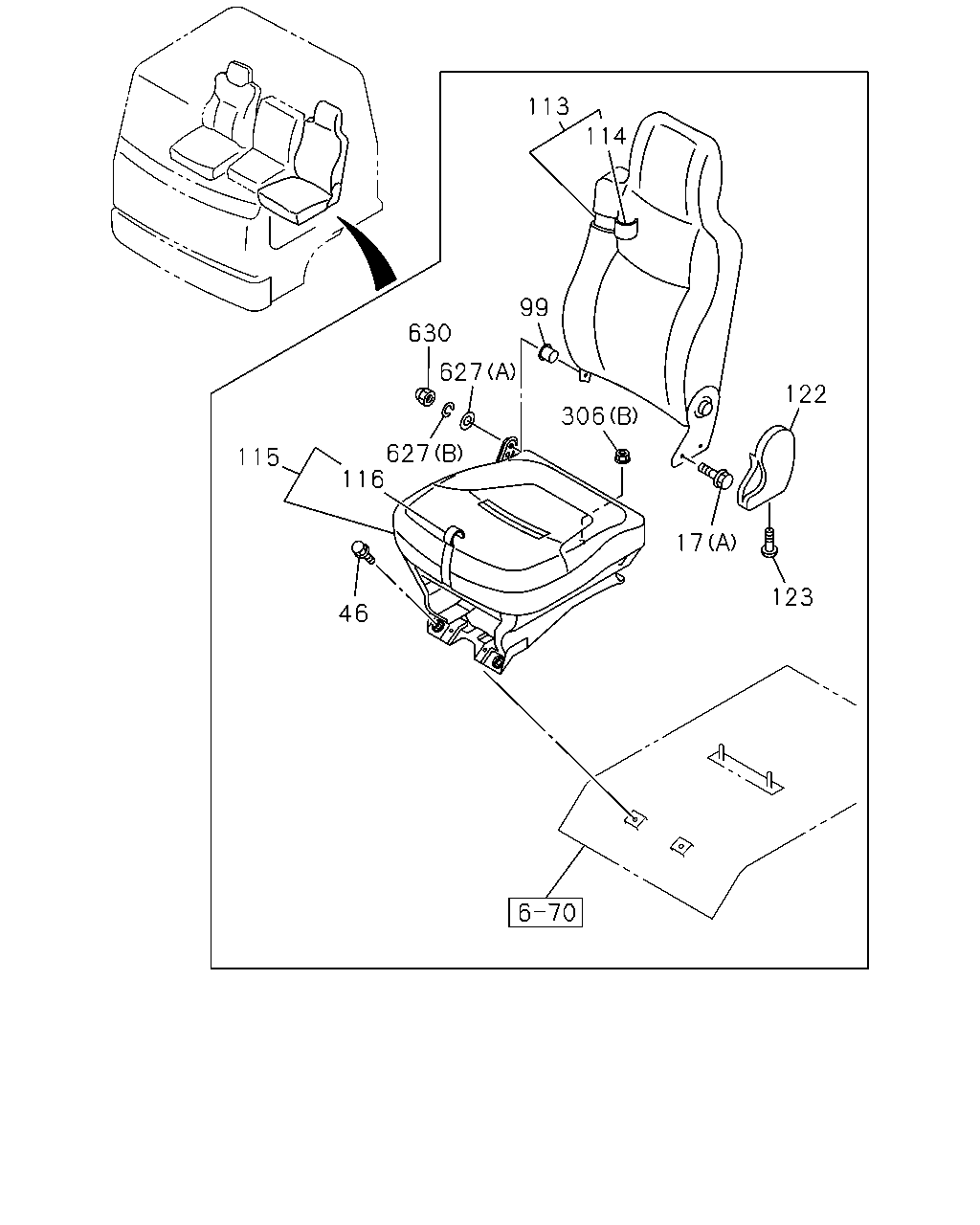

çizim 329346
17 46 99 113 114 115 116 122 123 306 627 627 630
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1302- ● ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1302- ● ●
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1302- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1302- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1302- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-2 01 1 1302- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1302- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-1 01 1 1302- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1302- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1302- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1302- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1302- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1302- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1302- ● ●

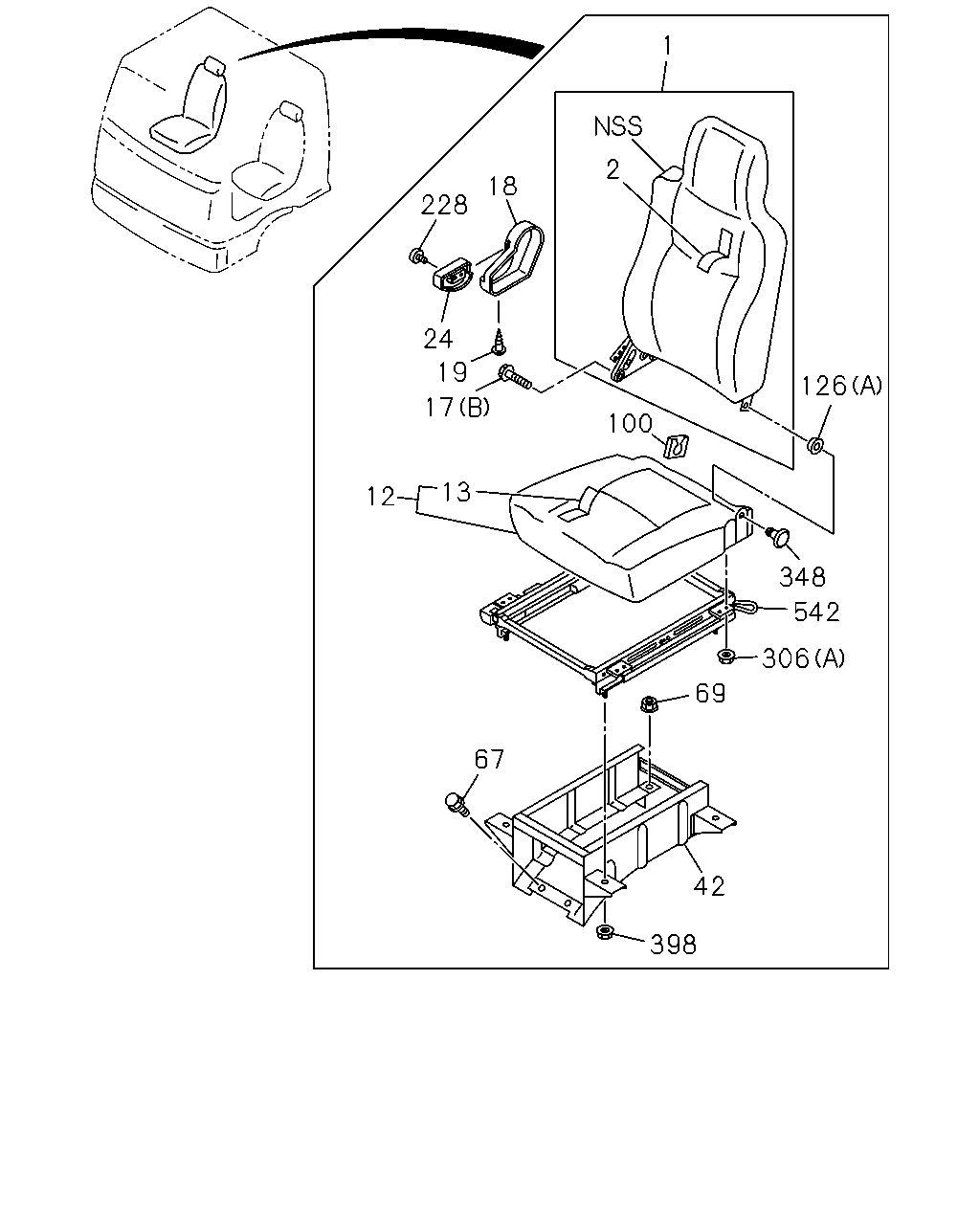

çizim 329378
228 24 17 12 13 67 398 42 69 306 542 348 126 100 19 18 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-1512 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97466-622-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601- ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-955-5 01 1 1302-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97466-618-0 01 1 1601- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-910-2 01 1 1302-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-910-2 01 1 1510- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1302-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1302-1506 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1507-1509 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97466-611-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1302-1512 ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-909-1 01 1 1302-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-909-1 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1302-1506 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1507-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1302- ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302- ● ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1302-1502 ● ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1502 ● ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●

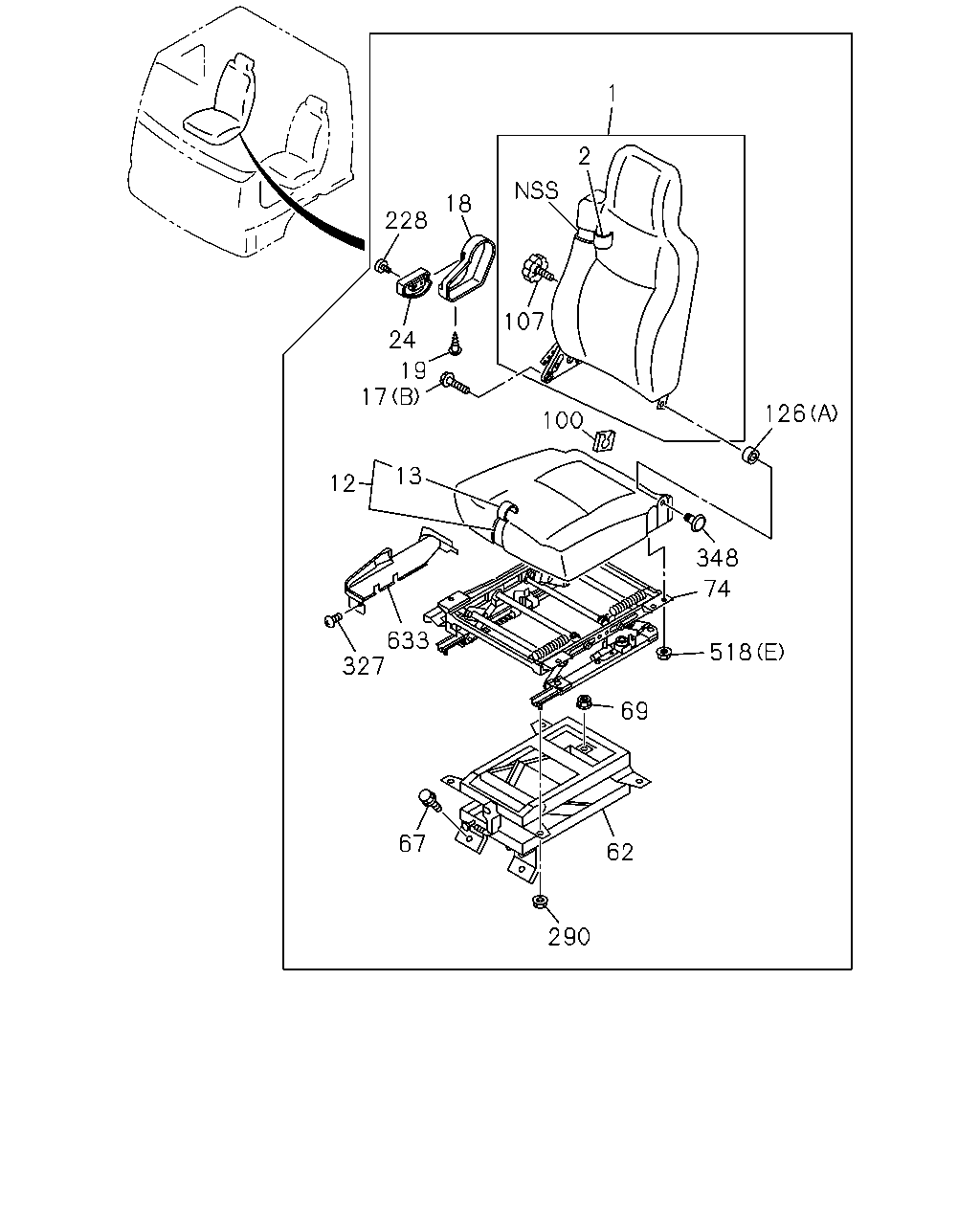

19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1302-1502 ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1302-1502 ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 1302-1502 ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1503-1506 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1507-1509 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1510- ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 1510- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1302-1502 ● ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE 8-98286-009-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1502 ● ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601- ● ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ●
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1302-1502 ●
398 NUT; STAND
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1503-1506 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1509 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1510- ●
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1510- ●

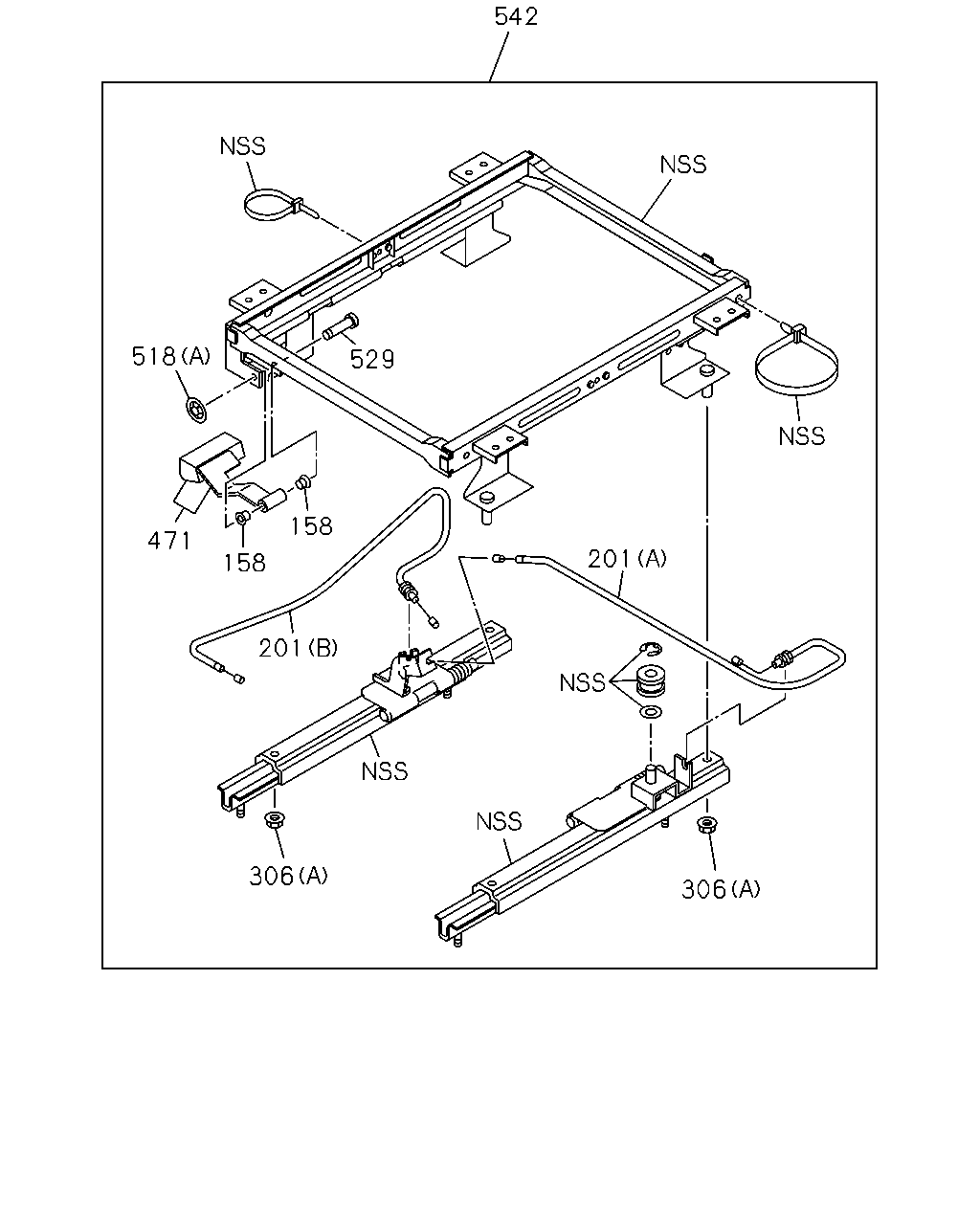

542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1302-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510- ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510- ●

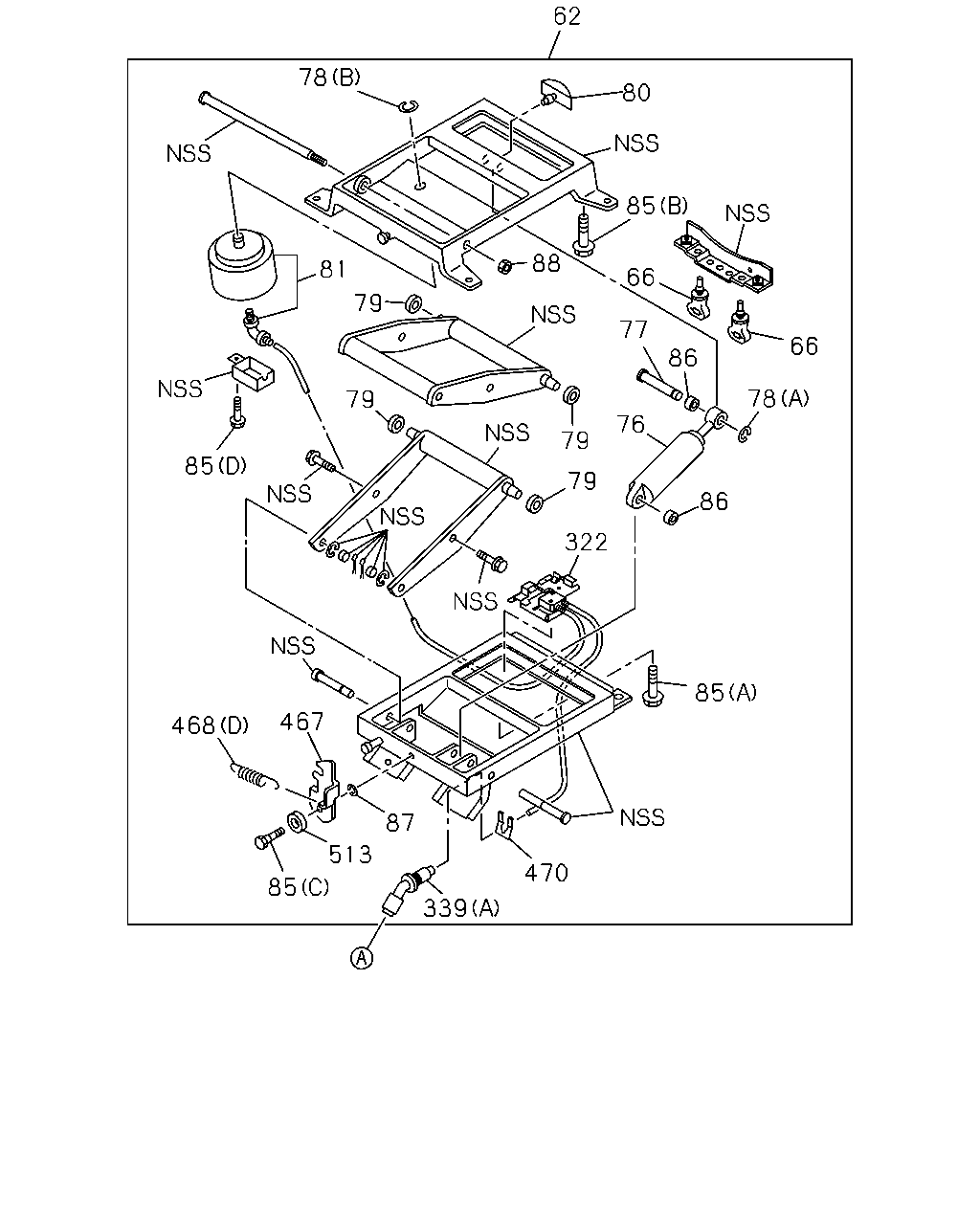

çizim 329437
62 80 85 78 81 79 88 66 66 77 86 85 79 79 76 86 322 85 470 339 87 513 85 467 468 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1510- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1510- ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1302-1506 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-145-0 02 1 1507-1508 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1510- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1302-1506 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-139-0 01 1 1507-1508 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1510- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1302-1506 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-138-2 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1510- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1510- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1302-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=8 		9-09185-408-0 01 1 1507-1508 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1302-1506 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=15 		9-09185-415-0 01 1 1507-1508 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1510- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 1302-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404-1506 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-489-0 04 1 1507-1508 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1510- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1302-1506 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-123-0 01 1 1507-1508 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1510- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-151-2 01 1 1302-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1401-1506 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98242-816-0 01 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1302-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-09980-577-1 01 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1302-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M6X12 		1-75538-208-1 02 1 1507-1508 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1302-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1506 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-1508 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1302-1506 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-1508 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1510- ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1302-1506 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> ID=8.2 		0-91510-508-0 01 1 1507-1508 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1510- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1302-1506 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M10 		1-75537-273-1 01 1 1507-1508 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1510- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1302-1506 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-186-3 01 1 1507-1508 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510- ●
339 UNION; DRIVER SEAT

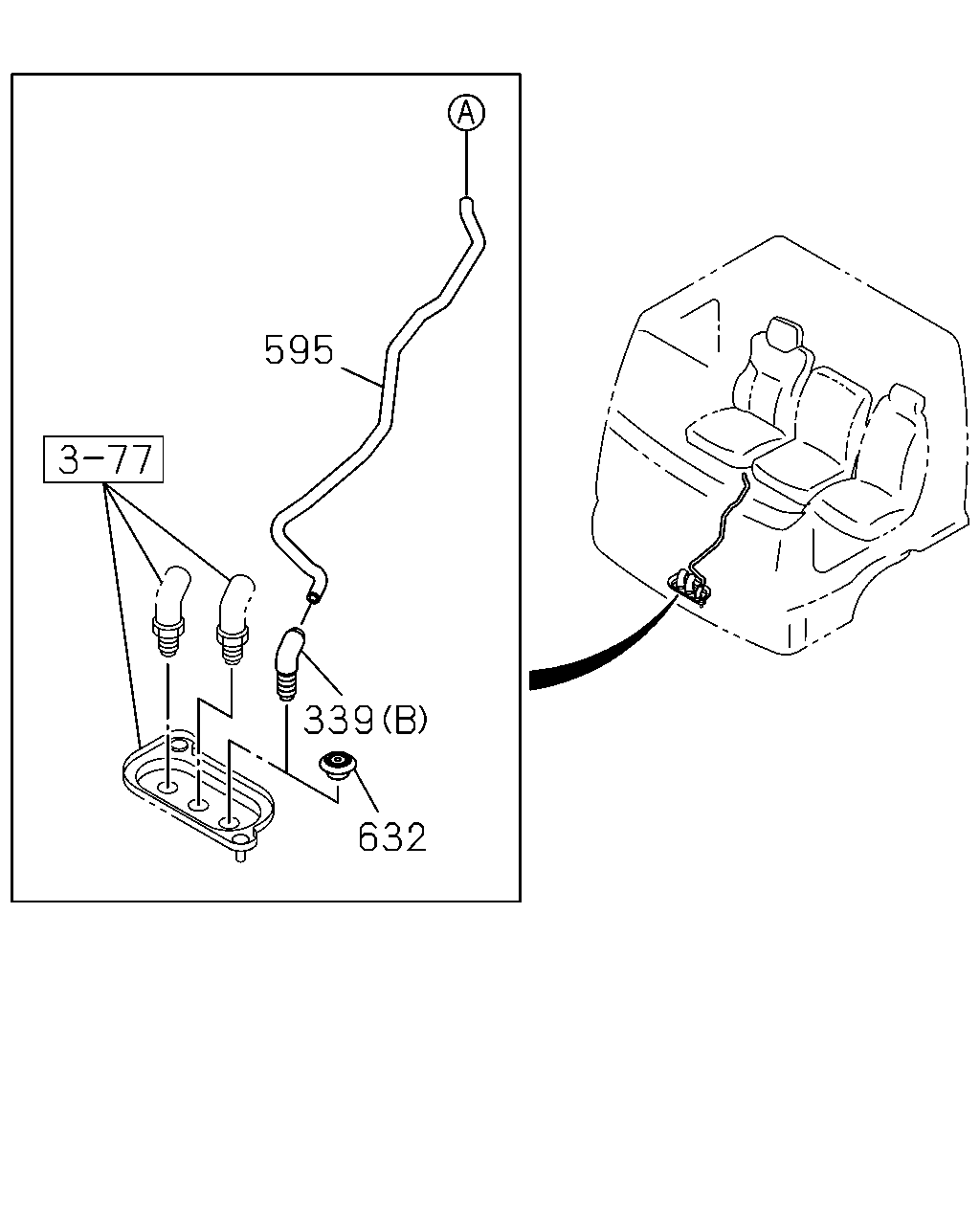

AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1510- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1302-1506 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-134-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1510- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1302-1506 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-137-0 01 1 1507-1508 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1510- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1302-1506 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75538-133-0 01 1 1507-1508 ●

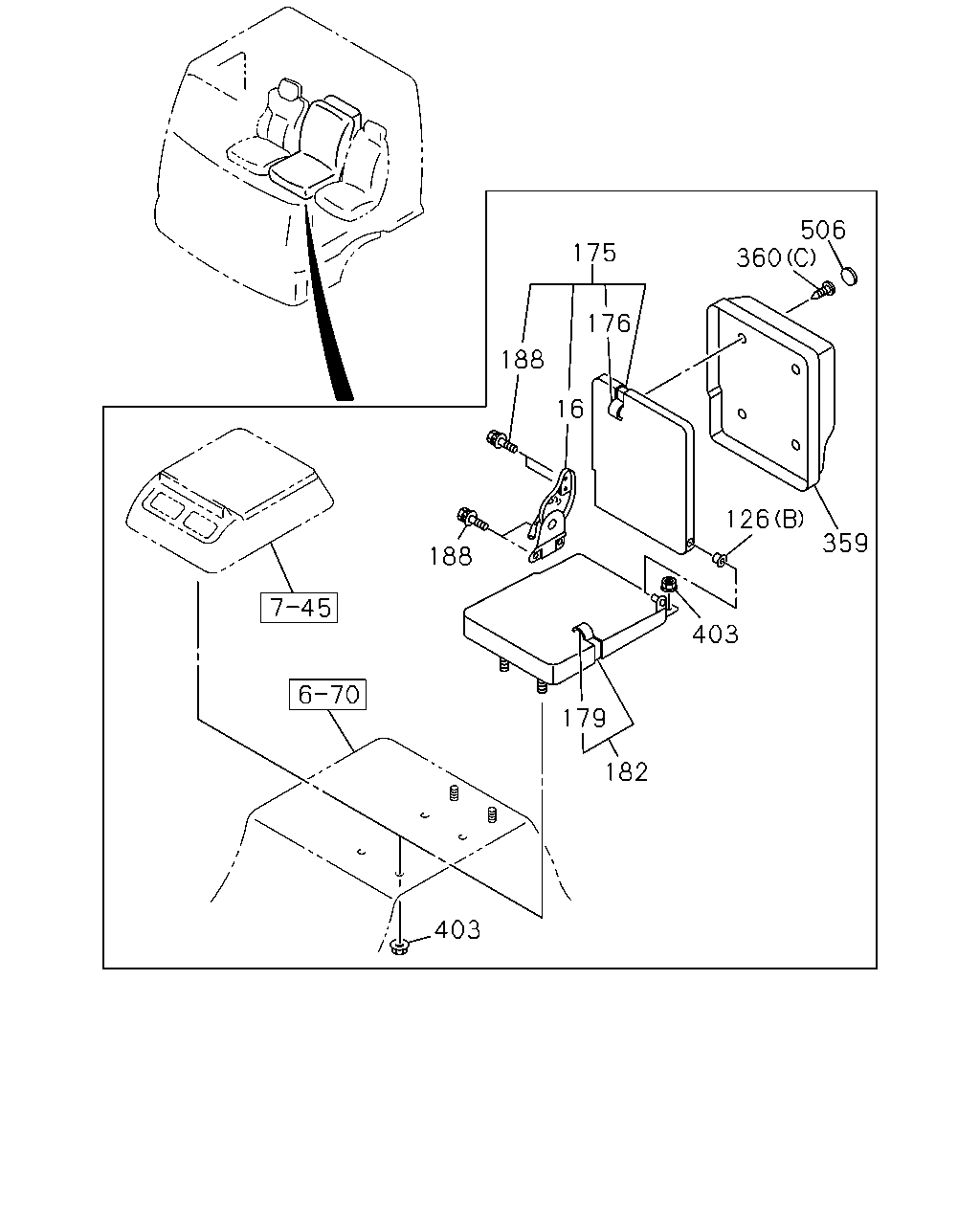

çizim 329525
403 182 179 188 403 359 126 16 188 176 175 360 506
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1302- ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1302- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1302- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1302- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1302- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1302- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1302- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1302- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1302- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1302- ● ●

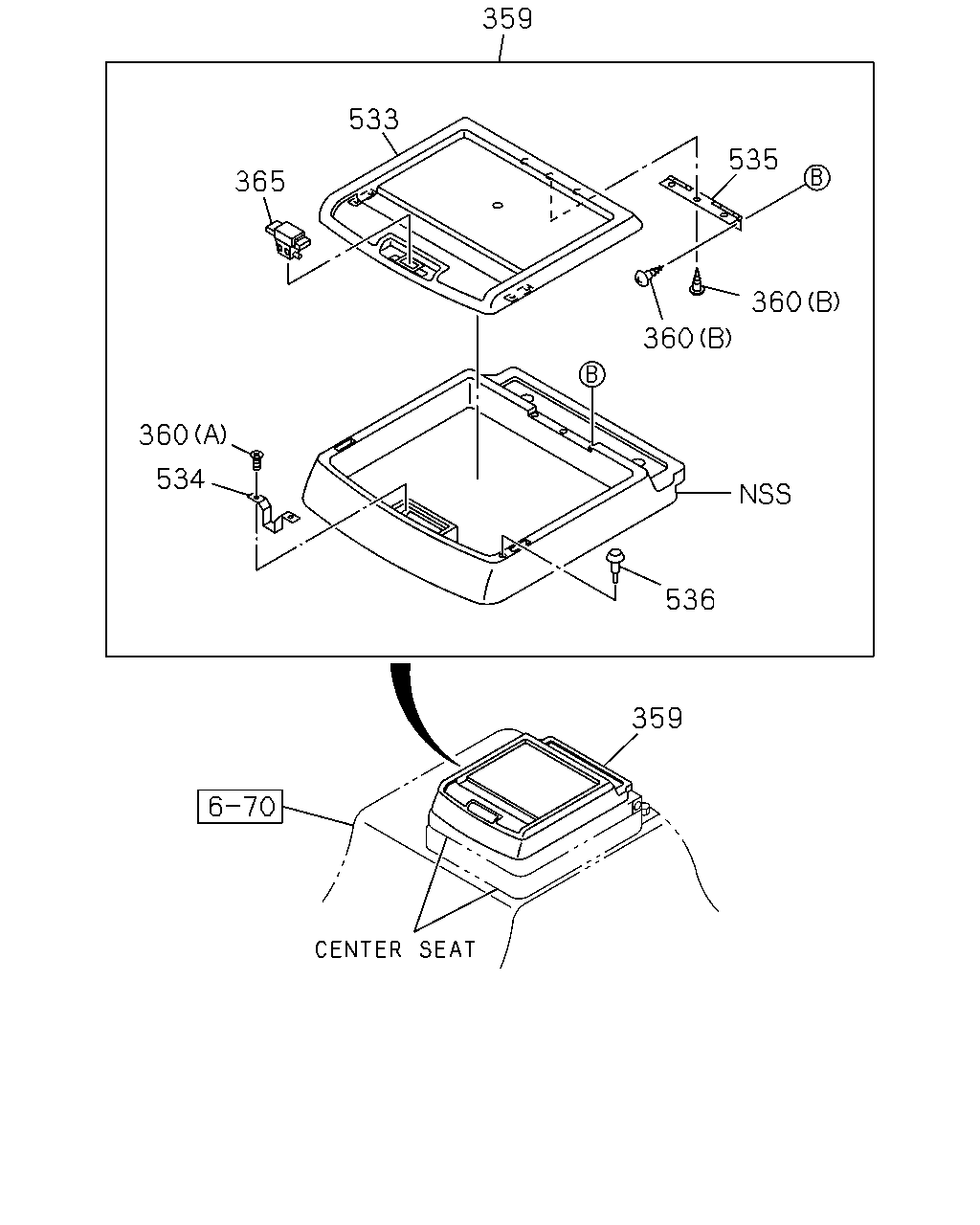

359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1302- ● ●
çizim 329584
228 18 2 1 107 24 17 12 13 327 67 290 62 69 518 74 348 126 100 19 633
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1302-1512 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97466-622-0 01 1 1601- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1302-1506 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-406-1 01 1 1507-1509 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601- ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97466-620-0 01 1 1601- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1302-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-955-5 01 1 1302-1502 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-955-5 01 1 1510-1512 ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-618-0 01 1 1601- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97466-618-0 01 1 1601- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1302- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1302-1506 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-411-0 01 1 1507-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1302-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-910-2 01 1 1302-1502 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1510- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-910-2 01 1 1510- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1510-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-608-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-123-2 01 1 1302-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1302-1502 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1302-1512 ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601- ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1302-1506 ● ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1507-1509 ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512 ● ●
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97466-611-0 01 1 1601- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1302-1512 ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-610-0 01 1 1601- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1302-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-909-1 01 1 1302-1502 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-909-1 01 1 1510- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1302-1506 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1507-1509 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1302- ● ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1302-1502 ● ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1506 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1507-1508 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1509-1509 ●
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510- ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1302- ● ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1302-1502 ● ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1506 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1507-1509 ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1302-1502 ● ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1506 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1507-1508 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1509-1509 ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1302-1502 ● ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1506 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1507-1509 ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510- ● ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1510- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1302-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-1506 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98261-448-0 01 1 1507-1508 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1302- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●

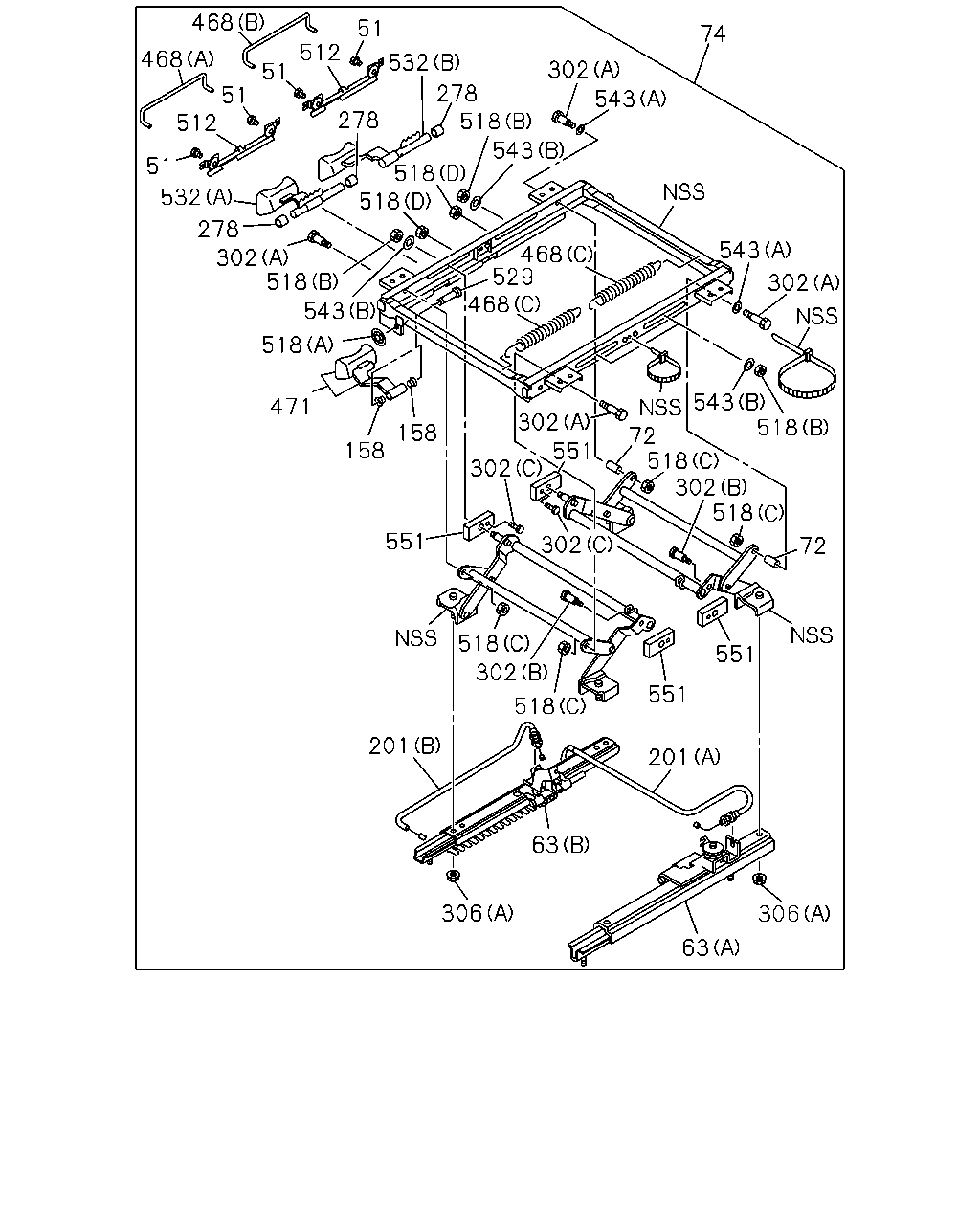

74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1510- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508 ●
100 COVER; HINGE 8-98203-070-0 01 1 1302-1502 ● ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1506 ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1507-1508 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1509-1509 ●
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512 ● ●
100 COVER; HINGE 8-98286-009-0 01 1 1601- ● ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1510- ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1302-1506 ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98063-174-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1302-1502 ● ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1506 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1507-1508 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1509-1509 ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512 ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1302- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1302-1502 ● ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1506 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1507-1508 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1509-1509 ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510- ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1510- ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1302-1506 ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-273-0 01 1 1302- ● ●
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 1302- ●
çizim 329685
359 536 534 360 360 360 535 365 533 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1302- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1302- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1302- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1302- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1302- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1302- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1302- ● ●
çizim 332283
542 518 529 158 158 471 201 306 306 201
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1502 ● ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1502 ● ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1502 ● ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1302-1502 ● ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510- ● ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1302-1502 ● ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK 1-75518-262-0 01 1 1510- ● ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1302-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1302-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1506 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1507-1509 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1510- ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510- ●
çizim 332317
468 468 512 51 51 51 512 51 532 532 278 518 518 302 278 543 543 518 278 302 518 518 471 543 158 158 551 74 543 302 543 518 72 518 302 518 72 551 551 201 306 63 306 201 63 518 302 518 302 302 551 302 468 529 468
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1510- ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1302-1506 ●
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-325-1 04 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1510- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1302-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-199-1 01 1 1507-1508 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1302-1506 ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-323-0 01 1 1507-1508 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1510- ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 1302-1502 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-1506 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-668-0 02 1 1507-1508 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1510- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1302-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-1506 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-640-0 01 1 1507-1508 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1302-1502 ● ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1506 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1507-1508 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1509-1509 ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1302-1502 ● ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1509-1509 ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1302-1502 ● ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1506 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1507-1508 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1509-1509 ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510- ● ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1510- ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1302-1506 ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-244-0 03 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1510- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1302-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-266-2 02 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 1302-1502 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98291-667-0 04 1 1507-1508 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1302-1506 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-336-1 02 1 1507-1508 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1302-1506 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-1508 ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1302-1502 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1506 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1507-1509 ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-206-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-207-0 01 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) 		1-75518-208-0 02 1 1507-1508 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1302-1506 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75538-132-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1302-1502 ● ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1506 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1507-1508 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1509-1509 ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510- ● ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1510- ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1302-1506 ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-243-1 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (C) M8 		1-75518-264-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-1508 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1302-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-1508 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1302-1502 ● ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1503-1506 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1507-1508 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-263-0 01 1 1509-1509 ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510- ● ●
529 PIN; LINK 1-75518-262-0 01 1 1302-1502 ● ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1506 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1507-1508 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1509-1509 ●
529 PIN; LINK 1-75518-262-0 01 1 1510- ● ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1510- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1510- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1302-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-203-0 01 1 1507-1508 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1302-1506 ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-204-1 01 1 1507-1508 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1510- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 1302-1502 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-1508 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1302-1506 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) ID=8.4 		9-09160-508-0 04 1 1507-1508 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1510- ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1302-1506 ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-265-0 04 1 1507-1508 ●
çizim 332325
595 339 632
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1302- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1302-1506 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75538-131-3 01 1 1507-1508 ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1302- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1302- ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
