◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#112350) — 129 parça

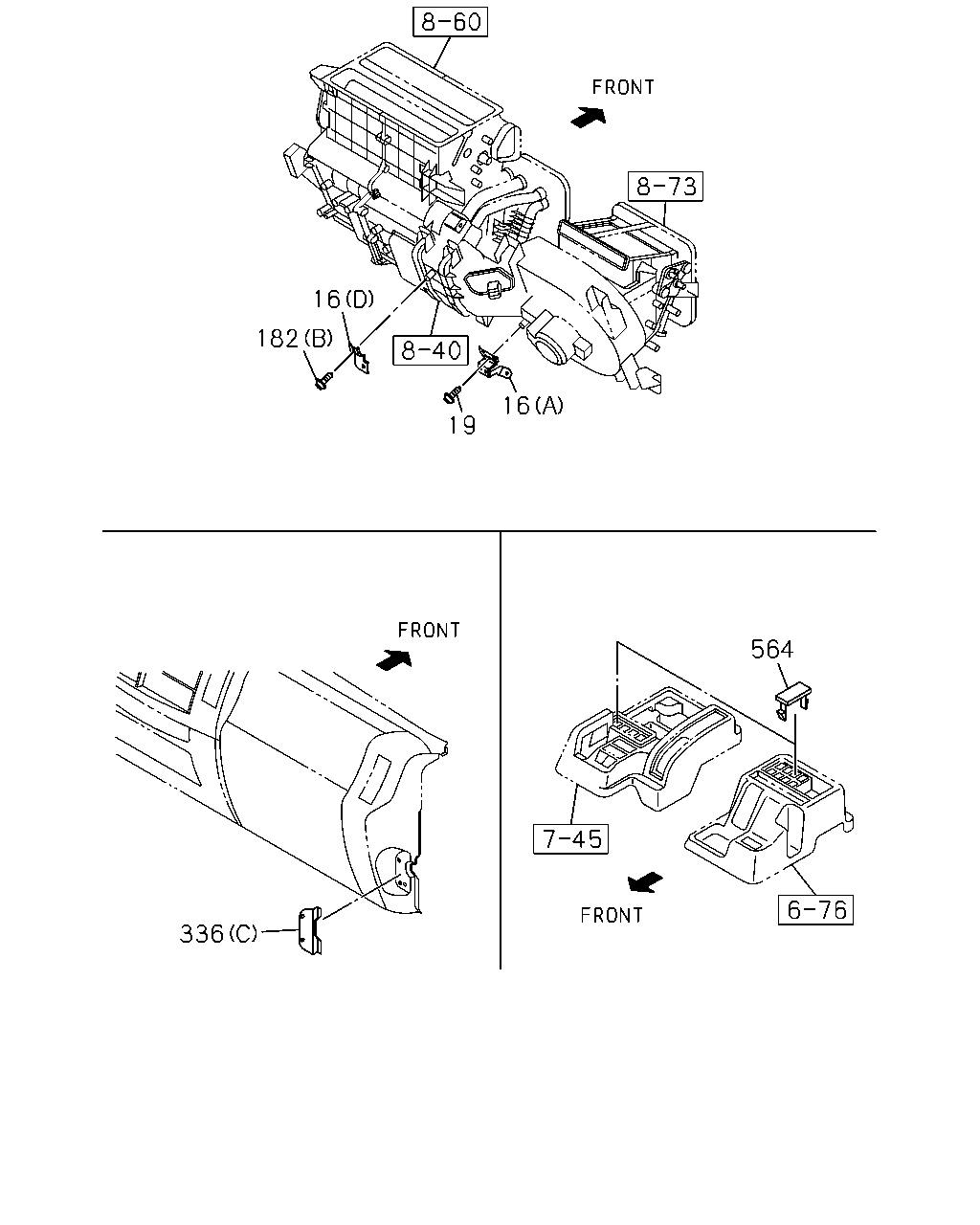

çizim 329550
16 182 19 16 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1302-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1302-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1302-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1302-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1302-
564 COVER; SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 06 1 1302-
564 COVER; SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 04 1 1302-

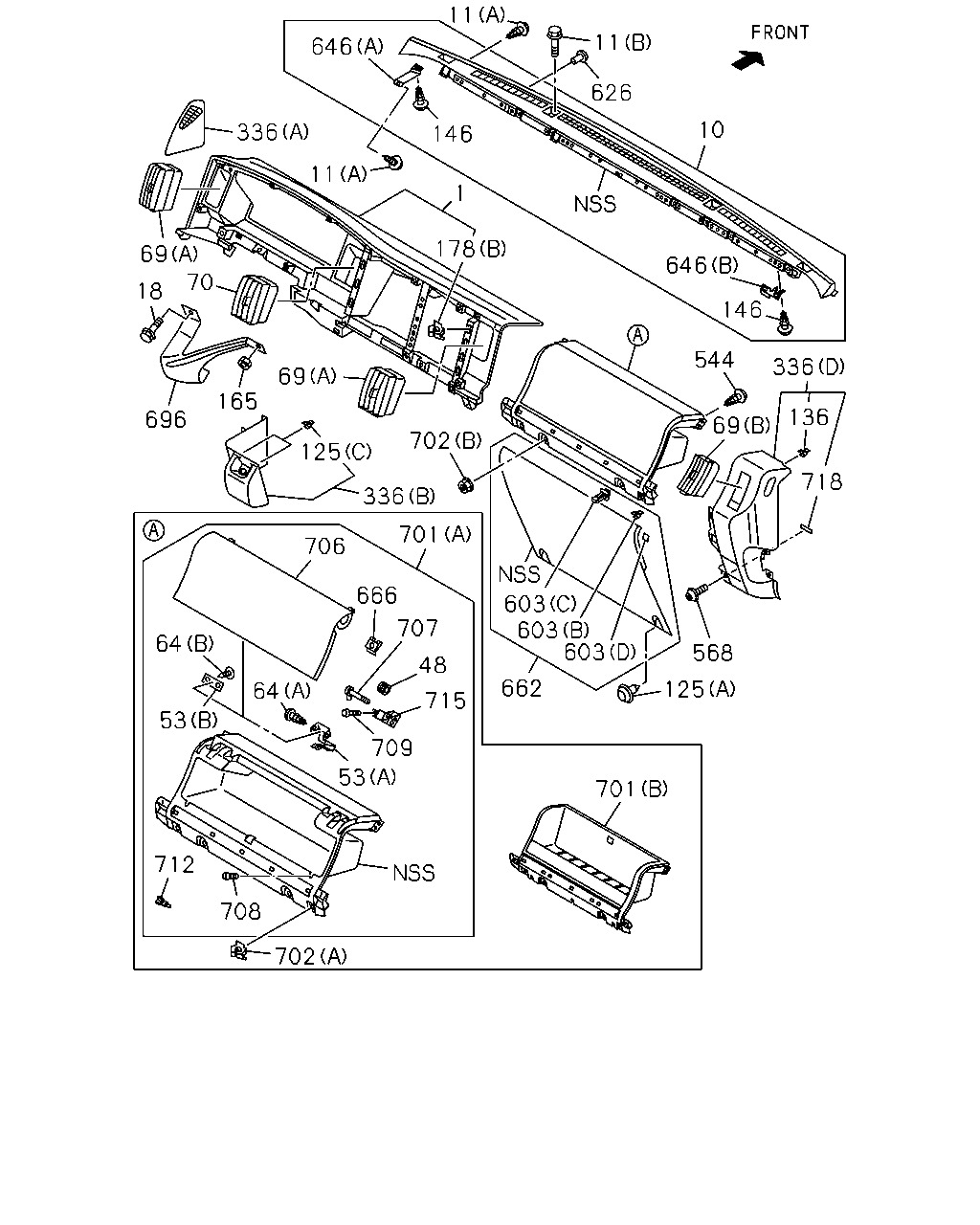

çizim 332223
10 626 11 11 646 146 646 146 336 136 718 544 69 1 178 11 336 69 18 70 69 702 165 696 125 706 666 701 336 603 603 603 568 125 662 701 707 48 715 709 53 64 64 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1302-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1302-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1302-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1302-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1302-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1302-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1302-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1302-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1302-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1302-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1302-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1302-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1302-
136 CLIP; INST COVER 8-98076-254-0 02 1 1302-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1302-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1302-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1302-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1302-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302-
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1302-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1302-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1302-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1302-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1302-
662 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97419-960-2 01 1 1302-
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-428-2 01 1 1302-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1302-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98098-126-1 01 1 1302-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1302-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1302-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1302-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1302-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1302-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1302-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1302-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1302-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1302-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1302-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1302-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1302-

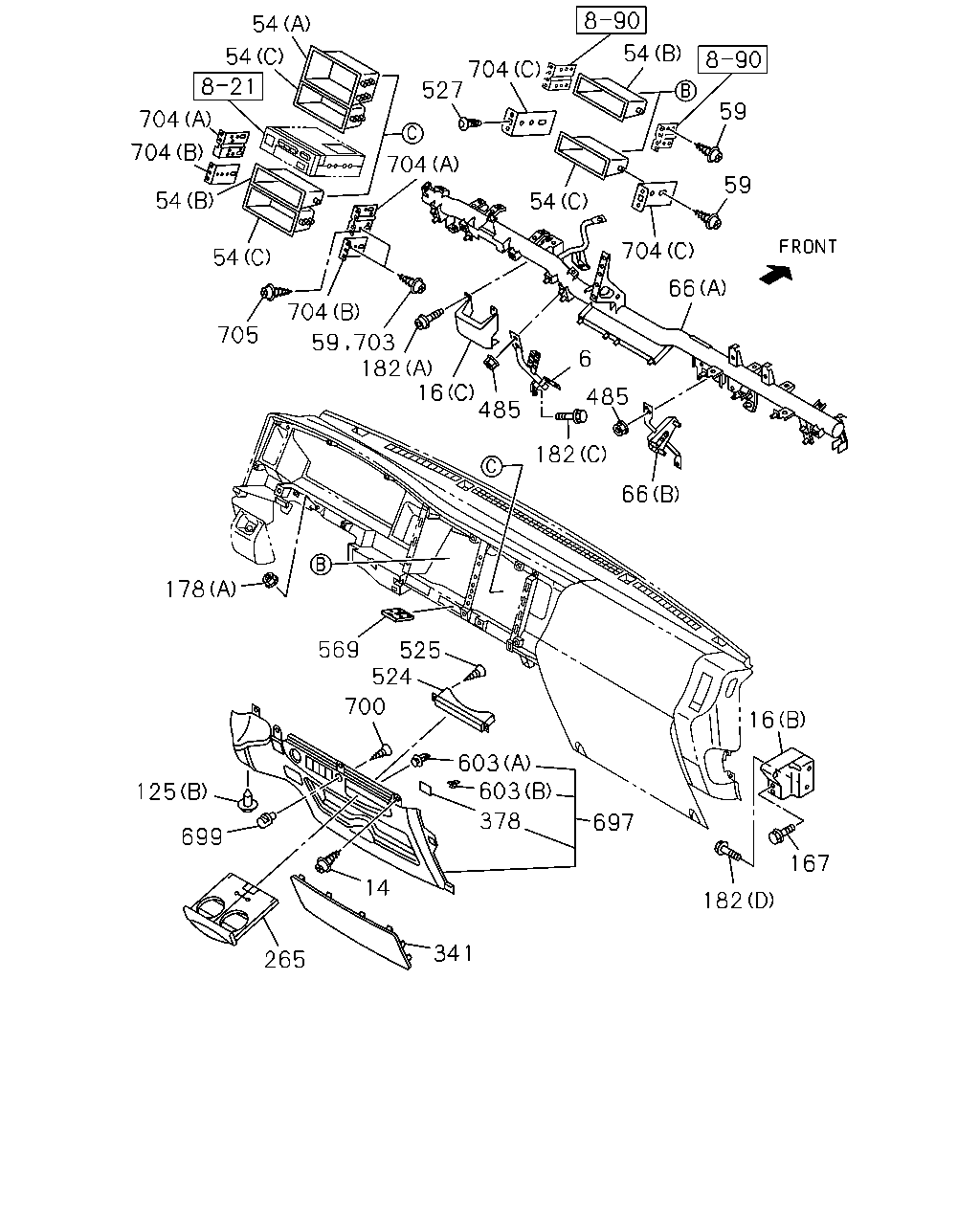

çizim 332249
54 54 54 54 54 54 524 59 59 59 704 704 705 704 704 704 704 703 485 182 66 485 16 182 527 66 6 569 525 700 178 603 603 378 697 182 16 167 341 14 699 125 265
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1302-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1302-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1302-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1302-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1302-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1302-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1302-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1302-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1302-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1302-
66 REINFORCEMENT; INST PANEL
(A) 		8-97585-569-7 01 1 1302-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1302-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1302-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1302-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1302-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1302-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1302-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1302-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1302-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1302-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1302-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1302-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1302-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1302-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1302-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1302-
569 HOLDER; CARD 8-97410-276-1 01 1 1302-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1302-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1302-
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1302-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1302-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1302-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1302-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1302-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1302-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1302-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1302-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1302-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1302-
