0-81 — GOVERNOR; INJECTION PUMP (#11235) — 48 parça

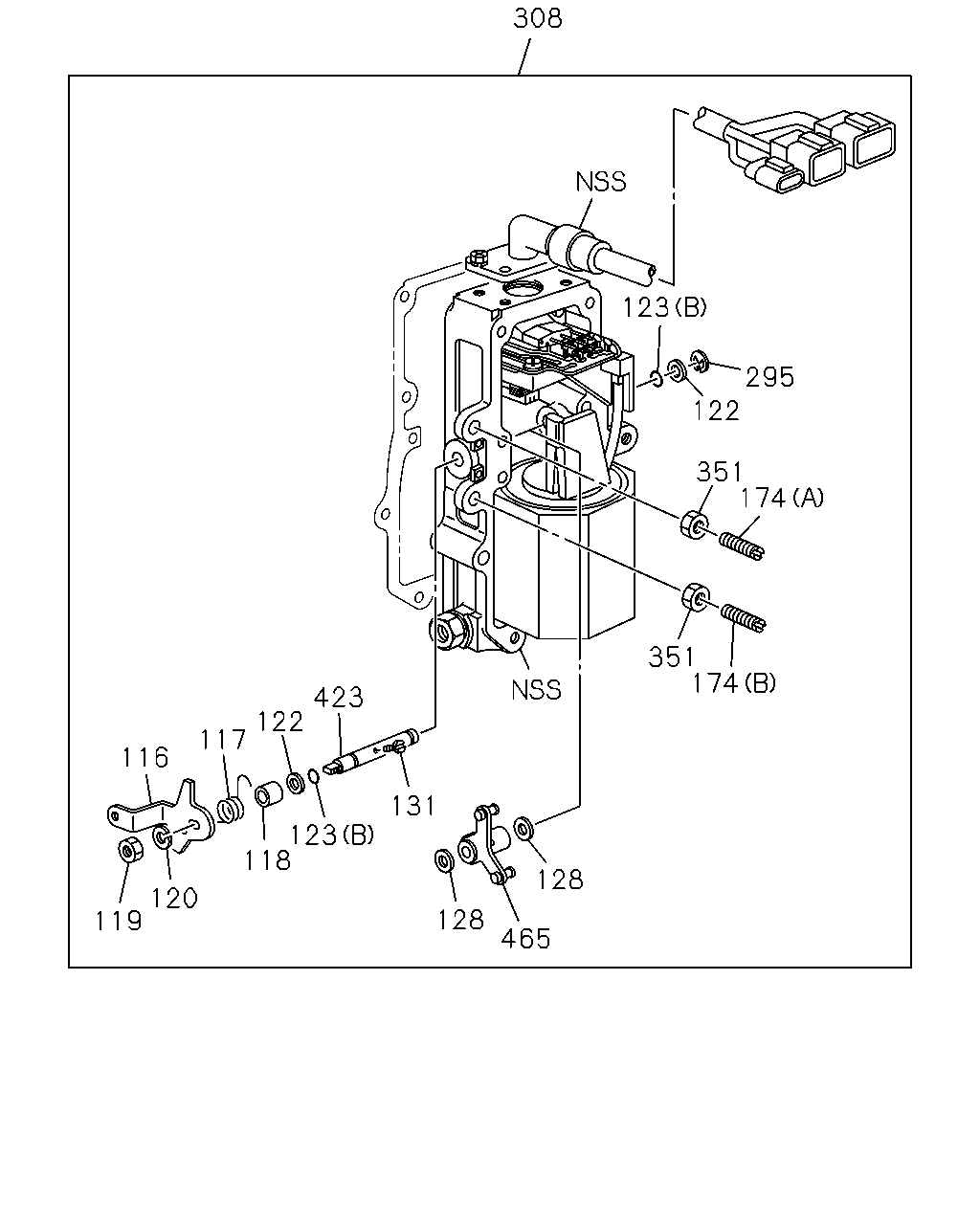

308 123 295 122 351 174 351 174 423 122 117 116 131 123 118 128 120 119 128 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-296-5	1-15725-972-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-296-5	1-15723-612-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-296-5	1-15779-738-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-296-5	1-15629-117-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-296-5	1-83579-492-0	01	1	-
122	WASHER; CONT SHAFT,GOV ID=10.5 ASM PART: A = 1-15603-296-5	9-09164-510-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: A = 1-15603-296-5	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: A = 1-15603-296-5	5-15759-050-0	02	1	-
128	SHIM; CONT SHAFT,GOV ASM PART: A = 1-15603-296-5	1-15779-730-0	02	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-296-5	1-15779-739-0	01	1	-
174	SCREW; PLATE (A) ASM PART: A = 1-15603-296-5	1-15779-740-0	01	1	-
174	SCREW; PLATE (B) ASM PART: A = 1-15603-296-5	1-15779-750-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15603-296-5	1-15729-723-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: A = 1-15603-296-5	1-15779-554-1	01	1	-
351	NUT; SCREW ASM PART: A = 1-15603-296-5	9-81325-081-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 1-15603-296-5	1-15779-729-0	01	1	-
465	LINK; GOVERNOR ASM PART: A = 1-15603-296-5	1-15725-968-0	01	1	-

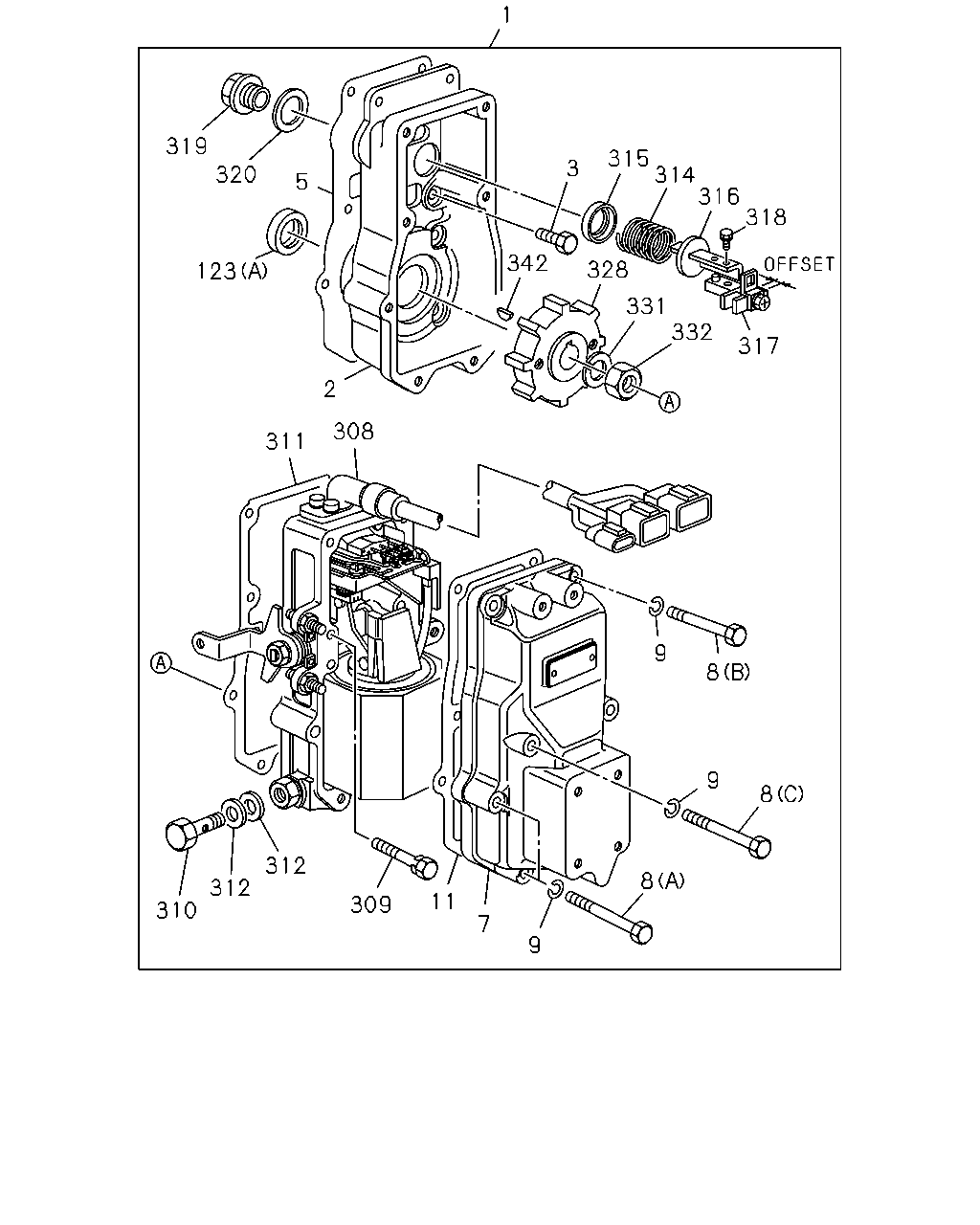

1 319 320 315 314 316 318 3 5 342 328 123 331 332 317 2 308 311 9 8 9 8 312 8 312 11 309 310 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-296-5	1-15790-036-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-296-5	1-15721-309-1	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-296-5	1-15729-846-0	10	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-296-5	1-15779-266-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-296-5	1-15721-191-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: A = 1-15603-296-5	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-296-5	1-15779-801-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-296-5	1-15779-802-0	02	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-296-5	9-09150-506-0	08	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-296-5	1-15779-146-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: A = 1-15603-296-5	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: A = 1-15603-296-5	5-15759-050-0	02	1	-
308	ACTUATOR; GOV,ELEC ASM PART: A = 1-15603-296-5	1-15779-554-1	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: A = 1-15603-296-5	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: A = 1-15603-296-5	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: A = 1-15603-296-5	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: A = 1-15603-296-5	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: A = 1-15603-296-5	1-15723-575-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: A = 1-15603-296-5	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: A = 1-15603-296-5	1-15723-576-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=3.5 ASM PART: A = 1-15603-296-5	1-15779-685-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.0 ASM PART: A = 1-15603-296-5	1-15779-686-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.5 ASM PART: A = 1-15603-296-5	1-15779-687-1	01	1	-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-296-5	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-296-5	1-15779-152-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: A = 1-15603-296-5	1-15629-056-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: A = 1-15603-296-5	1-15779-496-0	01	1	-
331	WASHER; LK,GEAR ASM PART: A = 1-15603-296-5	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: A = 1-15603-296-5	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 16MM ASM PART: A = 1-15603-296-5	5-19619-049-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: A = 1-15603-296-5	9-81325-030-0	01	1	-
