◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#112312) — 22 parça

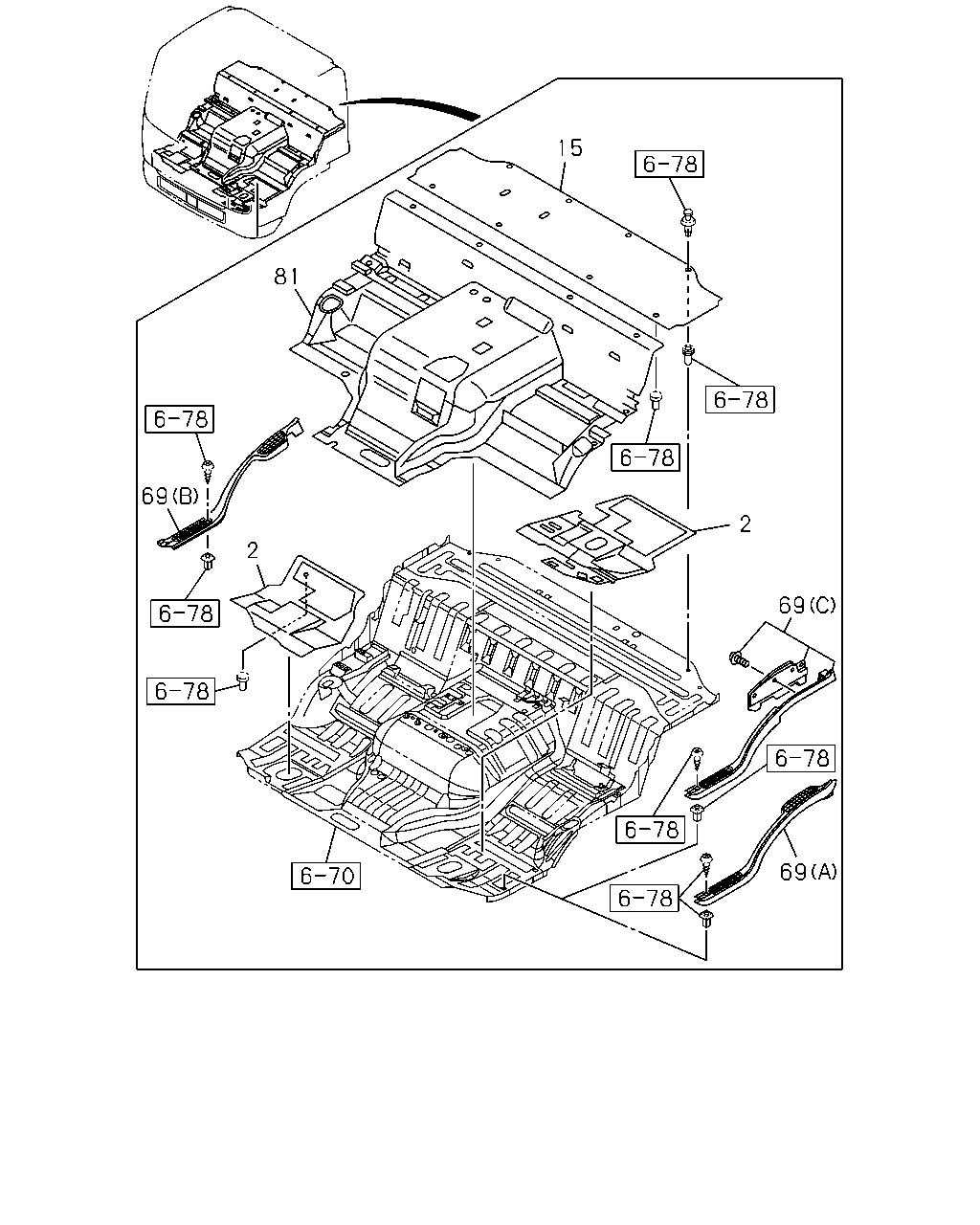

çizim 329207
15 81 69 2 69 69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
IRAN EQUIPMENT(D8T) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-026-2 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-161-1 01 1 1302- ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-162-3 01 1 1302-1512 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. IRAN EQUIPMENT(D8T) GRAY 		8-97414-162-3 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-162-3 01 1 1601- ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1302- ● ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1302- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
IRAN EQUIPMENT(D8T) (B) GRAY 		8-97412-925-0 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
IRAN EQUIPMENT(D8T) EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97412-927-0 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 1302-1512 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. IRAN EQUIPMENT(D8T) (B) GRAY 		8-97407-412-1 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97409-776-2 01 1 1302- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1302-1512 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. IRAN EQUIPMENT(D8T),DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1601- ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-644-2 01 1 1302-1311 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-644-2 01 1 1312- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-558-2 01 1 1302-1311 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-558-2 01 1 1312- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97417-928-0 01 1 1302-1311 ●
81 MAT; FLOOR,CENTER
FULLER FS8209HD DD M/T(Y3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97417-928-0 01 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
