6-70 — FLOOR PANEL (#112306) — 61 parça

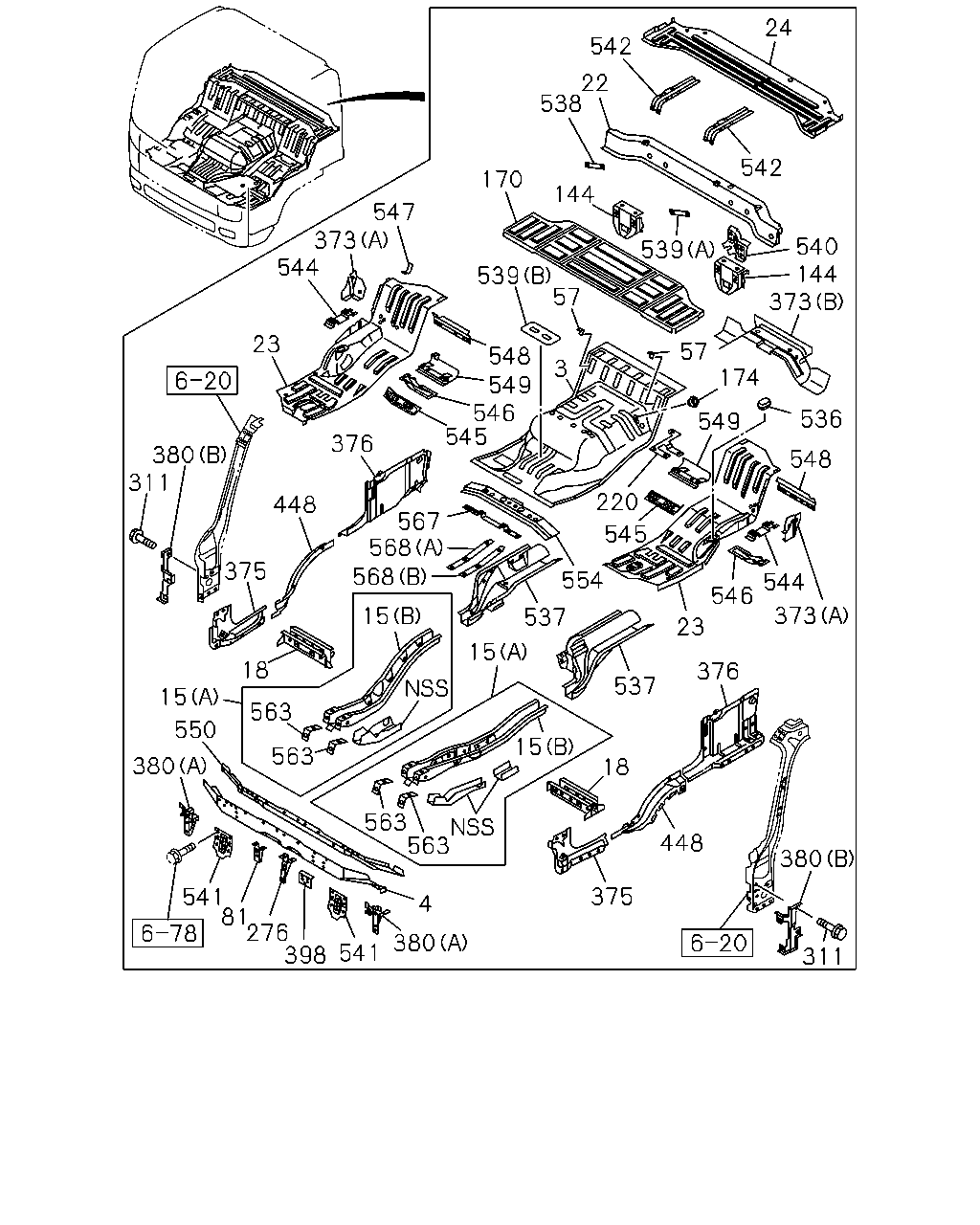

çizim 332143
542 24 22 538 170 144 539 540 144 542 373 539 547 373 544 23 57 57 548 549 546 545 376 448 380 311 375 567 568 568 15 18 15 550 380 541 81 276 398 541 380 4 563 563 563 563 15 537 554 545 220 23 537 15 18 448 375 380 311 546 373 544 548 536 549 174 376 3
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98036-244-5 01 1 1302-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1302-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1302-
24 PANEL; BED PAN 8-97584-377-6 01 1 1302-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1302-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1302-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1302-
220 PATCH 8-97589-704-0 01 1 1302-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1302-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1302-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1302-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1302-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1302-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1302-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1302-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1302-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1302-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1302-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1302-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1302-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1302-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1302-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1302-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1302-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1302-
