Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#11230) — 86 parça
◀

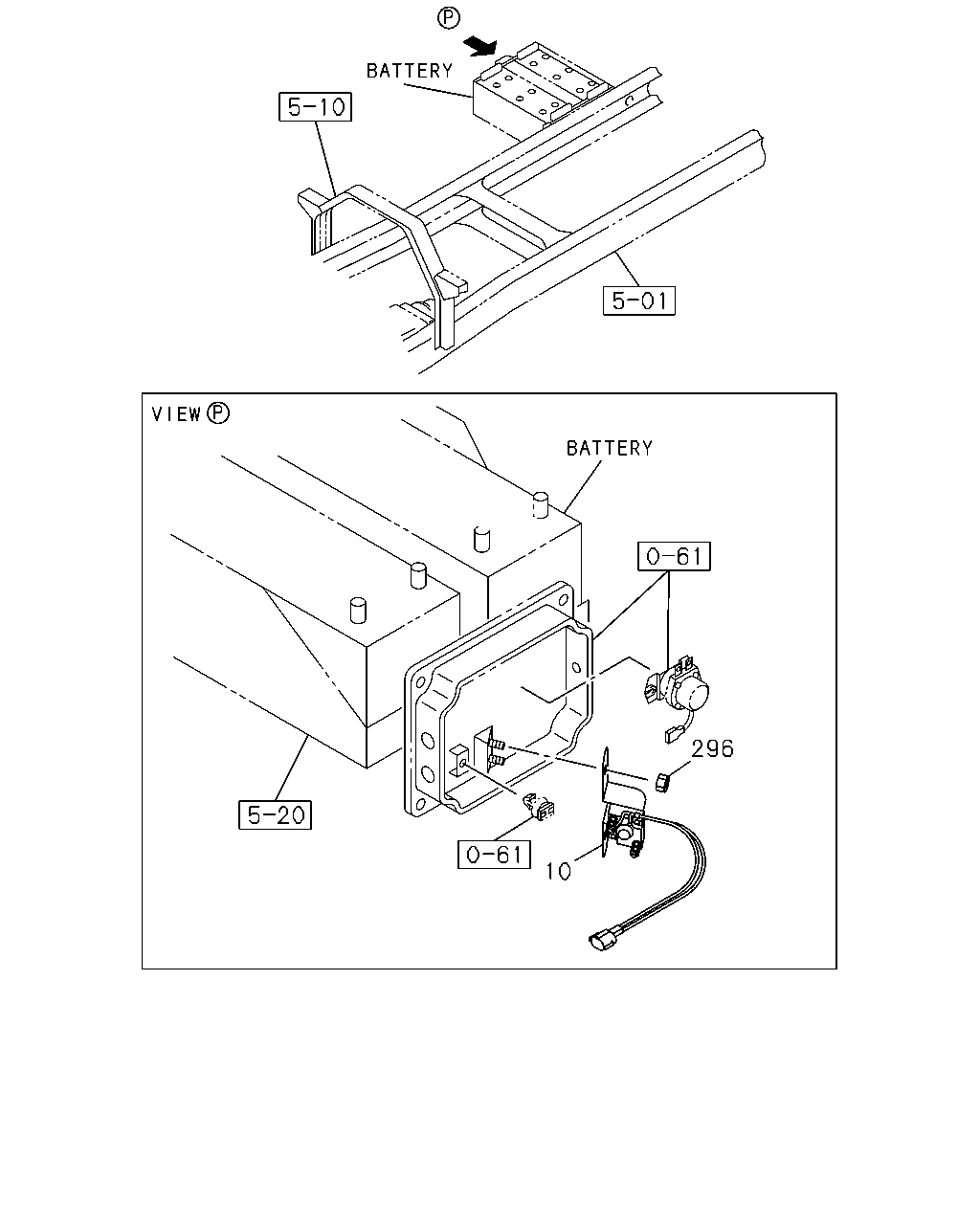

[060A] FIXING;STARTER RELAY (3 parça)

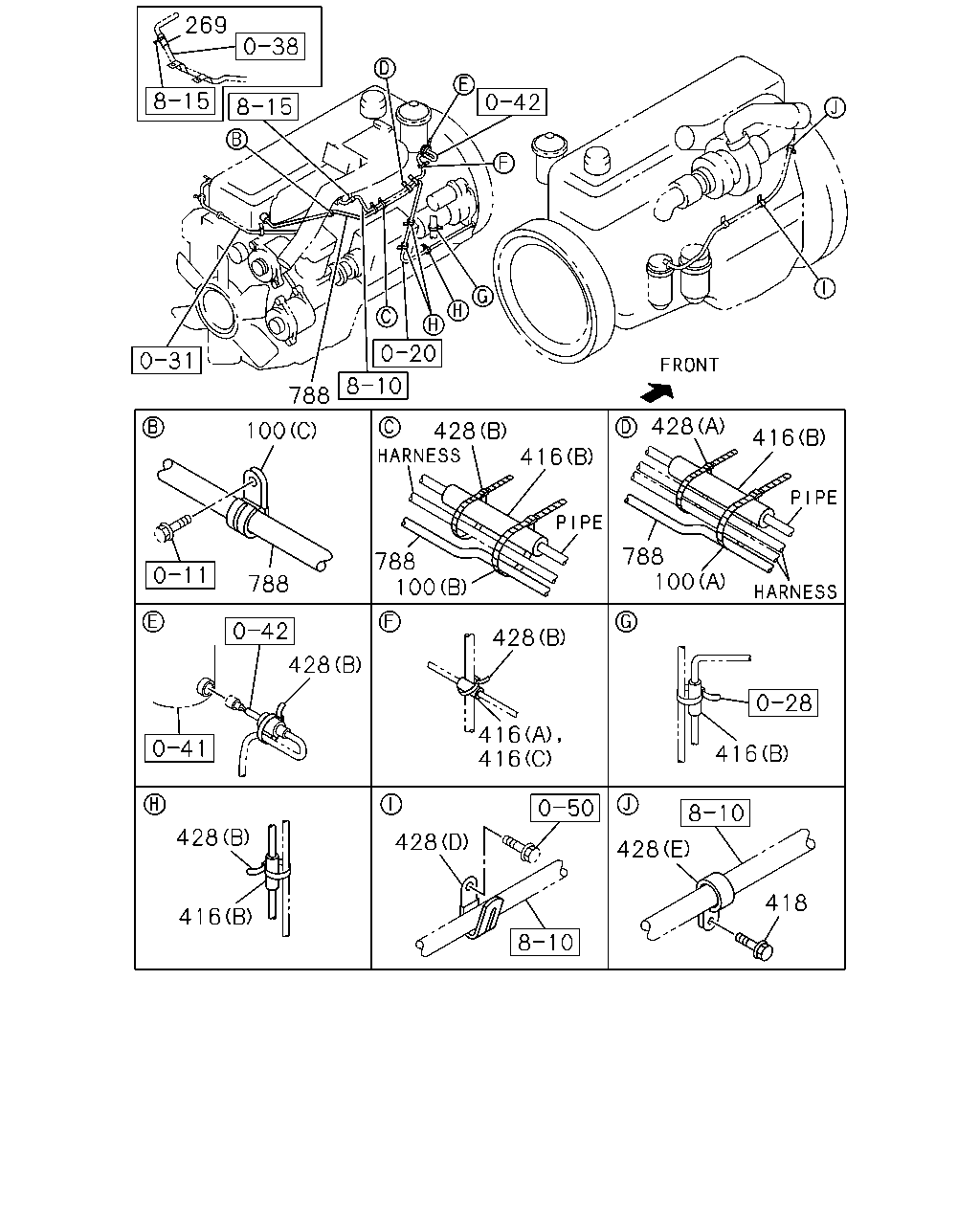

[060A] FIXING;ENG HARNESS (21 parça)

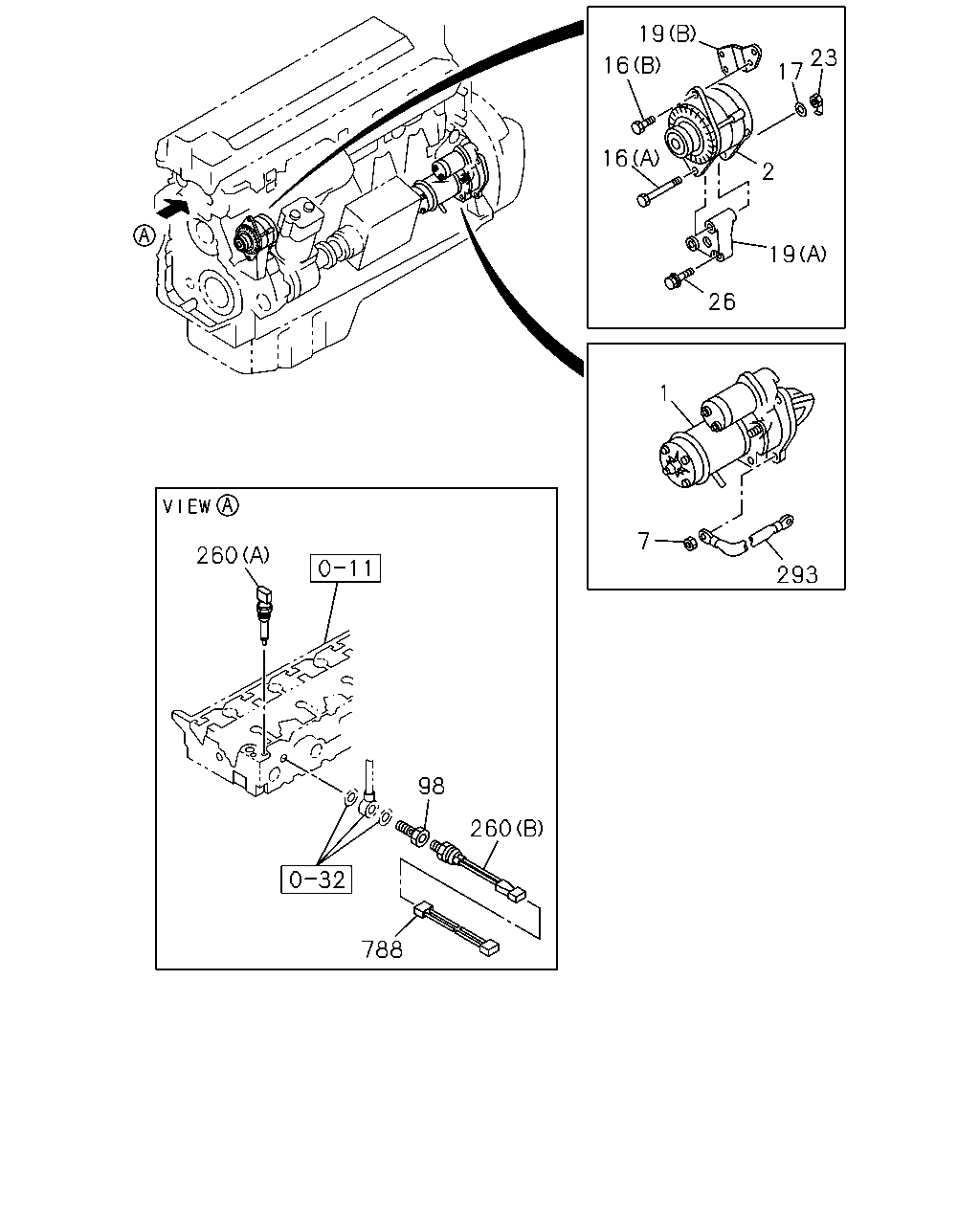

[060A] STARTER,GENERATOR AND SENSOR (18 parça)

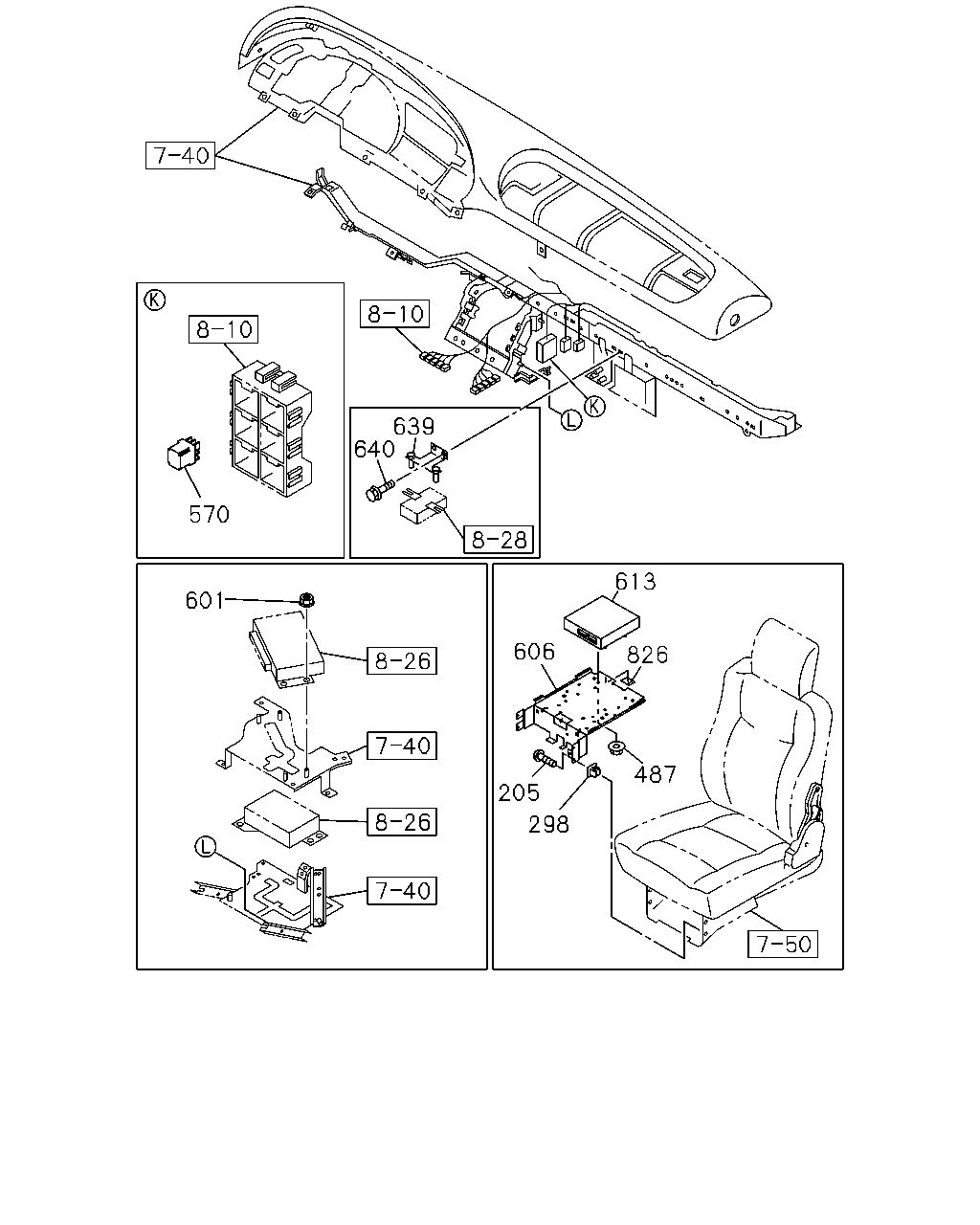

[060A] RELAY,CONT UNIT AND BRKT QOS GLOW TIME (15 parça)
[060A] FIXING CAB FRT AND FRAME;CLLP,SENSOR (19 parça)

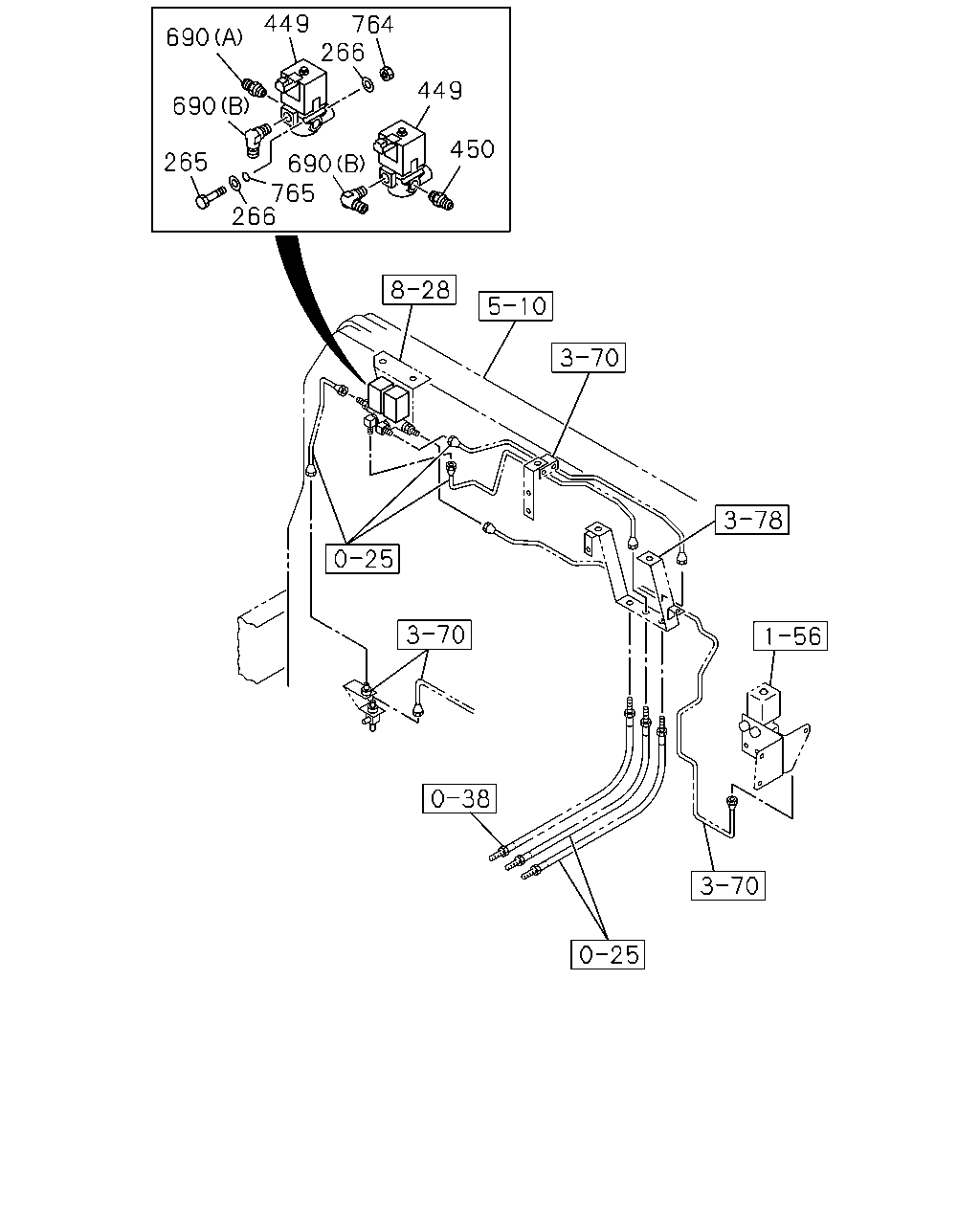

[060A] FIXING MAG VLV;CAB MEMBER (10 parça)
▶
296
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
HITACHI
1-81171-088-0
01
1
0107-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0107-0602
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
269
788
428
100
428
416
416
788
100
788
100
788
428
428
416
416
416
428
428
428
418
416
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(C) ID=11 L=30
1-09700-511-0
01
1
0107-
100
CLIP; HARNESS
(A) L=180
1-09707-162-1
01
1
0107-
100
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0107-
269
SLEEVE; RUBBER,CABLE
ID=18 OD=22 L=25
8-94412-773-0
01
1
0111-
416
SLEEVE; RUBBER
(B) ID=17 OD=21 L=40
1-09337-012-0
01
1
0107-
416
SLEEVE; RUBBER
(C) ID=18 OD=22 L=25
8-94412-773-0
01
1
0107-
416
SLEEVE; RUBBER
(A) ID=10 OD=14 L=30
9-09956-682-0
06
1
0107-
418
BOLT; CLIP
M10X16 FLANGE
0-28181-016-0
01
1
0107-0512
418
BOLT; CLIP
M10X16 FLANGE
0-28151-016-0
01
1
0601-
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0107-0111
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0107-0111
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
02
1
0112-0211
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0212-
428
CLIP; HARNESS
(G) ID=26 L=26
1-09701-236-0
01
1
0107-
428
CLIP; HARNESS
(H) ID=32 L=35
1-09701-244-0
01
1
0107-
428
CLIP; HARNESS
(A) L=250
5-09707-030-1
02
1
0107-
428
CLIP; HARNESS
(B) L=140
5-09707-031-1
05
1
0107-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0107-
428
CLIP; HARNESS
(C) ID=20 L=50
9-09917-430-0
03
1
0107-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0107-
788
HARNESS; EXT,WATER TEMP SENSOR
1-82641-186-0
02
1
0107-
19
23
17
16
16
2
19
26
1
7
260
293
98
260
788
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-341-3
01
1
0107-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-517-2
01
1
0107-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
0107-
16
BOLT; GEN
(B) M12X40 FLANGE
0-28081-240-0
01
1
0107-0512
16
BOLT; GEN
(B) M12X40 FLANGE
0-28051-240-0
01
1
0601-
16
BOLT; GEN
(A) M14X123
1-09040-105-0
01
1
0107-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0107-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
19
BRACKET; GEN
(B)
1-19711-082-0
01
1
0107-
19
BRACKET; GEN
(A)
1-19711-144-0
01
1
0107-
23
NUT; GEN
M14 W/BRKT
1-19711-029-0
01
1
0107-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28181-060-0
02
1
0107-0512
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0601-
98
ADAPTER; TEMP SENSOR
1-09675-236-0
01
1
0107-
260
SENSOR; WATER TEMP
(A)
1-80210-004-0
01
1
0107-
260
SENSOR; WATER TEMP
(B)
1-83161-038-0
01
1
0107-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
0107-
788
HARNESS; EXT,WATER TEMP SENSOR
1-82641-186-0
02
1
0107-
639
640
570
613
601
606
826
487
205
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
205
SCREW; BRKT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0107-
298
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0107-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0107-0602
487
NUT
M6 FLANGE
0-91180-106-0
04
1
0603-
570
RELAY; EXH SHUTTER
24V 10A PANASONIC
8-97173-035-1
01
1
0107-
601
NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE
0-91150-106-0
04
1
0107-0602
601
NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE
0-91180-106-0
04
1
0603-
606
BRACKET; CONT UNIT
1-75558-598-3
01
1
0107-
613
CONTROL UNIT; ENG
1-80110-437-0
01
1
0107-
639
BRACKET; QOS GLOW TIMER
ANTILOCK BRAKE SYSTEM(BFA)
1-73908-161-0
01
1
0107-0301
639
BRACKET; QOS GLOW TIMER
1-73908-161-0
01
1
0302-
640
BOLT; BRKT,QOS GLOW TIMER
ANTILOCK BRAKE SYSTEM(BFA) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0107-0301
640
BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0302-
826
SEAL; NOISE INSULATION
30X30
8-97866-626-0
03
1
0107-0309
826
SEAL; NOISE INSULATION
30X30
1-74998-128-0
03
1
0310-
441
428
608
441
428
441
428
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0107-0111
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0107-0111
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
02
1
0112-0211
428
CLIP; HARNESS
(F) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0212-
428
CLIP; HARNESS
(G) ID=26 L=26
1-09701-236-0
01
1
0107-
428
CLIP; HARNESS
(H) ID=32 L=35
1-09701-244-0
01
1
0107-
428
CLIP; HARNESS
(A) L=250
5-09707-030-1
02
1
0107-
428
CLIP; HARNESS
(B) L=140
5-09707-031-1
05
1
0107-
428
CLIP; HARNESS
(D) L=36
8-94224-891-1
01
1
0107-
428
CLIP; HARNESS
(C) ID=20 L=50
9-09917-430-0
03
1
0107-
428
CLIP; HARNESS
(E) ID=11 L=28
9-09917-544-0
01
1
0107-
441
BOLT; HARNESS TO FRAME
(B) M8X20 FLANGE
0-28680-820-0
01
1
0107-0112
441
BOLT; HARNESS TO FRAME
(B) M8X20 FLANGE
0-28680-820-0
01
1
0107-0112
441
BOLT; HARNESS TO FRAME
(B) M8X25 FLANGE
0-28680-825-0
01
1
0201-0211
441
BOLT; HARNESS TO FRAME
(B) M8X25 FLANGE
0-28680-825-0
01
1
0201-0211
441
BOLT; HARNESS TO FRAME
(B) M8X25 FLANGE
0-28680-825-0
02
1
0212-0512
441
BOLT; HARNESS TO FRAME
(B) M8X25 FLANGE
0-28650-825-0
02
1
0601-
441
BOLT; HARNESS TO FRAME
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0107-
608
SENSOR; AIR TEMP
8-97177-549-0
01
1
0107-
449
764
266
690
449
690
450
265
690
765
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
265
BOLT; MAG VLV FIX
M6X50 FLANGE
0-28080-650-0
01
1
0107-0512
265
BOLT; MAG VLV FIX
M6X50 FLANGE
0-28050-650-0
01
1
0601-
266
WASHER; PL,MAG VLV FIX
1-82569-266-0
02
1
0107-
449
VALVE; MAG,VARIABLE SWIRL SYSTEM
1-82563-871-2
02
1
0107-
450
CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0107-
690
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0107-
690
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0107-
764
NUT; MAG VLV
M6 FLANGE
0-91150-106-0
01
1
0107-0602
764
NUT; MAG VLV
M6 FLANGE
0-91180-106-0
01
1
0603-
765
GASKET; MAG VLV
ID=16.8
9-09565-117-0
01
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
