◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#1123) — 72 parça

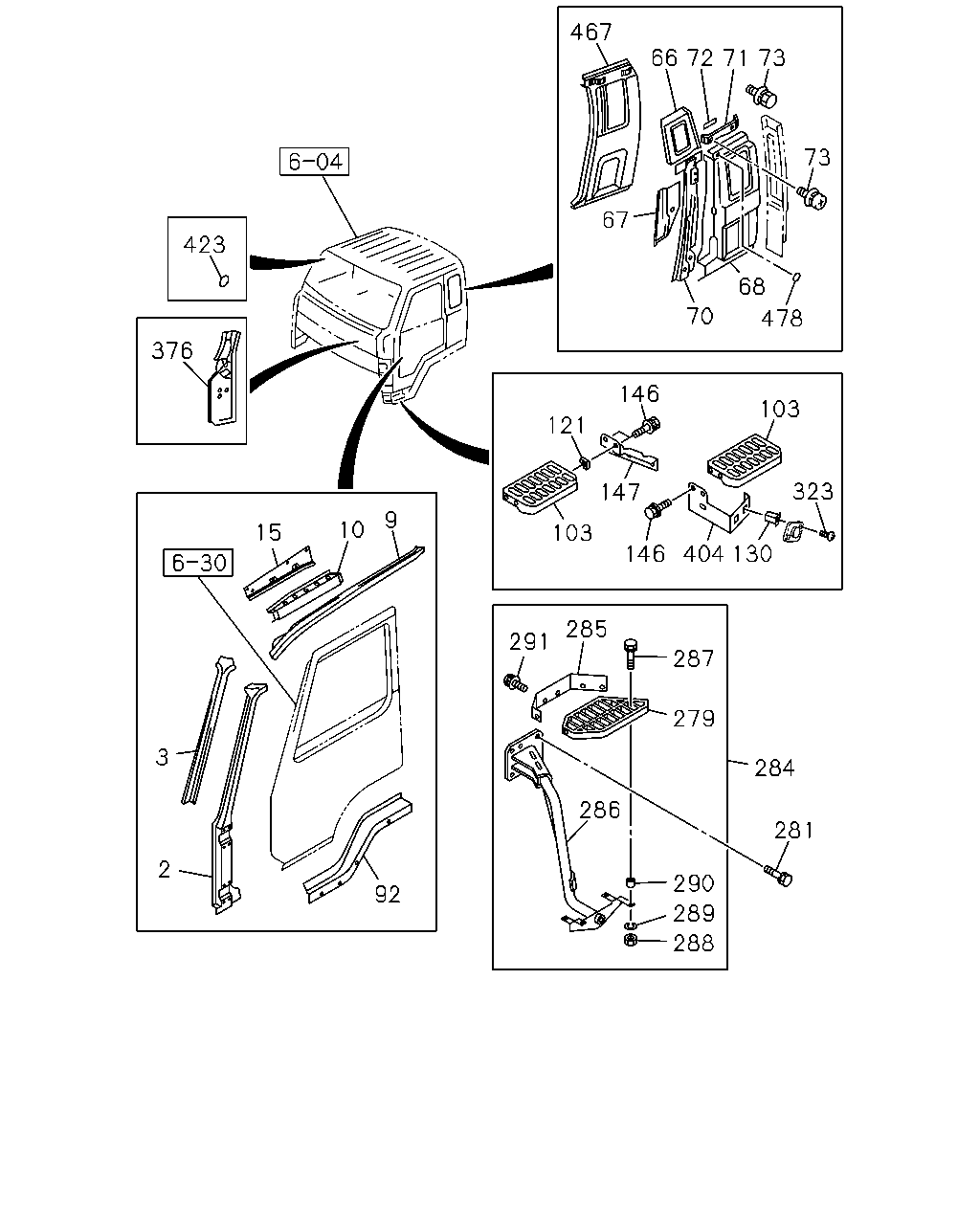

çizim 28330
423 376 467 67 66 72 71 73 73 478 68 70 103 121 147 146 103 323 130 404 146 9 10 15 3 2 92 291 285 287 279 284 281 286 290 289 288
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61270-645-0 01 1 9202- ● ●
2 PILLAR; FRT
DOOR MIRROR<D32> 		1-61270-659-2 01 1 9202- ● ●
2 PILLAR; FRT
EXC. DOOR MIRROR<D32> 		1-61281-016-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-830-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-562-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-740-0 01 1 9202-9409 ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-739-0 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-831-2 01 1 9410- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-601-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-600-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-904-1 01 1 9202- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9202- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9202- ● ●
68 PANEL; BACK SIDE OUTER 1-61280-439-5 01 1 9202-9302 ● ●
68 PANEL; BACK SIDE OUTER
W/DOOR SW HOLE 		1-61280-474-5 01 1 9303- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9202- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-051-0 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-050-0 01 1 9202- ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9202- ● ●
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9202- ● ●
103 PLATE; STEP 1-53414-033-0 02 1 9202- ● ●
121 COVER; STEP PLATE 1-71998-153-0 08 1 9401- ● ●
130 GROMMET; SCREW,PROTECTOR
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M5 		1-09983-116-0 08 1 9408- ● ●
146 BOLT; STEP BRKT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
147 BRACKET; MUD GUARD,RR 1-65680-731-0 01 1 9202- ● ●
147 BRACKET; MUD GUARD,RR 1-65680-730-0 01 1 9202- ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 9202- ● ●
281 BOLT; STEP BOARD TO FLOOR
M12X40 W/LK WASHER 		0-50041-240-0 08 1 9202- ● ●
284 STEP ASM; 1ST 1-53414-037-0 01 1 9202- ● ●
284 STEP ASM; 1ST 1-53414-018-2 01 1 9202- ● ●
285 PLATE; STEP,1ST STEP 1-53414-019-0 01 1 9202- ● ●
285 PLATE; STEP,1ST STEP 1-53414-020-0 01 1 9202- ● ●
286 STEP ASM; 1ST 1-53414-015-2 01 1 9202- ● ●
286 STEP ASM; 1ST 1-53414-036-0 01 1 9202- ● ●
287 BOLT; BOARD STEP
M6X35 W/LK WASHER 		9-01900-635-0 04 1 9202-9204 ● ●
287 BOLT; BOARD STEP
M6X35 W/LK WASHER 		0-50040-635-0 04 1 9205-9312 ● ●
287 BOLT; BOARD STEP
M6X35 FLANGE 		0-28080-635-0 04 1 9401- ● ●
287 BOLT; BOARD STEP
M8X35 W/LK WASHER 		9-01900-835-0 04 1 9202-9204 ● ●
287 BOLT; BOARD STEP
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9205-9312 ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28080-835-0 04 1 9401- ● ●
288 NUT; STEP
M6 		9-09110-406-0 04 1 9202-9312 ● ●
288 NUT; STEP
M6 FLANGE 		0-91150-106-0 04 1 9401- ● ●
288 NUT; STEP
M8 		9-09110-408-0 04 1 9202-9312 ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 04 1 9401- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=14 		9-09160-606-0 04 1 9202-9312 ● ●
289 WASHER; PL,STEP
ID=8.4 OD=18 		9-09160-608-0 04 1 9202-9312 ● ●
290 SPACER 1-53414-016-0 08 1 9202- ● ●
291 BOLT; STEP PLATE
M6X20 W/LK&PL WASHER 		9-01960-620-0 10 1 9202-9204 ● ●
291 BOLT; STEP PLATE
M6X20 W/LK&PL WASHER 		0-50140-620-0 10 1 9205-9312 ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 9401- ● ●
323 SCREW; SET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M6X16 TAPPING 		1-09981-524-0 08 1 9408- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-633-3 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61470-586-4 01 1 9202- ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-423-0 01 1 9408-9411 ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-422-0 01 1 9412- ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-421-0 01 1 9408-9411 ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-420-0 01 1 9412- ● ●
423 SEAL; CANTRAIL SIDE
EXC. DELUXE CAB(W14) OD=36 WHITE 		1-76778-007-0 01 1 9501- ● ●
467 PANEL; OUTER,BACK CORNER
W/DOOR SW HOLE 		1-61280-438-4 01 1 9202- ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 02 1 9202-9302 ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9303- ● ●
