11519 - FVR/GVR-RHD EURO2/4
▶
5 - Frame, Cab Mounting
▶

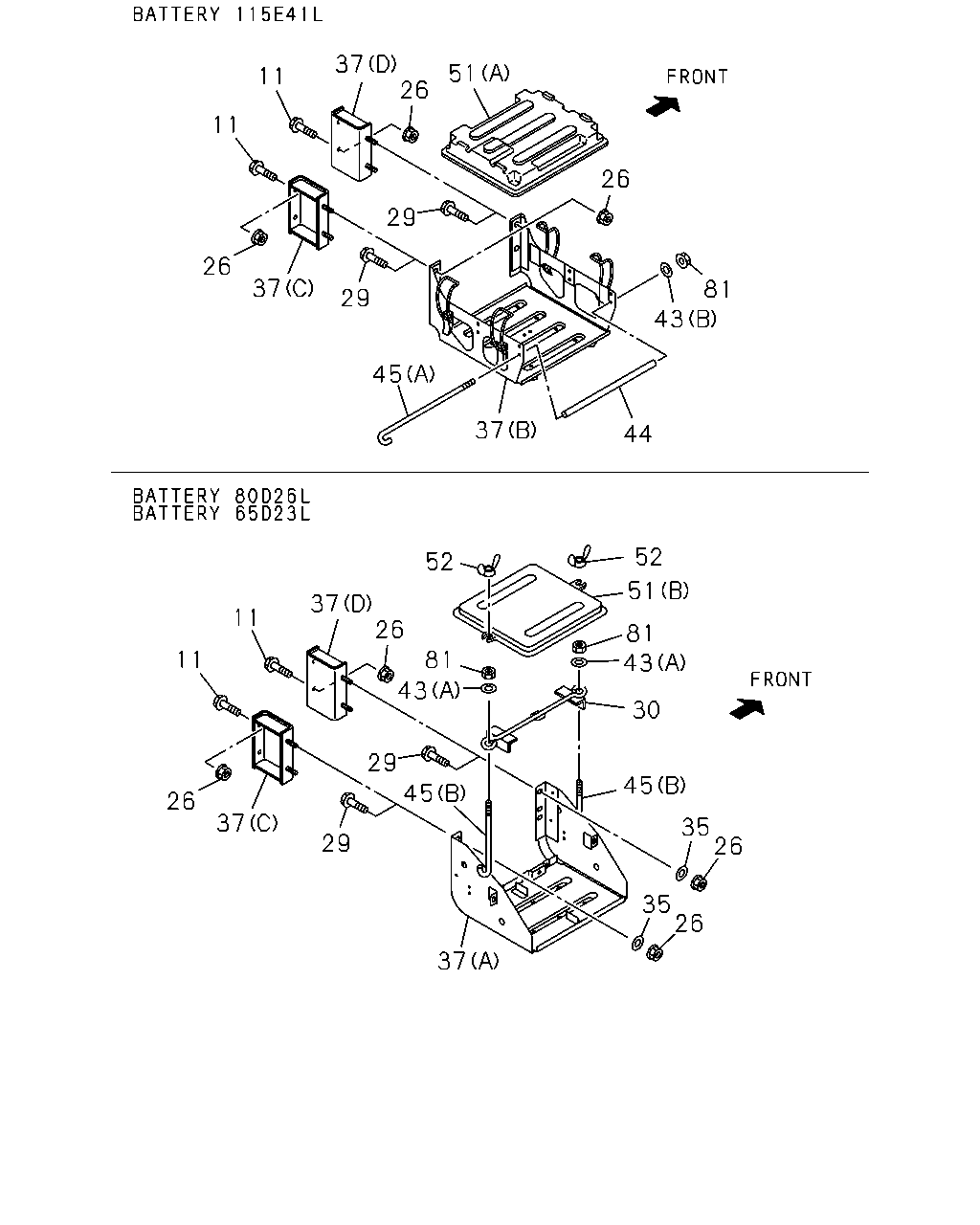

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#112297) — 21 parça
51
26
37
11
11
26
37
29
29
26
81
43
44
37
45
52
37
11
11
26
37
29
29
26
81
43
45
37
45
35
26
35
26
30
43
81
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M10X35 FLANGE
0-28651-035-0
04
1
1302-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1302-
26
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M10 FLANGE
0-91180-210-0
04
1
1302-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE
0-28651-035-0
04
1
1302-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1302-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1302-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1302-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1302-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1302-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)
8-98088-828-0
01
1
1302-
37
BRACKET; BATTERY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)
8-98162-291-0
01
1
1302-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1302-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1302-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1302-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1302-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1302-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1302-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1302-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
