5-20 — BATTERY CARRIER (#112296) — 54 parça

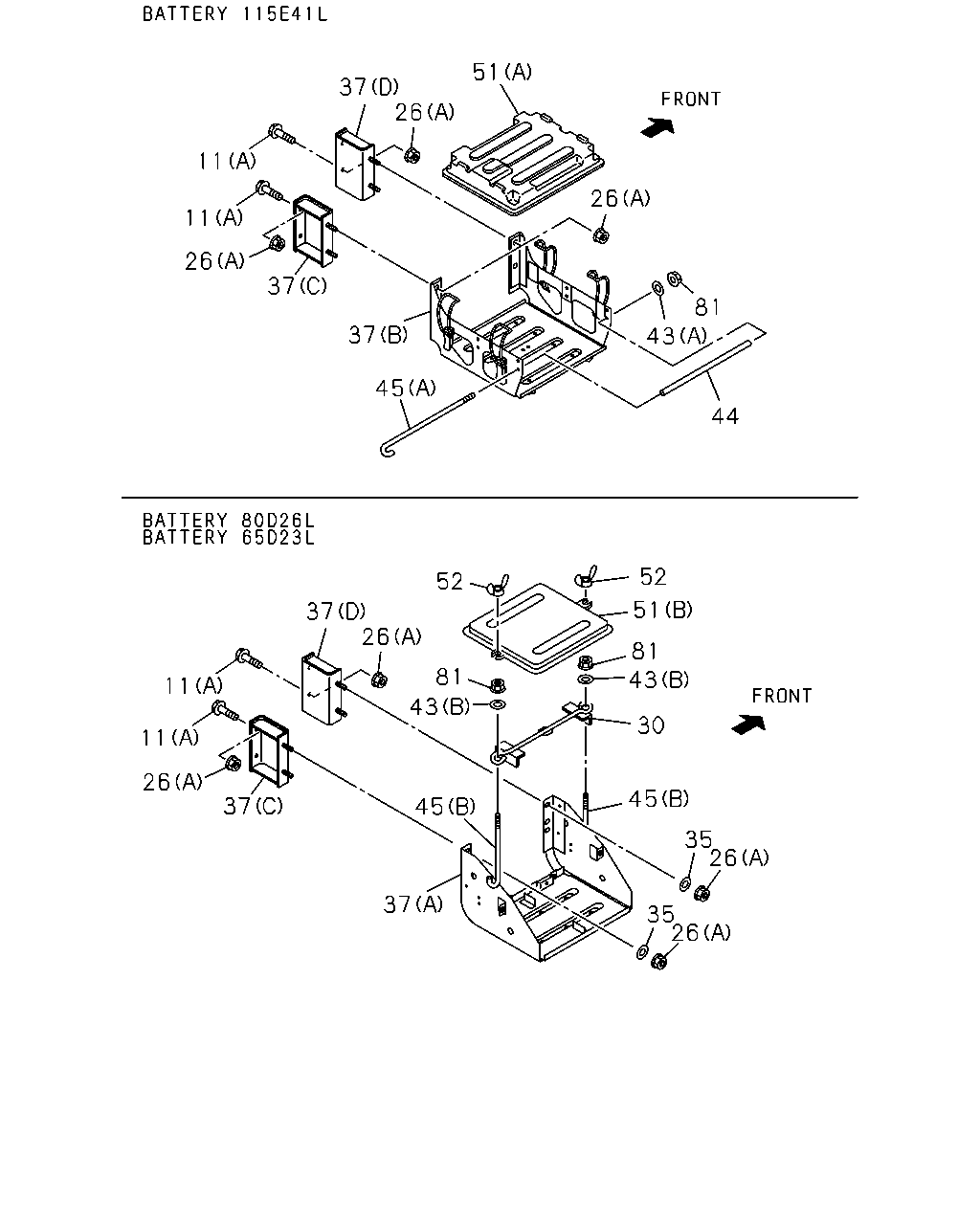

37 26 51 26 81 43 44 45 37 37 26 11 11 37 26 52 81 43 52 51 81 43 30 45 35 26 35 26 37 45 37 26 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10X35 FLANGE	0-28651-035-0	04	1	1302-
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) (B) M14X35	0-20851-435-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 4100MM(41W) (B) M14	0-91110-514-0	04	1	1302-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1302-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1302-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1302-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1302-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1302-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1302-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1302-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1302-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1302-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1302-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1302-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1302-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1302-

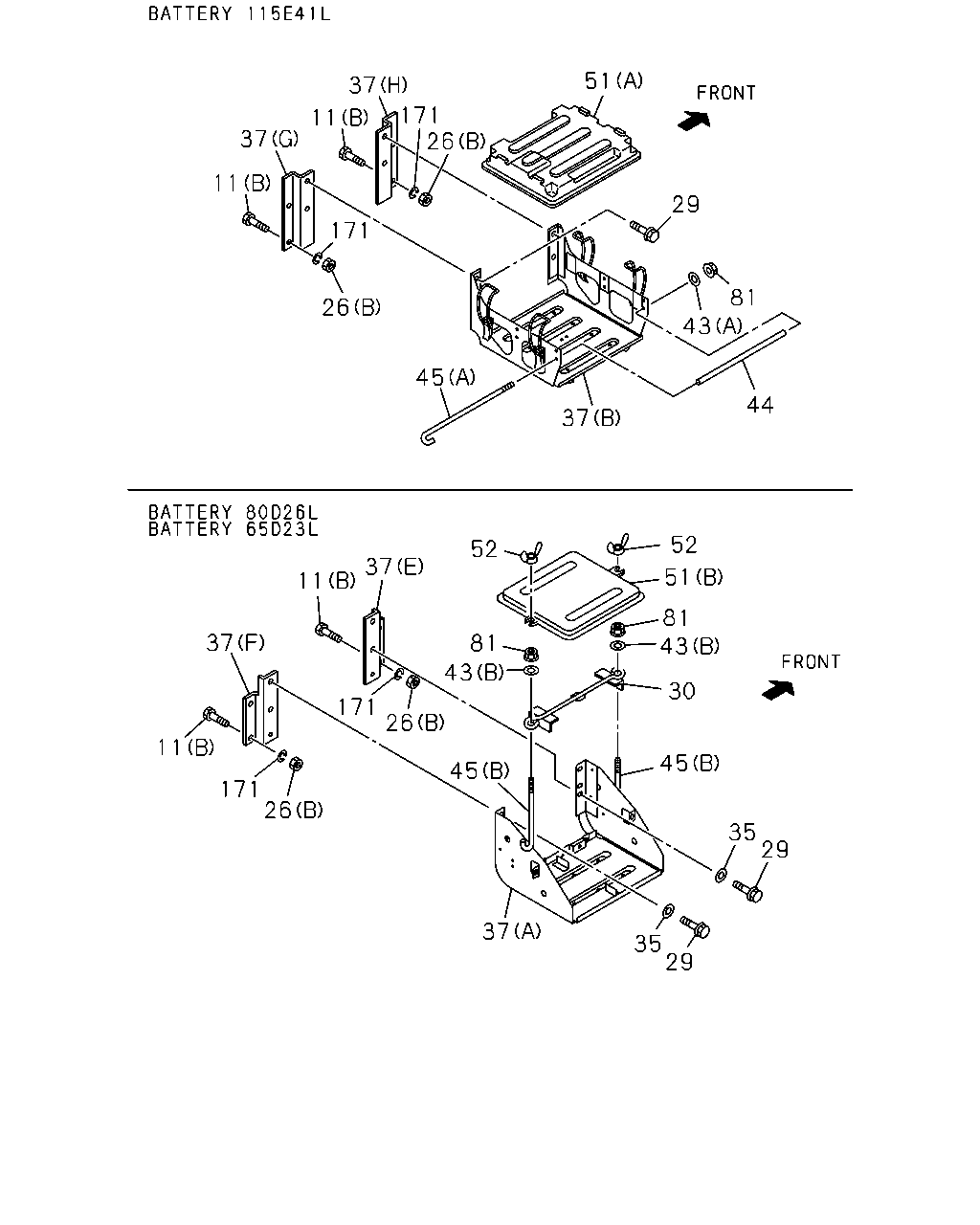

44 81 43 37 29 51 171 37 26 37 11 45 26 171 11 52 51 81 30 43 45 35 29 29 35 37 45 43 52 81 37 37 11 171 26 26 171 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10X35 FLANGE	0-28651-035-0	04	1	1302-
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) (B) M14X35	0-20851-435-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
26	NUT; BRKT WHEEL BASE 4100MM(41W) (B) M14	0-91110-514-0	04	1	1302-
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) M10X35 FLANGE	0-28651-035-0	04	1	1302-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1302-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1302-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1302-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1302-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1302-
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1302-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1302-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1302-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1302-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1302-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1302-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1302-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1302-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1302-
171	WASHER; BRKT WHEEL BASE 4100MM(41W) ID=14.2	0-91510-814-0	04	1	1302-
