Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
5 - Frame, Cab Mounting
▶

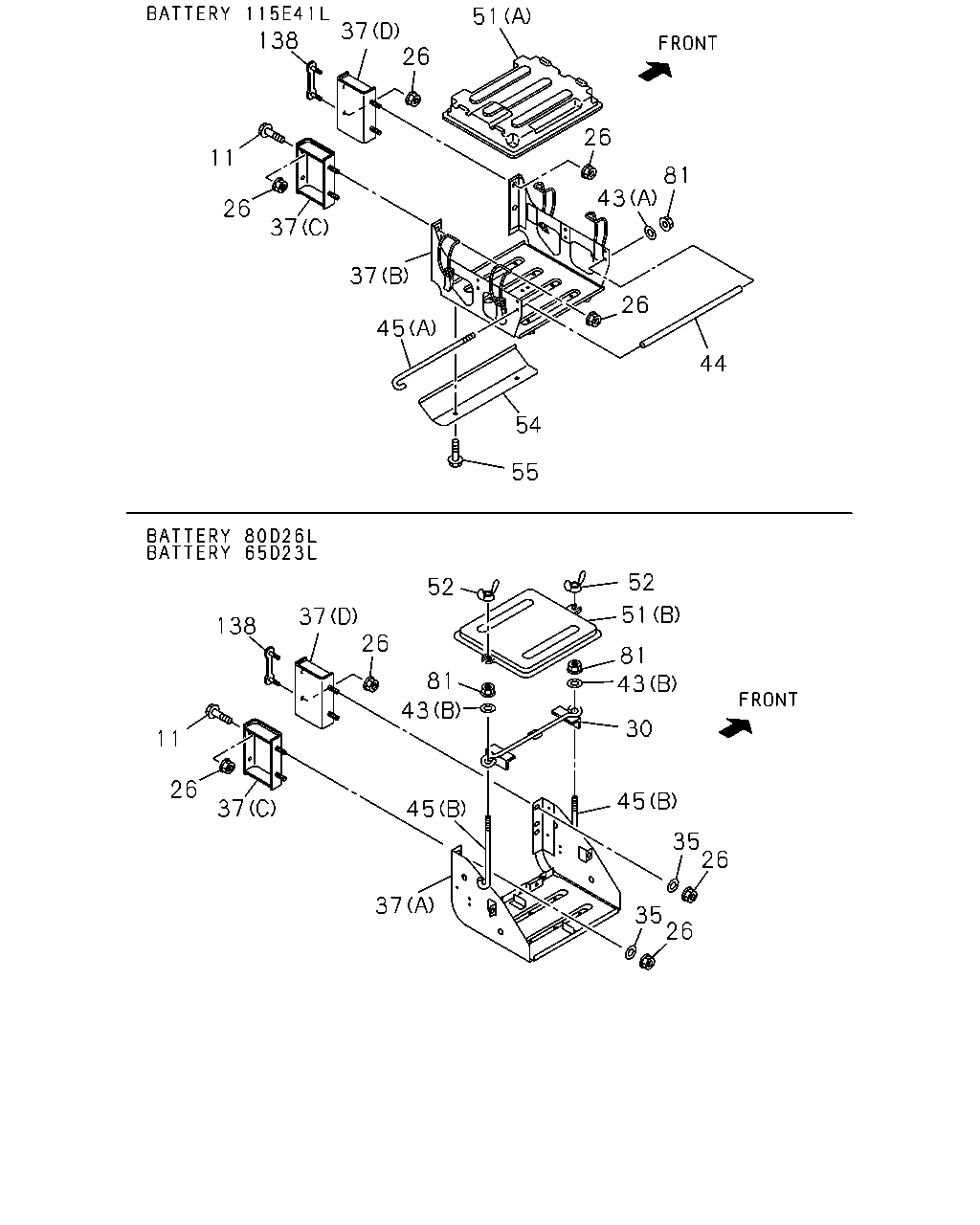

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#112295) — 24 parça
138
37
26
51
26
43
81
26
44
54
55
45
37
37
26
11
138
11
26
37
37
26
35
26
35
45
30
43
81
51
52
52
81
43
45
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
1302-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1302-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1302-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1302-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1302-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1302-
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1302-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-499-0
01
1
1302-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-637-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1302-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1302-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (A) ID=8.4 OD=16
0-91610-508-0
02
1
1302-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22
0-91614-708-0
02
1
1302-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1302-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1302-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1302-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1302-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1302-
54
PROTECTOR; HEAT,BATTERY
BATTERY 115E41L<8MA>
8-98113-142-0
01
1
1302-
55
BOLT; HEAT PROTECTOR
BATTERY 115E41L<8MA> M8X10 FLANGE
0-28050-810-0
02
1
1302-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1302-
138
STUD
8-98178-497-0
01
1
1302-1311
138
STUD
8-98255-710-0
01
1
1312-
