6-03 — RADIATOR GRILLE (#112292) — 80 parça

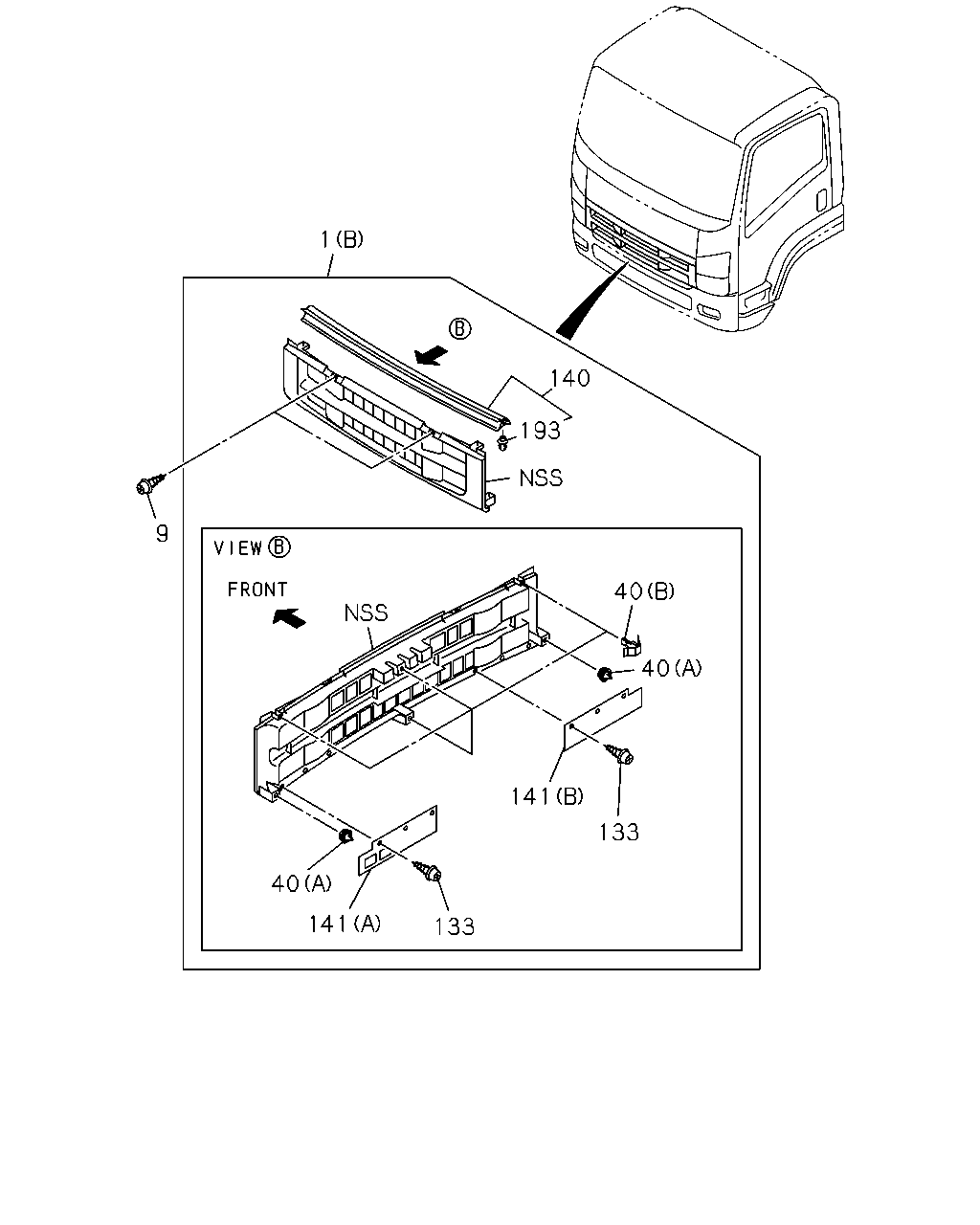

140 193 9 40 40 1 1 40 141 133 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	1302-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	1302-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	1302-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	1302-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	1302-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	1302-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	1302-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	1302-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	1302-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	1302-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	1302-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	1302-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	1302-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-504-7	01	1	1302-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	1302-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	1302-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-

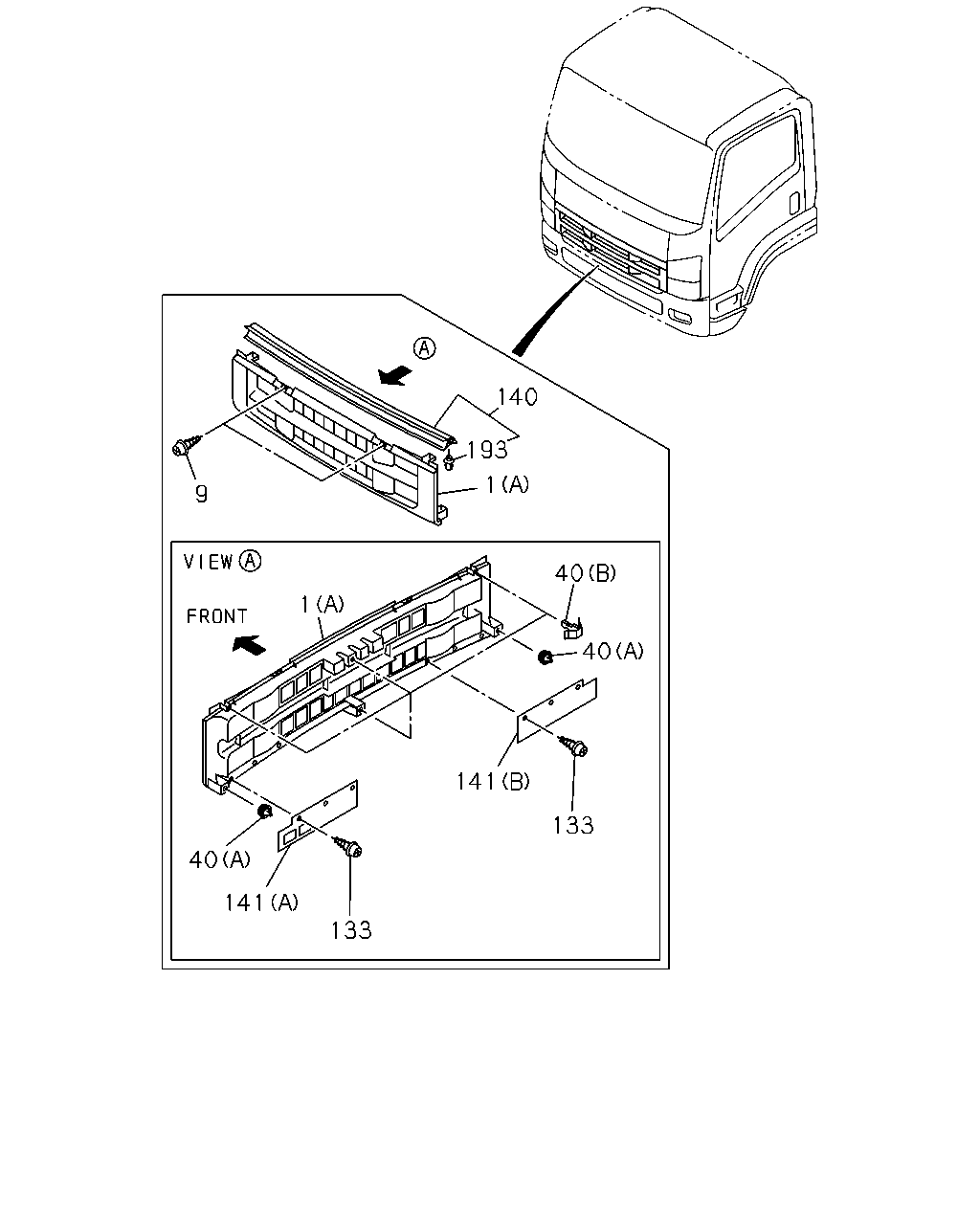

1 9 140 193 40 40 141 133 133 141 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	1302-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	1302-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	1302-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	1302-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	1302-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	1302-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	1302-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	1302-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	1302-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	1302-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	1302-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	1302-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	1302-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	1302-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-504-7	01	1	1302-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	1302-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	1302-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	1302-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	1302-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	1302-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	1302-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	1302-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	1302-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	1302-
