6-01 — FRONT BUMPER (#112286) — 115 parça

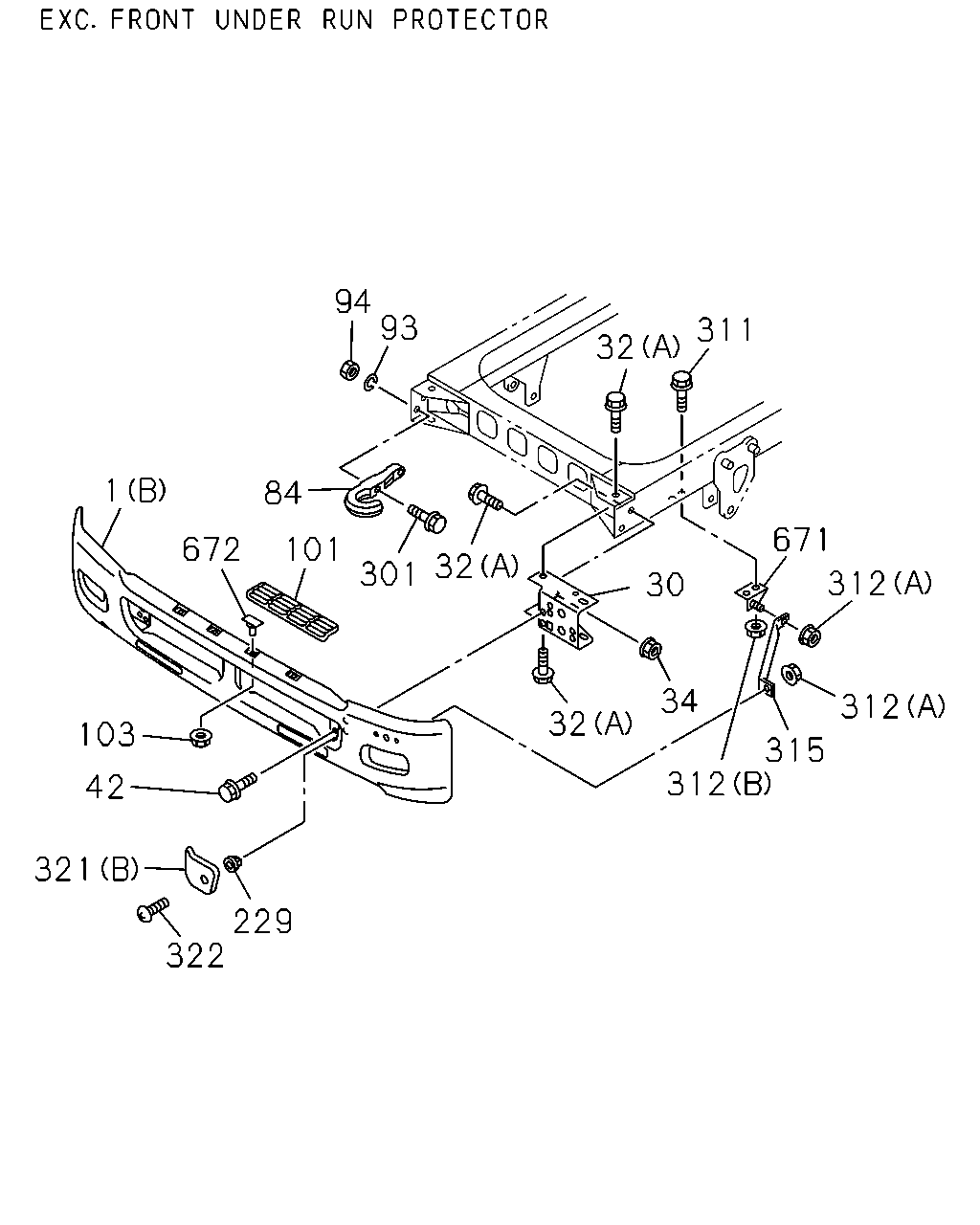

312 315 312 312 671 30 34 32 32 301 101 84 672 1 103 42 321 322 229 93 94 32 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1302-
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1302-
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1302-
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1302-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) M6X12 FLANGE	0-28050-612-0	06	1	1511-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1302-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1302-
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1302-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1302-
84	HOOK FRONT SPOILER<VP1>	1-57181-003-5	01	1	1302-
84	HOOK FRONT UNDER SPOILER DELETE<SGA>	8-98035-645-0	01	1	1302-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1302-
94	NUT; HOOK M14	0-91110-514-0	02	1	1302-
101	STEP; BUMPER	8-97611-541-0	01	1	1302-
101	STEP; BUMPER	8-97611-540-0	01	1	1302-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1302-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	08	1	1511-
311	BOLT; BRKT FRONT SPOILER<VP1> M14X45 FLANGE	0-28851-445-0	04	1	1302-1510
311	BOLT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1511-
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1302-
312	NUT; BRKT FRONT SPOILER<VP1> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1510
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1511-
312	NUT; BRKT FRONT SPOILER<VP1> (B) M14 FLANGE	0-91180-214-0	04	1	1302-1510
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1511-
312	NUT; BRKT FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	02	1	1302-
315	STAY; BUMPER FRONT SPOILER<VP1>	8-97611-498-1	01	1	1302-1510
315	STAY; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97611-498-1	01	1	1511-
315	STAY; BUMPER FRONT SPOILER<VP1>	8-97611-497-1	01	1	1302-1510
315	STAY; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97611-497-1	01	1	1511-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-291-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-290-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-294-0	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-293-0	01	1	1302-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-
671	BRACKET; STAY FRONT SPOILER<VP1>	8-97614-063-0	01	1	1302-1510
671	BRACKET; STAY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-063-0	01	1	1511-
671	BRACKET; STAY FRONT SPOILER<VP1>	8-97614-062-0	01	1	1302-1510
671	BRACKET; STAY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-062-0	01	1	1511-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-

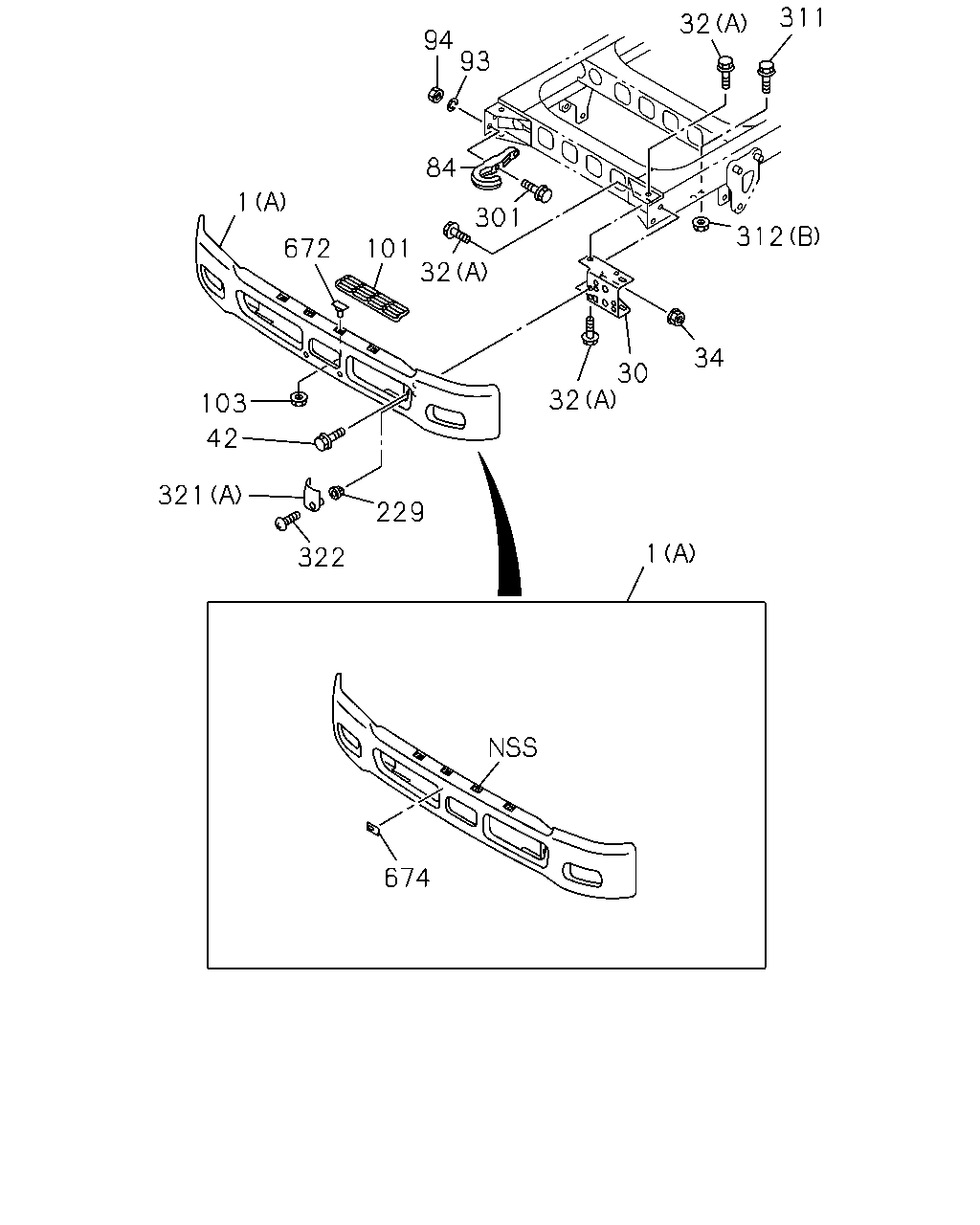

32 311 94 93 84 301 32 30 34 312 1 674 322 229 103 321 42 672 1 101 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1302-
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1302-
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1302-
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1302-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) M6X12 FLANGE	0-28050-612-0	06	1	1511-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1302-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1302-
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1302-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1302-
84	HOOK FRONT SPOILER<VP1>	1-57181-003-5	01	1	1302-
84	HOOK FRONT UNDER SPOILER DELETE<SGA>	8-98035-645-0	01	1	1302-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1302-
94	NUT; HOOK M14	0-91110-514-0	02	1	1302-
101	STEP; BUMPER	8-97611-541-0	01	1	1302-
101	STEP; BUMPER	8-97611-540-0	01	1	1302-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1302-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	08	1	1511-
311	BOLT; BRKT FRONT SPOILER<VP1> M14X45 FLANGE	0-28851-445-0	04	1	1302-1510
311	BOLT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1511-
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1302-
312	NUT; BRKT FRONT SPOILER<VP1> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1510
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1511-
312	NUT; BRKT FRONT SPOILER<VP1> (B) M14 FLANGE	0-91180-214-0	04	1	1302-1510
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1511-
312	NUT; BRKT FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	02	1	1302-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-291-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-290-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-294-0	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-293-0	01	1	1302-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-
674	BRACKET; BUMPER,PLATE FRONT UNDER SPOILER DELETE<SGA>	8-97611-491-1	01	1	1302-

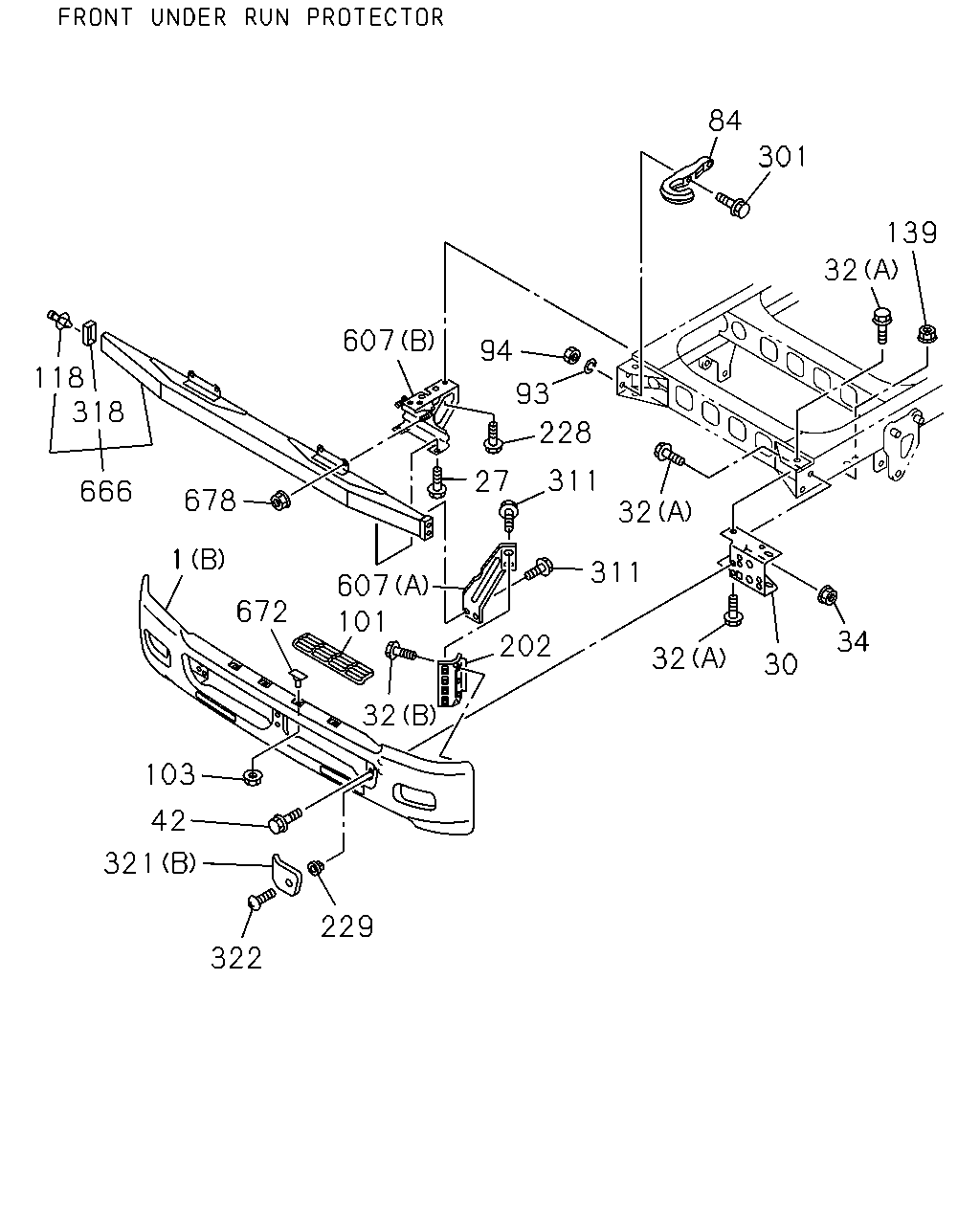

139 32 301 84 94 607 93 228 311 311 32 32 30 34 202 607 101 32 672 1 678 666 318 118 103 42 321 322 229 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1302-
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1302-
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1511-
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1302-
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1302-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) M6X12 FLANGE	0-28050-612-0	06	1	1511-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1302-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1302-
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1302-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1302-
84	HOOK FRONT SPOILER<VP1>	1-57181-003-5	01	1	1302-
84	HOOK FRONT UNDER SPOILER DELETE<SGA>	8-98035-645-0	01	1	1302-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1302-
94	NUT; HOOK M14	0-91110-514-0	02	1	1302-
101	STEP; BUMPER	8-97611-541-0	01	1	1302-
101	STEP; BUMPER	8-97611-540-0	01	1	1302-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-
118	RETAINER; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-279-0	04	1	1511-
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1511-
202	BRACKET; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-97620-619-0	02	1	1511-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1511-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1302-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	08	1	1511-
311	BOLT; BRKT FRONT SPOILER<VP1> M14X45 FLANGE	0-28851-445-0	04	1	1302-1510
311	BOLT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1511-
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1302-
318	CAP; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-190-0	02	1	1511-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-291-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-290-1	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-294-0	01	1	1302-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-293-0	01	1	1302-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (A)	8-97620-615-0	01	1	1511-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (A)	8-97620-616-0	01	1	1511-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) (B)	8-98045-831-4	01	1	1511-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) (B)	8-98045-832-3	01	1	1511-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-813-2	01	1	1511-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1511-
