Sayfa 6-04 - Isuzu EPC

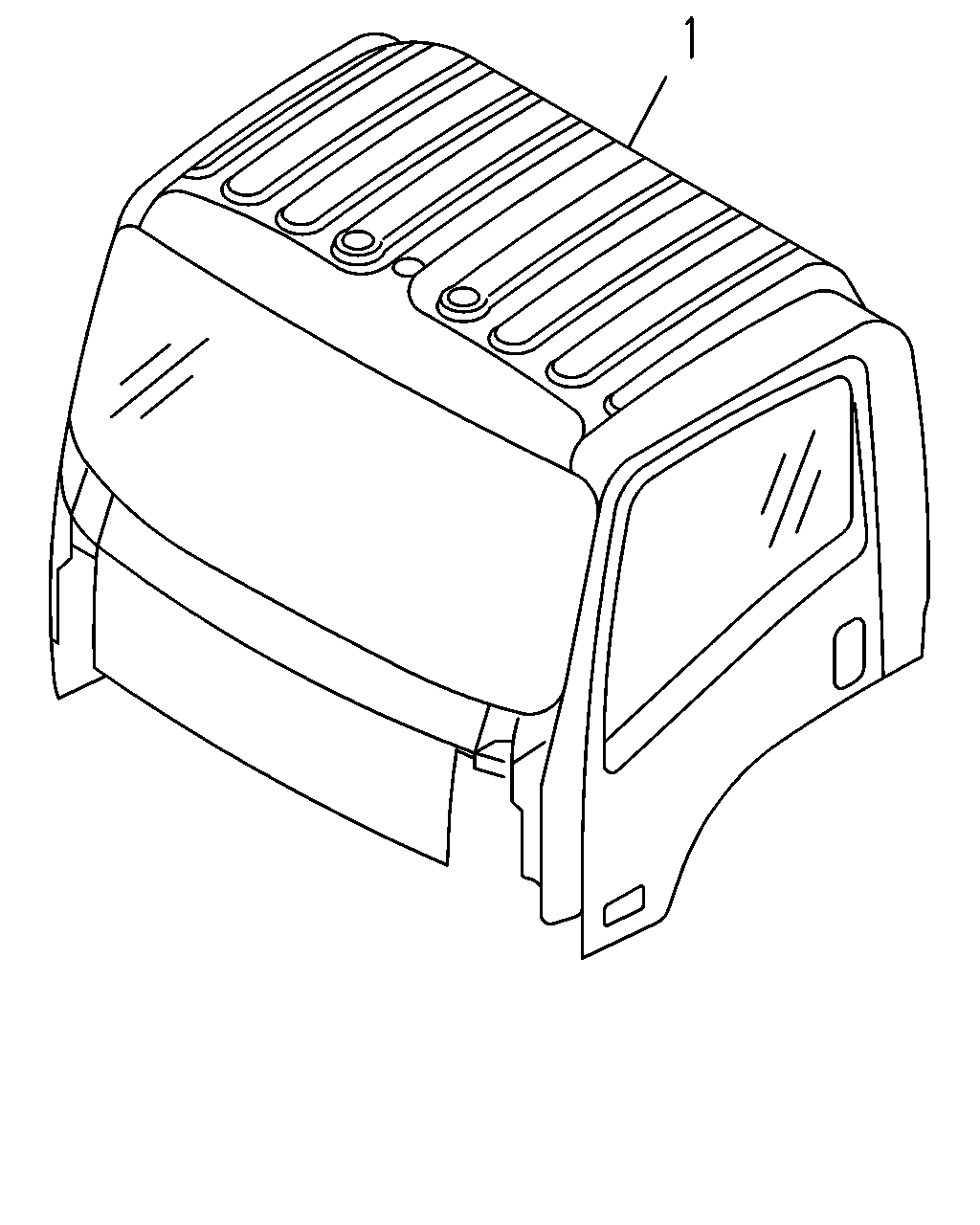

6-04 — CAB ASM (#112278) — 3 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) INSULATION ACOUSTICAL PKG DELETE<BS3> MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,CAB ALL PAINTING<TFD>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>,WI NDOW RR<8LF>,ASH TRAY PASSENGER DOOR<8LX>	1-61089-805-0	01	1	1302-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) MZZ6W M/T(RSA) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,INSULATION ACOUSTICAL PKG DELETE<BS3>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,CAB ALLPAINTING<TFD>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>,WINDOW RR<8LF>, ASH TRAY PASSENGER DOOR<8LX>	1-61089-806-0	01	1	1302-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) MZZ6W M/T(RSA) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) INTERIOR FULL TRIM<WM3> AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> CAB ALL PAINTING<TFD> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SP EAKER SYSTEM BASE<U95>,FLUORESCENT LAMP<6UC>, WINDOWRR<8LF>,ASH TRAY PASSENGER DOOR<8LX>	1-61089-807-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
