0-50 — OIL COOLER AND OIL FILTER (#11227) — 220 parça

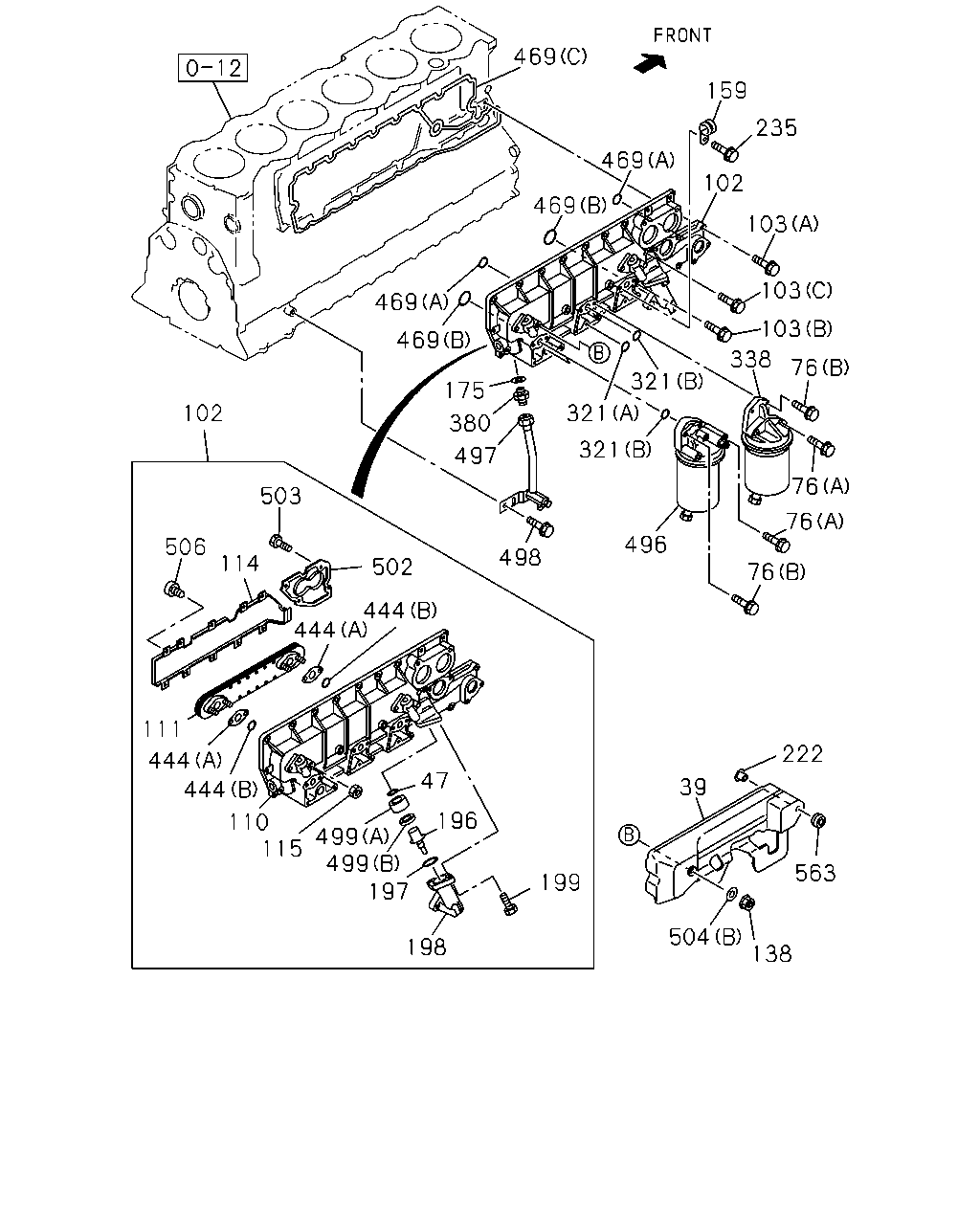

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 321 102 380 321 497 76 503 76 496 506 498 114 502 76 444 444 111 222 444 444 47 39 196 110 115 499 499 197 563 199 504 198 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	COVER; OIL COOLER	1-19380-151-1	01	1	0107-
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0107-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0107-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	0107-0303
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-353-2	01	1	0107-0107
102	COOLER ASM; OIL	1-21700-325-1	01	1	0108-0504
102	COOLER ASM; OIL	8-97604-715-0	01	1	0505-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0107-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	0107-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	0107-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0107-0107
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0108-
111	CORE; OIL COOLER	1-21723-053-1	01	1	0107-0504
111	CORE; OIL COOLER	8-97606-643-0	01	1	0505-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0107-
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0107-0107
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0108-0504
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0602
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-
138	NUT M10 FLANGE	0-91150-110-0	02	1	0107-0602
138	NUT M10 FLANGE	0-91180-110-0	02	1	0603-
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0107-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0107-
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0107-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0107-
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0107-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0107-0504
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0512
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	0107-
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0107-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0107-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0107-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0107-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
380	CONNECTOR; WATER	1-09660-011-1	01	1	0107-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	0107-0504
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0107-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0107-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0107-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0107-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0107-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0107-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0107-
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0107-
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0107-0107
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0108-
503	BOLT; COVER	1-21729-089-0	04	1	0107-0504
503	BOLT; COVER	8-98014-763-0	04	1	0505-
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	0107-0504
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	0107-
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0107-0504
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-
563	TUBE; DISTANCE	1-19389-134-1	02	1	0107-0207
563	TUBE; DISTANCE	1-19389-329-0	02	1	0208-

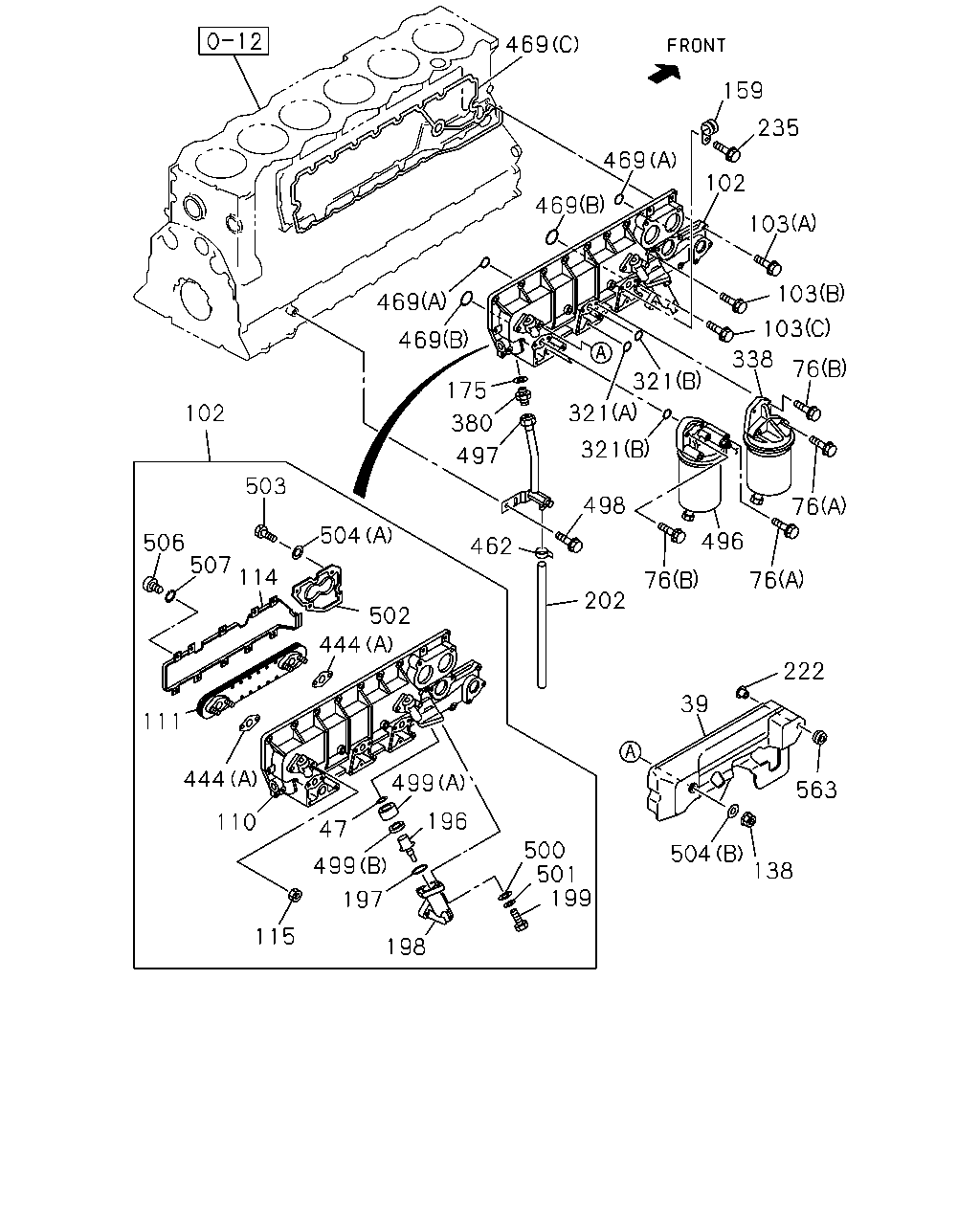

469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 321 102 380 321 497 503 498 76 504 496 506 507 114 462 76 76 202 502 444 222 39 111 444 499 563 196 110 47 500 501 199 504 499 138 197 115 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	COVER; OIL COOLER	1-19380-151-1	01	1	0107-
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	0107-
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	0107-0512
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28151-050-0	04	1	0601-
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	0107-0303
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28181-000-0	04	1	0304-0512
76	BOLT; OIL FILTER (A) M10X100 FLANGE	0-28151-000-0	04	1	0601-
102	COOLER ASM; OIL	1-21700-353-2	01	1	0107-0107
102	COOLER ASM; OIL	1-21700-325-1	01	1	0108-0504
102	COOLER ASM; OIL	8-97604-715-0	01	1	0505-
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	0107-0512
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28151-030-0	17	1	0601-
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	0107-0512
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28156-011-0	01	1	0601-
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	0107-
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	0107-0107
110	BODY; CASE,OIL COOLER	1-21721-091-2	01	1	0108-
111	CORE; OIL COOLER	1-21723-053-1	01	1	0107-0504
111	CORE; OIL COOLER	8-97606-643-0	01	1	0505-
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	0107-
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0107-0107
115	NUT; ELEMENT M10 FLANGE	0-91250-110-0	04	1	0108-0504
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	0505-0602
115	NUT; ELEMENT M10 FLANGE	0-91180-110-0	04	1	0603-
138	NUT M10 FLANGE	0-91150-110-0	02	1	0107-0602
138	NUT M10 FLANGE	0-91180-110-0	02	1	0603-
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	0107-
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	0107-
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	0107-
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	0107-
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	0107-
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	0107-0504
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0505-0512
199	BOLT; JOINT,THERMOSTAT M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0107-0206
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0401
222	RUBBER; MTG,OIL COOLER	1-09337-020-0	02	1	0107-
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	0107-0512
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28151-020-0	01	1	0601-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	0107-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	0107-
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0107-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
380	CONNECTOR; WATER	1-09660-011-1	01	1	0107-
444	GASKET; ELEMENT TO BODY (A)	8-97606-641-0	02	1	0505-
444	GASKET; ELEMENT TO BODY (A)	1-21729-093-1	02	1	0107-0504
444	GASKET; ELEMENT TO BODY (B)	8-97606-640-0	02	1	0505-
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	0107-0401
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	0107-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	0107-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	0107-0109
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-205-0	01	1	0110-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0107-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	0107-
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	0107-0512
498	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	01	1	0601-
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	0107-
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	0107-
500	WASHER; PL,JOINT ID=10.5 OD=22	9-09160-610-0	02	1	0107-0504
501	WASHER; LK,JOINT ID=10.2	9-09150-510-0	02	1	0107-0504
502	COVER; THERMOSTAT	1-21722-041-0	01	1	0107-0107
502	COVER; THERMOSTAT	1-21722-040-0	01	1	0108-
503	BOLT; COVER	1-21729-089-0	04	1	0107-0504
503	BOLT; COVER	8-98014-763-0	04	1	0505-
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	0107-0504
504	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	02	1	0107-
506	SCREW; BAFFLE M6X10	9-03486-608-0	10	1	0107-0504
506	SCREW; BAFFLE	1-09030-036-0	10	1	0505-
507	WASHER; LK,BAFFLE	1-21729-092-0	10	1	0107-0504
563	TUBE; DISTANCE	1-19389-134-1	02	1	0107-0207
563	TUBE; DISTANCE	1-19389-329-0	02	1	0208-

496 2 71 292 282 509 508 282 292 281 280 290 287 288 290 287 284 265 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0107-0303
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0304-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0107-0303
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0304-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	0107-0303
265	BODY; OIL FILTER	1-13211-216-1	01	1	0107-0303
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0304-
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0107-0303
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0304-
281	COVER; OIL FILTER	1-13211-206-1	01	1	0107-0303
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0107-0303
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0304-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0107-0303
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0107-0303
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0107-0303
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0304-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0107-0303
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0304-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0107-0303
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0304-
288	PLUG; OIL DRAIN	1-13219-272-0	01	1	0107-0303
288	PLUG; OIL DRAIN	1-13219-346-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (A),(B)	1-09623-550-0	02	1	0107-0303
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0304-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0107-0303
292	SPRING; ELEMENT (A)	1-09580-563-0	01	1	0304-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0107-0303
292	SPRING; ELEMENT (B)	1-09580-562-0	01	1	0304-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0107-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0107-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-2	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0107-0303
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-285-0	01	1	0304-
496	FILTER ASM; OIL	1-13200-862-7	01	1	0107-0303
496	FILTER ASM; OIL	1-13200-989-4	01	1	0304-
508	CHAMBER ASM; SW,FILTER	1-13260-107-1	01	1	0107-0303
508	CHAMBER ASM; SW,FILTER	1-13260-113-1	01	1	0304-0410
508	CHAMBER ASM; SW,FILTER	1-13260-117-0	01	1	0411-
509	GASKET; SW	1-09630-114-0	01	1	0107-0303
509	GASKET; SW	8-98013-480-0	01	1	0304-

2 338 390 282 282 269 292 280 390 290 287 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) MAIN TSUCHIYA	1-13240-165-0	01	1	0107-0303
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0304-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0107-0303
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0304-0402
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-241-0	01	1	0403-
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	0107-0303
132	PLUG; PARTIAL OIL FILTER	1-13219-347-0	01	1	0304-
269	WASHER; ELEMENT,OIL FILTER	1-13234-005-0	01	1	0107-0303
269	WASHER; ELEMENT,OIL FILTER	1-13234-007-0	01	1	0304-
280	CASE ASM; OIL FILTER (B)	1-13211-283-0	01	1	0304-
280	CASE ASM; OIL FILTER (A)	1-13210-038-2	01	1	0107-0303
280	CASE ASM; OIL FILTER (A)	1-13211-282-0	01	1	0304-
282	GASKET; BODY TO CASE (A)	1-09623-548-0	01	1	0107-0303
282	GASKET; BODY TO CASE (A)	1-09623-643-0	01	1	0304-
282	GASKET; BODY TO CASE (B)	1-09623-552-0	01	1	0107-0303
282	GASKET; BODY TO CASE (B)	1-09623-644-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (A)	1-13219-281-1	01	1	0107-0303
284	BOLT; CENTER,OIL FILTER (A)	1-13219-348-0	01	1	0304-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-075-0	01	1	0107-0303
284	BOLT; CENTER,OIL FILTER (B)	1-13219-349-0	01	1	0304-
287	GASKET; CENTER BOLT (A)	1-09623-549-0	01	1	0107-0303
287	GASKET; CENTER BOLT (A)	1-09623-647-0	01	1	0304-
287	GASKET; CENTER BOLT (B)	1-09623-551-0	01	1	0107-0303
287	GASKET; CENTER BOLT (B)	1-09623-648-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (B)	1-09623-646-0	01	1	0304-
290	GASKET; PLUG,OIL DRAIN (A),(B)	1-09623-550-0	02	1	0107-0303
290	GASKET; PLUG,OIL DRAIN (A)	1-09623-645-0	01	1	0304-
292	SPRING; ELEMENT (A)	1-09580-387-0	01	1	0107-0303
292	SPRING; ELEMENT (A)	1-09580-563-0	01	1	0304-
292	SPRING; ELEMENT (B)	1-09580-484-0	01	1	0107-0303
292	SPRING; ELEMENT (B)	1-09580-562-0	01	1	0304-
292	SPRING; ELEMENT (C)	1-13263-007-0	01	1	0107-0303
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	0107-0303
338	FILTER ASM; OIL PARTIAL	1-13200-990-1	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	0107-0303
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-284-2	01	1	0304-
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	0107-0303
390	BODY; OIL FILTER,PARTIAL (C)	1-13211-285-0	01	1	0304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
