4-80 — ROAD WHEEL (#112267) — 78 parça

2 8 3 32 32 2 8 16 32 2 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-448-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-745-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98217-247-0	01	1	1302-1407
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-447-0	01	1	1302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-447-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT	1-42350-448-0	02	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR	1-42350-448-0	08	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT	1-42350-745-0	02	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR	1-42350-745-0	08	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98281-497-0	02	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	08	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B) FRONT	1-42350-447-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B) REAR	1-42350-447-0	08	1	1302-
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1302-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	1302-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1302-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-048-0	01	1	1302-1407
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT	1-42370-020-3	02	1	1302-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR	1-42370-020-3	08	1	1302-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT	1-42370-048-0	02	1	1302-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT	1-42370-019-3	02	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR	1-42370-048-0	08	1	1302-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR	1-42370-019-3	08	1	1408-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1302-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	01	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	02	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	08	1	1302-
32	CAP; VALVE WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1302-

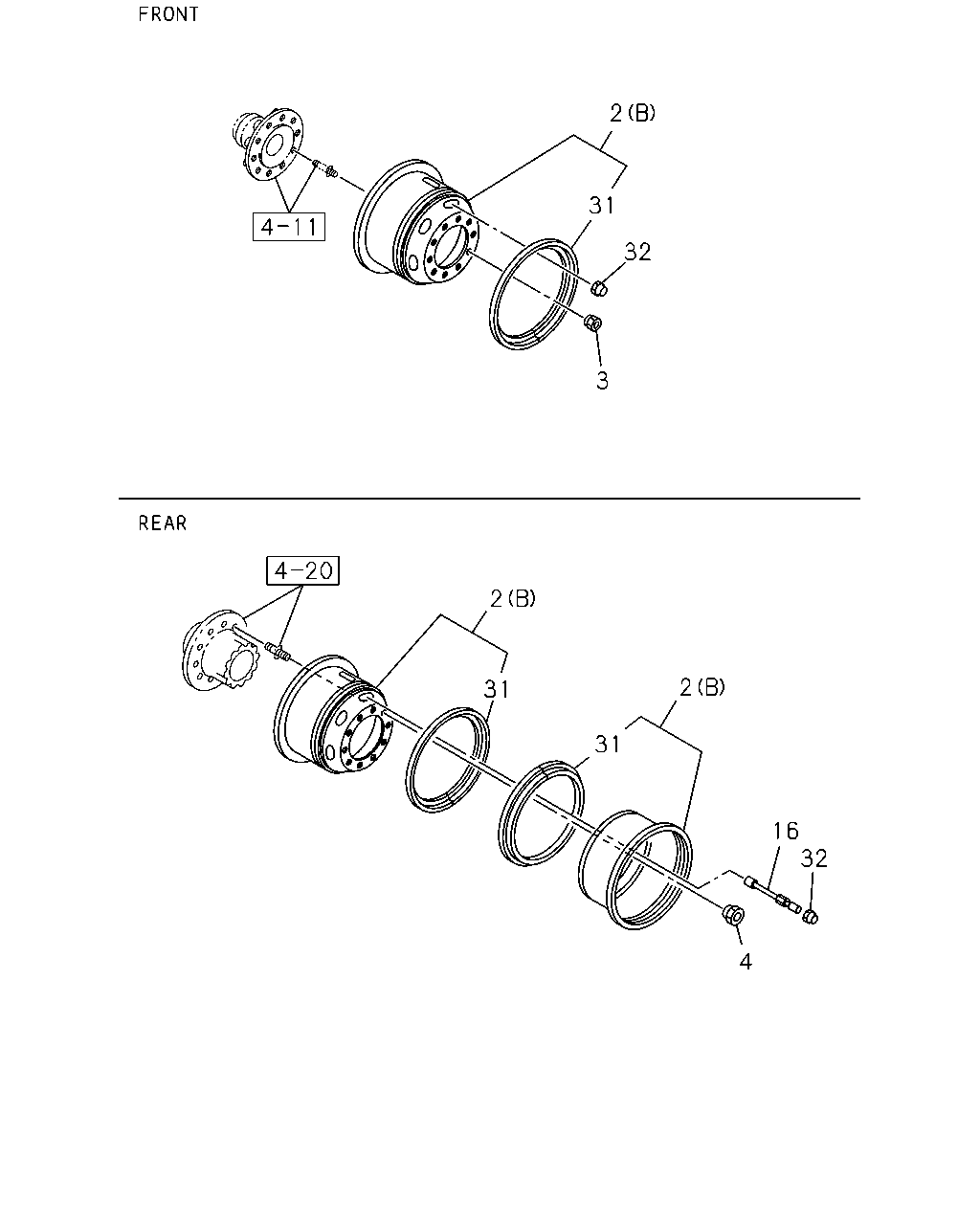

32 3 31 2 2 31 31 2 16 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-448-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-745-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98217-247-0	01	1	1302-1407
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-447-0	01	1	1302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-447-0	01	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT	1-42350-448-0	02	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR	1-42350-448-0	08	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT	1-42350-745-0	02	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR	1-42350-745-0	08	1	1302-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98281-497-0	02	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	08	1	1302-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B) FRONT	1-42350-447-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B) REAR	1-42350-447-0	08	1	1302-
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1302-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-014-0	01	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT	1-42355-014-0	02	1	1302-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) REAR	1-42355-014-0	08	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) REAR	1-42355-012-1	08	1	1302-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	01	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	02	1	1302-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	08	1	1302-
32	CAP; VALVE WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1302-
32	CAP; VALVE WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
