Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112263) — 302 parça

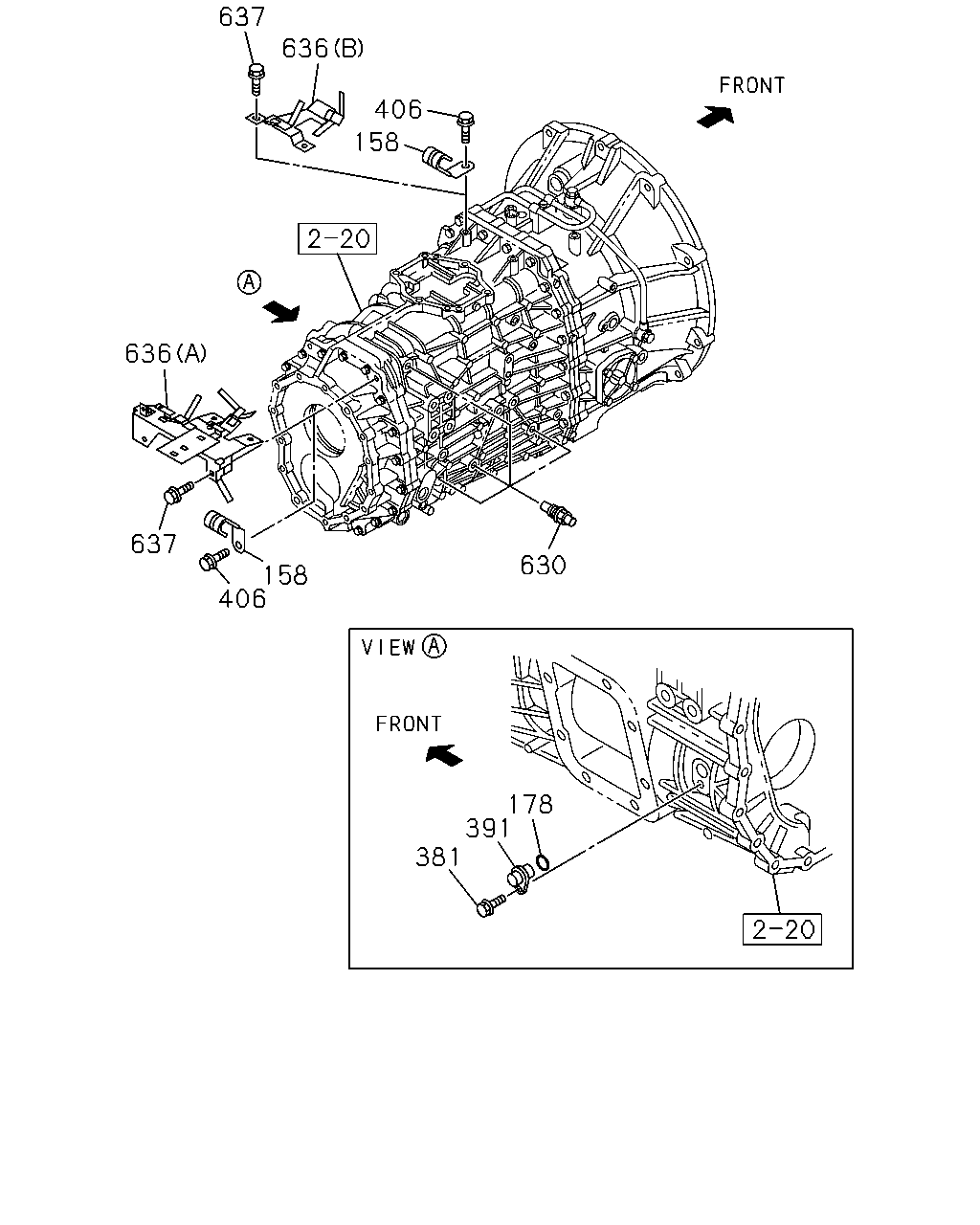

391 381 178 630 158 406 637 636 158 406 636 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B)	8-97610-092-1	01	1	1302-1502
636	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1302-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1503-

551 78 32 551 551 51 65 551 82 551 682 683 102 551 99 66 6 192 234 453 192 6 192 6 192 320 685 684 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1302-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

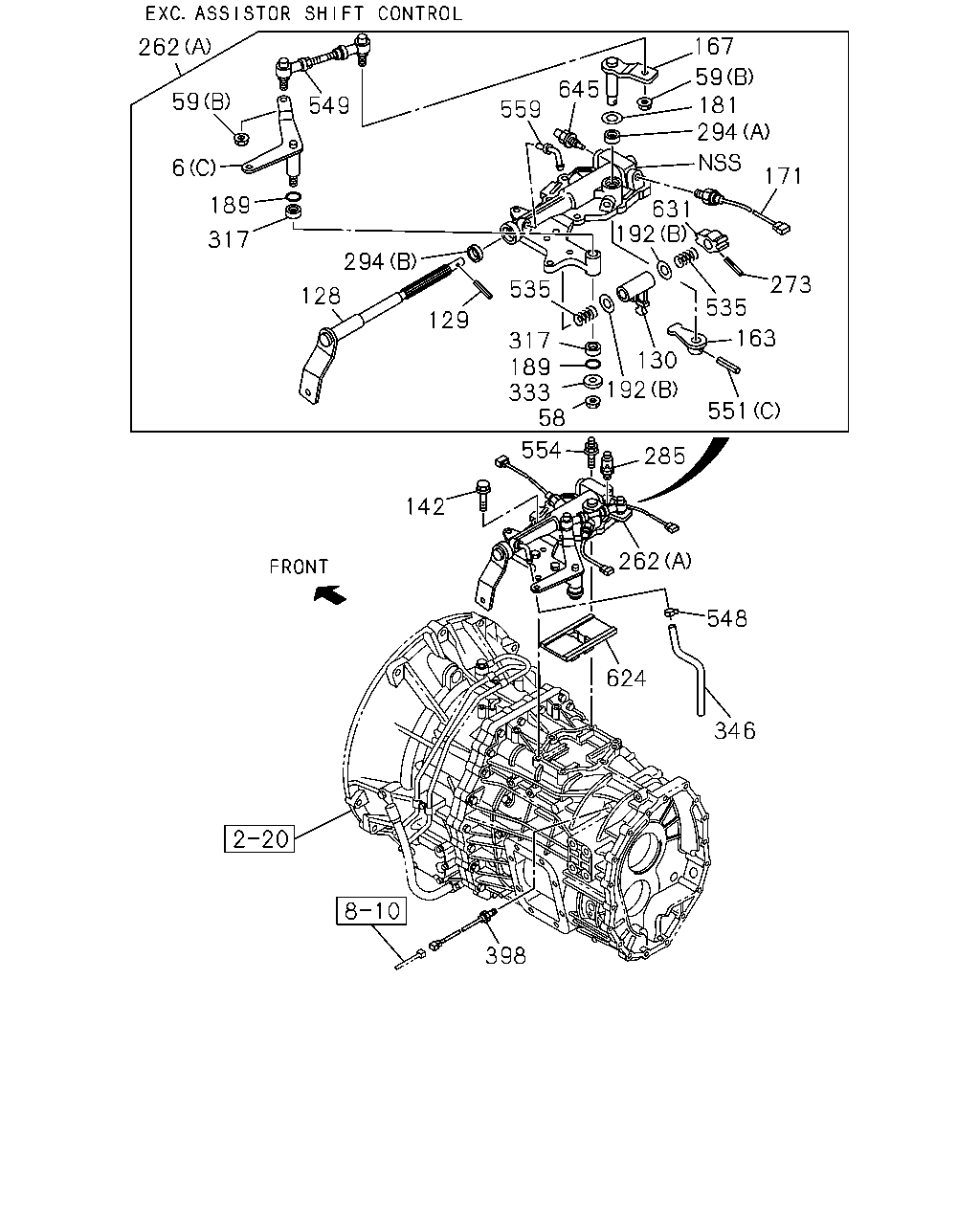

262 59 549 6 189 317 128 294 129 559 645 167 59 181 294 171 273 535 163 551 130 192 631 192 58 333 189 317 535 554 285 262 548 346 624 398 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 6HK1-TCN ENG(82L) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 6HK1-TCN ENG(82L) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

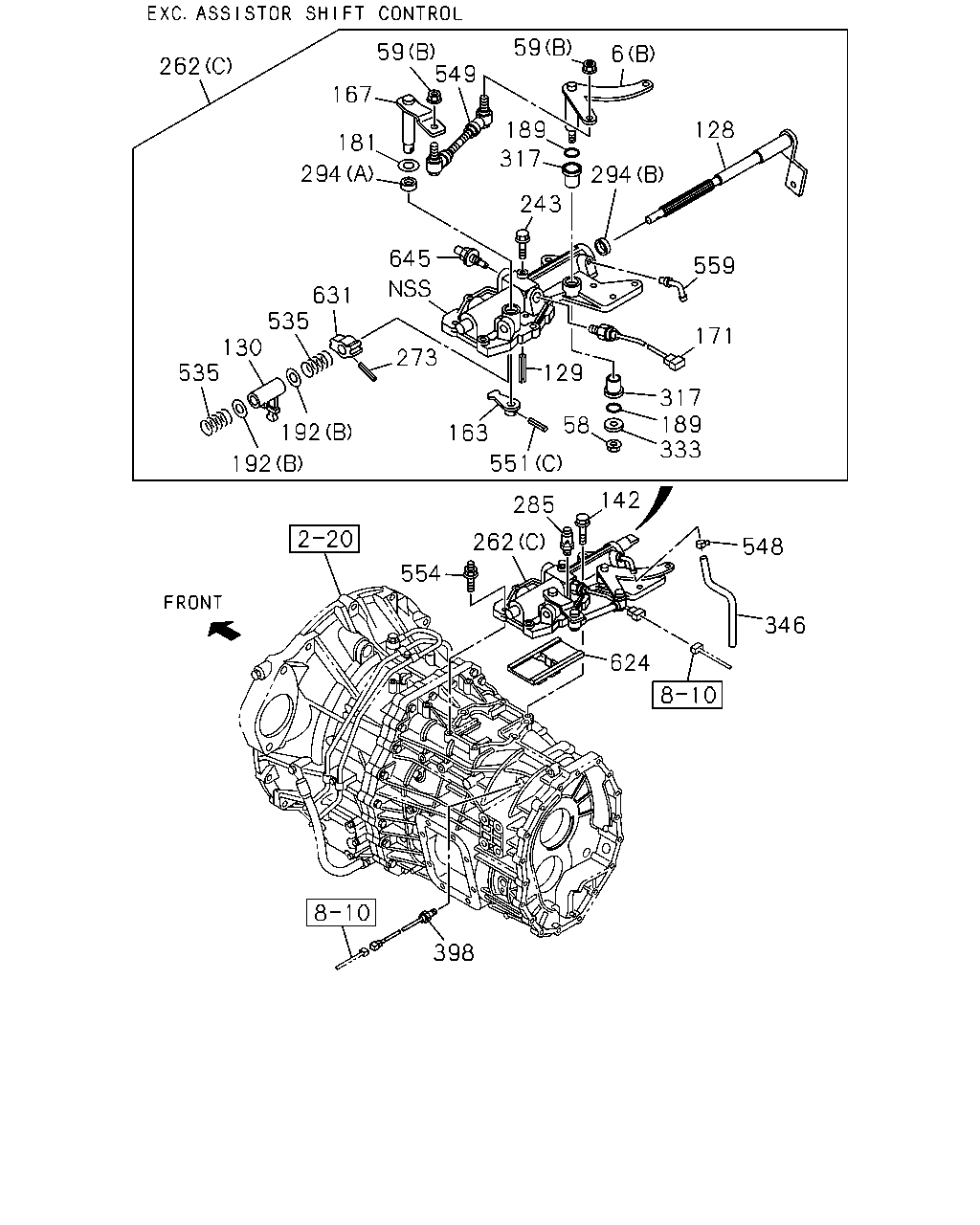

262 167 181 294 59 59 189 243 317 6 298 59 294 559 129 163 317 333 58 171 306 142 285 262 554 192 192 535 130 535 631 273 645 549 322 189 346 548 624 398 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 6HK1-TCN ENG(82L) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 6HK1-TCN ENG(82L) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

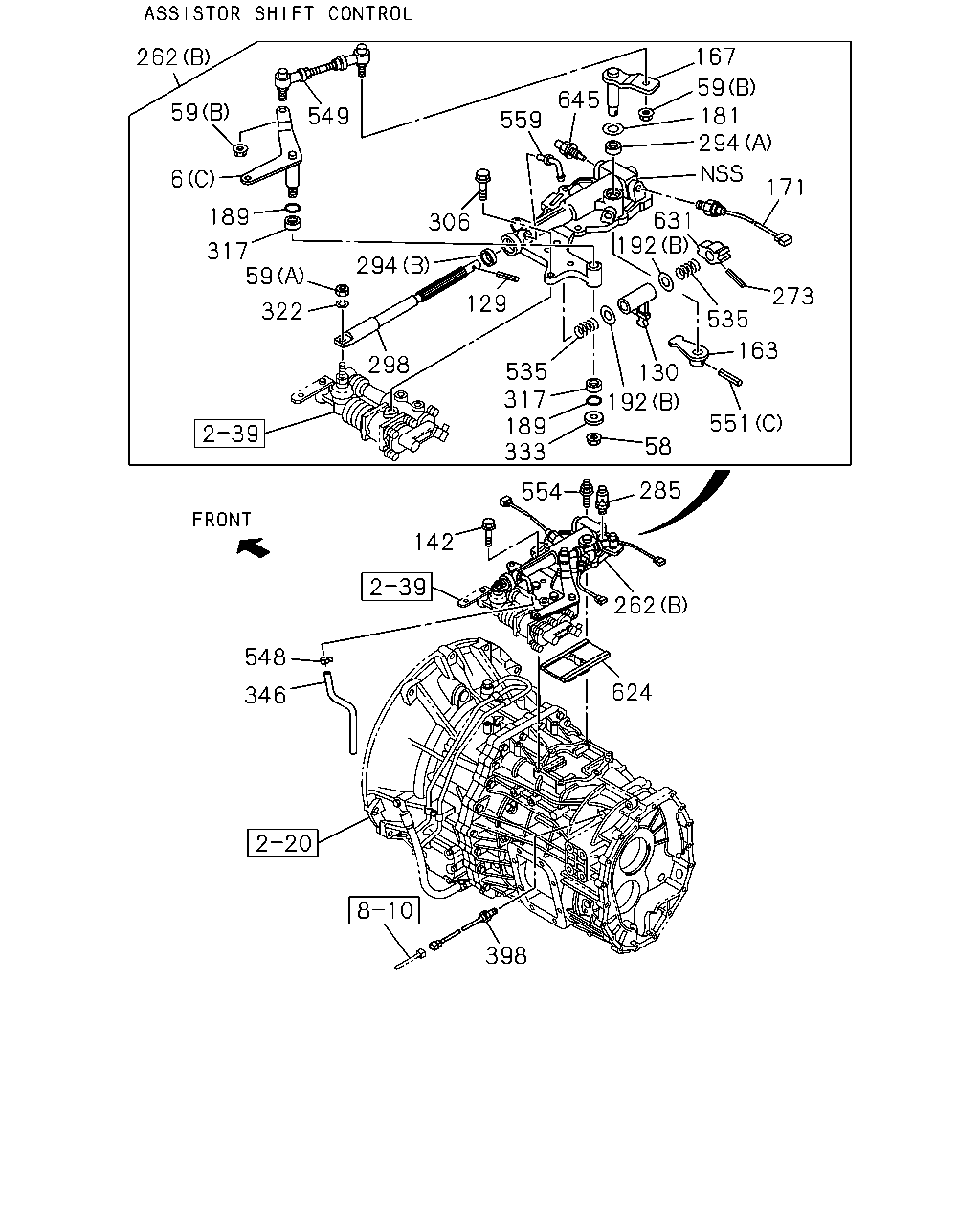

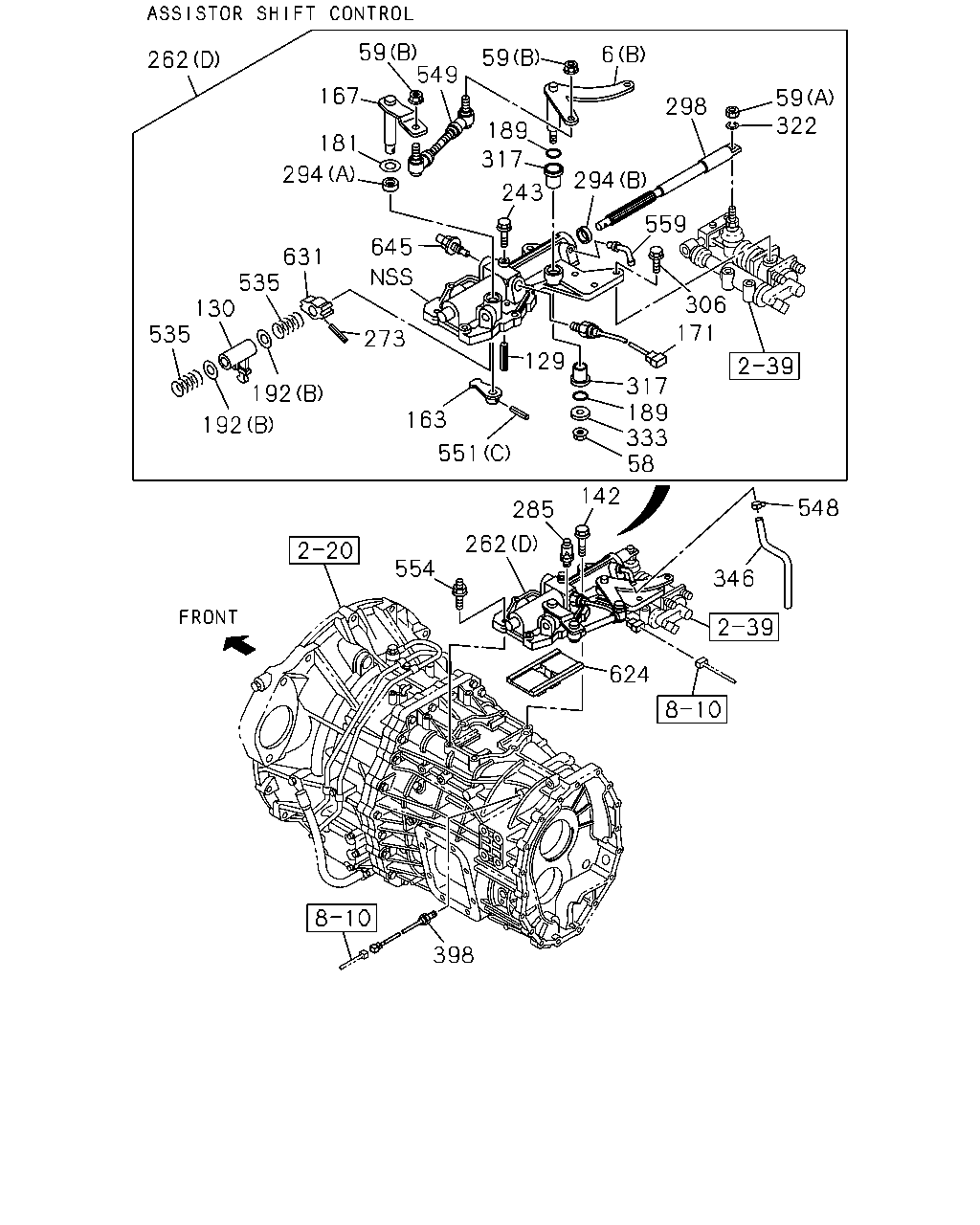

262 59 549 6 189 317 59 322 294 298 306 559 645 167 59 181 294 171 273 535 551 130 58 192 535 317 189 333 129 192 631 285 554 262 624 398 346 548 142 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 6HK1-TCN ENG(82L) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 6HK1-TCN ENG(82L) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

59 167 294 181 645 317 189 243 28 559 294 171 317 333 189 58 129 163 273 631 535 130 535 192 192 262 554 285 551 142 548 346 624 6 549 262 398 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1302-
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1302-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X22 FLANGE	8-97365-376-0	04	1	1302-
142	BOLT; QUAD BOX 6HK1-TCN ENG(82L) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1302-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1302-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1302-
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
554	STUD; CONT BOX 6HK1-TCN ENG(82L) M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1302-
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1302-
645	DETENT ASM	8-98019-536-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
