2-01 — CLUTCH (#112261) — 114 parça

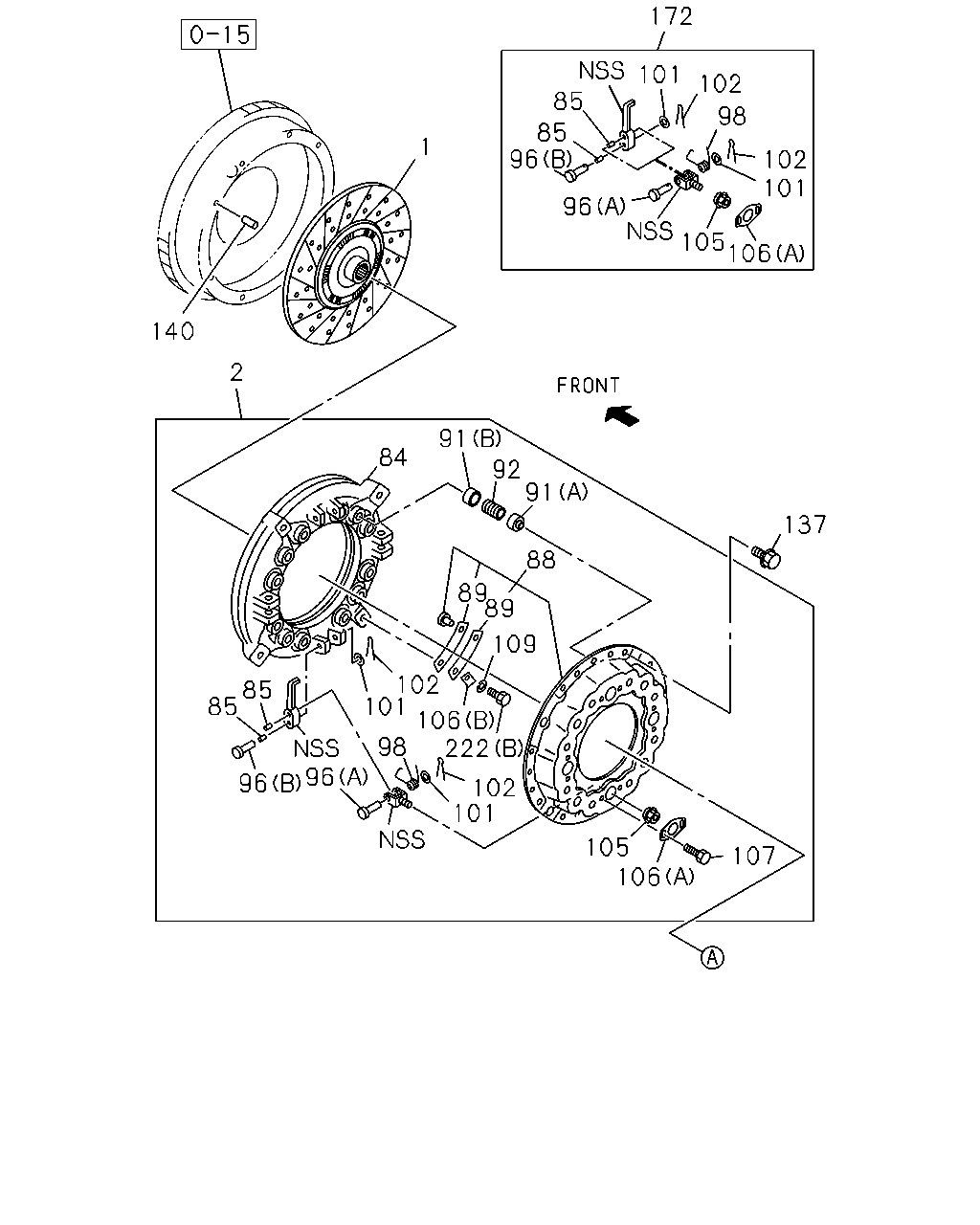

172 101 102 102 98 101 85 85 96 96 105 106 140 84 91 91 92 88 137 89 89 109 102 101 106 85 85 96 101 96 222 102 105 106 107 1 2 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1302-1304
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1305-
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1305-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1302-1304
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1305-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1305-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1305-
89	PLATE; STRAP	1-31229-050-0	16	1	1302-1304
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1305-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1305-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU	1-31214-086-0	12	1	1302-1304
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1305-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1305-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1302-1304
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1305-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1305-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1305-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1305-
222	BOLT; STRAP 14" CLUTCH(WF6) (B)	1-31239-059-0	04	1	1305-

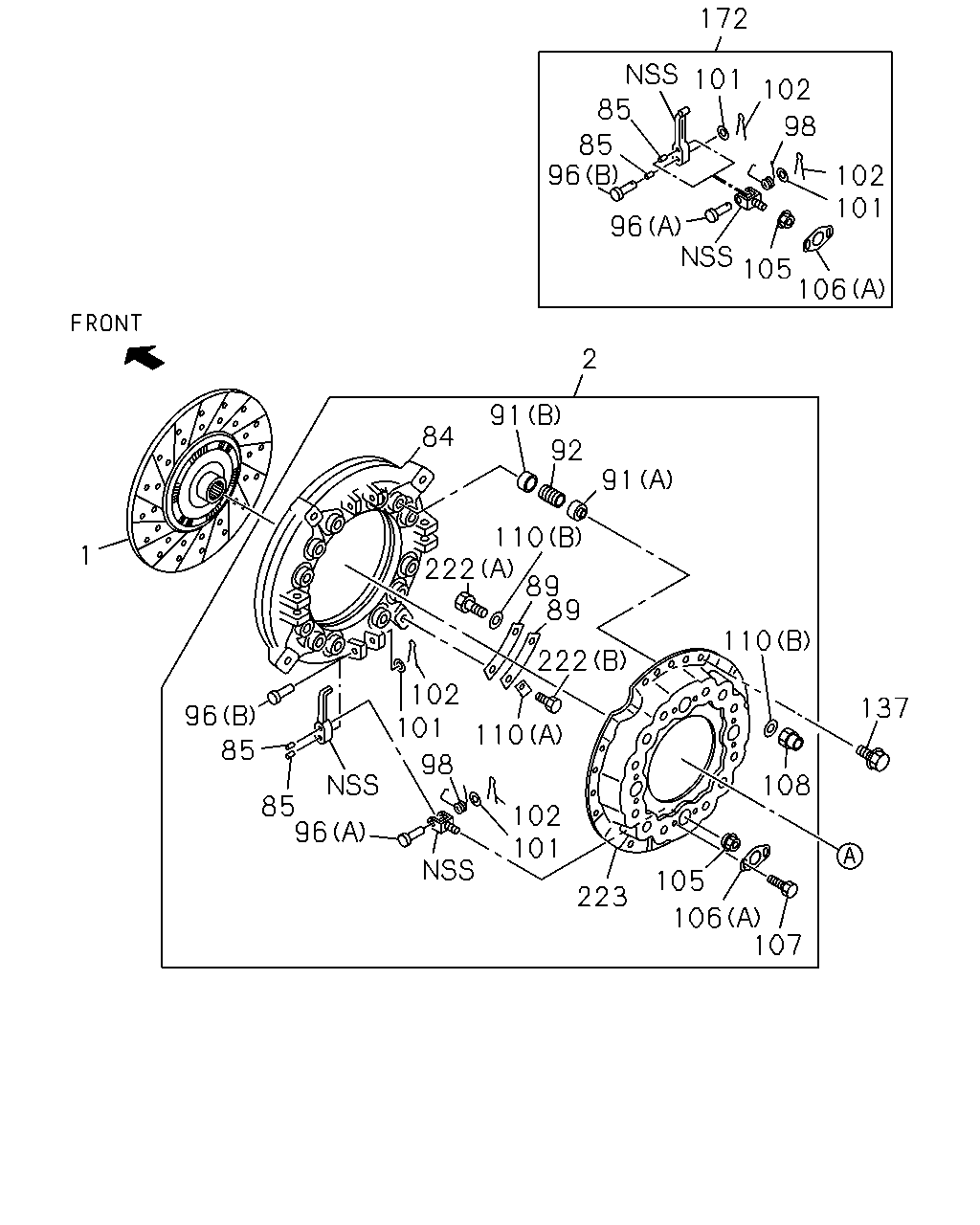

91 84 91 92 110 222 89 89 110 137 108 107 106 105 223 102 101 110 98 101 102 96 85 85 96 222 1 2 172 102 102 101 105 106 96 96 85 85 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1302-1304
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1305-
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1305-1401
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1305-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1305-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1302-1304
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1305-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1302-1304
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1305-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1305-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP	1-31229-050-0	16	1	1302-1304
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1305-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1305-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU	1-31214-086-0	12	1	1302-1304
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1305-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1305-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1302-1304
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1305-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1305-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1305-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP	1-09449-036-0	04	1	1302-1304
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1305-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1302-1304
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1305-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1302-1304
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1305-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1305-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-1304
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1305-
222	BOLT; STRAP 14" CLUTCH(WF6) (B)	1-31239-059-0	04	1	1305-
223	COVER; CLU	1-31211-019-1	01	1	1302-1304
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1305-

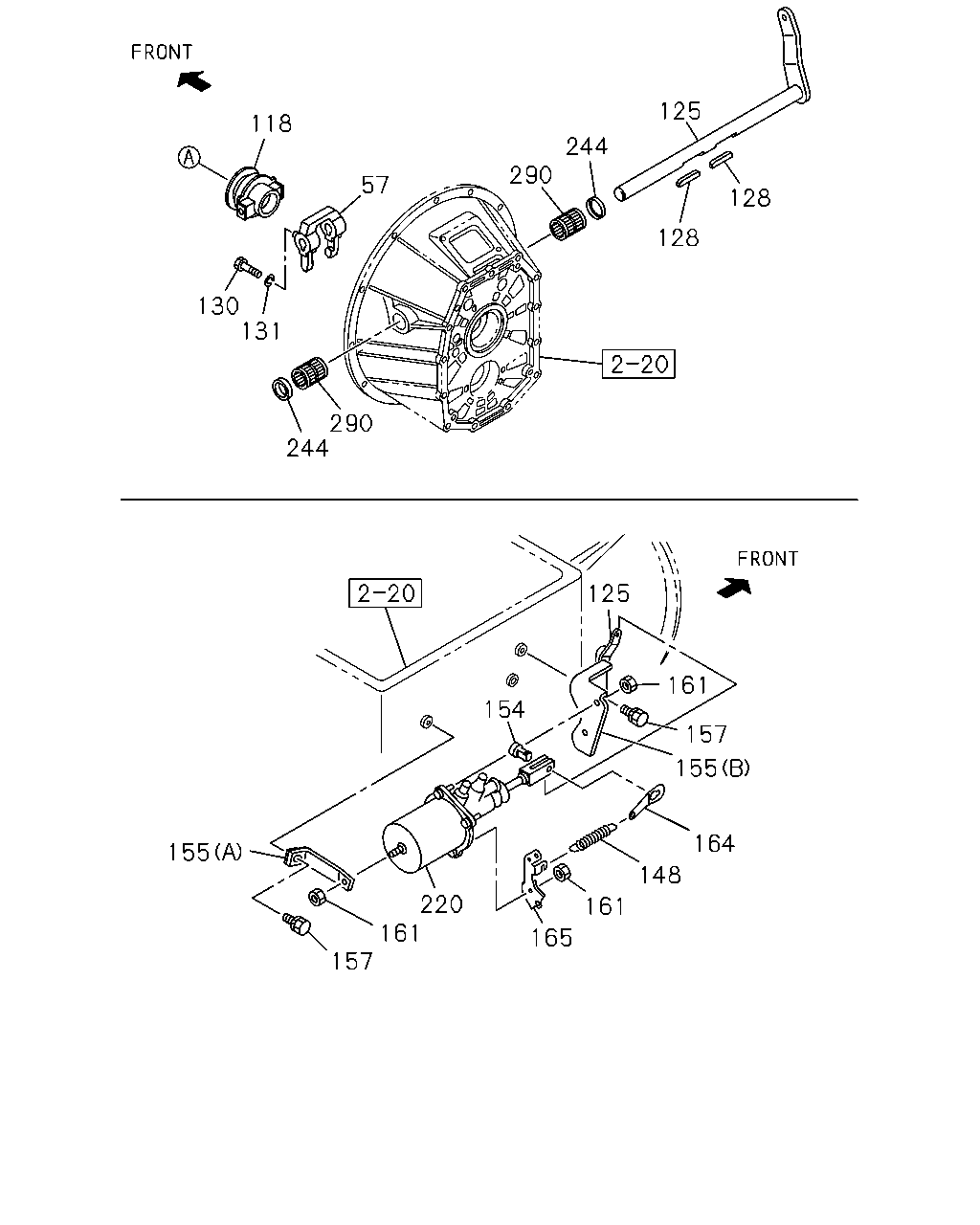

244 128 290 244 130 118 290 57 131 125 128 165 164 155 148 161 155 157 125 220 161 161 154 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1302-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1302-
125	SHAFT; CLU	1-31342-335-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1302-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1302-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1302-
164	EYE; SPRING	1-31426-041-0	01	1	1302-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1302-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1302-
