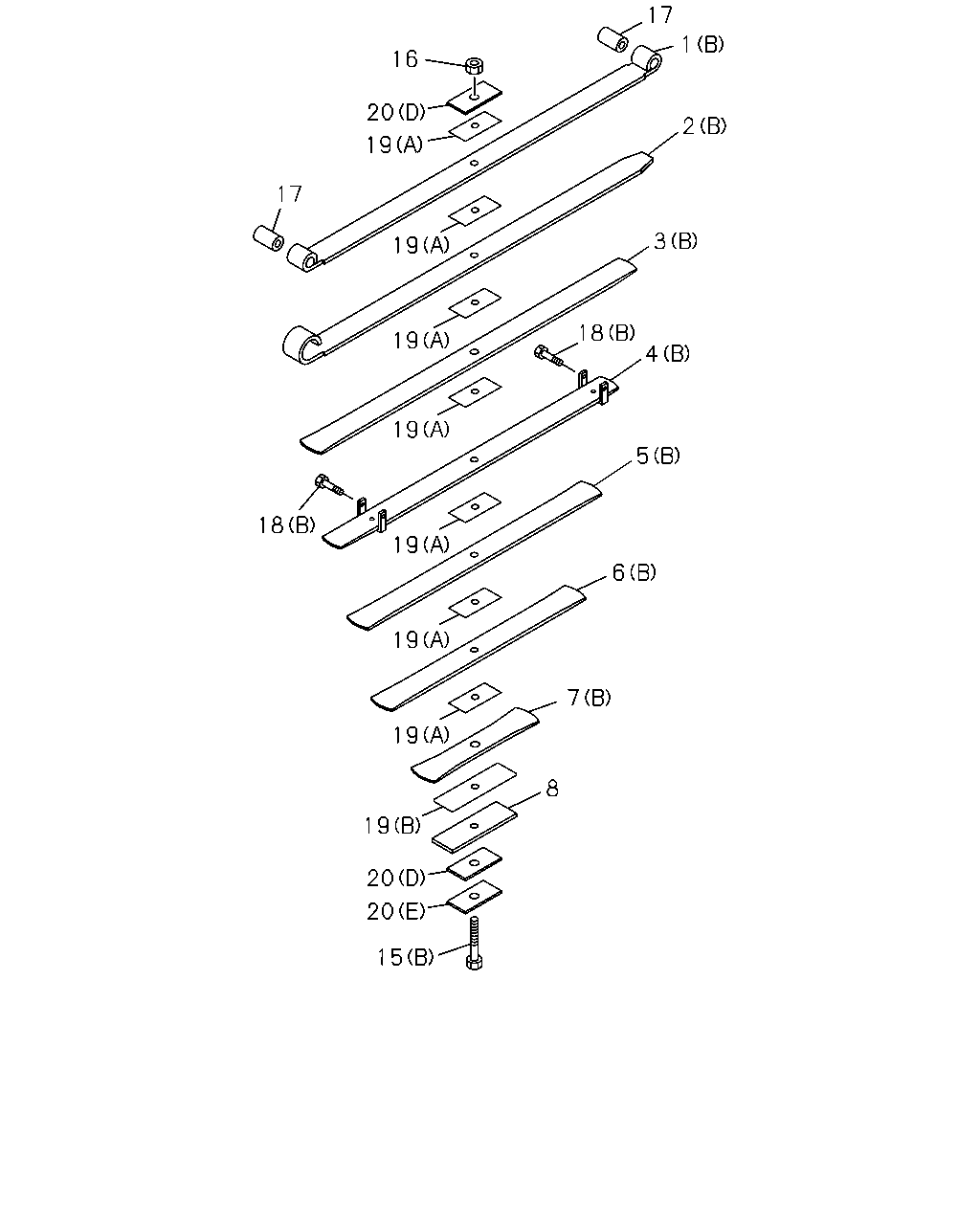

4-55 — FRONT LEAF SPRING (#112260) — 73 parça

16 20 20 20 17 19 2 3 4 5 6 7 20 15 19 19 19 19 19 18 1 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-820-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-867-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-821-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-868-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-822-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-869-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-823-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-830-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-870-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-824-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-831-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-871-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-825-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-832-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-872-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-826-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-833-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-873-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: B = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: C = 8-98228-700-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=155 ASM PART: A = 8-98010-512-0, D = 8-98268-436-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98228-700-0, D = 8-98268-436-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98228-700-0, D = 8-98268-436-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98138-617-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98229-246-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	1-51177-114-0	02	1	-
20	SEAT; LEAF SPR,FRT (E), T=6 ASM PART: D = 8-98268-436-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=8 ASM PART: B = 8-98029-096-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=16 ASM PART: A = 8-98010-512-0	8-98032-510-0	02	1	-

18 5 6 7 8 19 19 20 20 15 19 19 19 19 19 19 20 16 17 17 2 3 4 18 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-820-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-867-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-821-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-868-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-822-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-869-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-823-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-830-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-870-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-824-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-831-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-871-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-825-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-832-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-872-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 8-98010-512-0	8-98031-826-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: B = 8-98029-096-0	8-98031-833-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-873-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98207-874-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: B = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: C = 8-98228-700-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=155 ASM PART: A = 8-98010-512-0, D = 8-98268-436-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98228-700-0, D = 8-98268-436-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98228-700-0, D = 8-98268-436-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98138-617-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	8-98229-246-0	01	1	-
20	SEAT; LEAF SPR,FRT (D), T=9 ASM PART: C = 8-98228-700-0, D = 8-98268-436-0	1-51177-114-0	02	1	-
20	SEAT; LEAF SPR,FRT (E), T=6 ASM PART: D = 8-98268-436-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=8 ASM PART: B = 8-98029-096-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=16 ASM PART: A = 8-98010-512-0	8-98032-510-0	02	1	-
