0-57 — EMISSION PIPING (#112254) — 24 parça

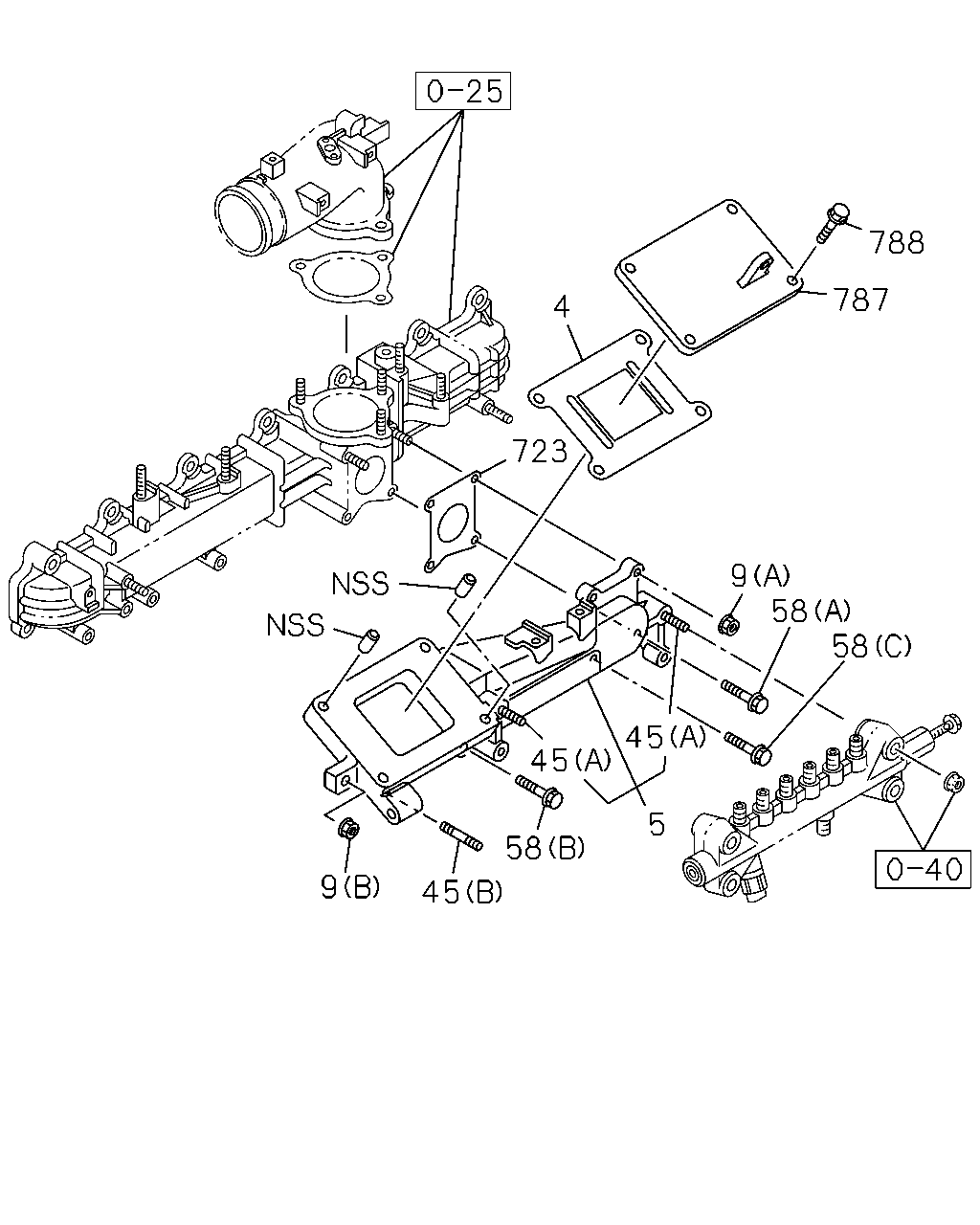

788 787 723 4 9 58 58 45 45 5 58 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97608-423-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1305-		●
5	ADAPTER ASM	8-97606-201-3	01	1	1302-1305	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1302-	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1302-	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1302-	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	1302-	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1302-	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-	●
58	BOLT; PIPE (A) M8X30 FLANGE	8-98034-764-0	01	1	1302-	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1302-	●
787	COVER; DUCT,EGR VLV	8-98058-709-0	01	1	1302-1402	●
787	COVER; DUCT,EGR VLV	8-98238-416-0	01	1	1403-	●
788	BOLT; COVER M10X35 FLANGE	0-28751-035-0	04	1	1302-1402	●
788	BOLT; COVER M10X25 FLANGE	0-28751-025-0	04	1	1403-	●

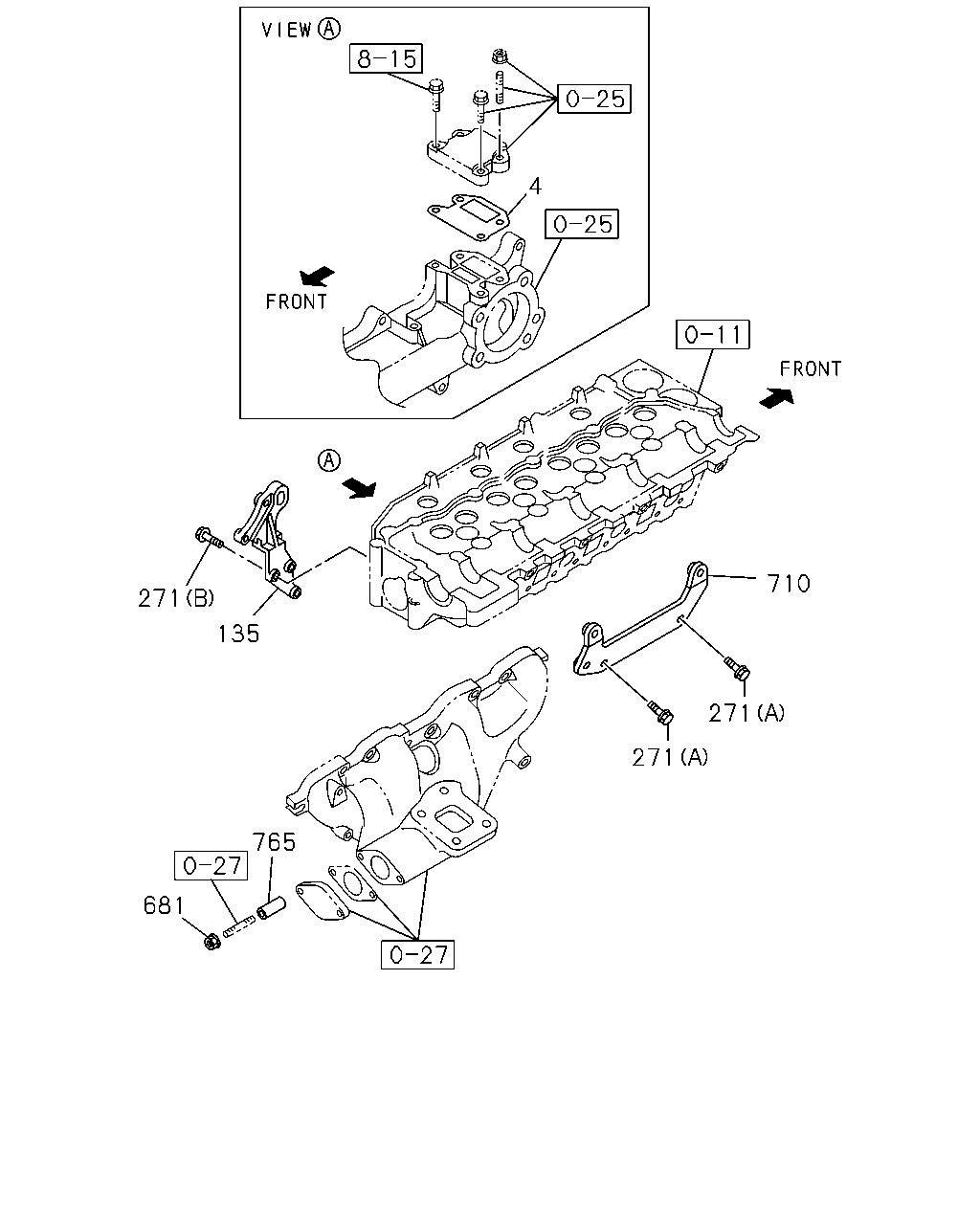

271 135 271 710 271 765 681 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97608-423-0	01	1	1302-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1305-		●
135	BRACKET; EGR	8-97310-498-2	01	1	1305-		●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1305-		●
271	BOLT; BRKT (B) M12X30 FLANGE	0-28151-230-0	03	1	1305-		●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1305-		●
710	BRACKET; EGR COOLER	8-98079-255-1	01	1	1305-		●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1305-		●
