Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

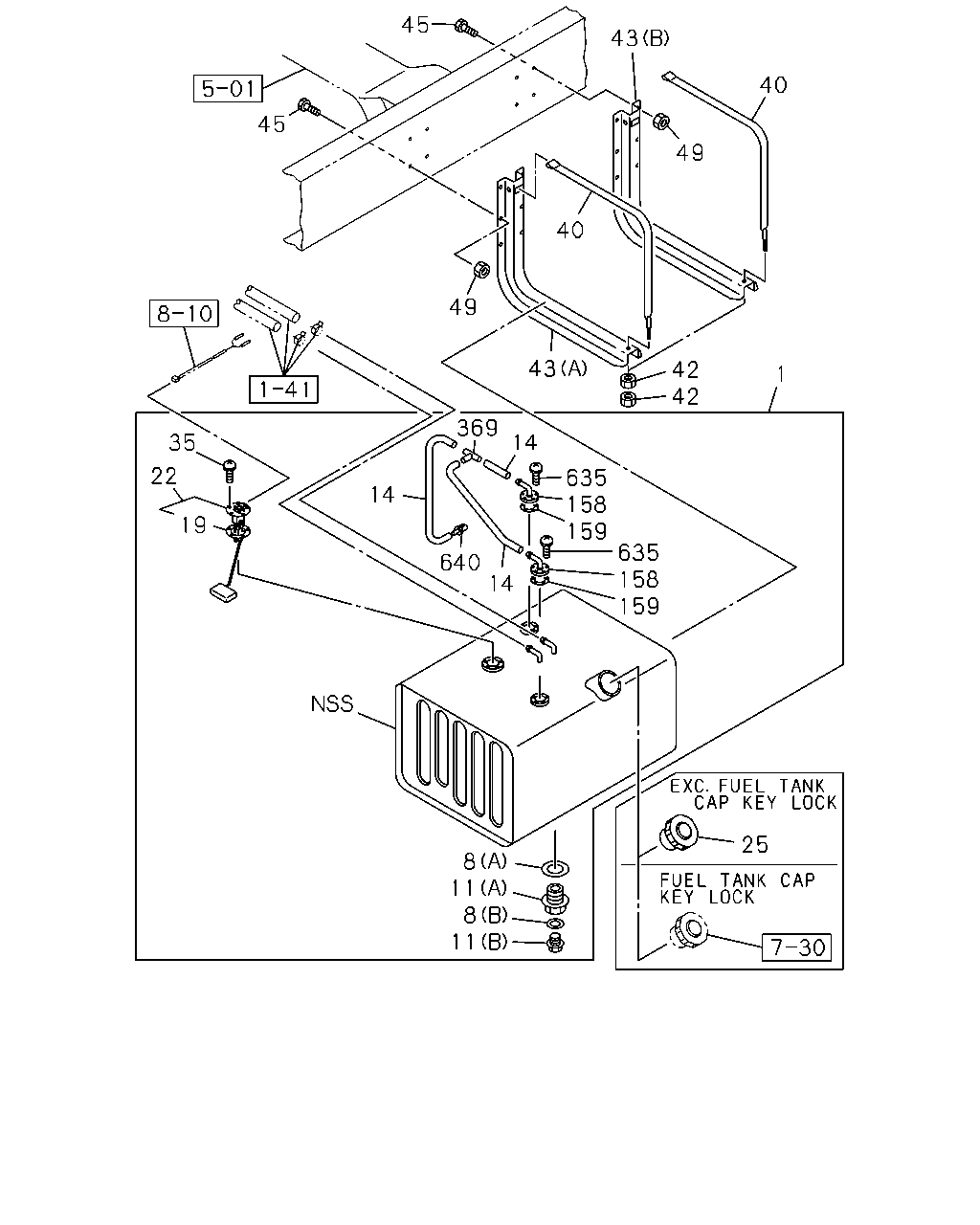

1-40 — FUEL TANK
(#112253) — 23 parça
45
45
43
40
49
40
49
43
42
1
42
369
635
14
158
159
635
158
159
14
640
14
35
22
19
8
11
8
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
885X603X453 200L
8-98187-002-1
01
1
1302-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1302-
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0
9-09572-014-0
01
1
1302-
11
PLUG; DRAIN,FUEL TANK
(A) M30
8-98067-038-0
01
1
1302-
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
01
1
1302-
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
1302-
14
HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000
0-01256-300-0
01
1
1302-
14
HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000
0-01256-300-0
01
1
1302-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1302-
22
UNIT; FUEL TANK
8-98099-321-0
01
1
1302-
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-97387-179-0
01
1
1302-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1302-
40
BELT; SUPPORT,FUEL TANK
L=1070
8-98067-501-1
02
1
1302-
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
1302-
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
01
1
1302-
43
BRACKET; FUEL TANK
(B)
8-98122-884-0
01
1
1302-
45
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
0-28651-235-0
08
1
1302-
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
1302-
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
1302-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
1302-
369
JOINT; HOSE
8-98067-080-0
01
1
1302-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
1302-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1302-
