2-01 — CLUTCH (#112233) — 114 parça

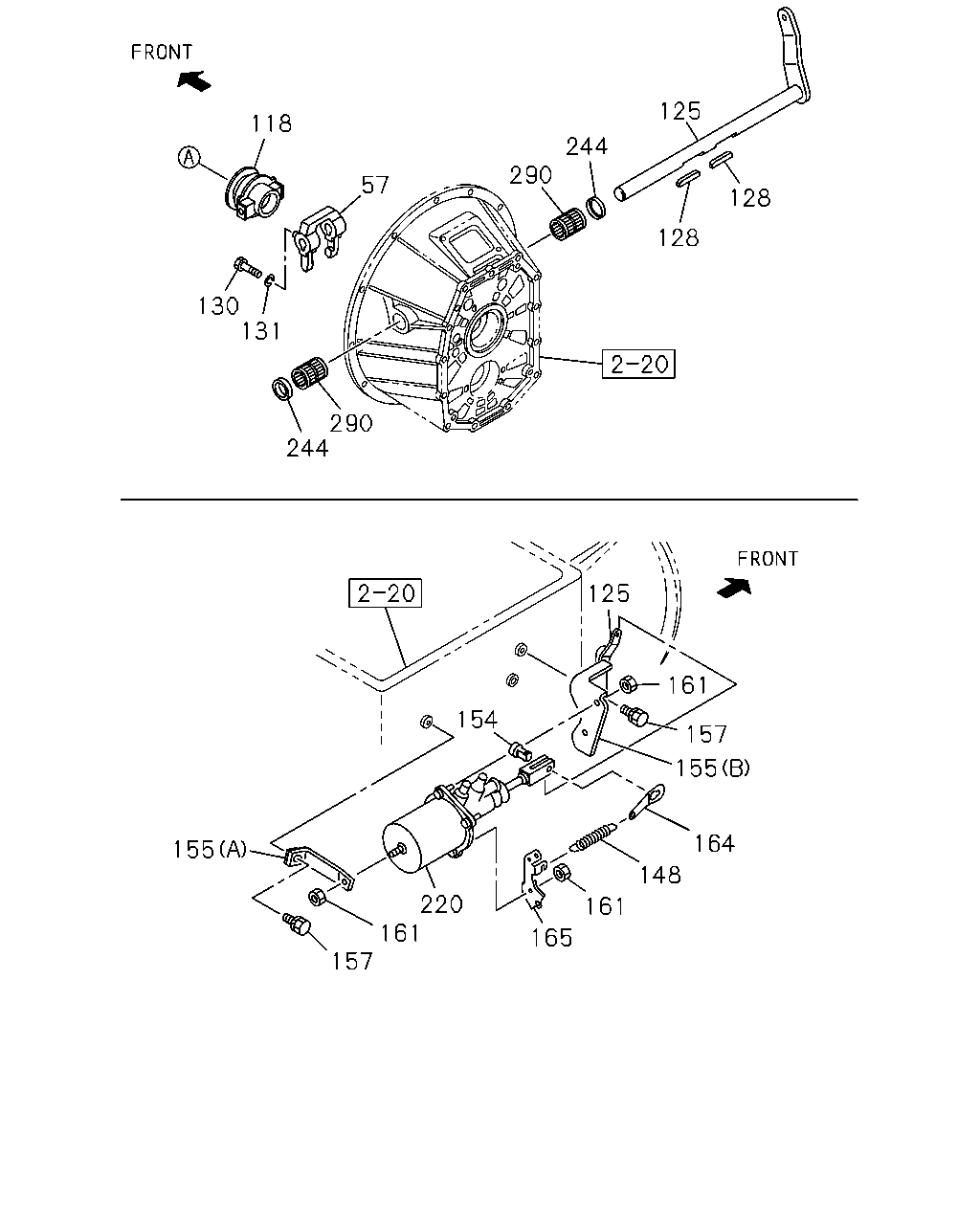

125 128 128 244 290 57 118 130 131 290 244 125 161 157 155 164 148 161 165 220 154 155 157 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1302-
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1302-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1302-
125	SHAFT; CLU	1-31342-335-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	1-31429-474-1	01	1	1302-
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	1-31429-477-0	01	1	1302-
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (A)	1-31429-475-1	01	1	1302-
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	1-31429-478-0	01	1	1302-
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (B)	1-31429-478-0	01	1	1302-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1302-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1302-
161	NUT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	05	1	1302-
164	EYE; SPRING	1-31426-041-0	01	1	1302-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31800-510-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L)	1-31800-511-2	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> BEST VALUE PARTS	1-87610-089-0	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-089-0	01	1	1302-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1302-

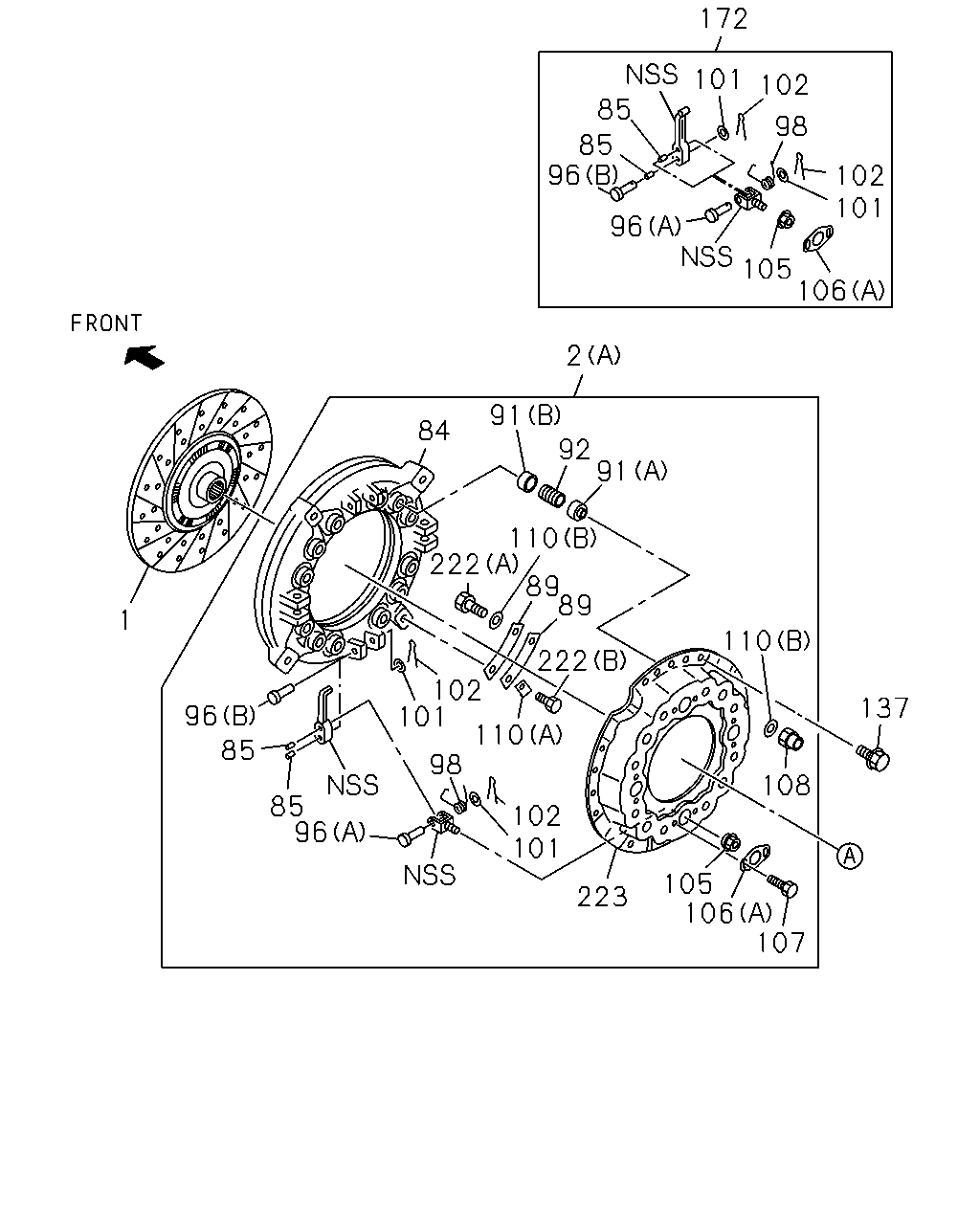

1 2 84 96 101 85 85 96 98 110 102 222 110 92 91 110 89 102 223 101 08 137 107 106 105 89 22 106 105 96 96 85 85 101 102 172 102 98 101 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1302-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1302-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	1-31220-411-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	1-31220-451-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) (A)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) (A) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) BEST VALUE PARTS	1-87610-147-0	01	1	1302-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1302-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1302-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=37 H=25	1-31219-012-0	08	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=37 H=15	1-31219-013-0	08	1	1302-
91	SEAT; SPR 6HK1-TCN ENG(82L) (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR 6HK1-TCN ENG(82L) (B) ID=37 H=15	1-31219-013-0	12	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31214-095-0	08	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31214-092-0	12	1	1302-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1302-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (A) T=1.2	1-31229-009-0	04	1	1302-
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (B) T=3.2	8-97374-512-0	08	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
223	COVER; CLU 6HK1-TCN ENG(82L)	1-31211-019-1	01	1	1302-

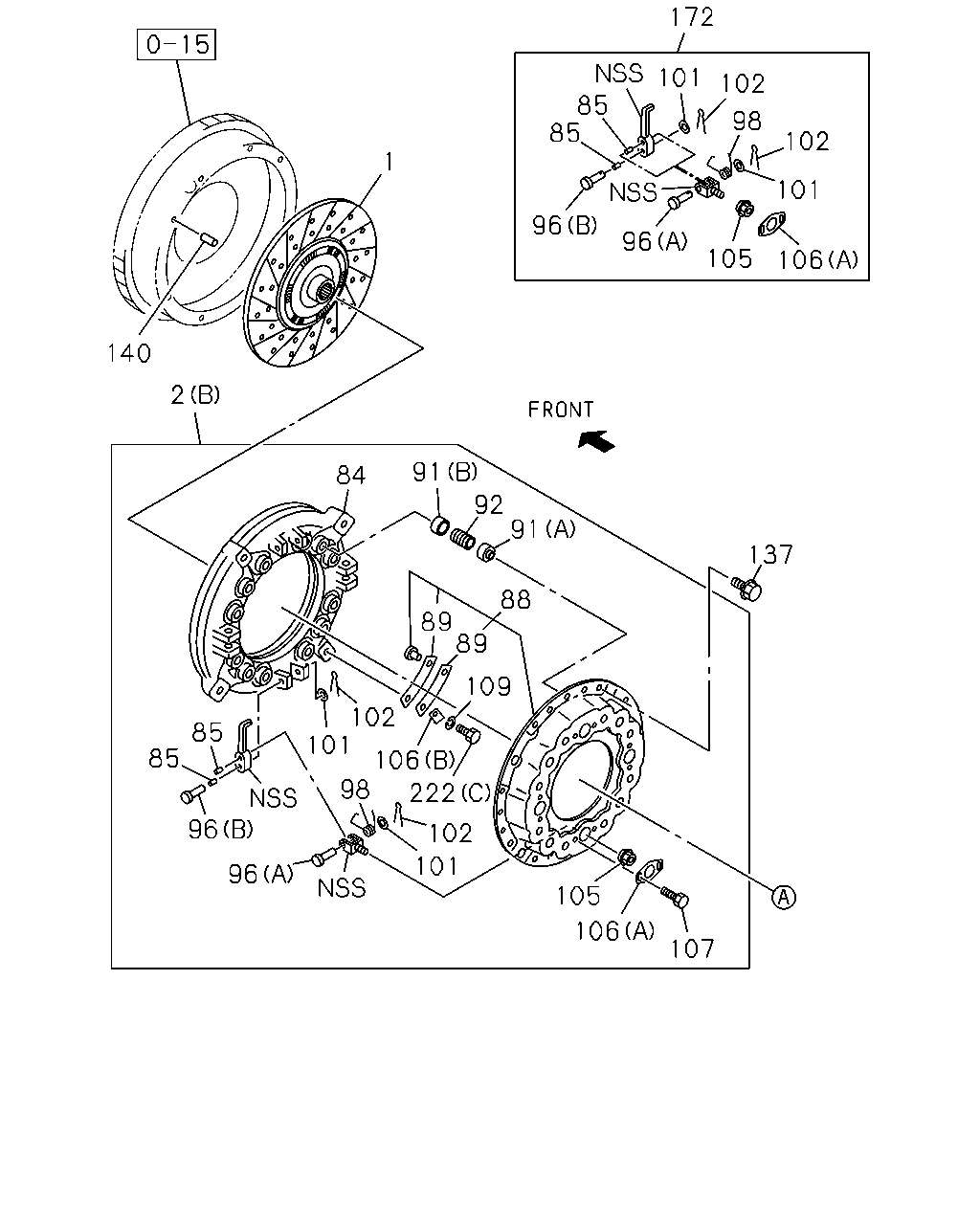

140 91 84 92 88 89 89 109 102 106 222 102 101 105 106 85 85 96 96 107 91 137 2 101 85 85 96 105 96 106 101 102 102 172 98 101 98 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1302-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1302-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	1-31220-411-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	1-31220-451-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) (A)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) (A) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) BEST VALUE PARTS	1-87610-147-0	01	1	1302-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1302-
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
88	COVER SUB ASM; CLU 4HK1-TCS ENG(RJS)	1-31211-038-0	01	1	1302-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1302-
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=37 H=25	1-31219-012-0	08	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=37 H=15	1-31219-013-0	08	1	1302-
91	SEAT; SPR 6HK1-TCN ENG(82L) (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR 6HK1-TCN ENG(82L) (B) ID=37 H=15	1-31219-013-0	12	1	1302-
91	SEAT; SPR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	1-31214-095-0	08	1	1302-
92	SPRING; CLU 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	1-31214-092-0	12	1	1302-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1302-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1302-
109	WASHER; LK,STRAP 4HK1-TCS ENG(RJS) ID=10.2	0-91510-510-0	04	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1302-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1302-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
