0-50 — OIL COOLER AND OIL FILTER (#112232) — 154 parça

469 103 496 328 328 386 434 328 103 469 102 28 444 20 21 518 517 197 196 25 25 444 28 21 26 20 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1302-	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1302-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C)	8-97608-568-0	02	1	1302-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D)	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (D)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C) ID=38.7	1-09623-299-0	02	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●

469 103 496 434 328 328 386 20 21 517 196 197 25 379 103 20 103 379 25 444 444 28 26 102 28 444 111 444 103 469 102 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1302-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1302-	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (C)	1-13219-240-0	02	1	1302-	●
20	PLUG; COOLER BODY EURO4 SPECIFICATION<NT4> (D)	8-97608-567-0	02	1	1302-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1302-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (A) M24	8-94396-755-0	01	1	1302-	●
21	GASKET; PLUG EURO4 SPECIFICATION<NT4> (C)	8-97608-568-0	02	1	1302-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1302-	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1302-	●
26	CORE ASM; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98062-207-0	01	1	1302-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1302-	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D)	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1302-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1302-	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1302-	●
197	GASKET; THERMOSTAT EURO4 SPECIFICATION<NT4>	8-94391-728-0	01	1	1302-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1302-	●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1302-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (D)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C) ID=38.7	1-09623-299-0	02	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1302-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO4 SPECIFICATION<NT4>	8-94391-731-0	01	1	1302-	●

496 386 434 13 66 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	1302-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1302-1307	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1302-1307	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1302-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1302-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1302-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●

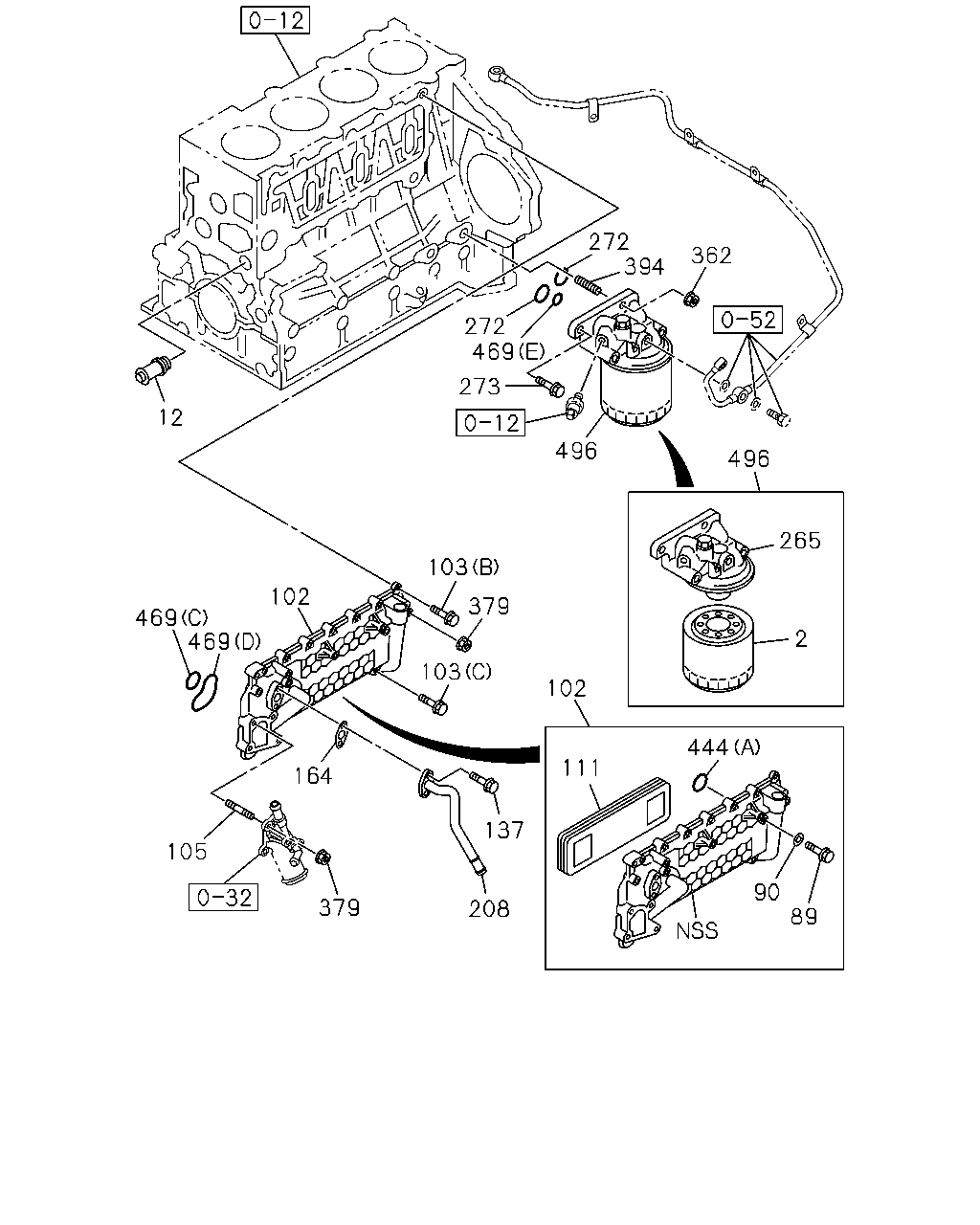

12 469 469 105 379 164 102 208 137 103 379 103 102 111 90 89 444 2 265 496 496 273 469 272 272 362 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1302-		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1302-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	1302-		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1302-	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1302-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1302-		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1302-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1302-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1302-		●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98130-995-0	01	1	1302-1307	●
102	COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO4 SPECIFICATION<NT4> (D)	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1302-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1302-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	1302-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1302-		●
111	CORE; OIL COOLER EURO4 SPECIFICATION<NT4>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1302-		●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	1302-		●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1302-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1302-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1302-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1302-		●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1302-		●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1302-		●
379	NUT; OIL COOLER EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1302-		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1302-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (D)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-810-0	02	1	1302-	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1302-		●
444	GASKET; ELEMENT TO BODY EURO4 SPECIFICATION<NT4> (C) ID=38.7	1-09623-299-0	02	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1302-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1302-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1302-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1302-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1302-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
