◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#112229) — 56 parça

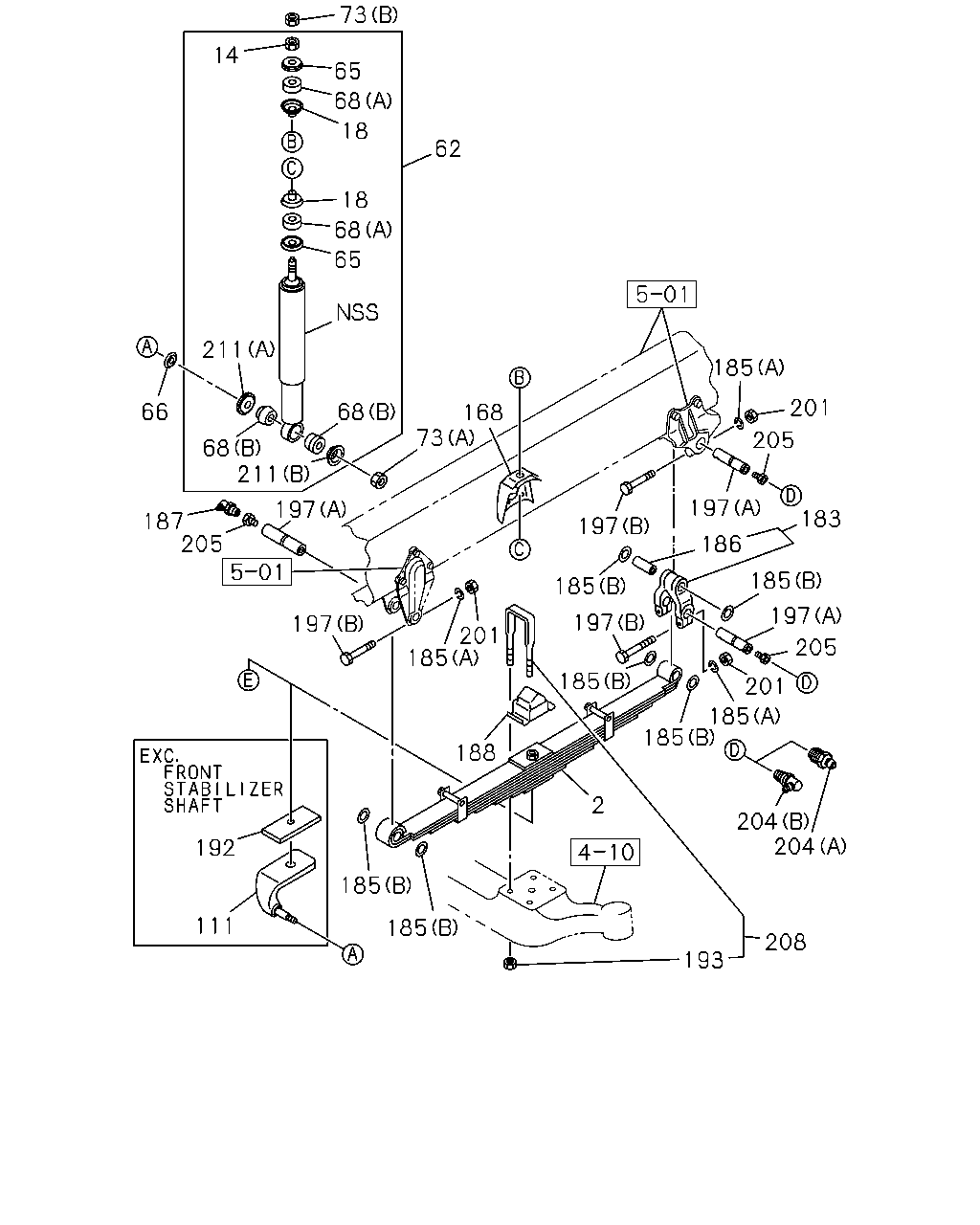

çizim 327443
73 14 66 211 187 68 68 211 73 168 185 201 205 197 197 183 186 185 197 185 197 197 205 201 188 185 185 197 205 201 185 185 204 204 2 185 185 193 208 111 192 65 68 18 62 18 68 65
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98268-436-0 01 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 02 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 02 1 1302-1401
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 8-LEAF 		8-98228-700-0 01 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1302-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1302-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1302-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1302-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1302-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 1302-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1302-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1302-
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 1302-
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1302-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1302-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1302-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1302-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1302-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1302-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1302-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1302-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1302-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1302-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1302-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 1302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1302-
192 PIECE; DIST
KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1302-1401
192 PIECE; DIST
KD PREPARATORY PACK<6HF> EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 1402-
192 PIECE; DIST
4HK1-TCS ENG(RJS) EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 01 1 1402-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1302-1401
192 PIECE; DIST
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59>,KD PREPARATORY PACK<6HF> 80X144 ID=17.5 		1-51177-284-1 AR 1 1402-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1302-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1302-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1302-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1302-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1302-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1302-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1302-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1302-
çizim 328612
138 377 377 140 137 137 377 140 138 377
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1302-
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1302-
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1302-
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-
377 WASHER; LK,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1302-

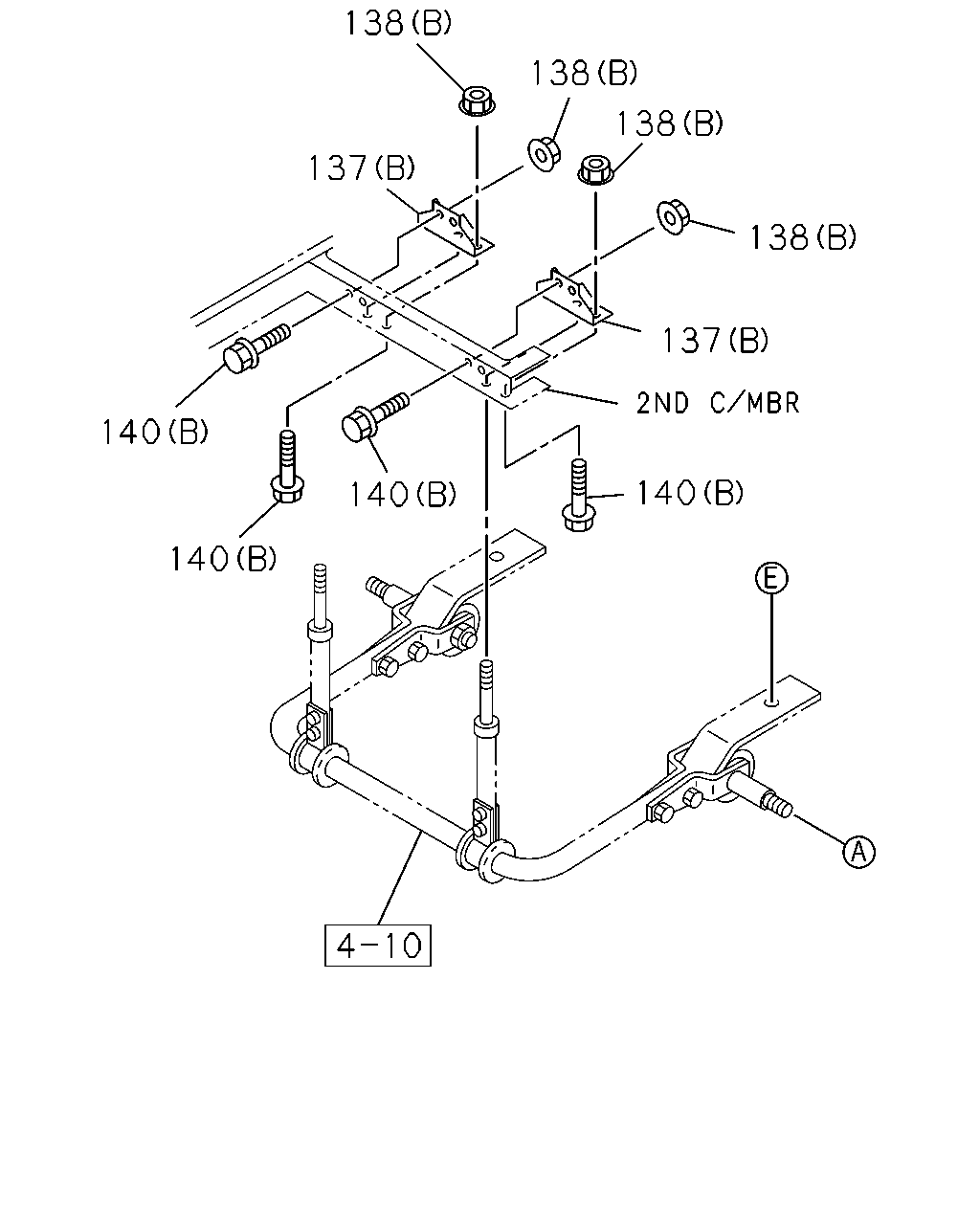

çizim 328662
138 138 137 138 138 137 140 140 140 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) 		1-51781-046-3 02 1 1302-
137 BRACKET; STAB BAR TO FRAME
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1302-
138 NUT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10 FLANGE 		0-91180-210-0 08 1 1302-
138 NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1302-
140 BOLT; BRKT
4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) M10X30 FLANGE 		0-28651-030-0 08 1 1302-
140 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
