1 |

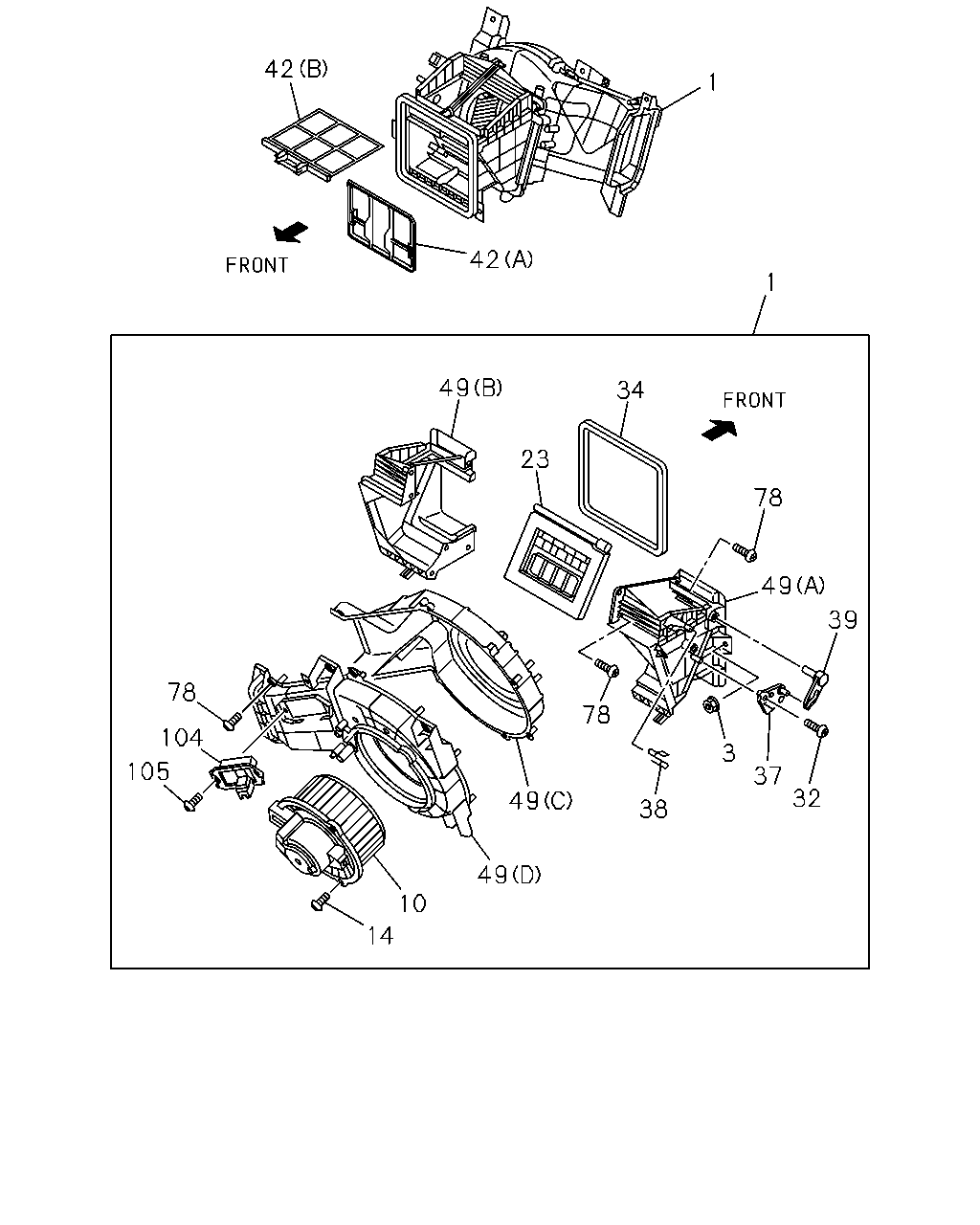

BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
8-98183-598-0 |
01 |
1 |
1302- |
| |
1 |
BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98171-721-0 |
01 |
1 |
1302- |
| |
3 |
NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M6
|
1-83539-354-0 |
02 |
1 |
1302- |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98183-926-0 |
01 |
1 |
1302- |
| |
14 |
SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X16
|
8-98047-448-0 |
03 |
1 |
1302- |
| |
23 |
SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
8-98047-761-0 |
01 |
1 |
1302- |
| |
23 |
SHUTTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98171-863-0 |
01 |
1 |
1302- |
| |
32 |
SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M4X16
|
8-98047-416-0 |
01 |
1 |
1302- |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98096-453-0 |
01 |
1 |
1302- |
| |
37 |
LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98047-453-0 |
01 |
1 |
1302- |
| |
38 |
CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98047-417-0 |
01 |
1 |
1302- |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98047-454-0 |
01 |
1 |
1302- |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
8-98025-006-1 |
01 |
1 |
1302- |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
8-98041-327-0 |
01 |
1 |
1302- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(D)
|
8-98047-444-0 |
01 |
1 |
1302- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(C)
|
8-98047-445-0 |
01 |
1 |
1302- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
8-98077-415-0 |
01 |
1 |
1302- |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
8-98077-416-0 |
01 |
1 |
1302- |
| |
78 |
SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M4X16 TAPPING
|
8-97957-708-0 |
16 |
1 |
1302- |
| |
104 |
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-98077-418-0 |
01 |
1 |
1302- |
| |
105 |
SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M4X16 TAPPING
|
8-97957-708-0 |
02 |
1 |
1302- |
