1 |

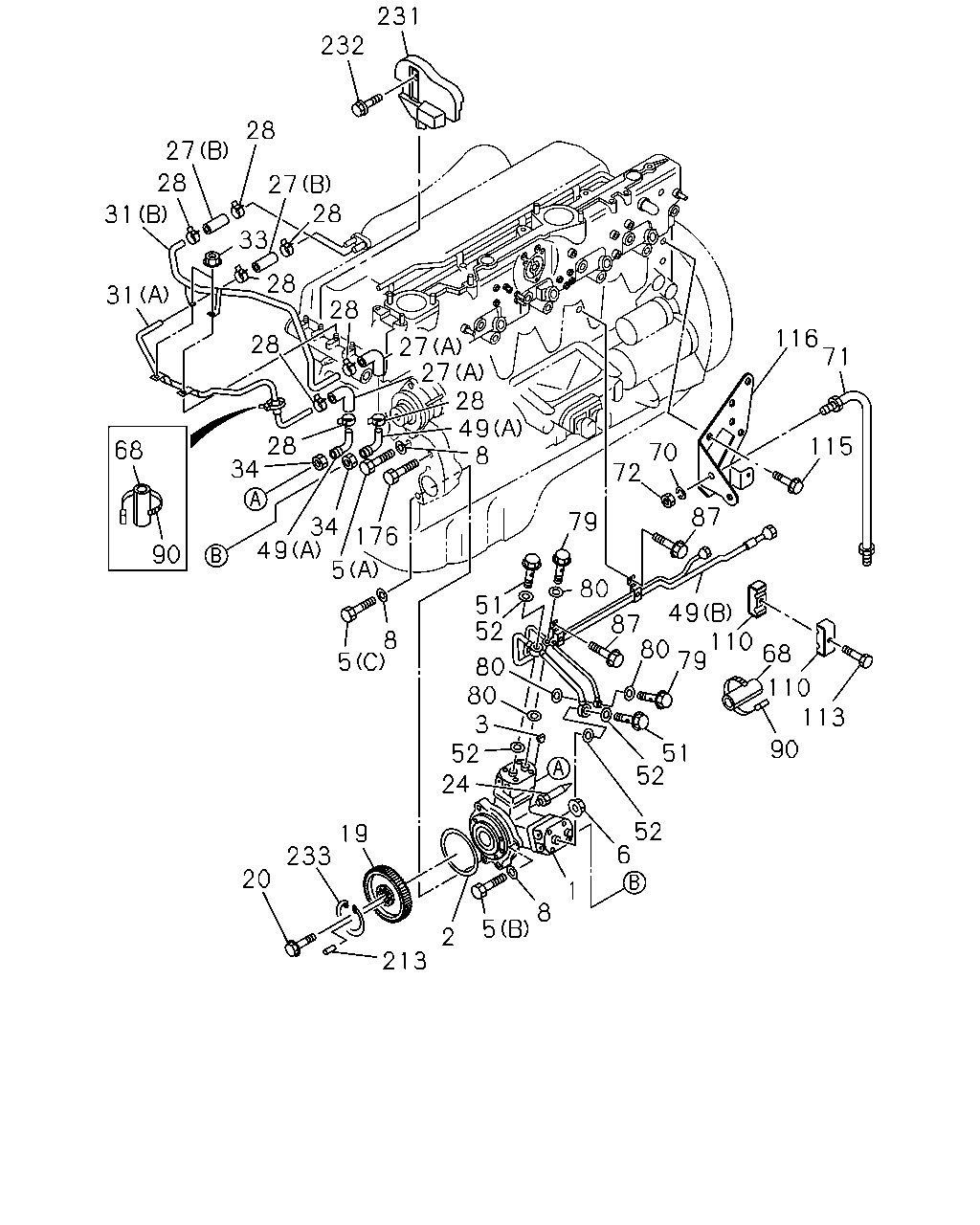

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
1-19100-300-5 |
01 |
1 |
0107- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-476-0 |
01 |
1 |
0107- |
| |
3 |
KEY; COUPLING,INJ PUMP
|
9-08055-622-0 |
01 |
1 |
0107- |
| |
5 |
BOLT; AIR CMPR FIX
(A)
M14X128
|
8-94399-253-1 |
01 |
1 |
0107- |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M14X90
|
9-91666-490-0 |
01 |
1 |
0107-0512 |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M14X90
|
0-16956-490-0 |
01 |
1 |
0601- |
| |
5 |
BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M14X150
|
9-09804-172-1 |
01 |
1 |
0107- |
| |
5 |
BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41)
(C)
M14X100
|
9-91666-400-0 |
01 |
1 |
0107-0512 |
| |
5 |
BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41)
(C)
M14X100
|
0-16956-400-0 |
01 |
1 |
0601- |
| |
6 |
NUT; AIR CMPR
M14 FLANGE
|
0-91150-114-0 |
01 |
1 |
0107- |
| |
8 |
WASHER; PL,AIR CMPR
ID=15 OD=26
|
9-09164-514-0 |
03 |
1 |
0107- |
| |
19 |
GEAR; INJ PUMP
Z=54
|
1-12524-151-0 |
01 |
1 |
0107-0205 |
| |
19 |
GEAR; INJ PUMP
Z=54
|
1-12524-164-0 |
01 |
1 |
0206- |
| |
20 |
BOLT; GEAR TO SHAFT
M12X39 FLANGE
|
1-09070-116-0 |
05 |
1 |
0107- |
| |
24 |
POINTER; AIR CMPR
|
1-11327-017-1 |
01 |
1 |
0107- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(B)
|
0-02117-080-0 |
02 |
1 |
0107- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(A)
|
1-09360-916-0 |
02 |
1 |
0107- |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=22.7
|
8-94466-382-0 |
08 |
1 |
0107- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(A)
|
1-19192-991-0 |
01 |
1 |
0107- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(B)
|
1-19192-992-0 |
01 |
1 |
0107- |
| |
33 |
NUT; PIPE FIX
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
| |
33 |
NUT; PIPE FIX
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
34 |
NUT; LK SUCTION PIPE
|
9-09840-254-0 |
02 |
1 |
0107- |
| |
49 |
PIPE; AIR,CHARGE
(B)
|
1-19192-661-2 |
01 |
1 |
0107- |
| |
49 |
PIPE; AIR,CHARGE
(A)
|
9-19119-032-0 |
02 |
1 |
0107- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-1 |
02 |
1 |
0107- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
04 |
1 |
0107- |
| |
68 |
SLEEVE; RUBBER
ID=18 OD=22 L=25
|
8-94412-773-0 |
03 |
1 |
0107- |
| |
70 |
WASHER; LK
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0107-0603 |
| |
70 |
WASHER; LK
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0604- |
| |
71 |
HOSE; FLEX,AIR GOV
L=520
|
1-09363-657-0 |
01 |
1 |
0107- |
| |
72 |
NUT; GOV HOSE
M12
|
9-09840-280-0 |
01 |
1 |
0107- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0107- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0107- |
| |
87 |
BOLT; BRKT FIX
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
0107-0512 |
| |
87 |
BOLT; BRKT FIX
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0601- |
| |
90 |
CLIP; HARNESS
L=140
|
5-09707-031-1 |
02 |
1 |
0107- |
| |
110 |
CLIP; AIR PIPE
|
1-09701-210-0 |
02 |
1 |
0107- |
| |
113 |
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
|
0-28080-640-0 |
01 |
1 |
0107-0512 |
| |
113 |
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
|
0-28050-640-0 |
01 |
1 |
0601- |
| |
115 |
BOLT; AIR PIPE
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
0107-0512 |
| |
115 |
BOLT; AIR PIPE
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0601- |
| |
116 |
BRACKET; AIR PIPE
|
1-19199-212-1 |
01 |
1 |
0107- |
| |
176 |
BOLT; BRKT FIX
M10X135
|
8-94397-139-1 |
01 |
1 |
0107- |
| |
213 |
PIN; AIR CMPR GEAR
OD=5 L=10
|
9-08150-510-0 |
01 |
1 |
0107- |
| |
231 |
INSULATOR; HEAD COVER
|
1-19389-208-1 |
01 |
1 |
0107- |
| |
232 |
BOLT; INSULATOR
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0107-0512 |
| |
232 |
BOLT; INSULATOR
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601- |
| |
233 |
RING; FRICTION
|
1-12529-003-0 |
01 |
1 |
0107-0205 |
