Isuzu WW
▶
TRUCKS
▶
FTR
▶
11512 - FTR(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#112207) — 34 parça
◀

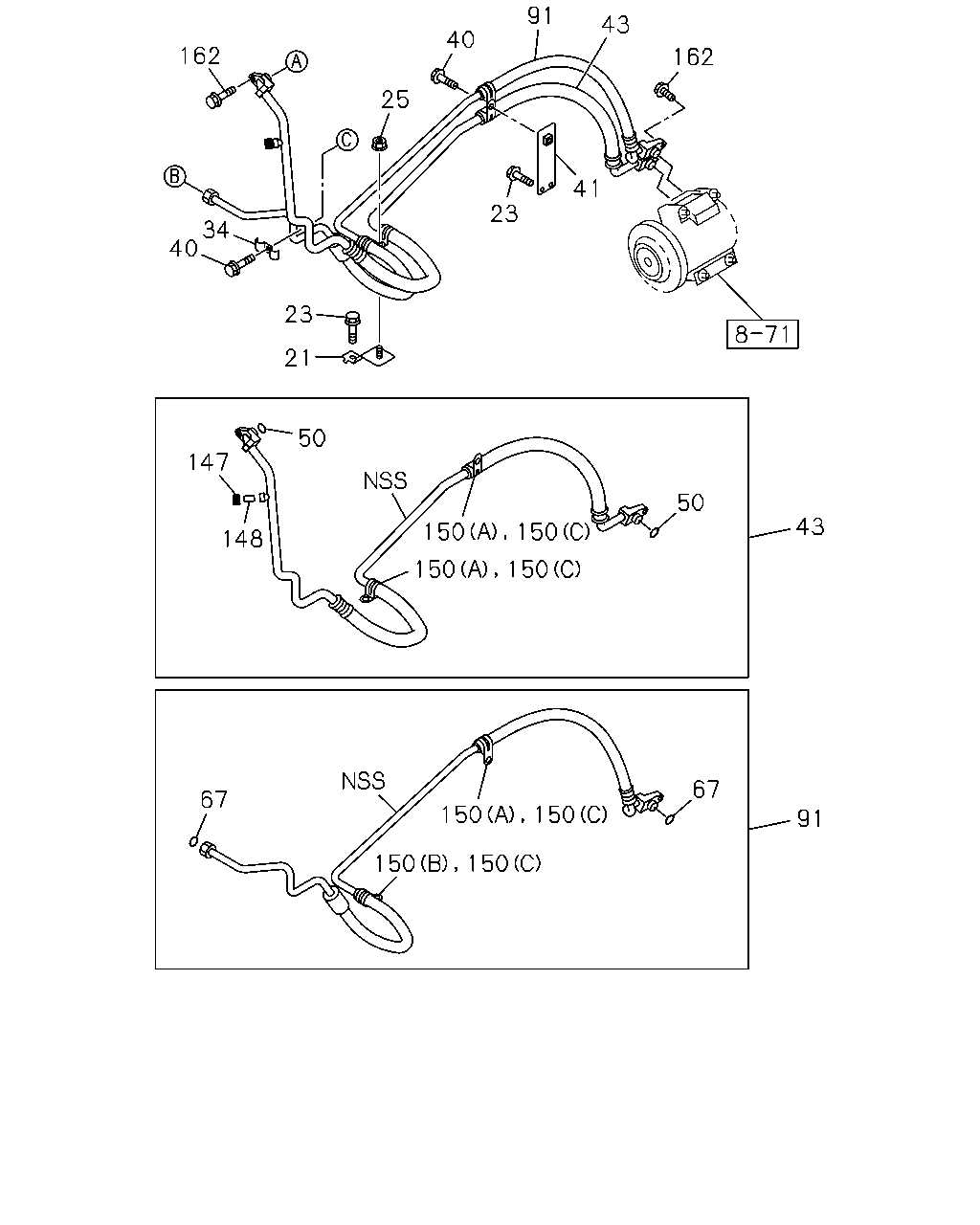

[852A] NO.1 (22 parça)

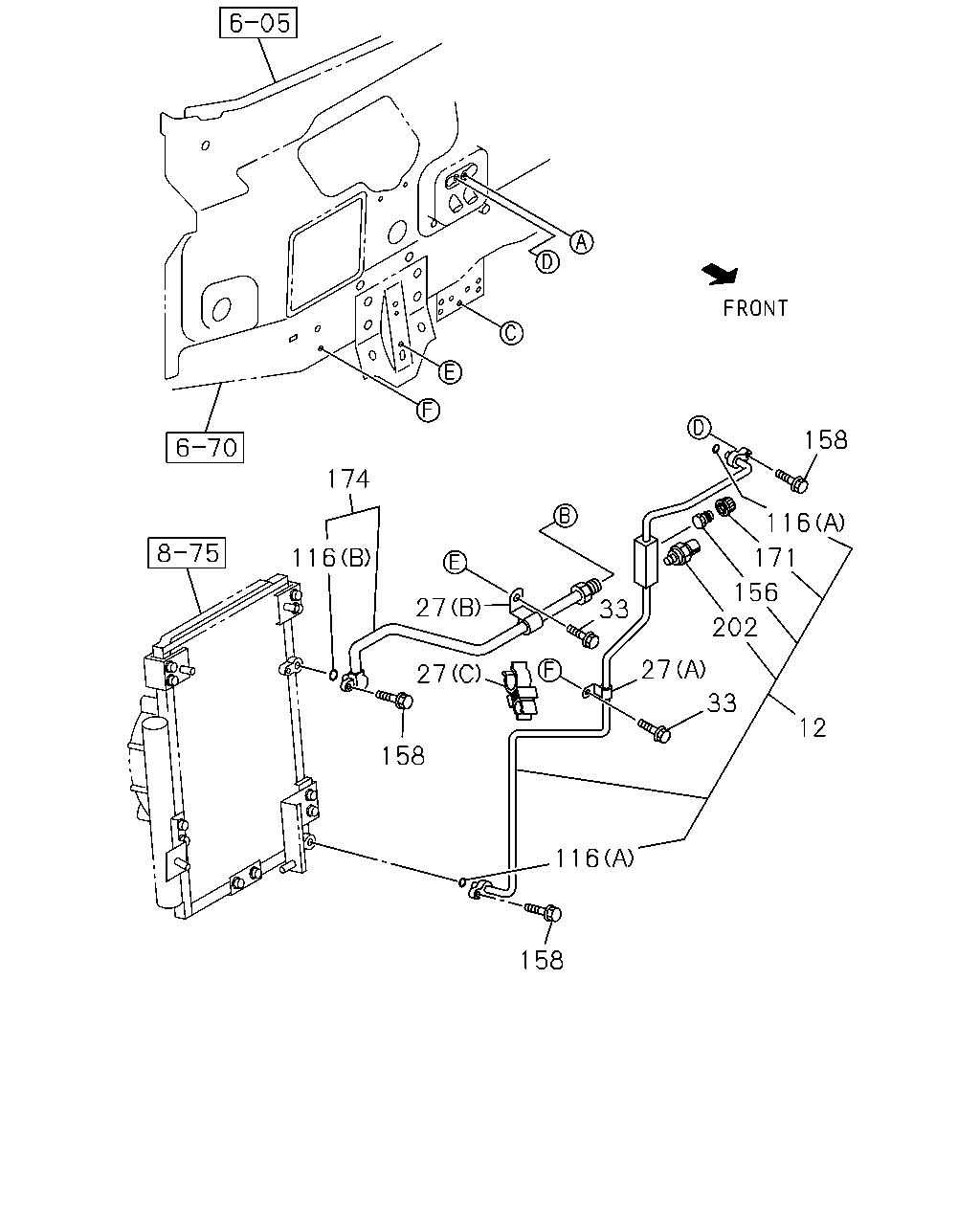

[852A] NO.2 (12 parça)
▶
43
91
67
148
147
50
21
23
34
40
162
25
40
91
162
43
41
23
150
150
150
150
150
150
150
150
50
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
01
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-014-0
01
1
1305-
43
HOSE; FLEX,A/C,EVAP TO CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98070-112-0
01
1
1302-
50
GASKET; FLEX HOSE,A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-1304
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1305-
67
GASKET; FLEX HOSE
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-1304
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1305-
91
HOSE; FLEX,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
8-98203-015-0
01
1
1305-
91
HOSE; FLEX,CMPR
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-98070-111-2
01
1
1302-
147
CAP; FLEX HOSE
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-1304
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1305-
148
VALVE; FLEX HOSE
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-1304
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1305-
150
CLIP; HOSE
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83574-264-0
04
1
1305-
150
CLIP; HOSE
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
03
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
158
116
27
12
33
202
171
116
158
158
27
27
116
174
33
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-773-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-775-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
