8-52 — PIPING; AIR CONDITIONING (#112206) — 64 parça

12 116 171 156 202 33 27 33 27 27 158 116 158 174 116 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-328-0	01	1	1302-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1302-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1302-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1302-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	1302-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1302-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1302-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1302-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1302-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1302-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-330-0	01	1	1302-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1302-

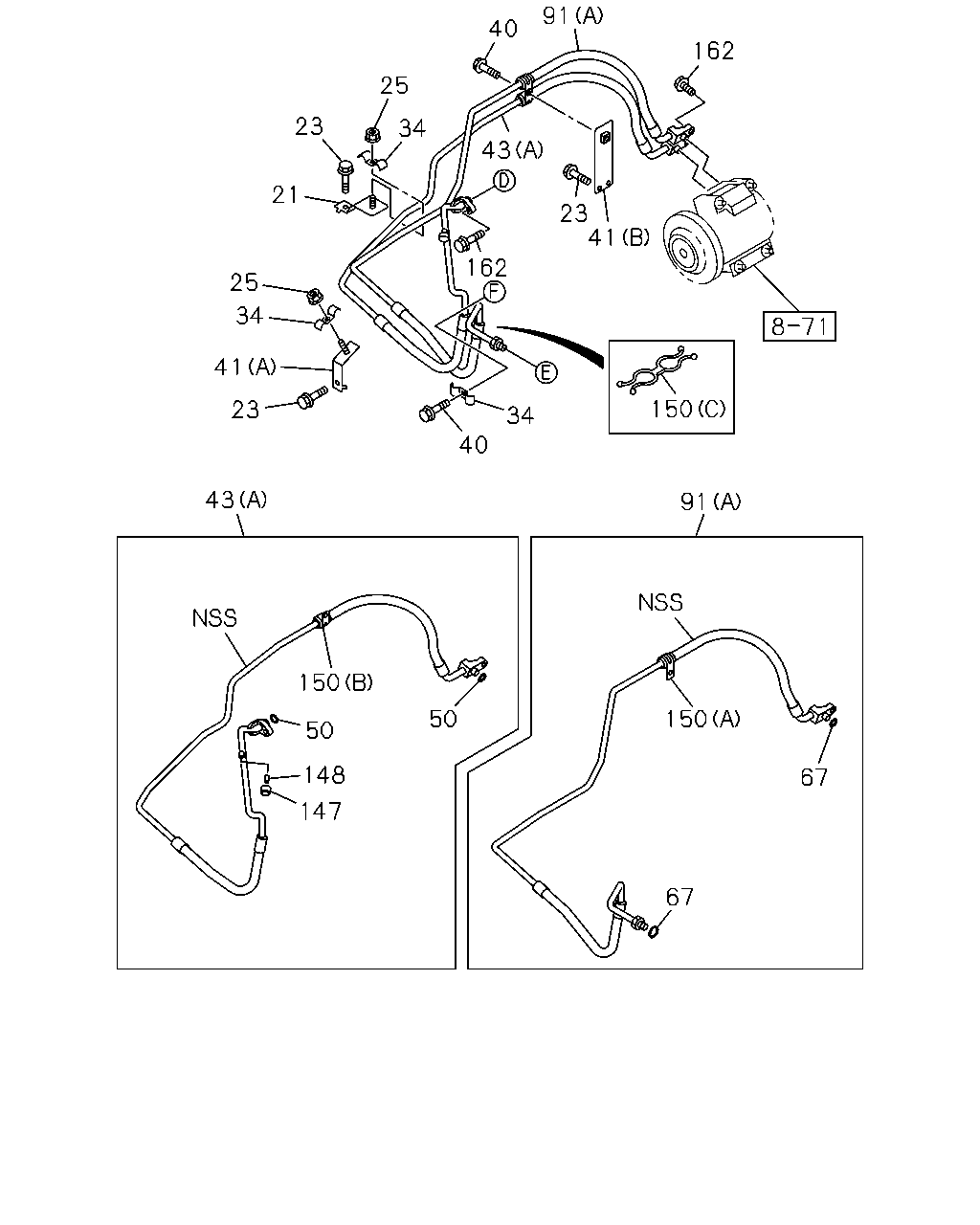

162 91 40 25 34 23 21 25 34 41 23 43 40 34 162 23 43 41 150 50 150 50 148 147 67 150 67 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1302-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1302-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1302-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1302-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1302-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	1302-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98032-049-0	01	1	1302-
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1302-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98209-849-0	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SUCTION	8-98043-677-2	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SUCTION	8-98207-248-0	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) SUCTION	8-98076-319-0	01	1	1302-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1302-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1302-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DISCHARGE	8-98043-678-2	01	1	1302-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DISCHARGE	8-98207-247-0	01	1	1302-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) DISCHARGE	8-98076-320-0	01	1	1302-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1302-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-94423-042-0	01	1	1302-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1302-

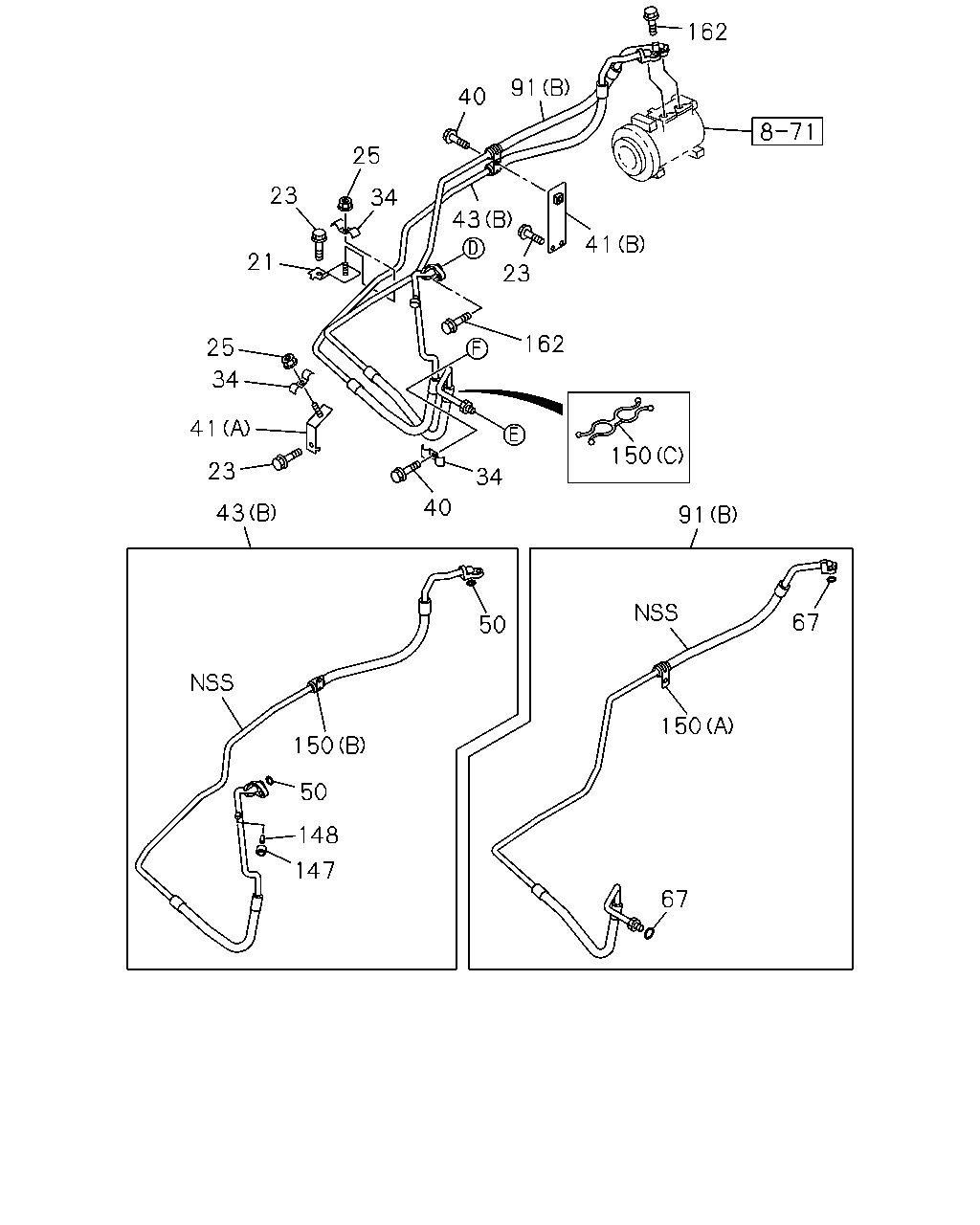

21 23 25 34 40 91 162 23 43 41 25 34 41 23 43 150 50 148 147 50 67 67 150 91 150 34 40 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1302-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1302-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1302-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1302-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	1302-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1302-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	1302-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98032-049-0	01	1	1302-
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	1302-
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98209-849-0	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SUCTION	8-98043-677-2	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) SUCTION	8-98207-248-0	01	1	1302-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) SUCTION	8-98076-319-0	01	1	1302-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	1302-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1302-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DISCHARGE	8-98043-678-2	01	1	1302-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DISCHARGE	8-98207-247-0	01	1	1302-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) DISCHARGE	8-98076-320-0	01	1	1302-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	1302-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1302-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-94423-042-0	01	1	1302-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
