11506 - FRR RHD EURO2 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#112205) — 32 parça
◀

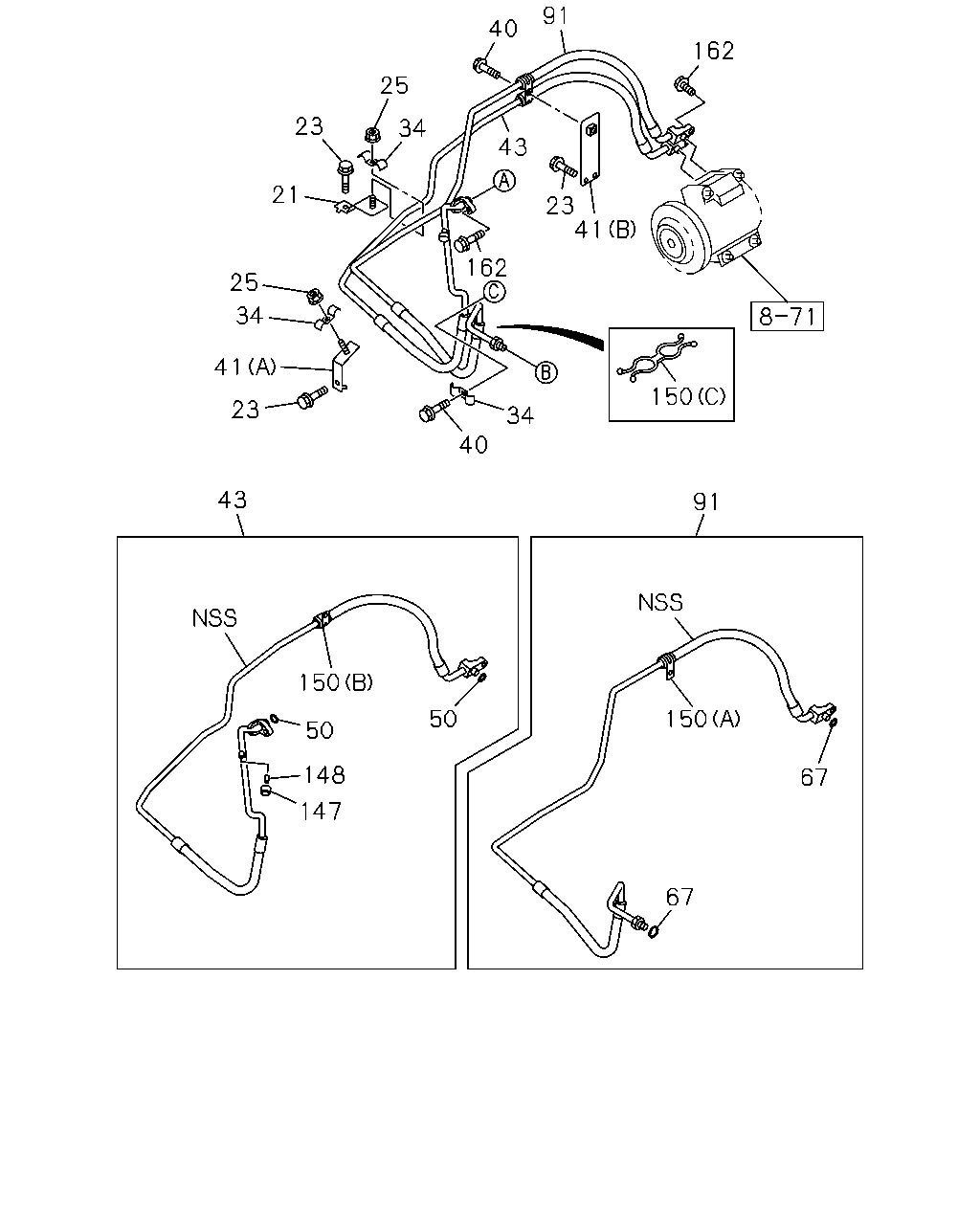

[852A] NO.1 (20 parça)

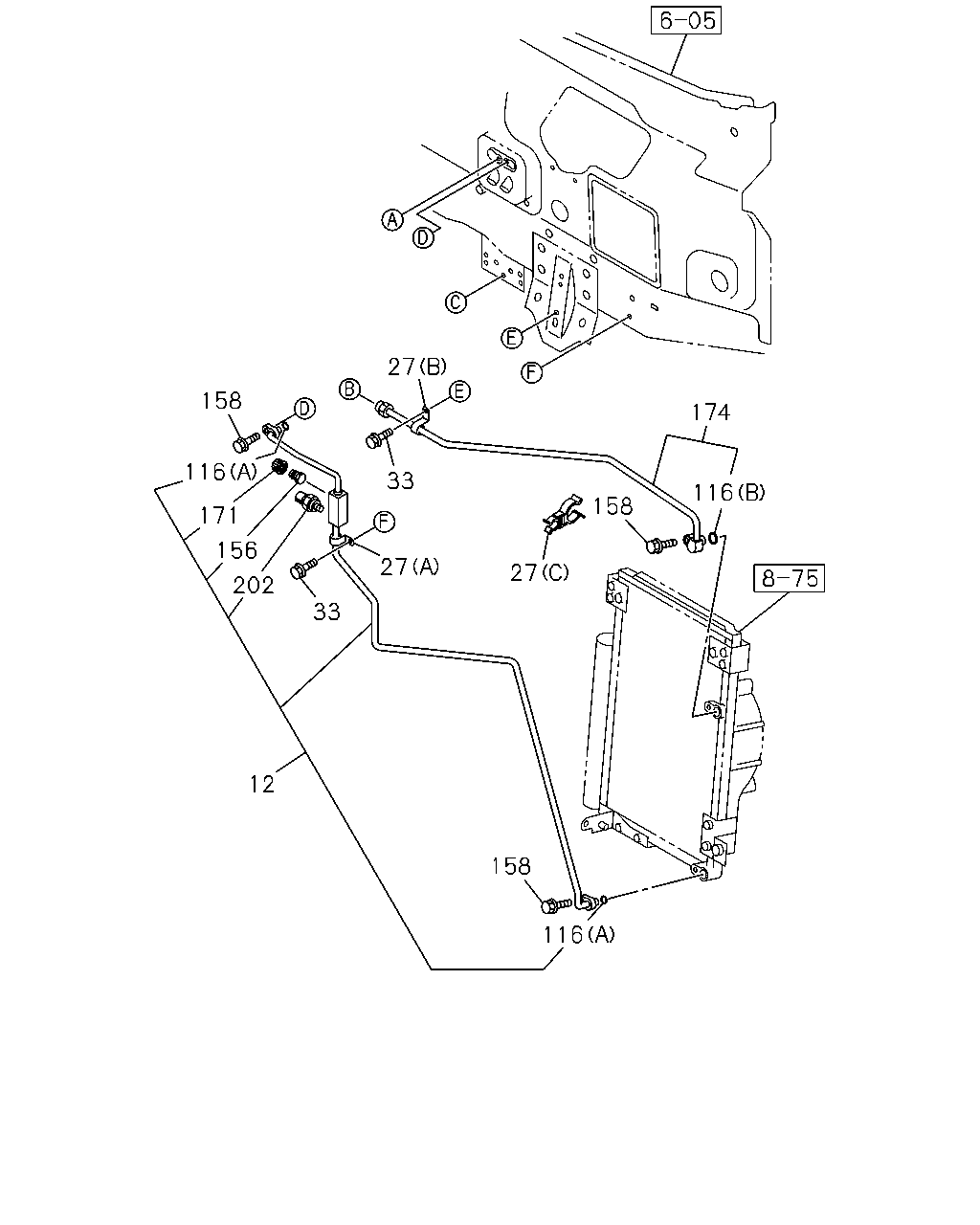

[852A] NO.2 (12 parça)
▶
23
25
40
91
162
43
34
23
41
162
21
25
41
40
34
91
150
150
67
67
50
150
43
23
148
50
147
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1302-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
03
1
1302-
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98010-188-1
01
1
1302-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98032-049-0
01
1
1302-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) SUCTION
8-98076-319-0
01
1
1302-
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
1302-
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
1302-
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) DISCHARGE
8-98076-320-0
01
1
1302-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
1302-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-249-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-264-0
01
1
1302-
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-94423-042-0
01
1
1302-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
27
158
116
171
156
202
33
12
158
116
27
27
33
158
116
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-328-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1302-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1302-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
1302-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
1302-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
1302-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
1302-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1302-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98041-330-0
01
1
1302-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
1302-
