8-45 — HEATER PIPING (#112199) — 55 parça

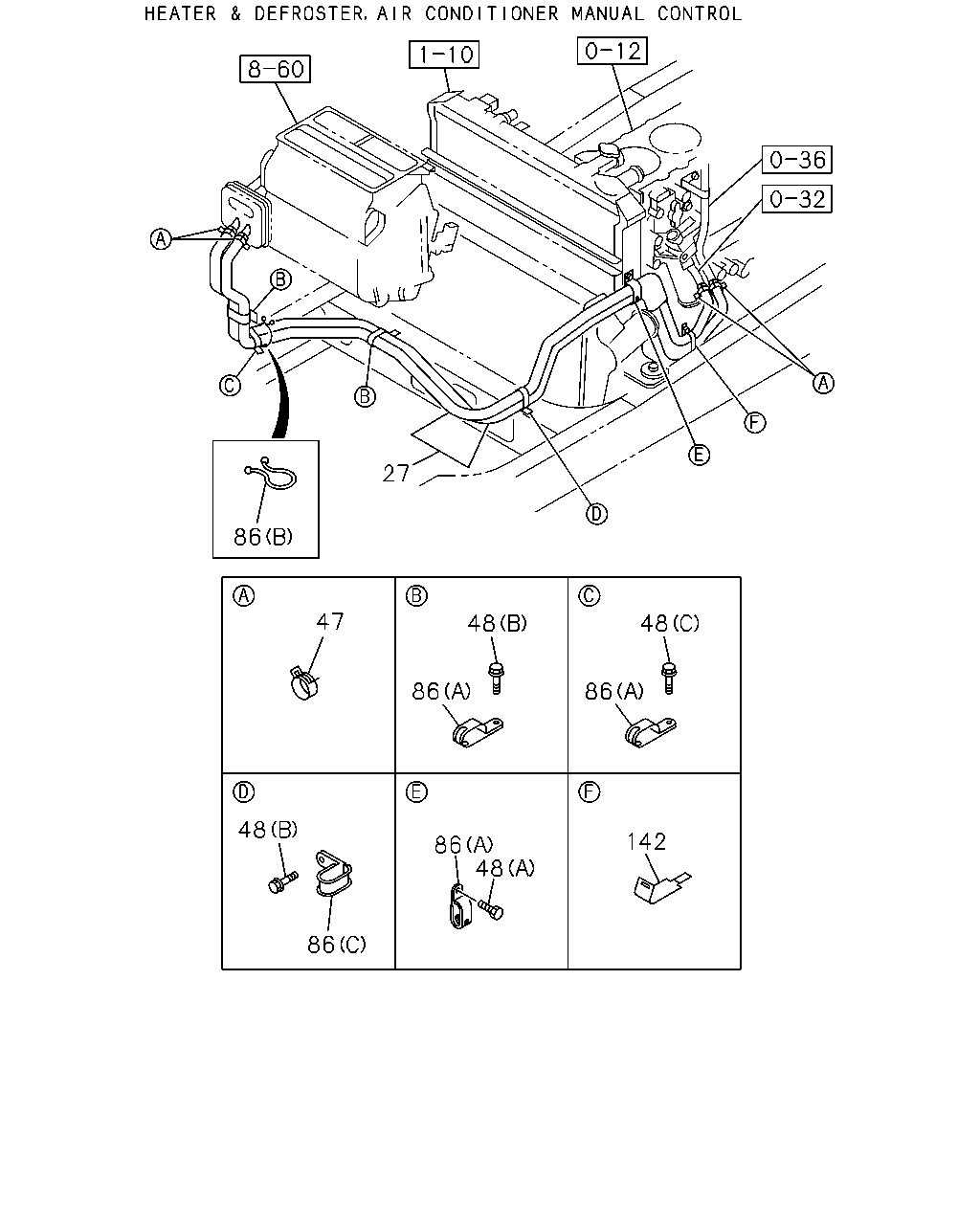

27 48 86 48 86 47 48 86 48 142 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO5 SPECIFICATION<NT5>	8-98204-961-1	01	1	1506-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98031-258-2	01	1	1302-1505
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>	8-98031-258-2	01	1	1506-1506
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5>	8-98031-258-2	01	1	1506-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO5 SPECIFICATION<NT5> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1506-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-1506
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1302-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-1505
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	01	1	1506-1506
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (A) ID=24X2 L=25	1-09700-710-0	01	1	1506-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	1302-
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14	8-98029-678-0	01	1	1302-
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-1505
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> L=170	8-98166-021-0	01	1	1506-1506
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> L=170	8-98166-021-0	01	1	1506-

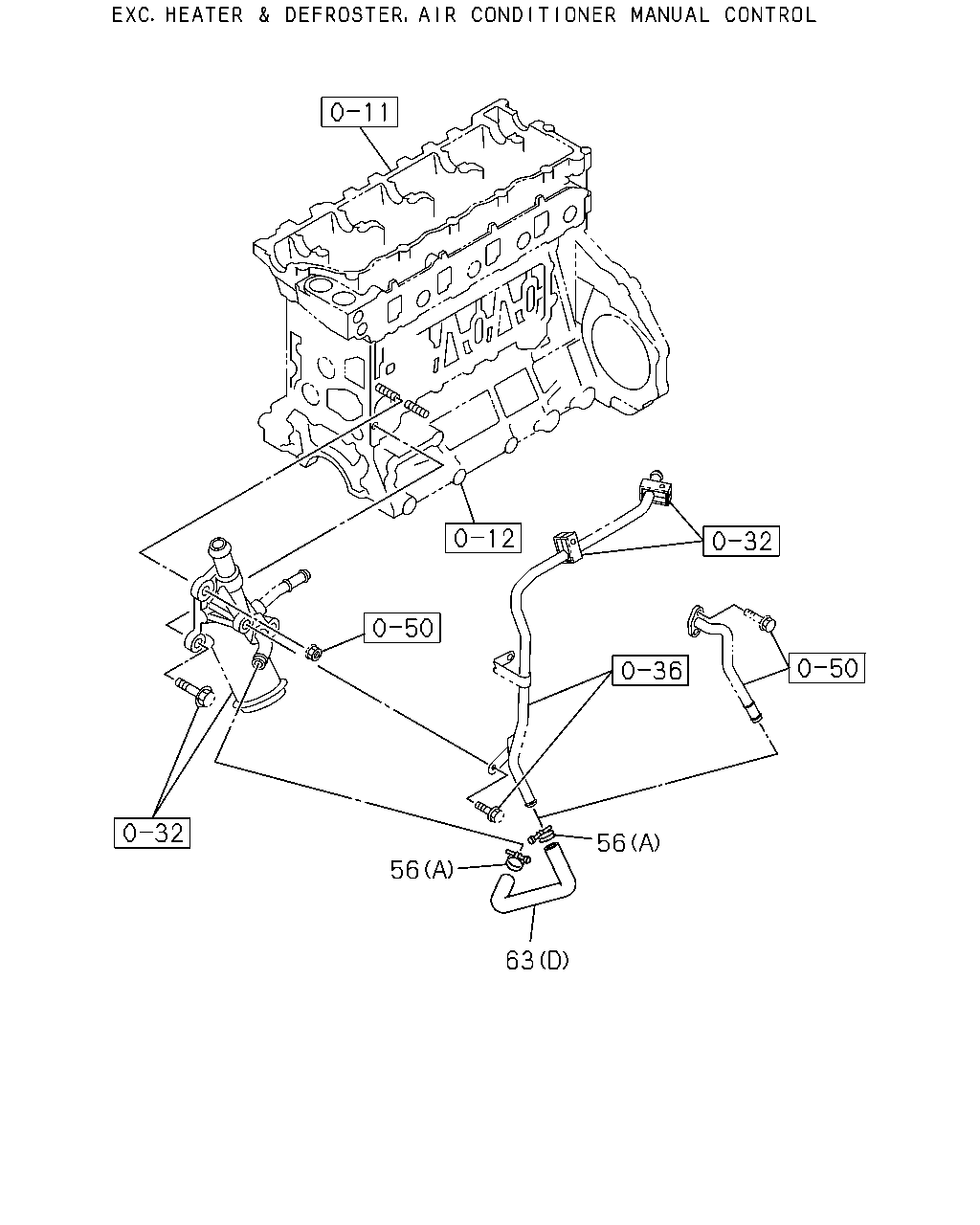

27 63 56 56 56 56 103 103 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO5 SPECIFICATION<NT5>	8-98204-961-1	01	1	1506-
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98031-258-2	01	1	1302-1505
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>	8-98031-258-2	01	1	1506-1506
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5>	8-98031-258-2	01	1	1506-
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-97359-141-0	04	1	1302-1505
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	04	1	1506-1506
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (B) ID=22	8-97359-141-0	04	1	1506-
56	CLAMP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=25	8-94233-115-0	02	1	1302-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98117-232-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-232-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (A)	8-98117-232-0	01	1	1506-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98117-233-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-233-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (B)	8-98117-233-0	01	1	1506-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98117-234-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-234-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (C)	8-98117-234-0	01	1	1506-
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-94134-250-1	01	1	1302-
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1302-1505
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1506-1506
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5>	9-09703-048-0	02	1	1506-

56 63 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-97359-141-0	04	1	1302-1505
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) ID=22	8-97359-141-0	04	1	1506-1506
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (B) ID=22	8-97359-141-0	04	1	1506-
56	CLAMP; HTR HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=25	8-94233-115-0	02	1	1302-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98117-232-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-232-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (A)	8-98117-232-0	01	1	1506-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98117-233-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-233-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (B)	8-98117-233-0	01	1	1506-
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98117-234-0	01	1	1302-1505
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-234-0	01	1	1506-1506
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO5 SPECIFICATION<NT5> (C)	8-98117-234-0	01	1	1506-
63	HOSE; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-94134-250-1	01	1	1302-
