Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#112195) — 36 parça

261 39 34 34 34 34 33 36 35 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1302-1304
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1305-
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1302-1304
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98154-633-0	01	1	1305-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1302-1304
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1305-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-1304
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1305-
261	PLUG; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1305-

2 4 2 573 540 584 744 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

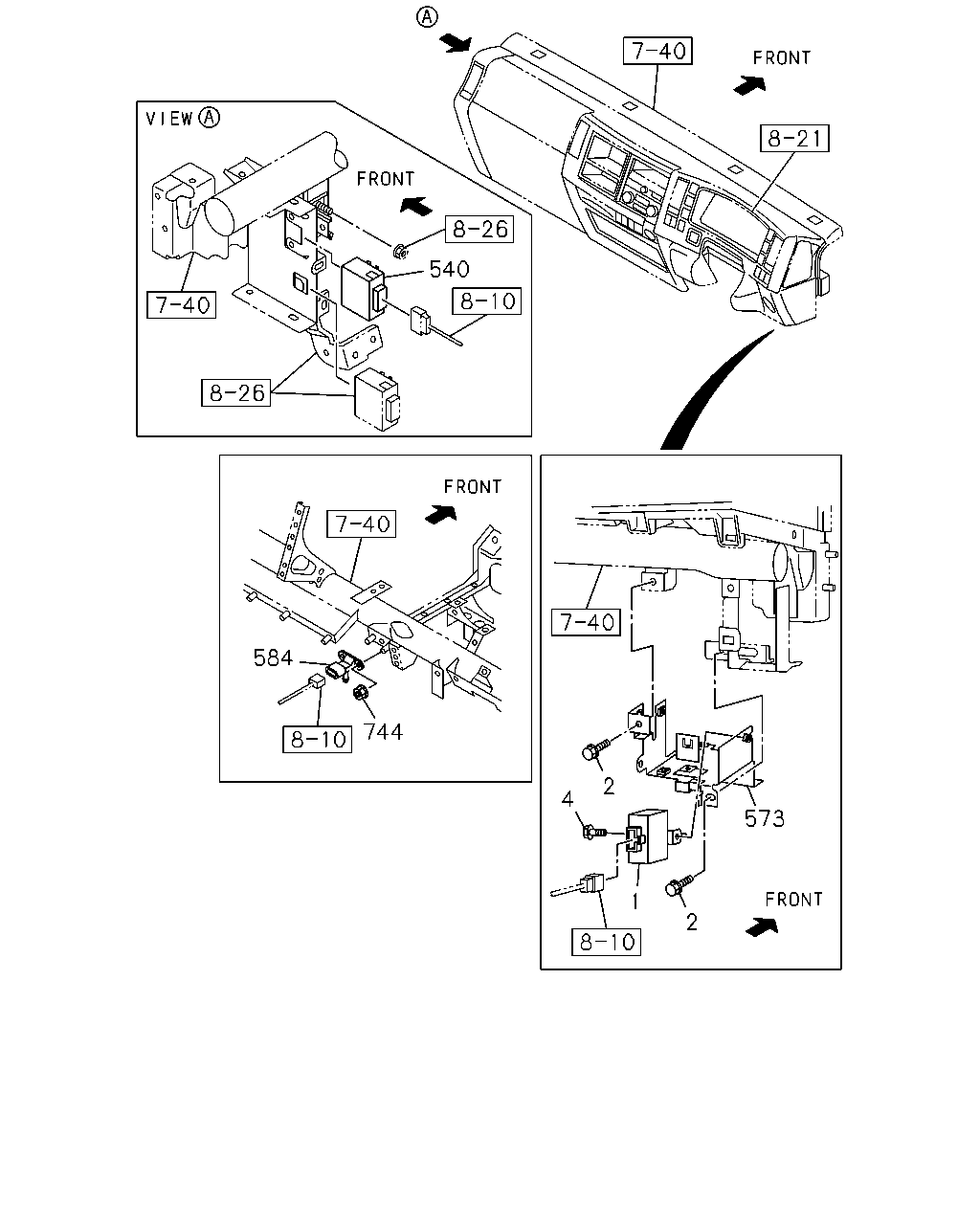

1	UNIT; FLASHER	8-98025-533-1	01	1	1302-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1302-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1302-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

449

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	449	SWITCH; OIL PRESS,CLUTCH 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1302-

44 51 50 45 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

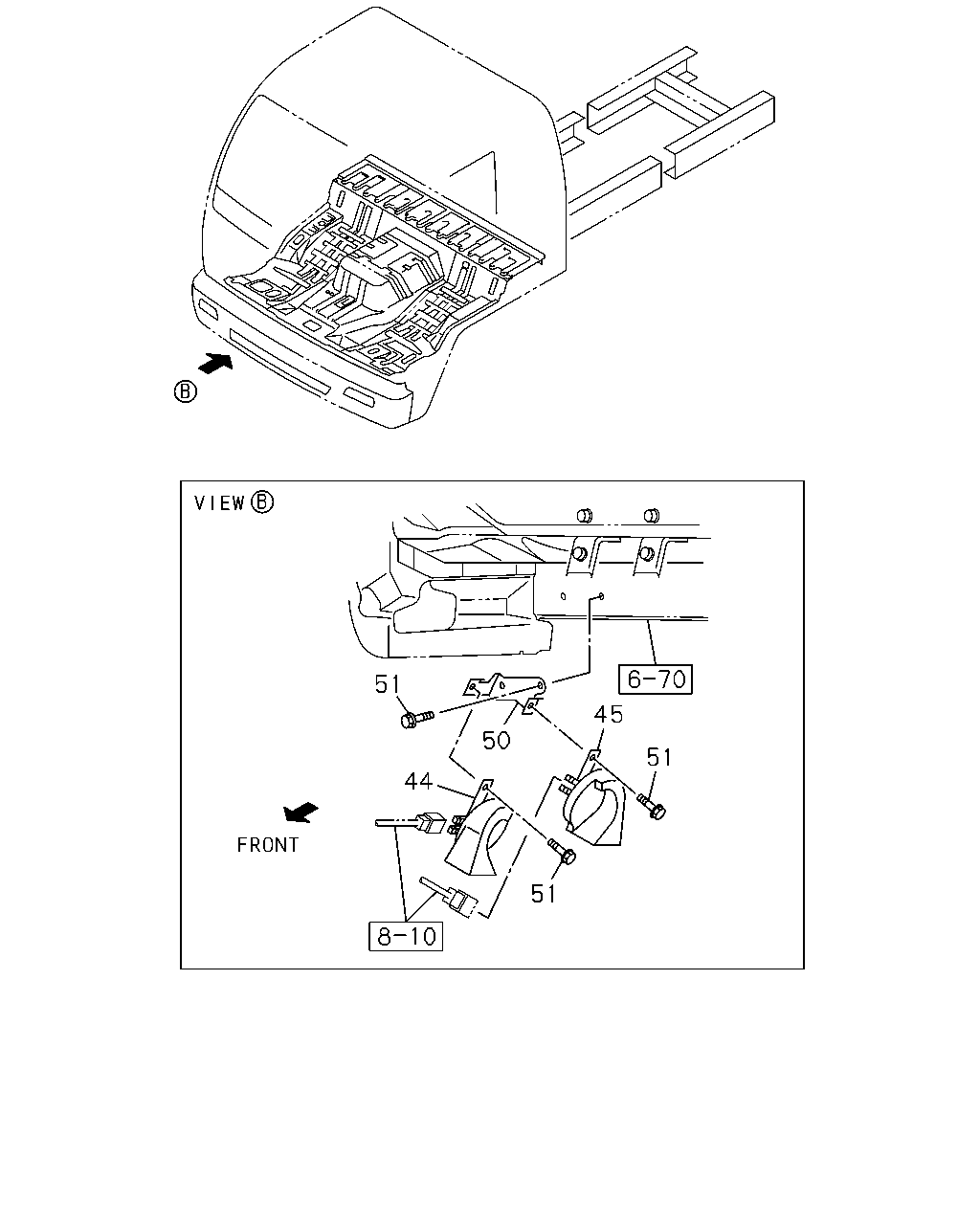

44	HORN; HIGH NOTE	8-98022-022-0	01	1	1302-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-
50	BRACKET; HORN	8-97613-300-2	01	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

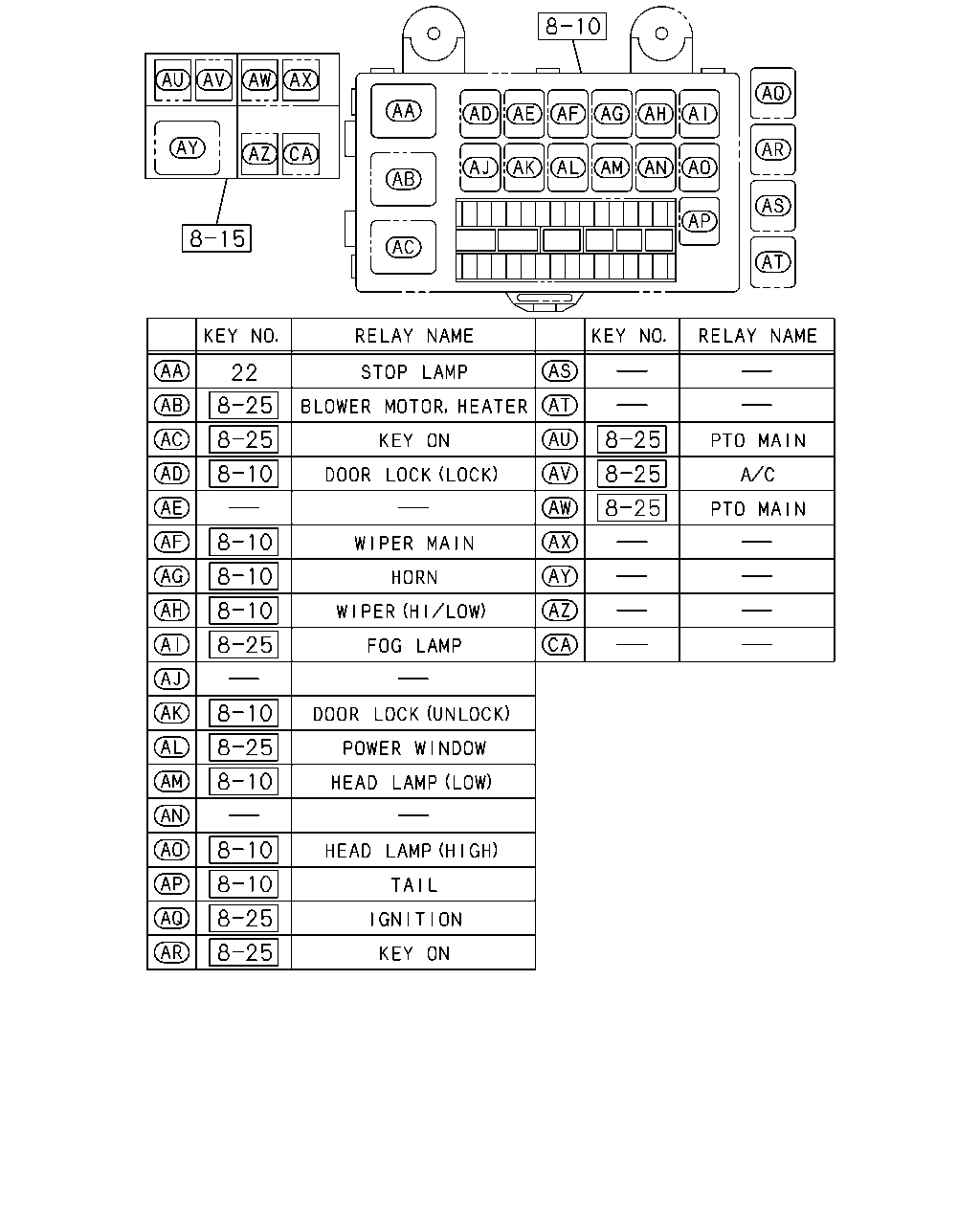

	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
