Sayfa 8-28 - Isuzu EPC

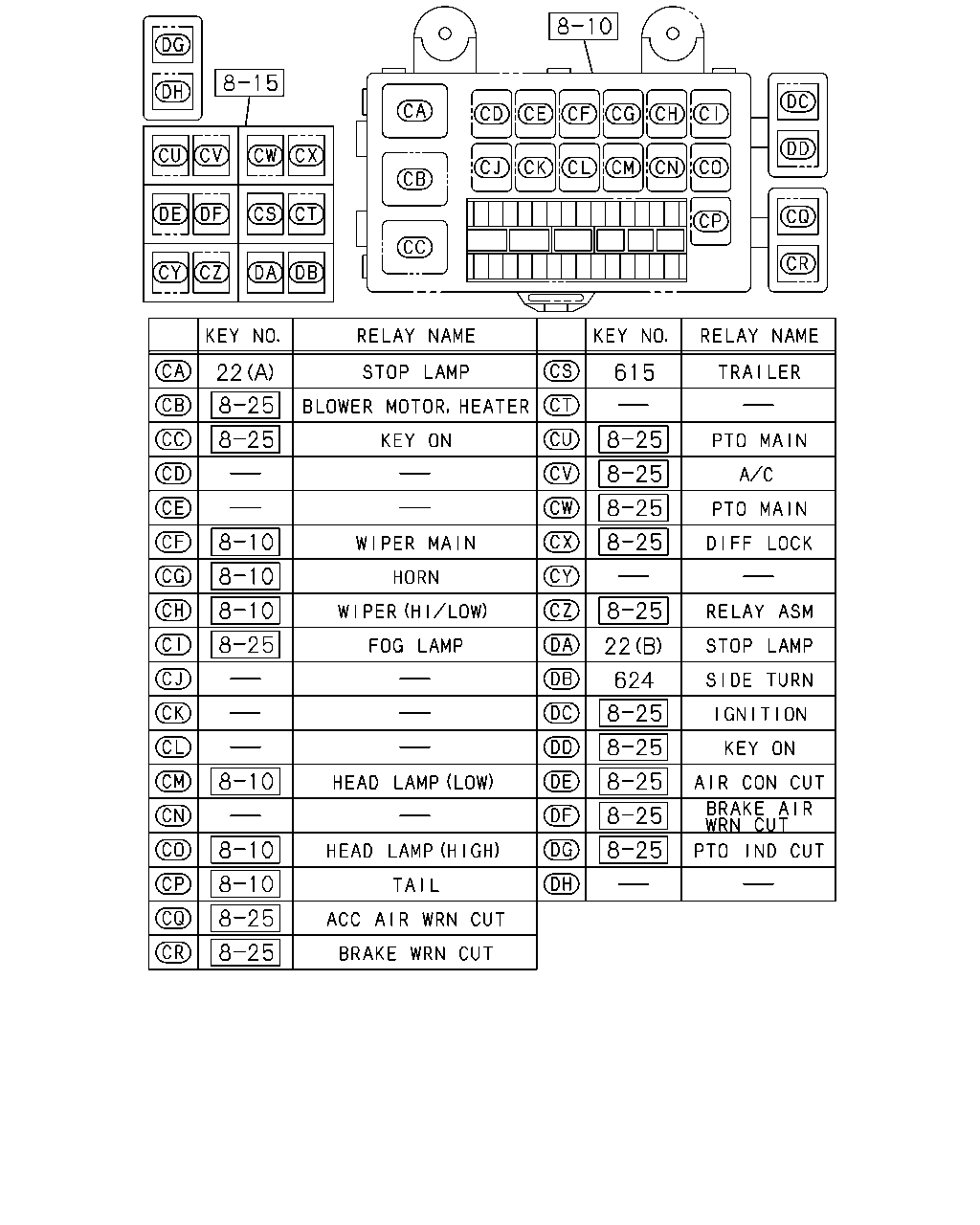

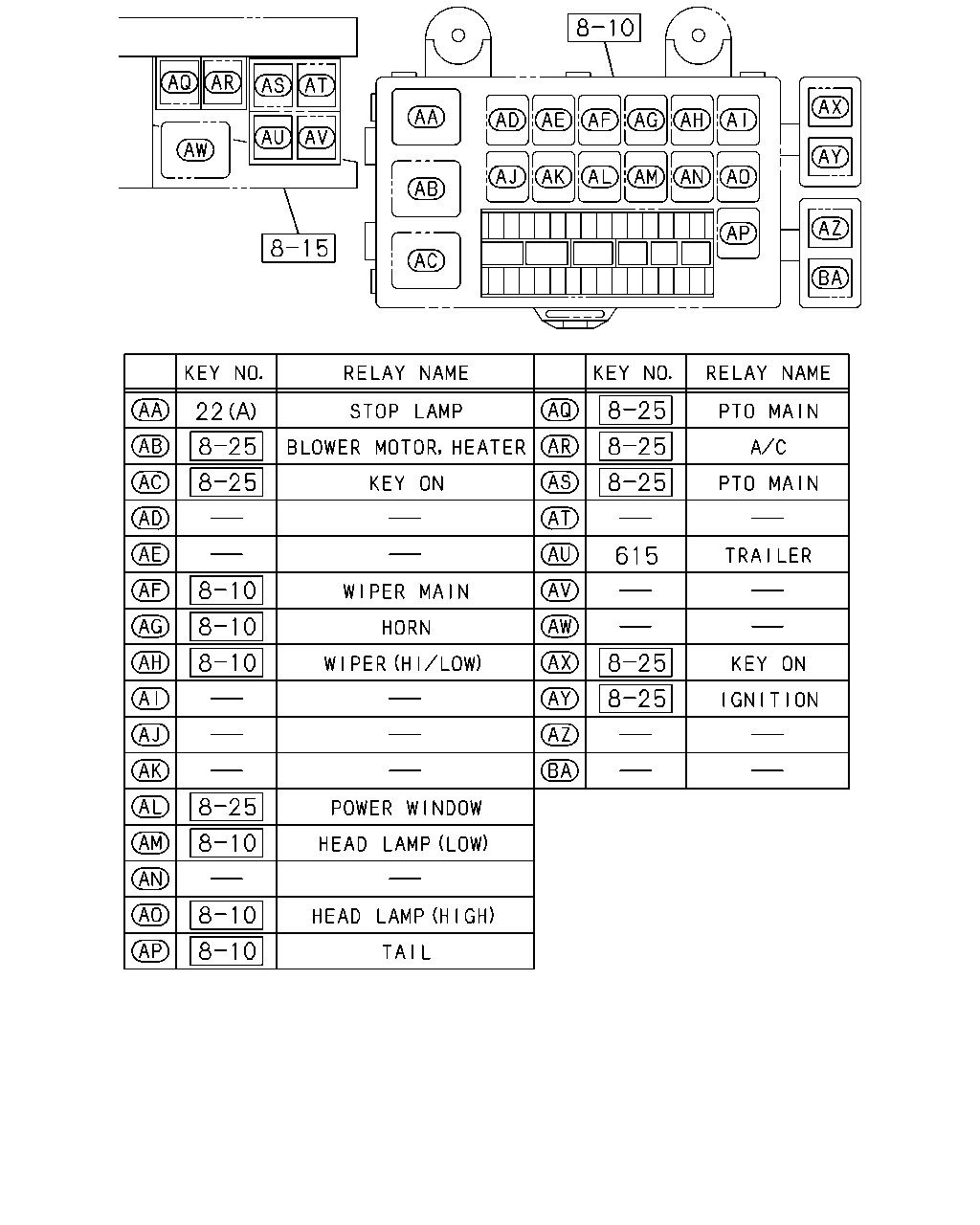

22 615 624 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-	●	●
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-		●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●	●
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-		●

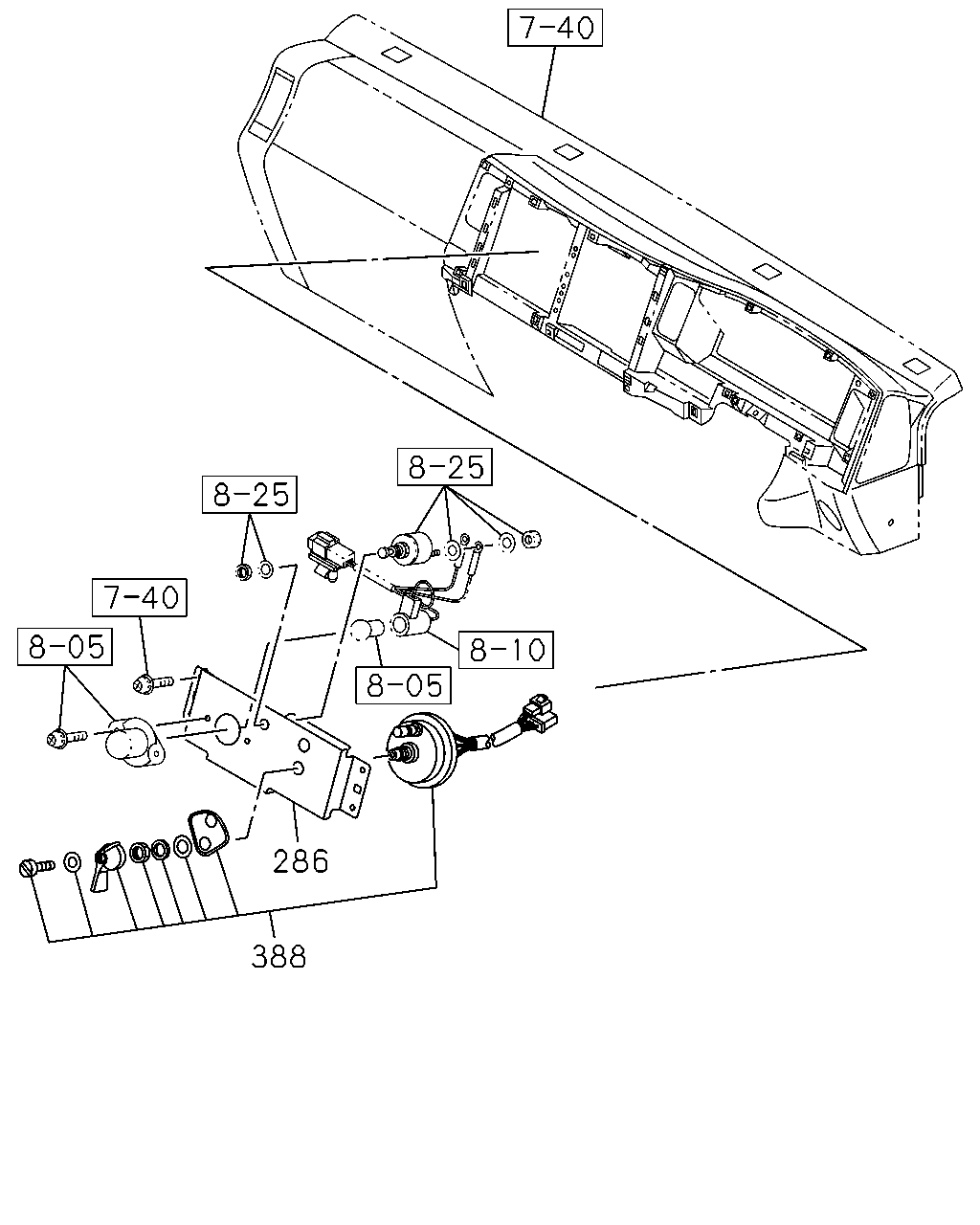

388 286

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1302-		●
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1302-		●

120 190 94 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1302-	●
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1302-	●
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1302-	●
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1302-	●

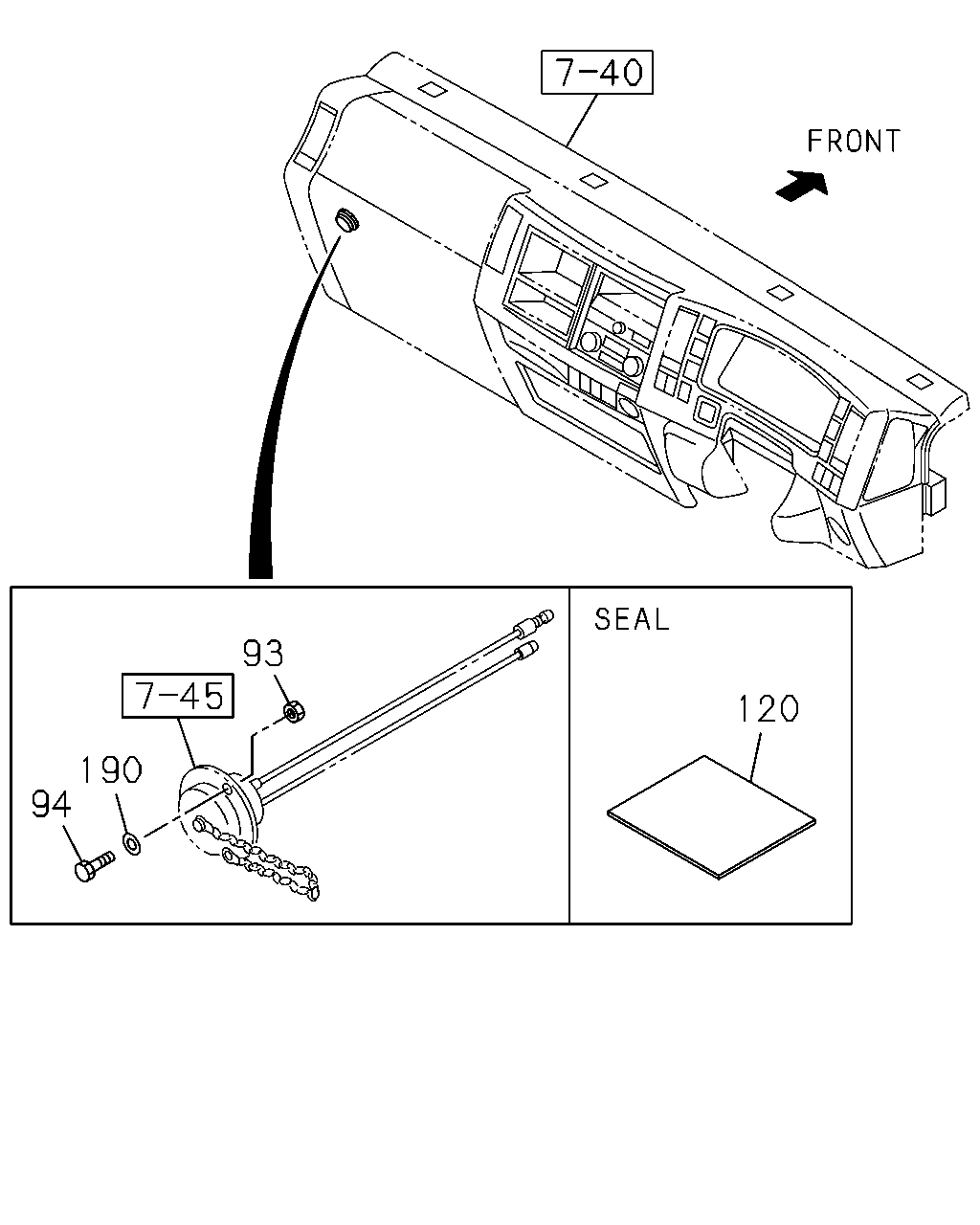

39 36 33 34 34 261 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1302-	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98034-702-0	01	1	1302-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	8-98034-702-0	01	1	1302-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1302-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1302-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1302-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-		●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1302-		●

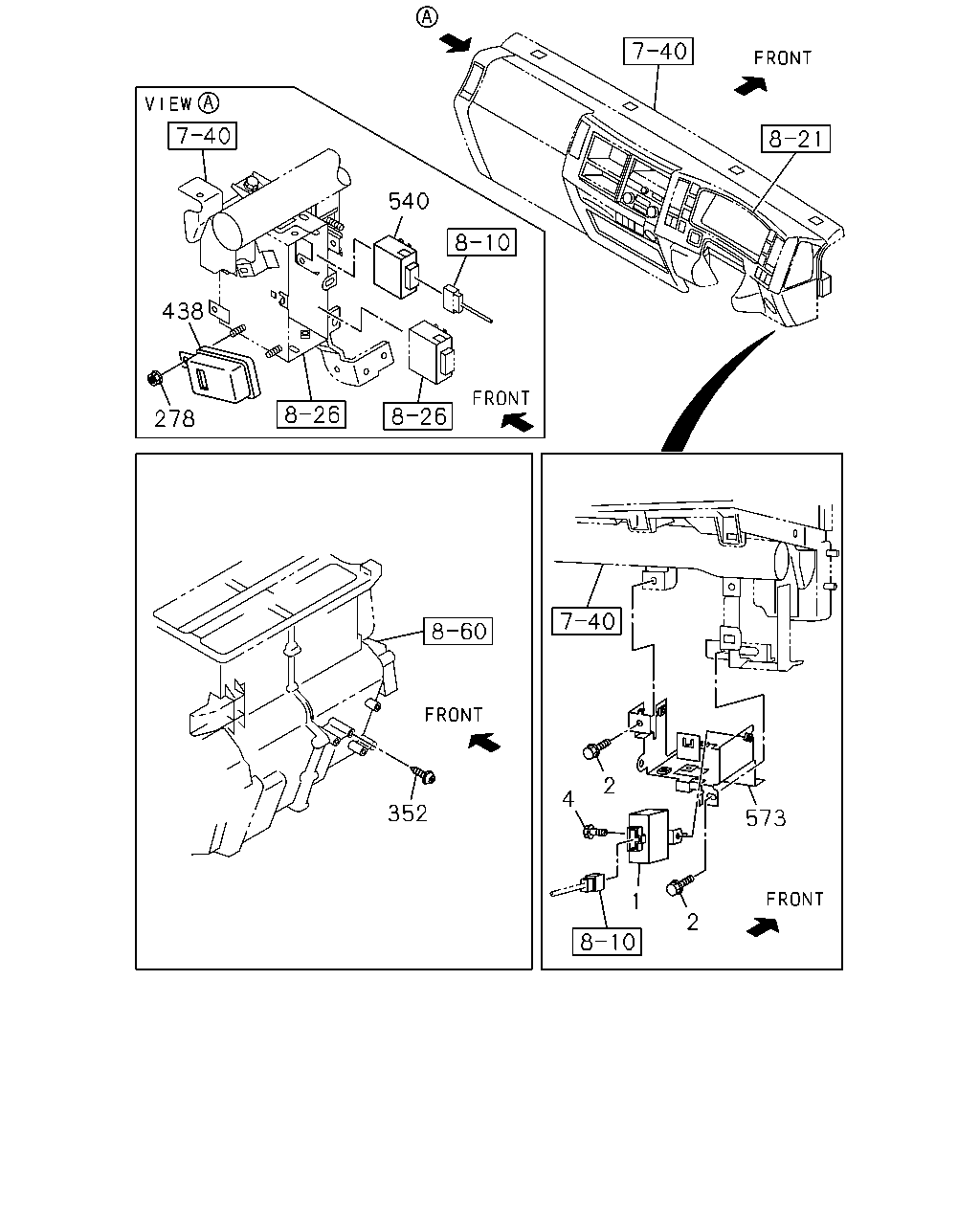

438 278 352 4 2 1 2 573 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-	●	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1302-	●	●
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1302-		●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1302-	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1302-	●	●

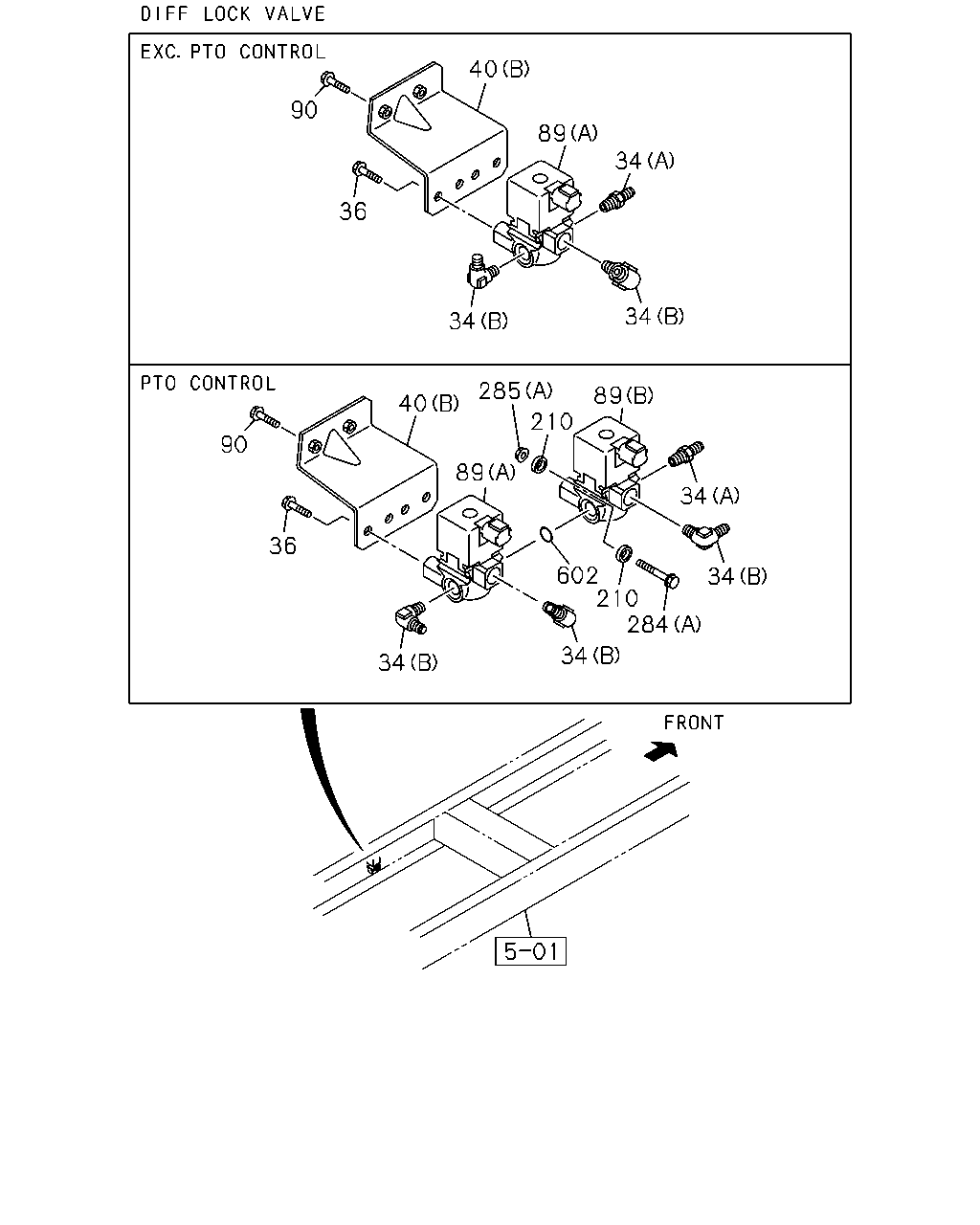

90 40 89 34 36 34 34 285 89 210 89 40 90 34 36 602 34 34 34 210 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
40	BRACKET; MAG VLV (A)	8-98090-008-3	01	1	1302-		●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	8-98034-702-0	01	1	1302-		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> (A)	8-97641-594-0	01	1	1302-		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1302-		●
90	BOLT; MAG VLV DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1302-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1302-	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-		●
210	WASHER; PL,BRKT DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82569-266-0	02	1	1302-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	02	1	1302-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1302-		●
285	NUT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1302-		●
285	NUT; MAG VLV (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1302-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-		●
602	GASKET; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1302-		●

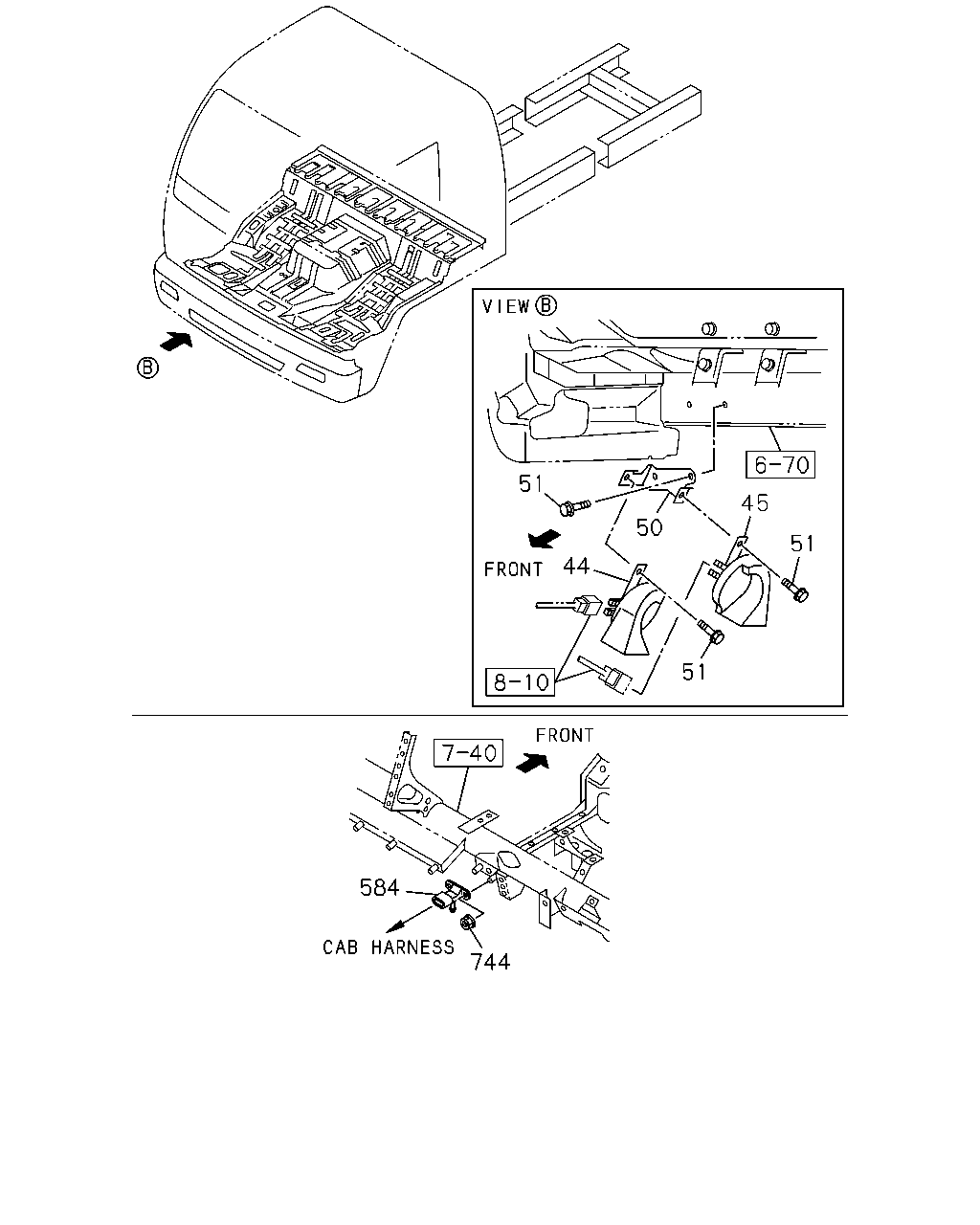

51 50 44 51 45 51 584 744

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1302-	●	●
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1302-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-	●	●

22 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-	●	●
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-		●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1302-	●	●

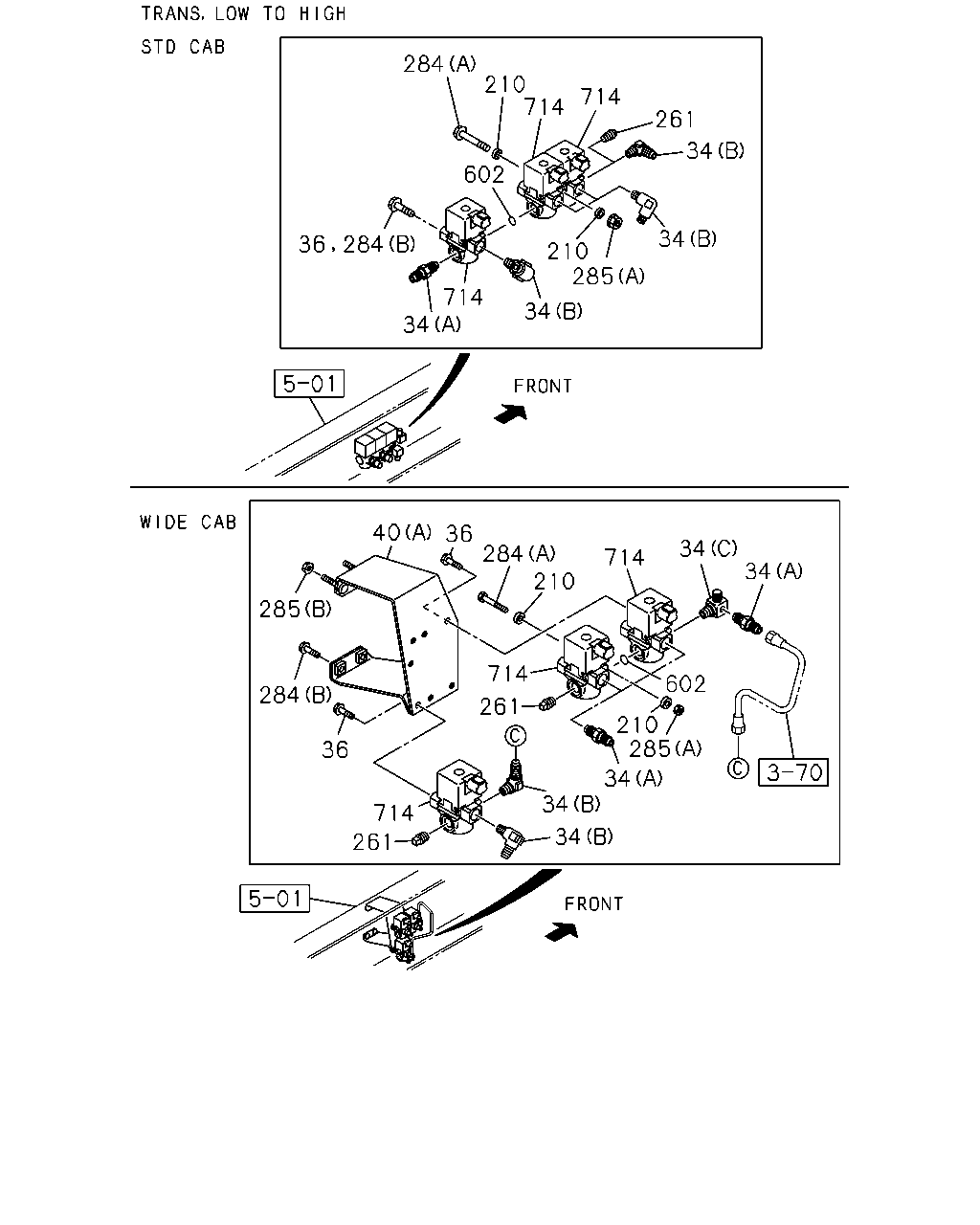

284 210 714 714 261 34 34 602 36 284 210 285 714 34 34 40 285 36 284 210 714 34 34 284 36 714 261 714 261 602 210 285 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1302-		●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
40	BRACKET; MAG VLV (A)	8-98090-008-3	01	1	1302-		●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	8-98034-702-0	01	1	1302-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1302-	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-		●
210	WASHER; PL,BRKT DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82569-266-0	02	1	1302-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1302-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-		●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1302-		●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	1302-	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-		●
284	BOLT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-		●
284	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1302-		●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	02	1	1302-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1302-		●
285	NUT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1302-		●
285	NUT; MAG VLV (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1302-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-		●
602	GASKET; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1302-		●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	1302-	●	●

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402	●	●
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
