Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#112189) — 22 parça

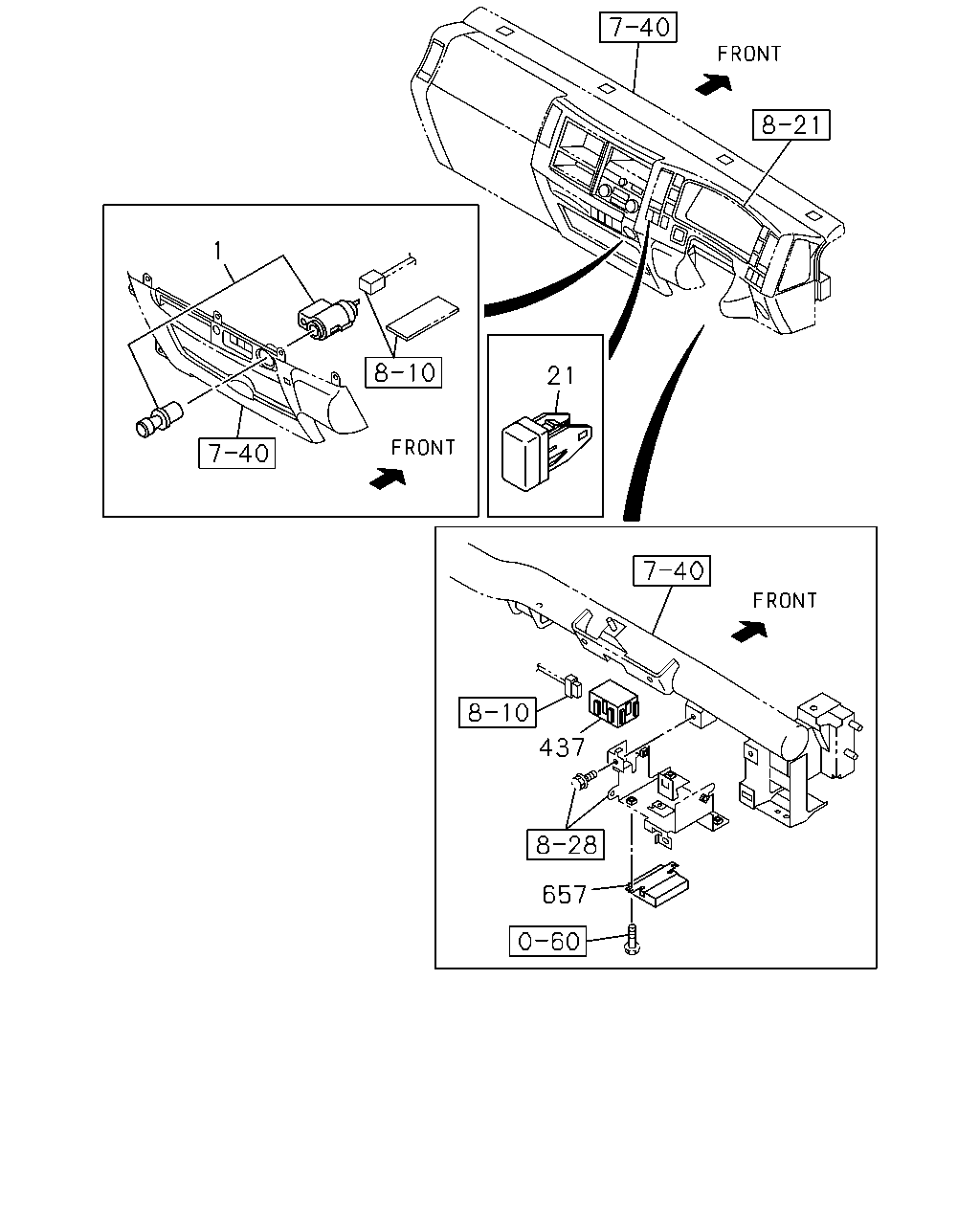

1 21 437 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR ASH TRAY PASSENGER DOOR<8LX>	8-98142-962-0	01	1	1302-	●	●
21	COVER; HOLE	8-98025-954-1	01	1	1302-	●	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1302-	●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	1302-1401	●	●
657	CONTROL UNIT; MIMAMORI	8-98260-912-1	01	1	1402-	●	●

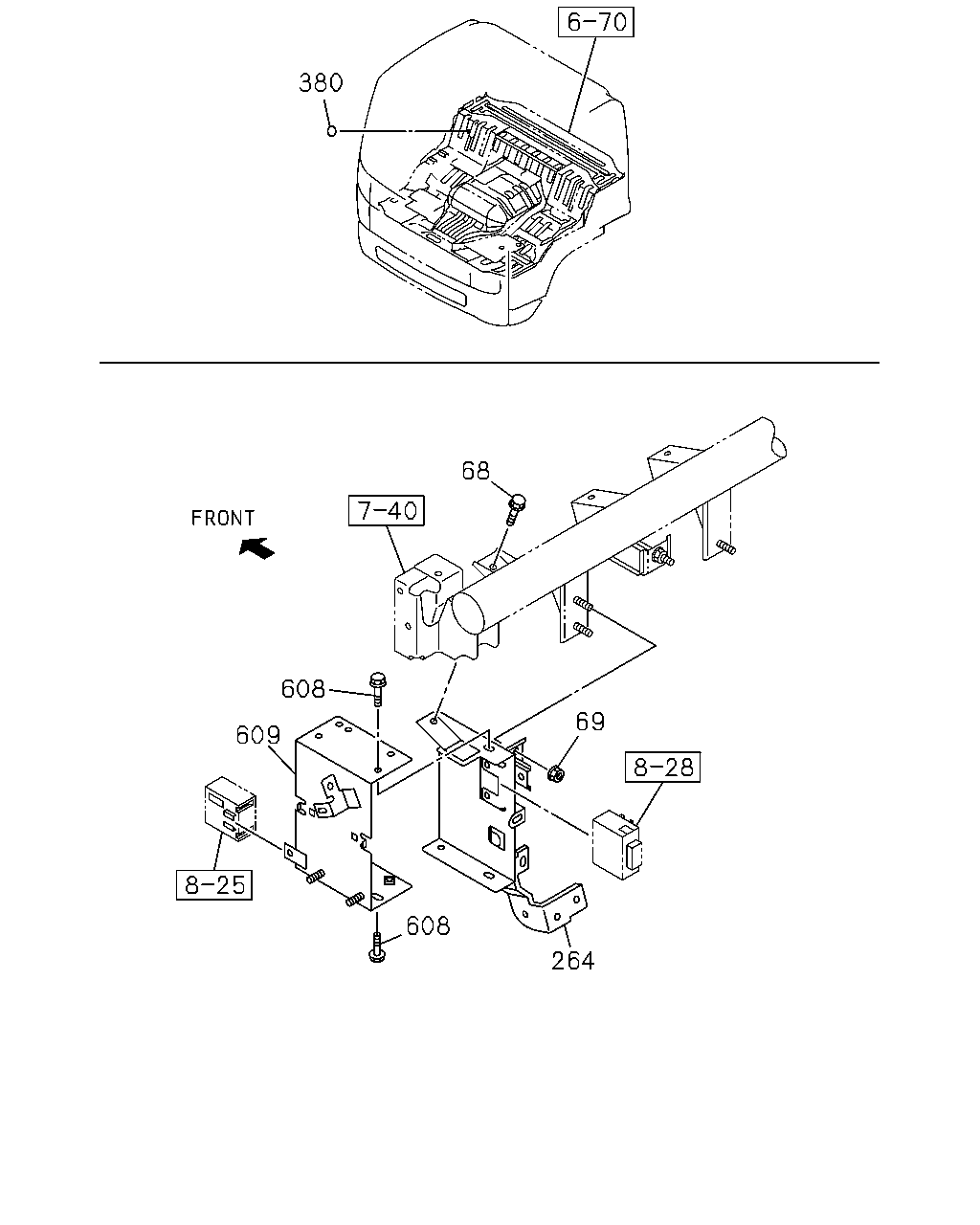

380 68 608 609 608 264 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1302-	●	●
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1302-	●	●
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1302-	●	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1302-	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1302-1308	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-1	01	1	1309-	●	●

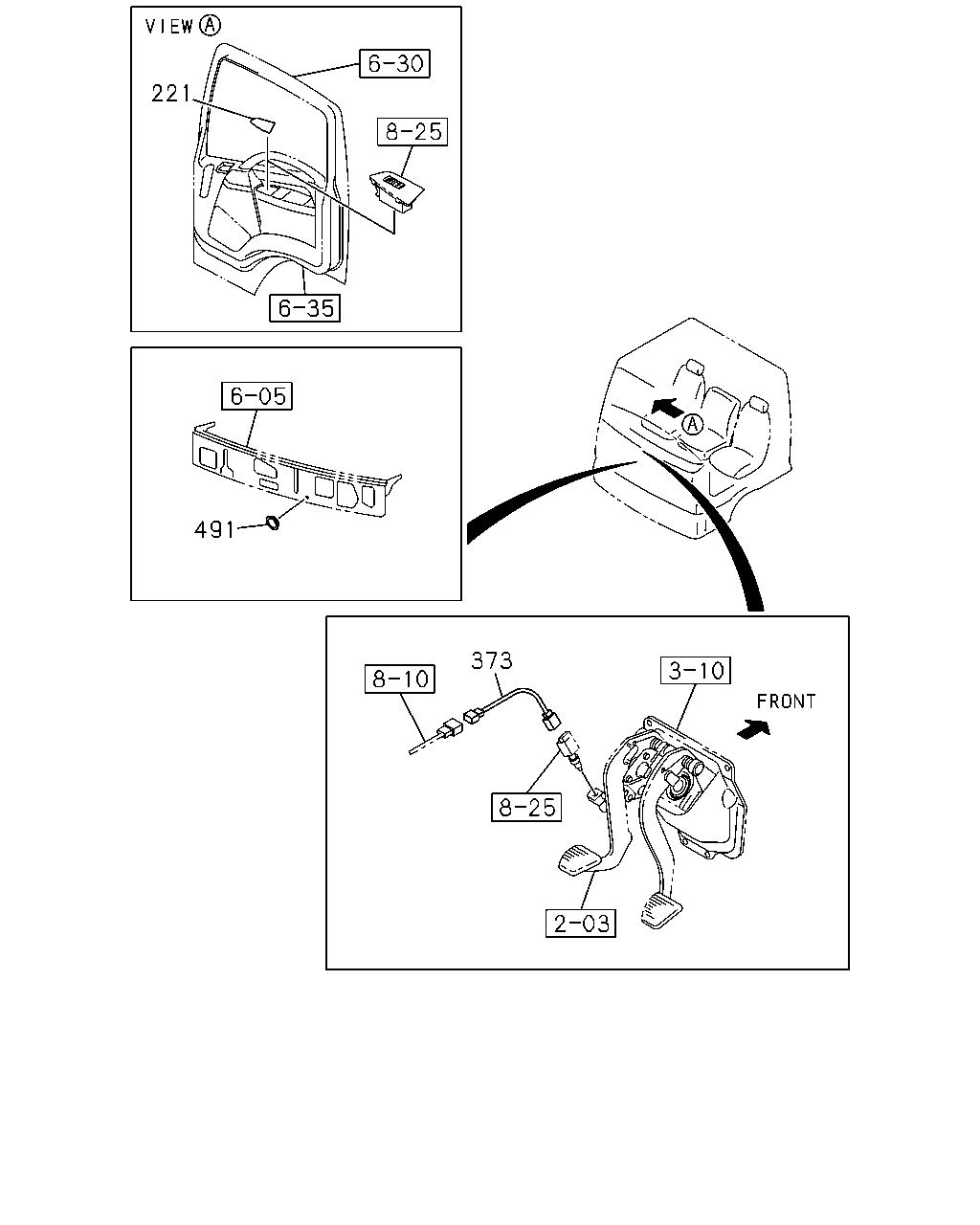

221 491 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1302-	●
221	COVER; HOLE,DOOR LOCK SW	8-98029-916-2	01	1	1302-		●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1302-	●
221	COVER; HOLE,DOOR LOCK SW	8-98029-915-2	01	1	1302-		●
373	HARNESS; CLU SWITCH	8-98053-829-3	01	1	1302-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1302-	●	●

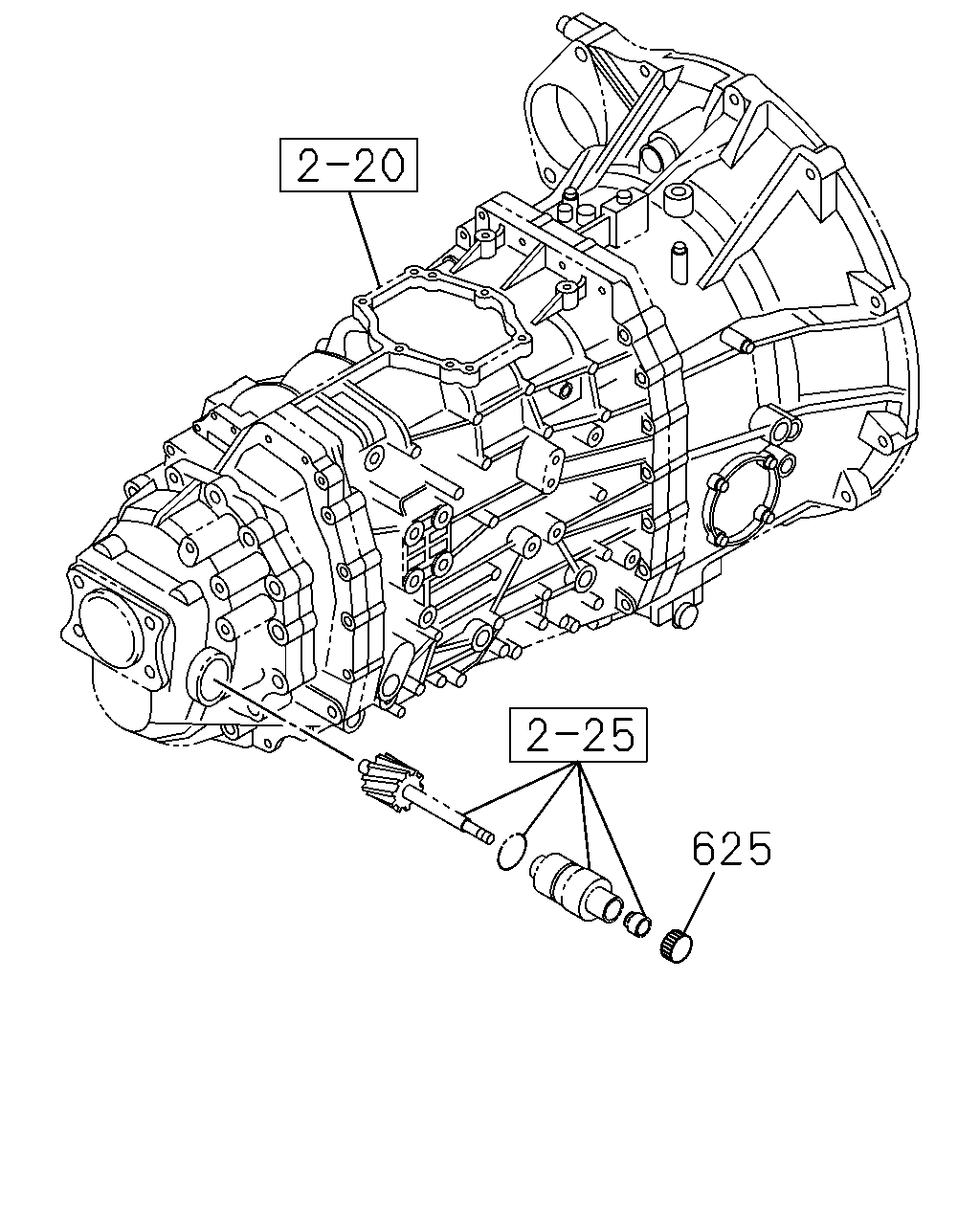

625

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	625	CAP; SPEED SENSOR	1-83129-133-0	01	1	1302-	●	●

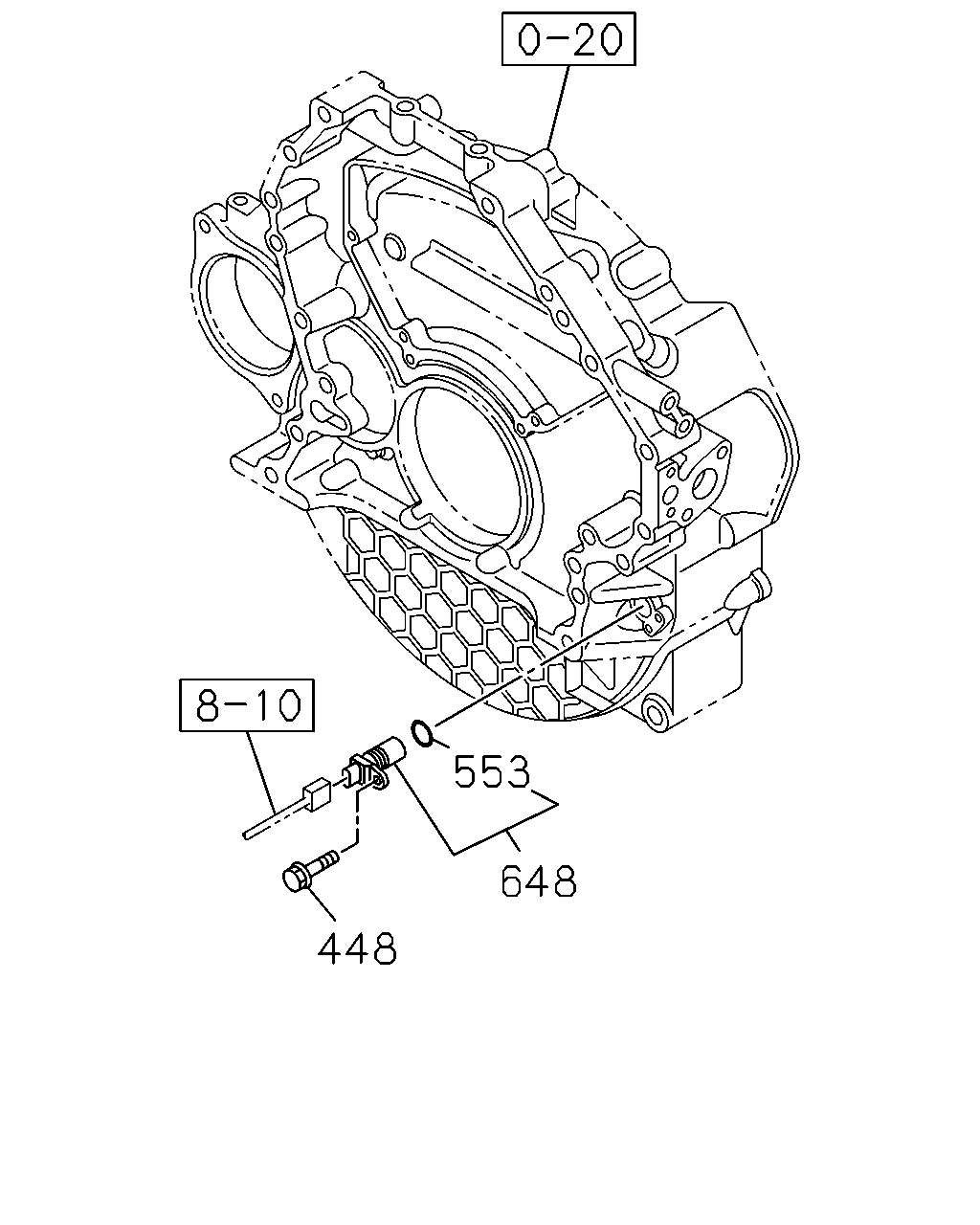

448 648 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
448	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	1302-	●	●
553	GASKET ID=14.2 OD=18.8	8-97369-404-0	01	1	1302-	●	●
648	SENSOR; CRANK ANGLE	8-97606-943-0	01	1	1302-	●	●
