Isuzu WW
▶
TRUCKS
▶
FRR
▶
11506 - FRR RHD EURO2 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#112188) — 26 parça
◀

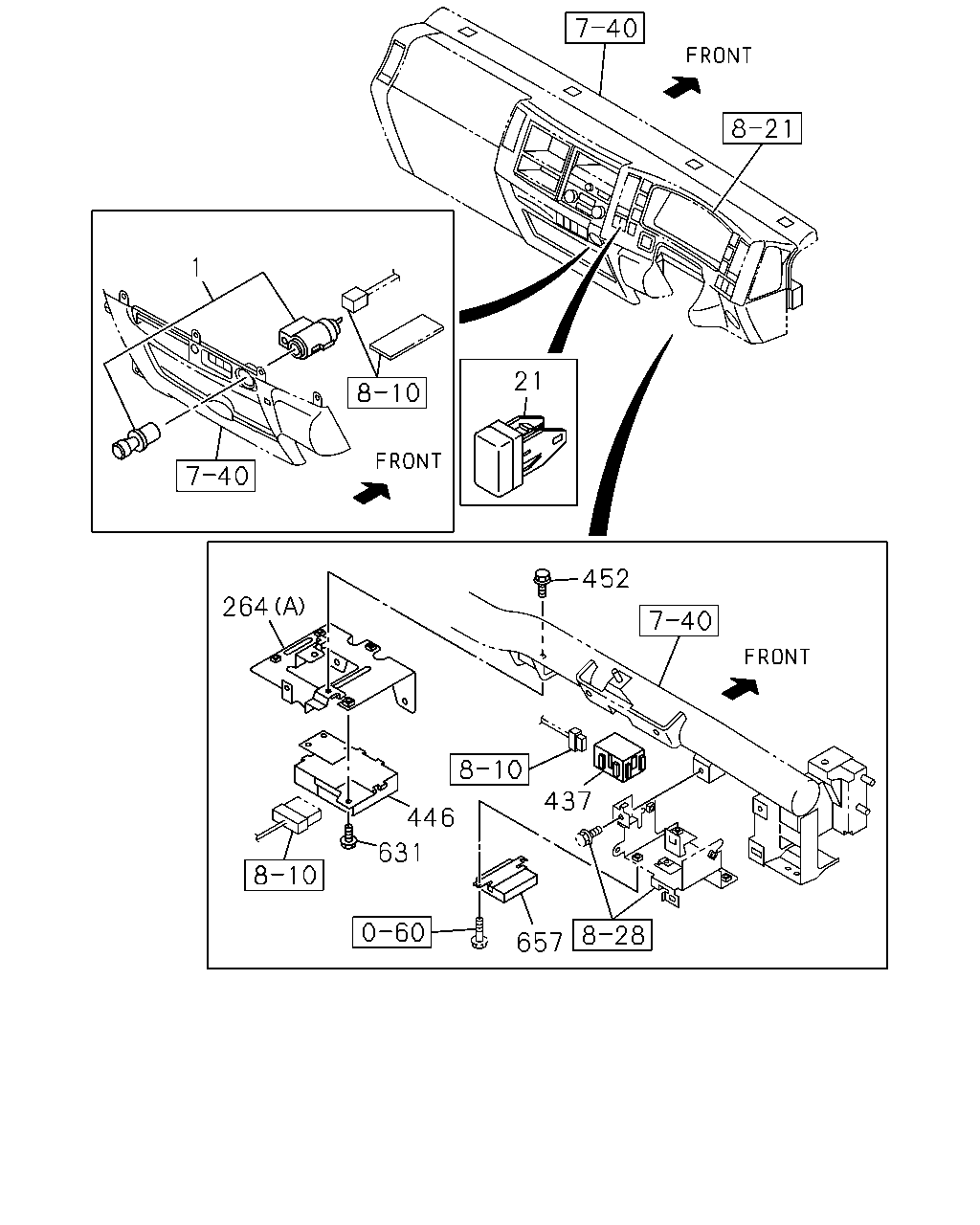

[826A] FRONT SIDE NO.1 (10 parça)
[826A] FRONT SIDE NO.4 (2 parça)

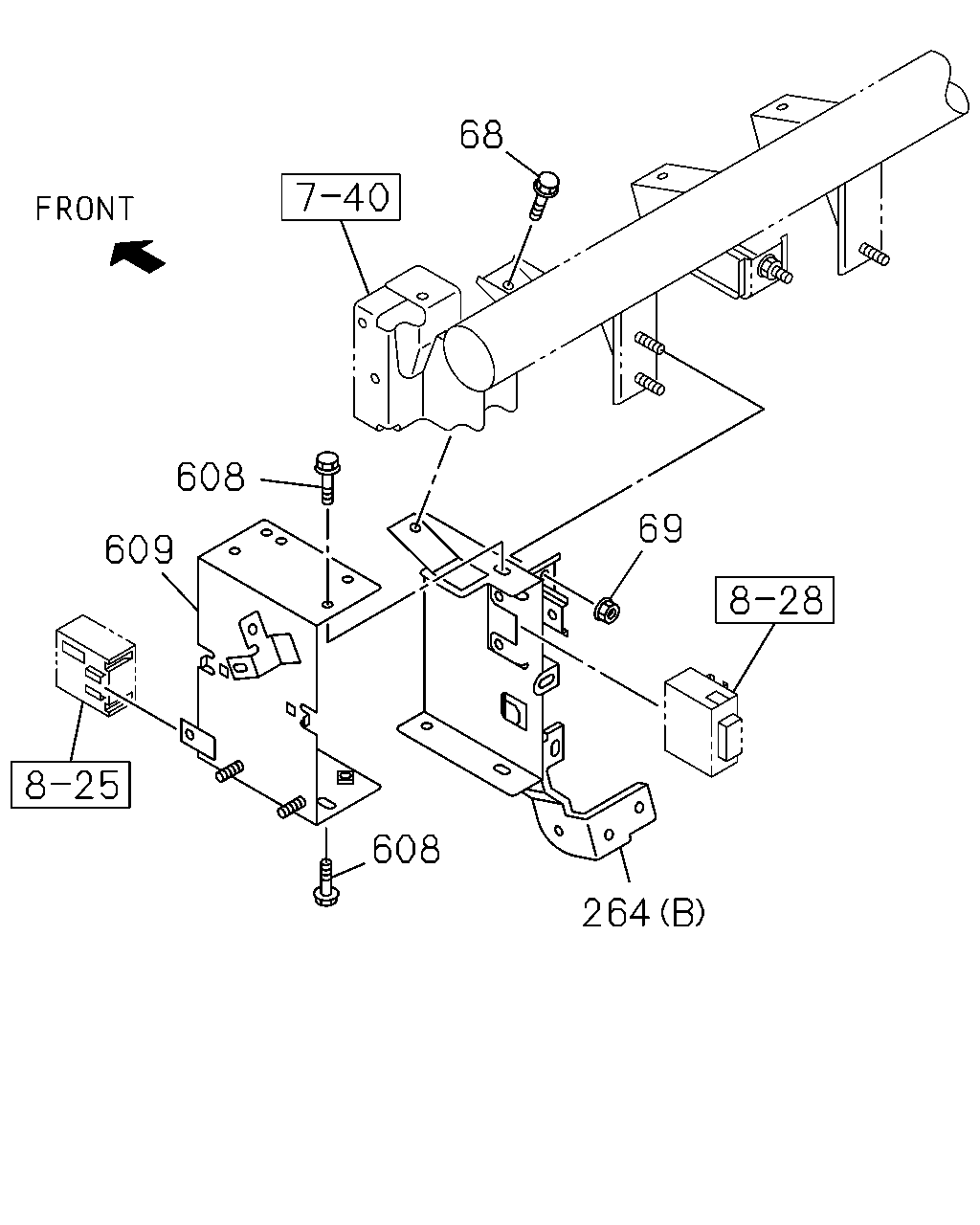

[826A] FRONT SIDE NO.2 (7 parça)

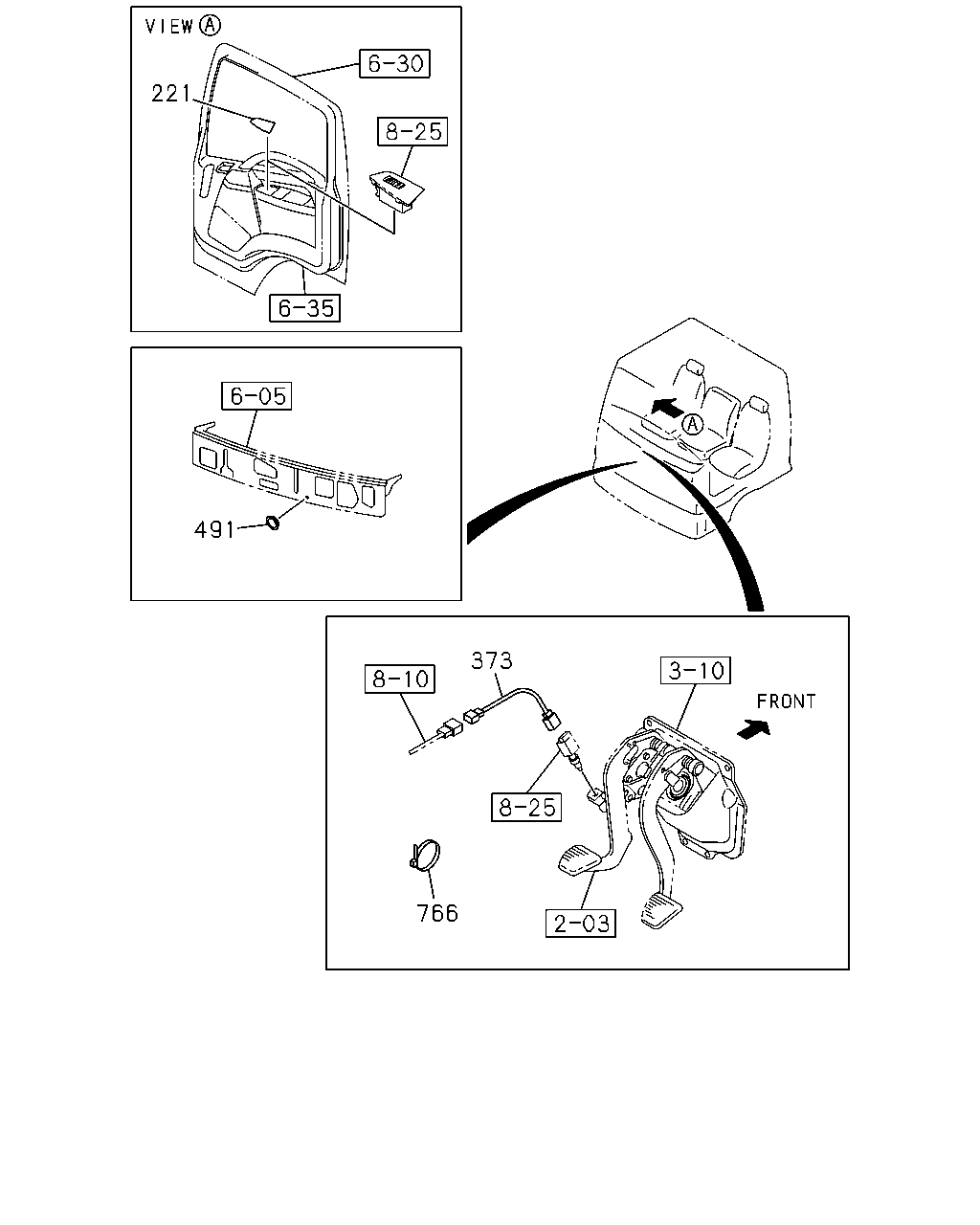

[826A] FRONT SIDE NO.3 (5 parça)

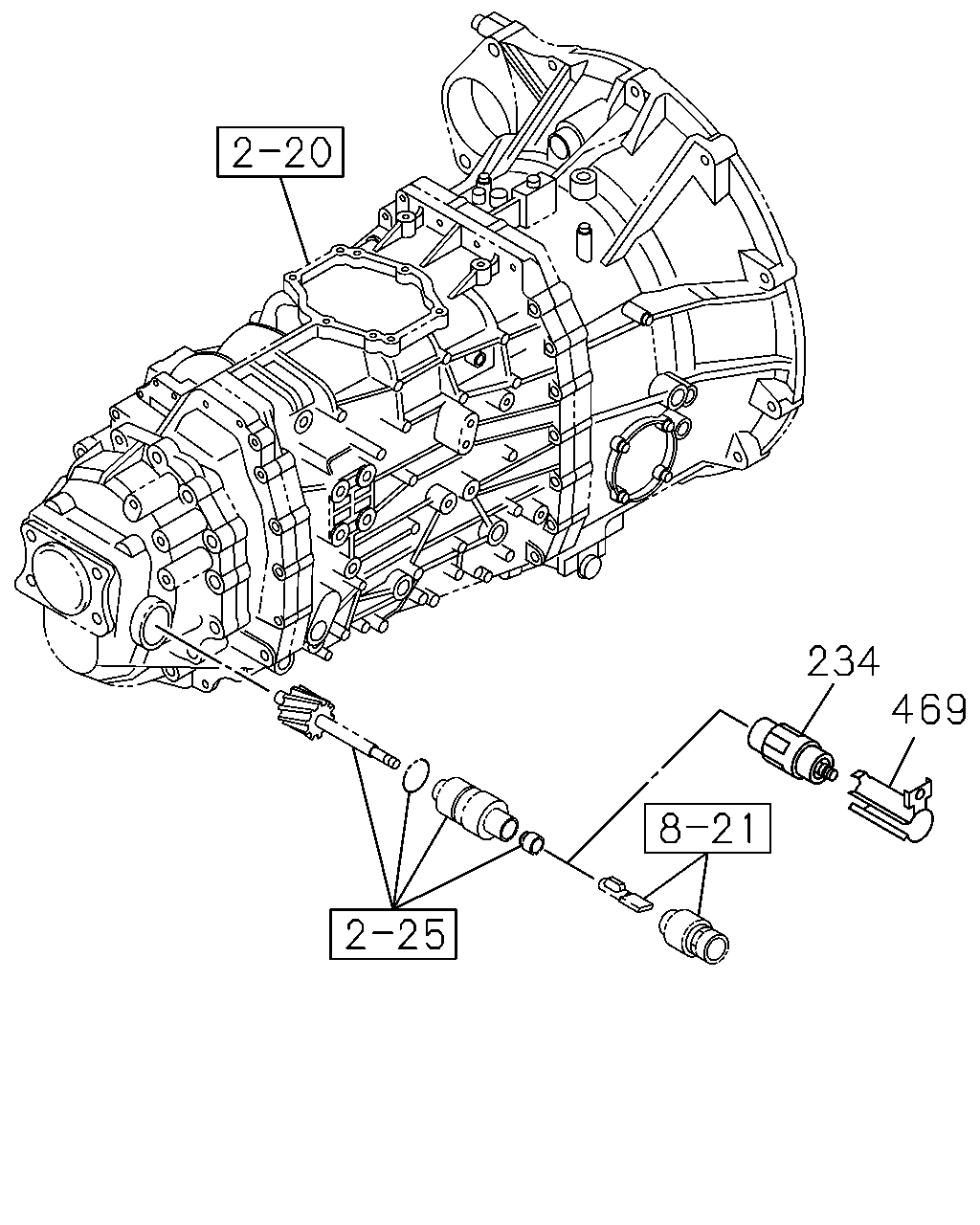

[826A] VEHICLE SPEED SENSOR (2 parça)
▶
1
21
264
446
631
452
437
657
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1302-
21
COVER; HOLE
8-98025-954-1
01
1
1302-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1302-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1302-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1302-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
8-98136-318-1
01
1
1302-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1302-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1302-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1302-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
507
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1302-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1302-
68
608
609
608
69
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1302-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1302-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1302-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98064-901-0
01
1
1302-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1302-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98095-337-0
01
1
1302-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98169-737-1
01
1
1309-
221
491
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1302-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1302-
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
1302-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1302-
766
BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1302-
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1302-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
