8-21 — METER ASM (#112183) — 13 parça

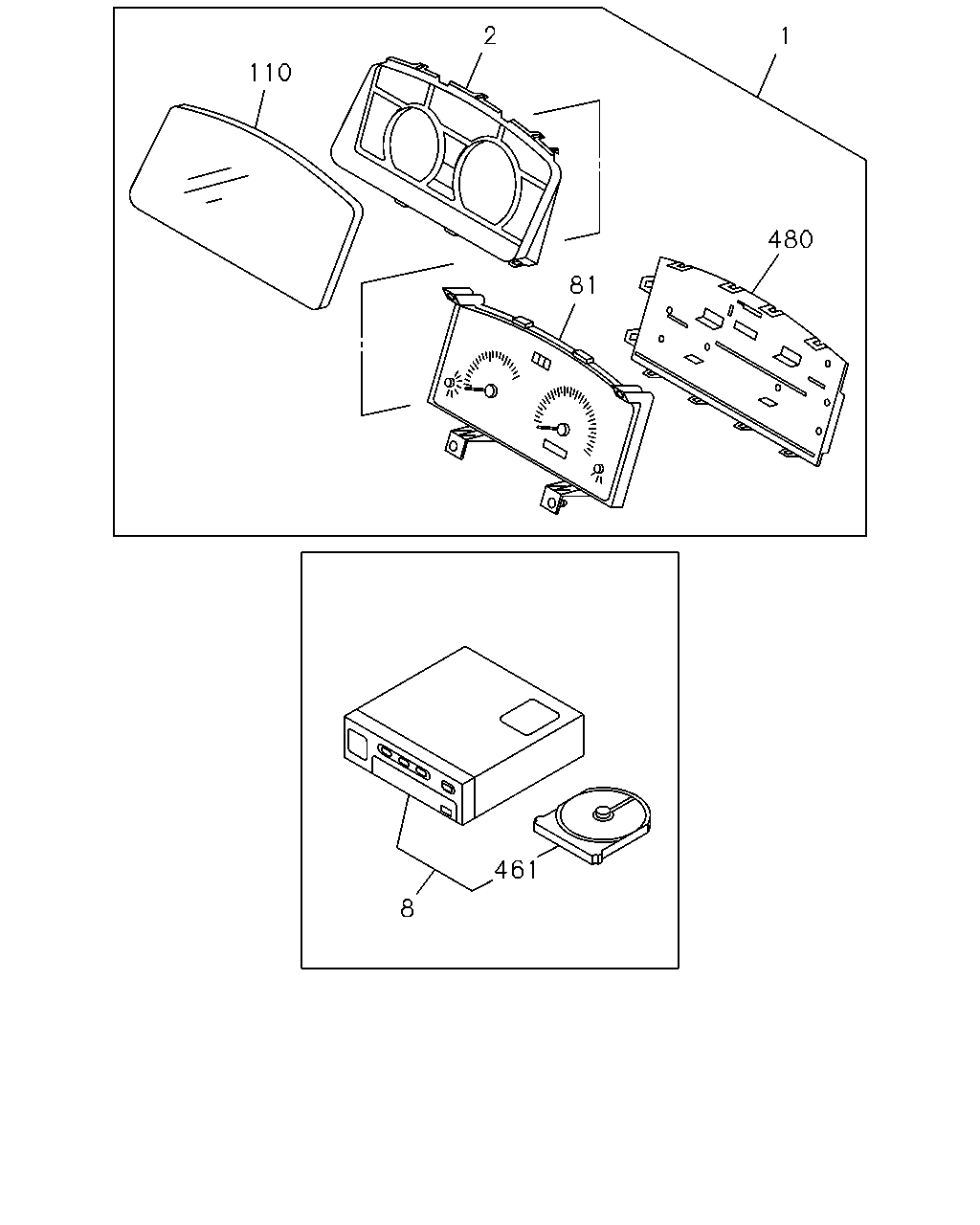

çizim 329901
110 2 1 81 480 8 461
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98095-682-3 01 1 1302-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1302-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1302-
81 METER SUB ASM 8-98149-098-0 01 1 1302-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1302-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1302-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1302-

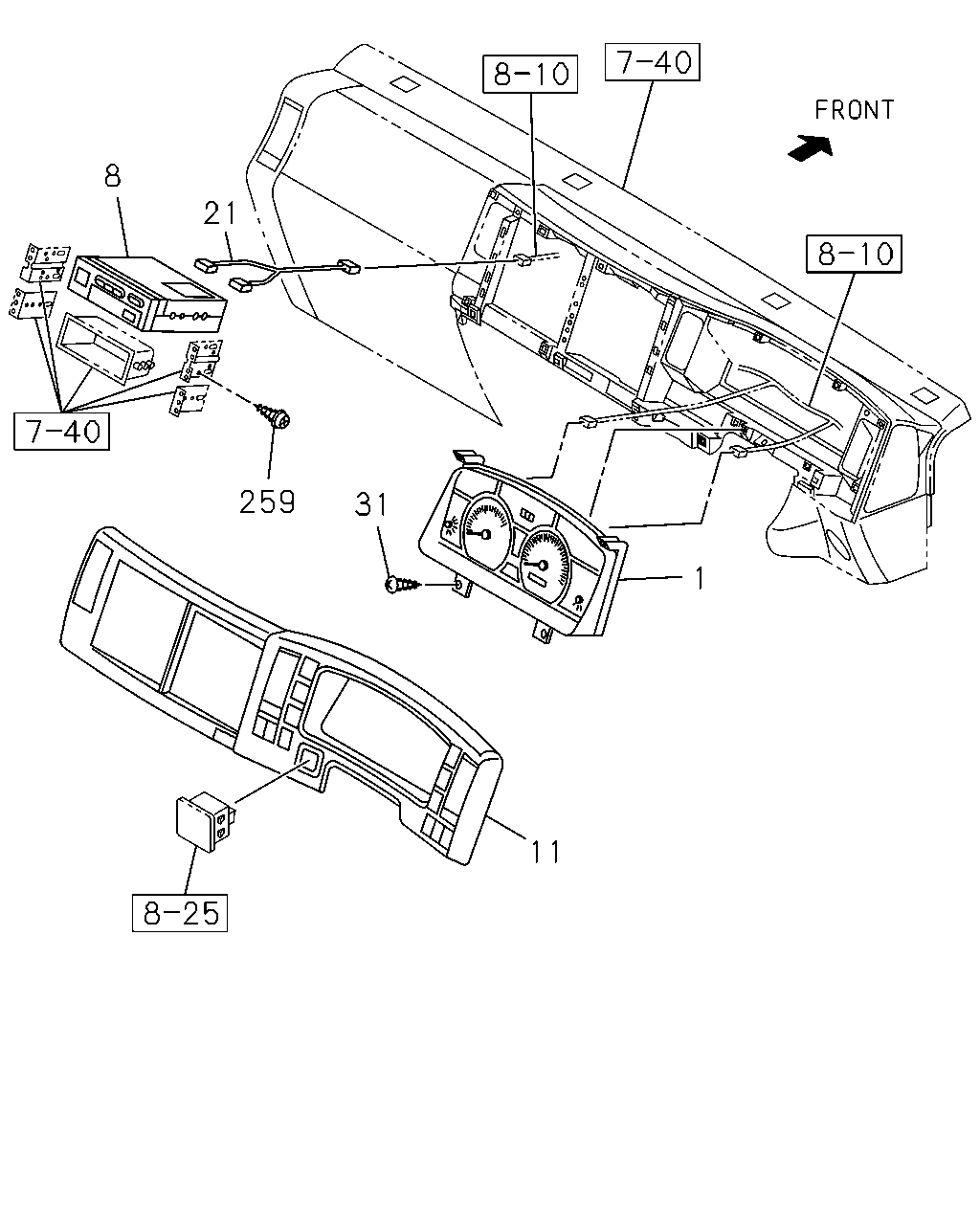

çizim 330299
11 1 31 259 8 21
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98095-682-3 01 1 1302-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1302-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1302-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1302-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1302-
