◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#112180) — 31 parça

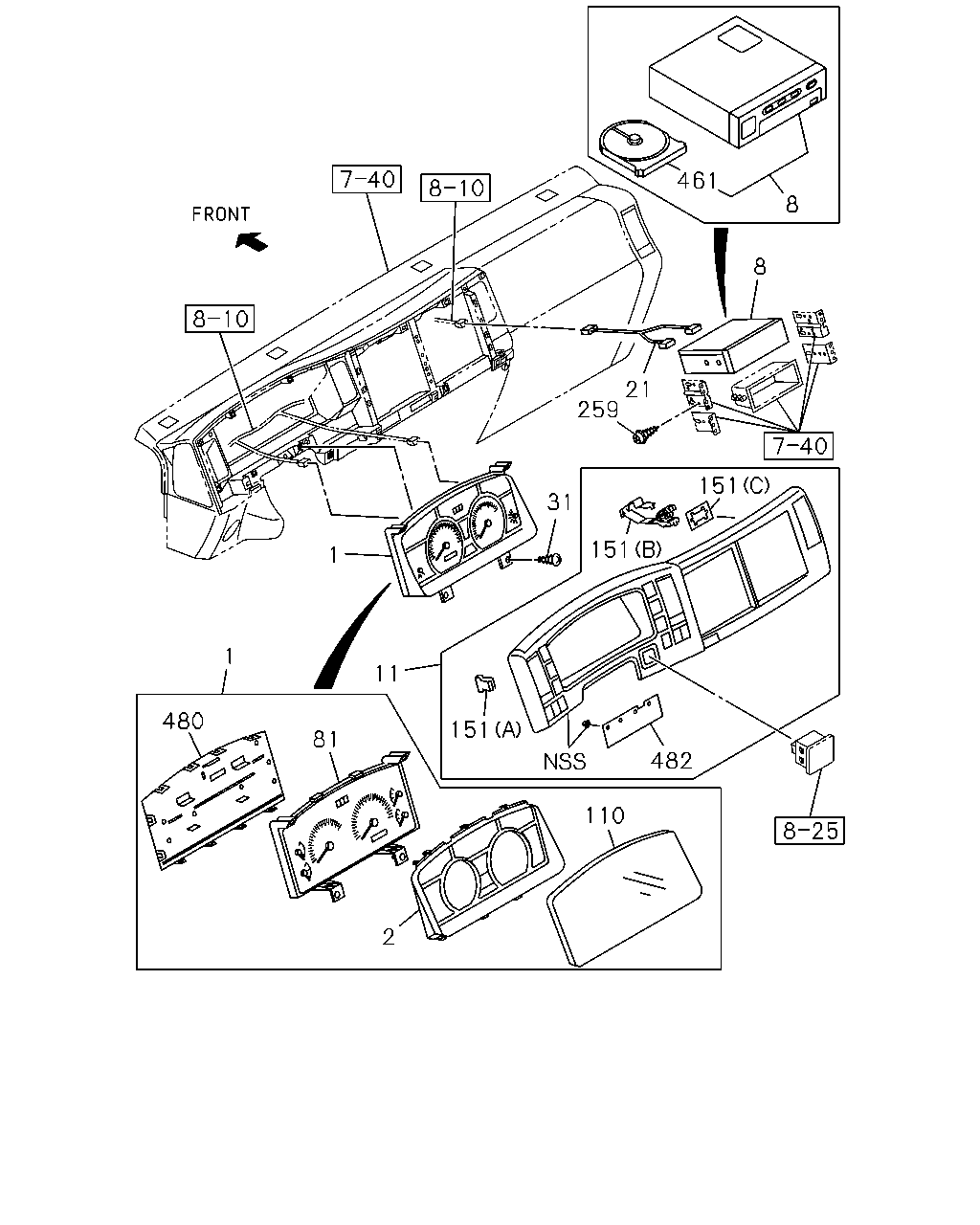

çizim 330156
461 8 8 21 259 151 151 31 482 110 151 11 1 1 480 81 2
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
AUTO CRUISE<K30> 		8-98250-255-0 01 1 1511-
1 METER COMPL; CLUSTER
BRAKE REGULATION ADR(TDU) 		8-98064-926-6 01 1 1302-1308
1 METER COMPL; CLUSTER
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) 		8-98064-926-6 01 1 1309-1510
1 METER COMPL; CLUSTER
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) EXC. AUTO CRUISE<K30> 		8-98064-926-6 01 1 1511-
1 METER COMPL; CLUSTER
EXC. BRAKE REGULATION ADR(TDU) 		8-98064-903-6 01 1 1302-1308
1 METER COMPL; CLUSTER
EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) 		8-98064-903-6 01 1 1309-1510
1 METER COMPL; CLUSTER
EXC. AUTO CRUISE<K30>,BRAKE REGULATION ECE(NBE), BRAKE REGULATION ADR(TDU) 		8-98064-903-6 01 1 1511-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1302-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1302-
11 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-534-1 01 1 1411-
11 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1302-1410
11 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97406-005-6 01 1 1411-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1302-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302-
81 METER SUB ASM
AUTO CRUISE<K30> 		8-98251-111-0 01 1 1511-
81 METER SUB ASM
BRAKE REGULATION ADR(TDU) 		8-98079-674-0 01 1 1302-1308
81 METER SUB ASM
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) 		8-98079-674-0 01 1 1309-1510
81 METER SUB ASM
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) EXC. AUTO CRUISE<K30> 		8-98079-674-0 01 1 1511-
81 METER SUB ASM
EXC. BRAKE REGULATION ADR(TDU) 		8-98079-673-0 01 1 1302-1308
81 METER SUB ASM
EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) 		8-98079-673-0 01 1 1309-1510
81 METER SUB ASM
EXC. AUTO CRUISE<K30>,BRAKE REGULATION ECE(NBE), BRAKE REGULATION ADR(TDU) 		8-98079-673-0 01 1 1511-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1302-
151 CLIP; METER CLUSTER
ECE R29<EFE> (B) 		8-98152-030-0 01 1 1411-
151 CLIP; METER CLUSTER
ECE R29<EFE> (C) 		8-98152-031-0 01 1 1411-
151 CLIP; METER CLUSTER
EXC. ECE R29<EFE> (A) 		8-98021-271-0 13 1 1411-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 13 1 1302-1410
151 CLIP; METER CLUSTER
ECE R29<EFE> (A) 		8-98021-271-0 12 1 1411-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1302-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1302-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1302-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1302-
