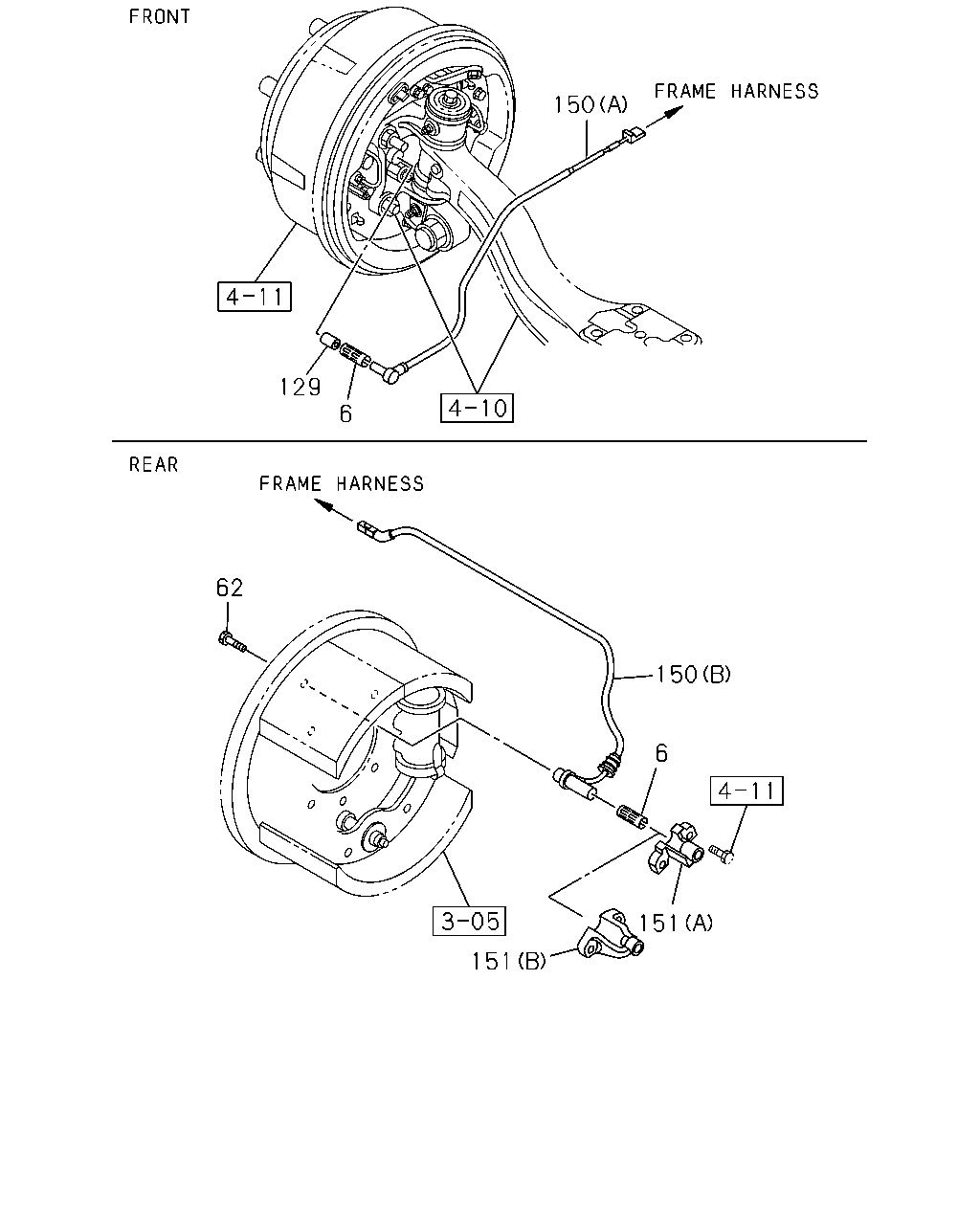

8-20 — METER CABLE (#112179) — 31 parça

129 6 150 62 151 151 6 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	1302-	●	●
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	1302-	●	●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) M8X16 HEX SOCKET	0-58330-816-0	02	1	1406-1409	●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) M8X16 HEX SOCKET	0-58330-816-0	02	1	1410-1506	●
62	BOLT; SENSOR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M8X16 HEX SOCKET	0-58330-816-0	02	1	1410-1506	●
62	BOLT; SENSOR ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●	●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	1302-1409	●	●
62	BOLT; SENSOR FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/917.5"(W4R) ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	1410-1506	●	●
62	BOLT; SENSOR FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M8X16	9-05820-816-0	02	1	1410-1506	●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1302-	●
129	COLLAR ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1302-		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (B)	8-98283-877-0	01	1	1406-	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/917.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) ANTI LOCK BRAKE<JE5> (B)	8-98089-383-0	01	1	1406-	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1302-	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1302-		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B)	8-98089-383-0	01	1	1302-1405	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) FINAL GEAR 40/6 18.5"(W3G) (B)	8-98271-156-1	01	1	1406-	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B)	8-98089-384-0	01	1	1302-1405	●
150	SENSOR; SPEED,ABS FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/917.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) ANTI LOCK BRAKE<JE5> (B)	8-98089-384-0	01	1	1406-	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98107-826-0	01	1	1302-		●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98107-827-0	01	1	1302-		●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83129-403-0	01	1	1302-1405	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-403-0	01	1	1406-1504	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-396-0	01	1	1505-	●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83129-404-0	01	1	1302-1405	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-404-0	01	1	1406-1504	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-397-0	01	1	1505-	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-405-0	01	1	1302-1504		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-398-0	01	1	1505-		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-406-0	01	1	1302-1504		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-399-0	01	1	1505-		●
